Pedestrian gate kits

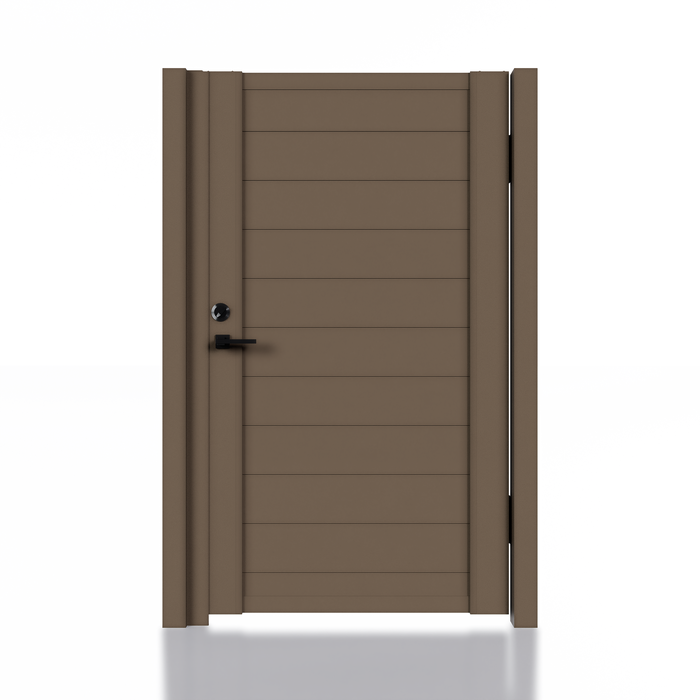

For full privacy: a boxed 4x6 aluminum privacy gate kit with 11 interlocking ALU 60 tongue-and-groove slats cut to 39in., the DIY 4' x 6' frame kit and 7/8 plugs – no gaps between slats.
Coming soon · please confirm availability before ordering.
Coming soon — please confirm availability with us before ordering.
$808.75
Some openings need to block the view completely – a pool equipment area, trash bins, or a side yard next to a busy street. This 4×6 aluminum privacy gate kit uses ALU 60 tongue-and-groove (T&G) slats that lock into one another, so the finished gate shows a continuous, solid face with no gap between boards. It is a single-swing pedestrian gate kit supplied in one box with the frame, slats and plugs.
The slats are pre-cut to 39in. for the 4' x 6' frame, and everything is 6063-T6 aluminum finished with AAMA 2604 super-durable powder coating – the same materials used across our horizontal fence systems.

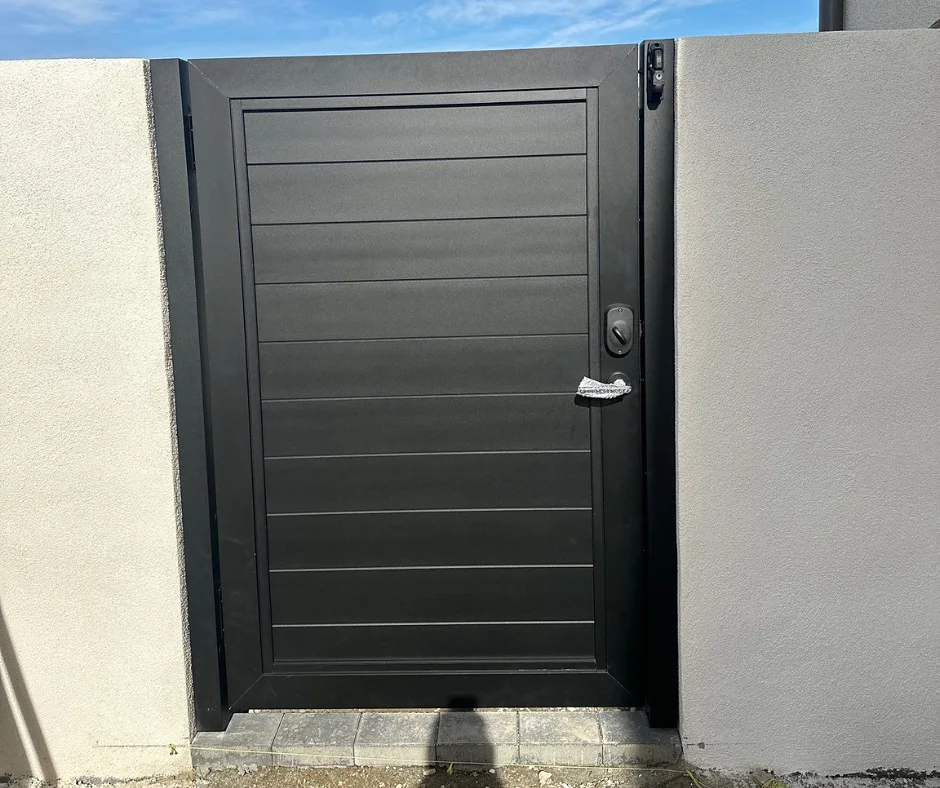

ALU 60 T&G black pedestrian gate project
The frame kit is listed with a vertical gate frame, vertical gate frame cap, top and bottom horizontal gate frame, 2 heavy duty hinges and a gate stopper. Posts and latch hardware are chosen separately.
The ALU 60 T&G profile is a 6-inch slat with a tongue on one edge and a groove on the other. Stacking them in the frame closes every seam, which is why this kit needs only 11 slats where the gapped ALU 40 kit uses 16. The result looks like a solid panel from both sides while keeping the light weight and weather resistance of aluminum:
Each slat is a 0.047 wall aluminum profile, and the 7/8 plugs finish the open ends so the edges of the gate look as clean as its face.
If you prefer airflow over total privacy, compare the ALU 40 4×6 gate kit with a 3/8" gap.
Posts are not included. The price list pairs this kit with five post options:
A closed privacy gate catches more wind than a gapped one, so choose a post and footing that suit your site and local code. For an opening between two walls, the 2x2in Hinge Post & L-Side Post Kit is the wall-to-wall option. For in-ground posts, the 3in HD post (concrete footing) and 4in HD post (standalone) are listed. If you are unsure which is right, confirm with our team.
The kit is listed in Black, Bronze and White. Every finish of this kit is currently marked coming soon, so please check with our team for availability before ordering. The matching ALU 60 T&G gate slat box (11pcs, 39in) is also listed on its own for buyers who already have a compatible frame.
Measure the finished opening and allow for the posts you plan to use, then compare against the 4 ft x 6 ft kit size. Check local code for gate and pool-area rules where they apply, and follow the included instructions during assembly.
It also helps to decide early which way the gate will swing and where the latch will sit, since latch hardware is ordered separately. If the gate will stand next to an existing T&G fence, using the same ALU 60 profile keeps the boards lined up visually across the run. For wider openings, see the 6×6 version or browse all aluminum gates.
Material & finish

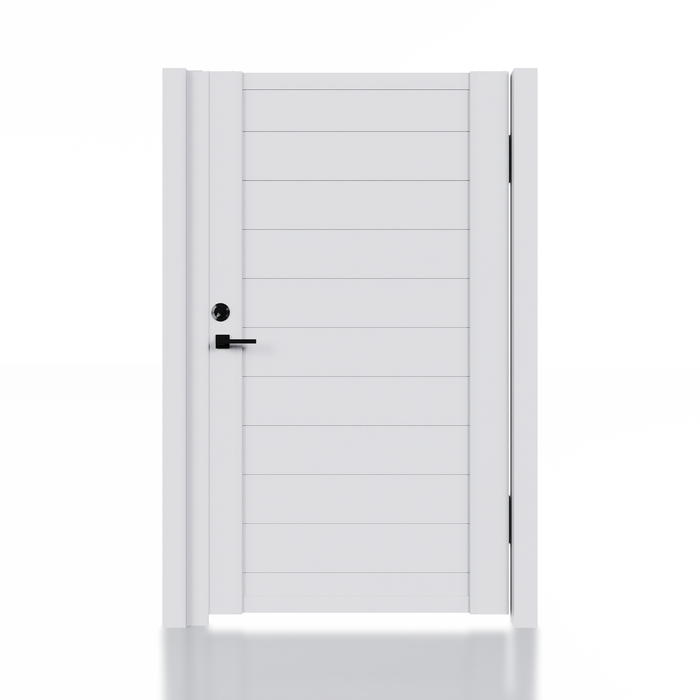

(Box) Alu 60 T&G 4×6 ft. DIY Pedestrian Gate Kit – Single swing – No Gap is made from aluminum 6063-t6, finished with AAMA 2604 super-durable powder coating.
6063-T6 is an architectural aluminum alloy made for extruded profiles. It gives clean, consistent shapes and takes a powder coating evenly, which is why it is widely used for fences, gates and other exterior building products.
AAMA 2604 is the American Architectural Manufacturers Association specification for high-performance organic coatings, powder coatings included, on aluminum extrusions. It sets test requirements for outdoor color and gloss retention, chalking and corrosion resistance.
Material
Aluminum 6063-T6
Finish
AAMA 2604 super-durable powder coating
Color
Black, Bronze, White
Where it is used
Listed use: Pedestrian gates.
Ordering

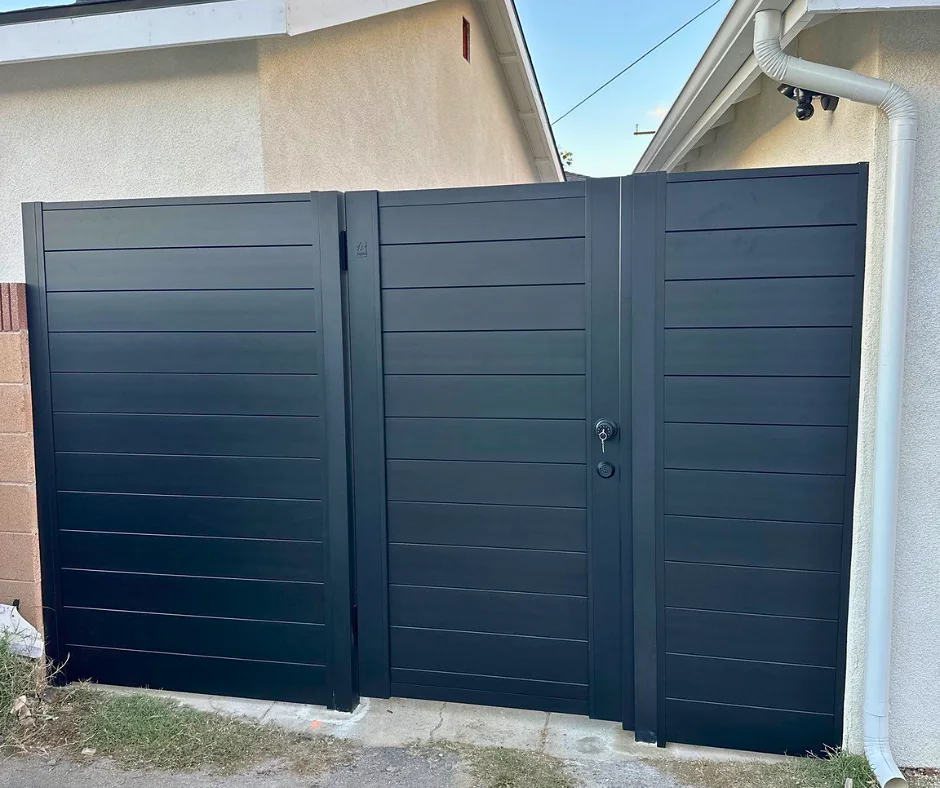

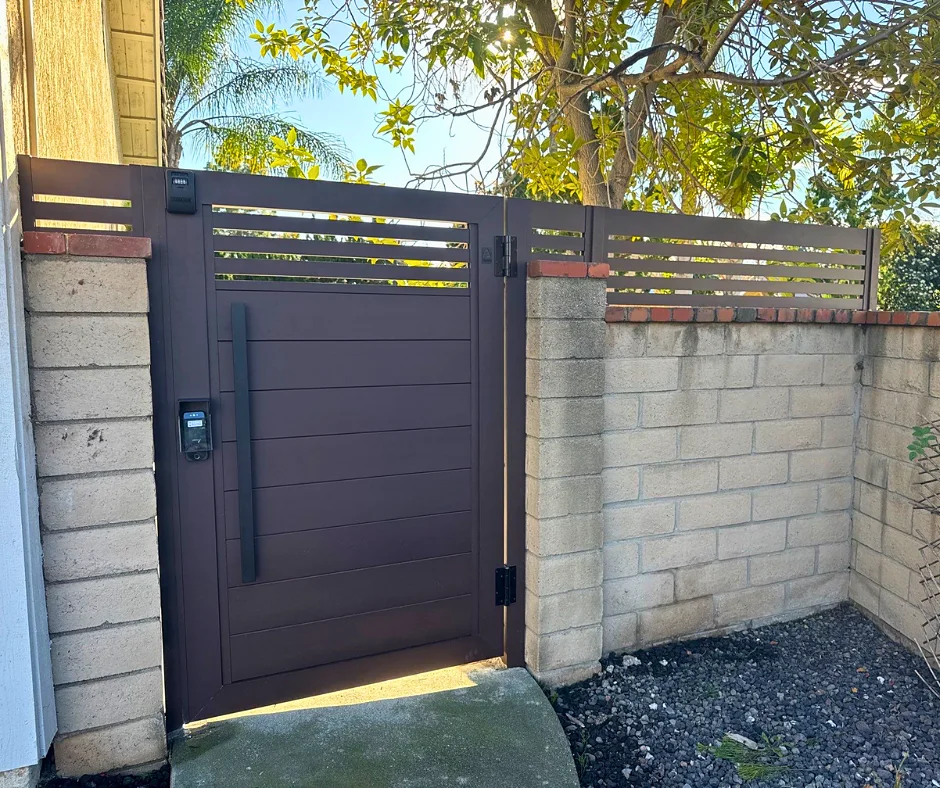

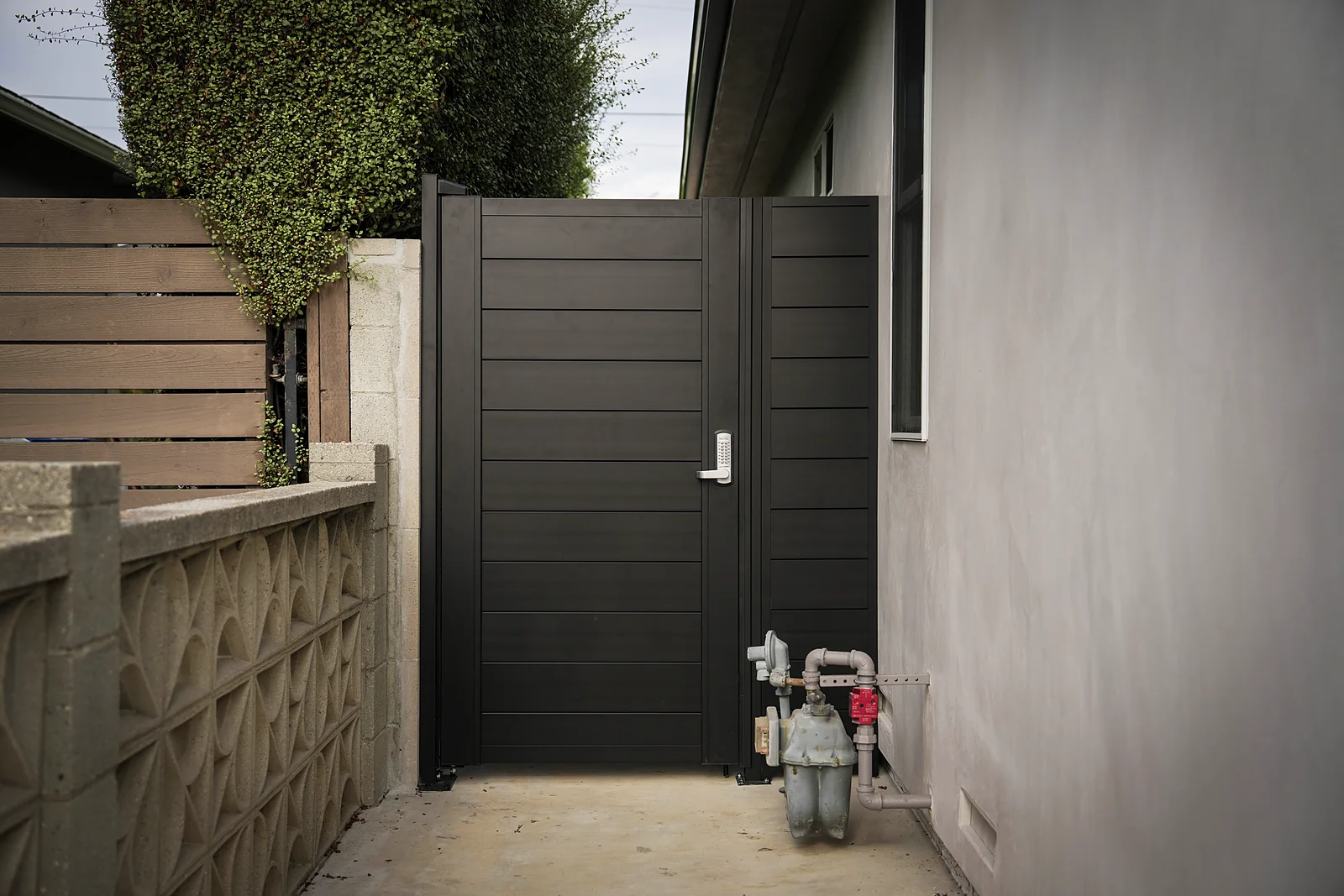

Real projects

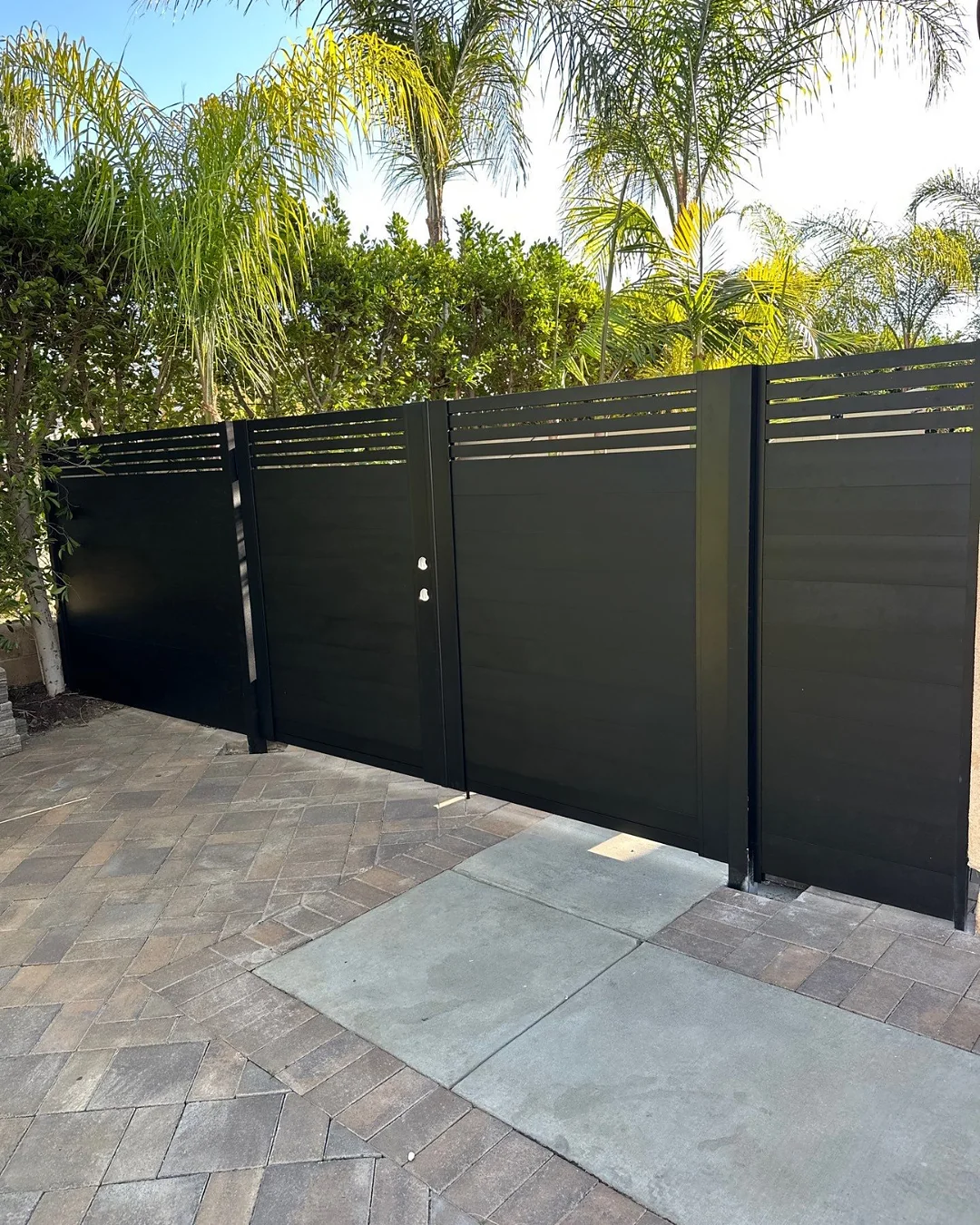

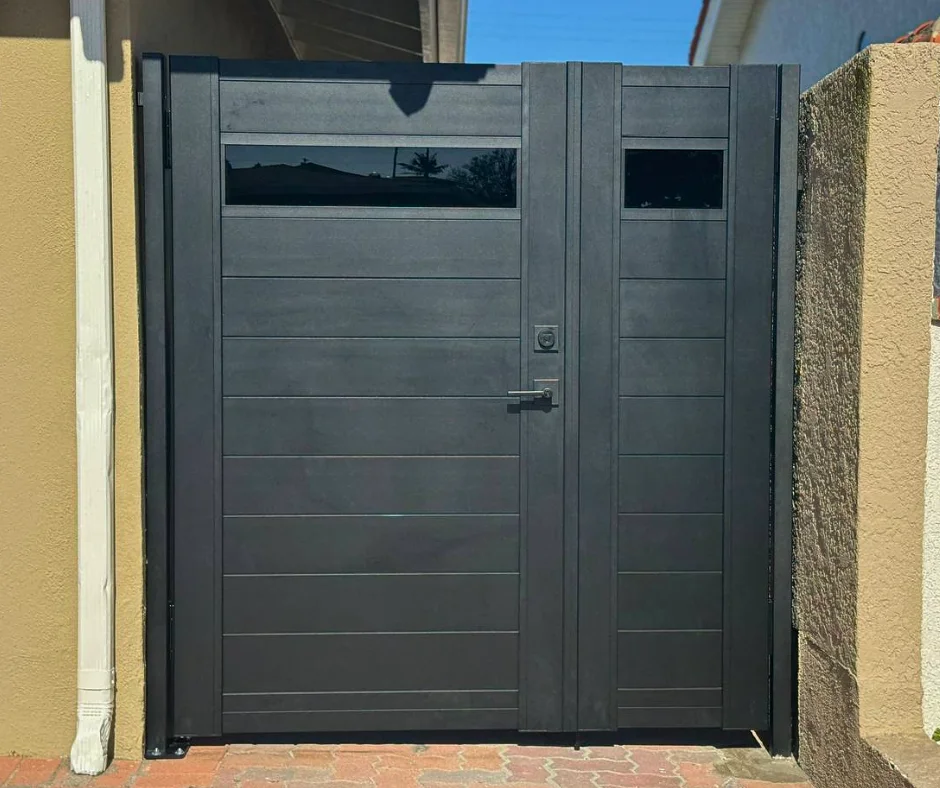

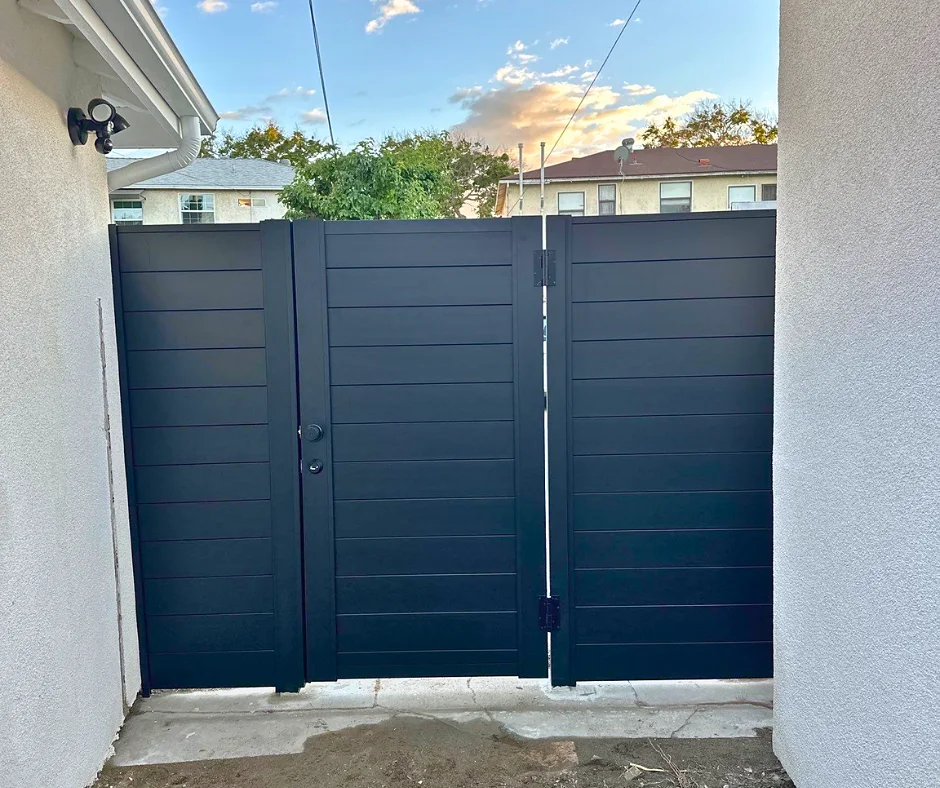

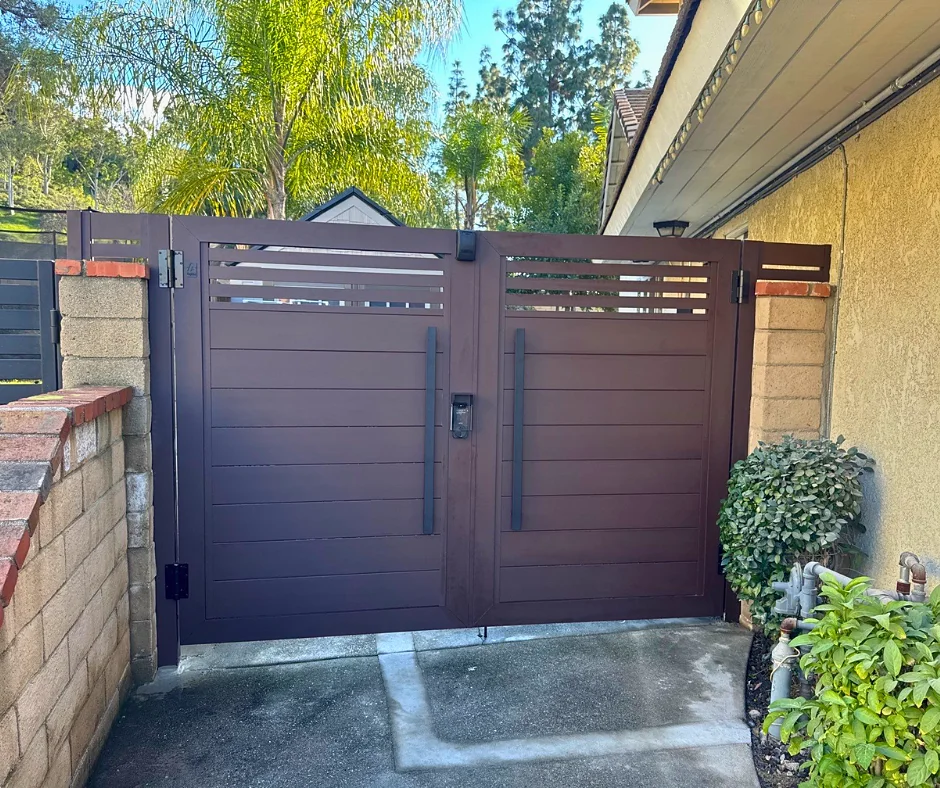

Completed installations by Aluglobus Aluminum Systems using this system. Sizes, layouts and accessories vary by project.
Watch

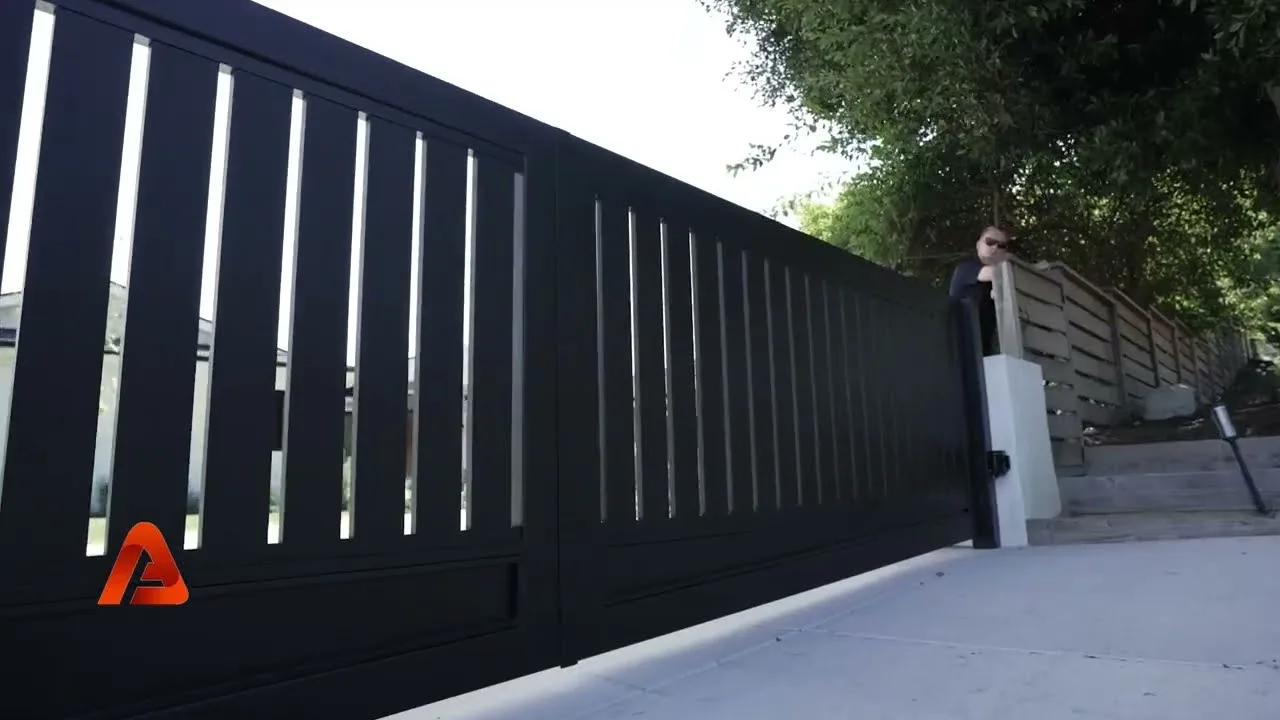

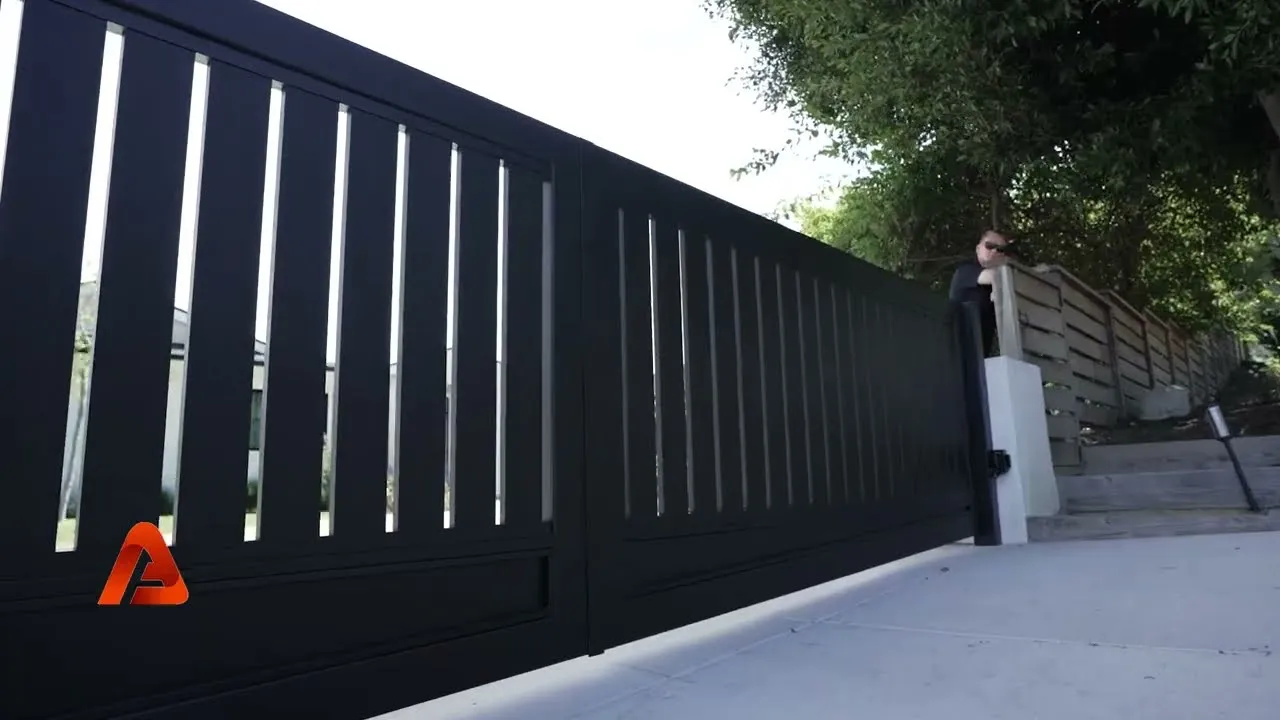

Installation, product and factory videos from Aluglobus Aluminum Systems.
Specifications
Check sizes, material and configuration against your project before ordering.
Complete the system
The boxed DIY pedestrian gate kits and the parts sold for them: 2×2 in. hinge posts and L-side posts for wall installation, and the gate slat boxes in ALU 40 and ALU 60 T&G.
Measure the opening between the two walls (these posts are for wall installation).
Choose the kit size (4×6 or 6×6 ft) and the slat style (ALU 40 with a gap, or ALU 60 T&G with no gap).
Choose the color offered for the kit.
Add hinge post / L-side post sets and slat boxes only if you are building or replacing parts.
Confirm availability for colors marked coming soon.
FAQ
Send your measurements and photos. Our team will help you choose the right system and parts.
T&G stands for tongue and groove. Each ALU 60 slat interlocks with the next, so the gate face is closed with no gap between slats.
The (NEW) DIY Only Gate Frame Kit 4' x 6', a slat box of 11 ALU 60 slats (0.047 wall) cut to 39in., and 7/8 plugs in the selected finish.
All finishes of this kit are currently listed as coming soon. Confirm availability with our team before you plan your install.
Yes. Choose from the Hinge Post + L-Side Post kit (wall to wall), a 3.15 post, a 2-way post, or a 3in or 4in HD post depending on how the gate will be mounted.
The ALU 40 kit uses 16 slats with a 3/8" gap for a semi-private look; this kit uses 11 wider tongue-and-groove slats for a solid, private face.
