Pedestrian gate kits
A boxed 4x6 horizontal aluminum gate kit for a single-swing pedestrian gate: the DIY gate frame kit, 16 pre-cut ALU 40 slats (39in.) and 7/8 plugs, finished with AAMA 2604 powder coating.
Coming soon · Bronze & White coming soon.
Bronze & White coming soon — please confirm availability with us before ordering.
$758.15

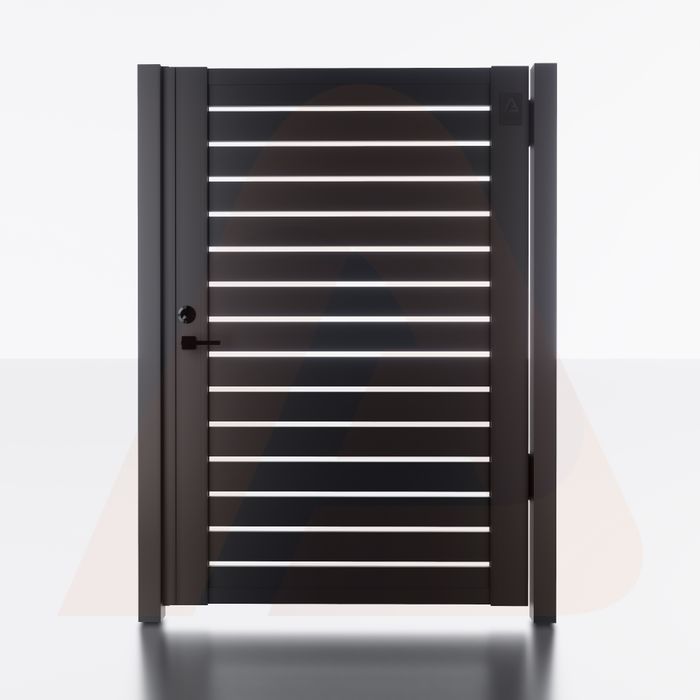

This 4×6 horizontal aluminum gate kit packs everything needed for the gate leaf itself into one order: a DIY gate frame kit, a box of pre-cut ALU 40 slats and the 7/8 plugs that finish them. It is sized for a single-swing pedestrian gate – a side-yard entrance, a garden path or a service opening – and the slats sit horizontally with a 3/8" gap for a clean, modern line that matches horizontal fencing.
Because the slats arrive cut to 39in. for this frame, there is no need to measure and cut long profiles on site. You assemble the frame, fit the slats and add the plugs. Everything is made from 6063-T6 aluminum and finished with AAMA 2604 super-durable powder coating, so the gate will not rot, warp or need repainting the way a wood gate does.

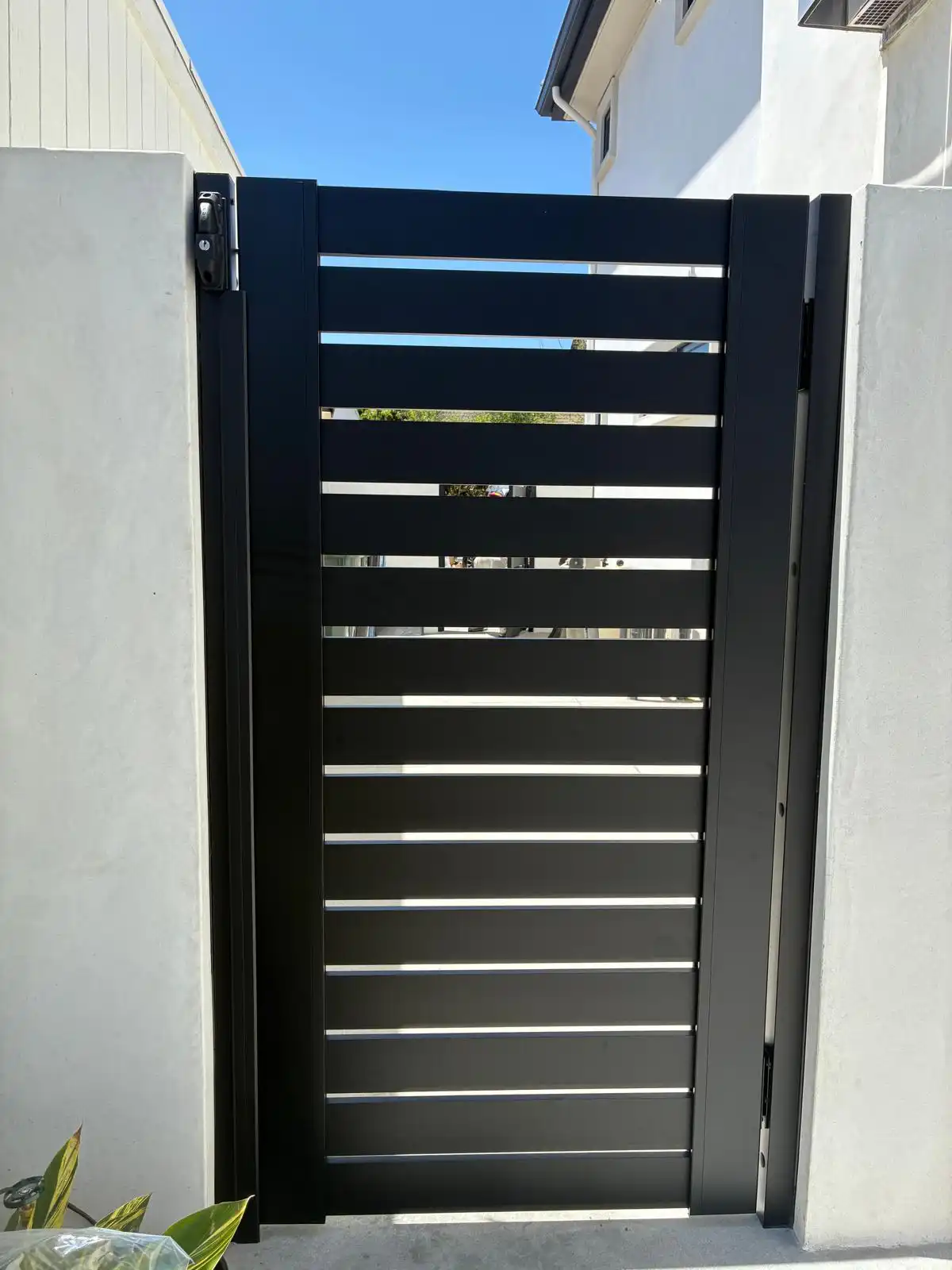

ALU 40 black slat pedestrian gate project
The frame kit itself is listed with a vertical gate frame, vertical gate frame cap, top and bottom horizontal gate frame, 2 heavy duty hinges and a gate stopper, and it is compatible with the Universal Slat Adapter. Latches and posts are not part of the kit.
ALU 40 is a 4-inch horizontal slat profile. The wider face means fewer visual lines across the gate than narrow slats, which gives the finished gate a more substantial, architectural look. The 3/8" spacing keeps the gate semi-private: neighbours see a solid-looking surface from most angles, while light and air still pass through. If you need full privacy with no gaps, look at the Alu 60 tongue-and-groove version of this kit instead.
Posts are sold separately because every opening is different. The price list offers five post options for this gate kit:
Between two existing walls, the 2x2in Hinge Post & L-Side Post Kit is the dedicated wall-to-wall option. For a gate set in the ground, a 3×3 in. HD square post is listed for concrete footing, and a 4in HD post is the standalone choice. The price list notes the 2.75 2-way post option is intended for gates up to 3 feet wide or wall mount, so confirm with our team whether it suits a 4 ft gate before choosing it.
Before you order, measure the finished opening, decide how each side will be fixed (wall, concrete footing or standalone post) and check your local code for any rules on gate hardware and height. Compare your measurements with the 4 ft x 6 ft kit size, including the space the posts will take up. If the numbers are close, send them to our team and we will confirm the right size.

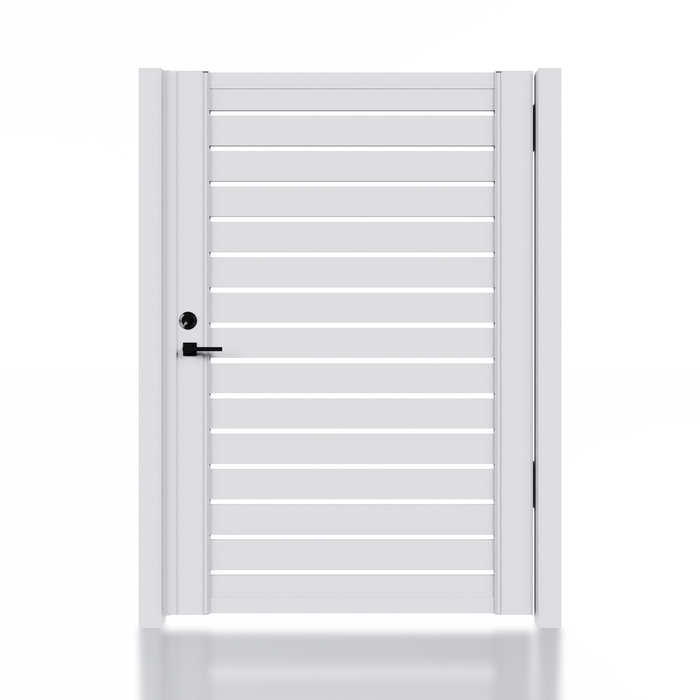

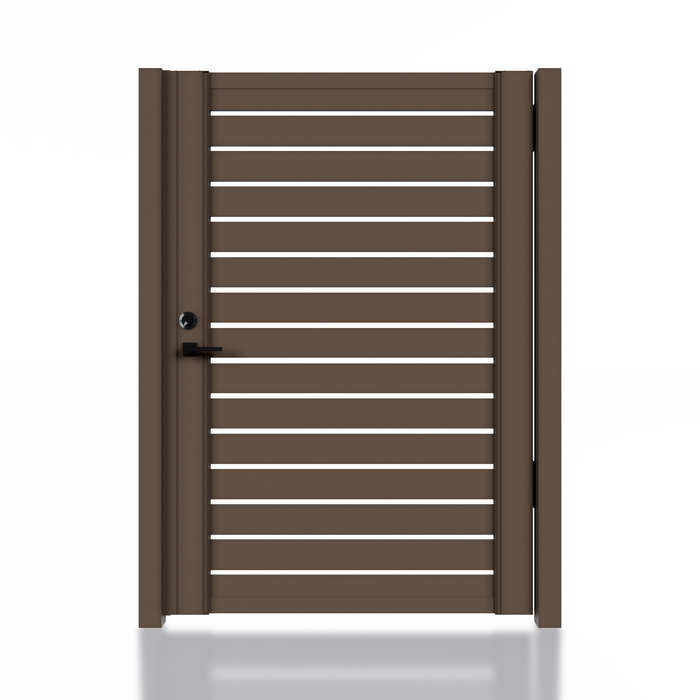

Kits are listed in Black, Bronze and White. Some colours in this kit family are marked coming soon, so check the colour selector or confirm availability with our team before you plan around a specific finish. Need a wider opening? Compare the 6×6 ALU 40 gate kit or browse all aluminum gates.
Buying the frame, slats and plugs as one boxed kit removes the guesswork of matching slat length and quantity to the frame. It is the simplest route for homeowners building their first gate, and it saves contractors from cutting and sorting parts on site. Follow the included instructions and your local code during installation, and contact our team if anything about your opening is unusual.
Real projects
Completed installations by Aluglobus Aluminum Systems using this system. Sizes, layouts and accessories vary by project.
Watch
Installation, product and factory videos from Aluglobus Aluminum Systems.
Specifications
Check sizes, material and configuration against your project before ordering.
Complete the system
The boxed DIY pedestrian gate kits and the parts sold for them: 2×2 in. hinge posts and L-side posts for wall installation, and the gate slat boxes in ALU 40 and ALU 60 T&G.
Measure the opening between the two walls (these posts are for wall installation).
Choose the kit size (4×6 or 6×6 ft) and the slat style (ALU 40 with a gap, or ALU 60 T&G with no gap).
Choose the color offered for the kit.
Add hinge post / L-side post sets and slat boxes only if you are building or replacing parts.
Confirm availability for colors marked coming soon.
FAQ
Send your measurements and photos. Our team will help you choose the right system and parts.
The (NEW) DIY Only Gate Frame Kit 4' x 6', a gate slat box of 16 ALU 40 slats (0.047 wall, 39in.) and 7/8 plugs, all in the finish you select.
No. Posts are ordered separately so you can match your site: hinge post + L-Side Post for wall-to-wall openings, a 3.15 post, a 2-way post, or a 3in or 4in HD post.
It is the spacing between the horizontal ALU 40 slats. It gives a semi-private look that lets some light and air through, unlike the no-gap tongue-and-groove kits.
The kit is listed in Black, Bronze and White. Some finishes are marked coming soon, so check the colour selector or confirm with our team before planning around a specific colour.
Measure your finished opening and the space your posts will take, then compare it with both sizes. If you are unsure which fits, send your measurements to our team.
