Patio covers and pergolas

Aluminum patio covers, built around your project.

Nine architectural aluminum systems, from motorized louvers to insulated roofs, slats, cantilevers and laser-cut panels. Fabricated and finished by Aluglobus, factory direct, shipped nationwide.

Find your system

4.9Aluglobus on Google, 100+ reviews

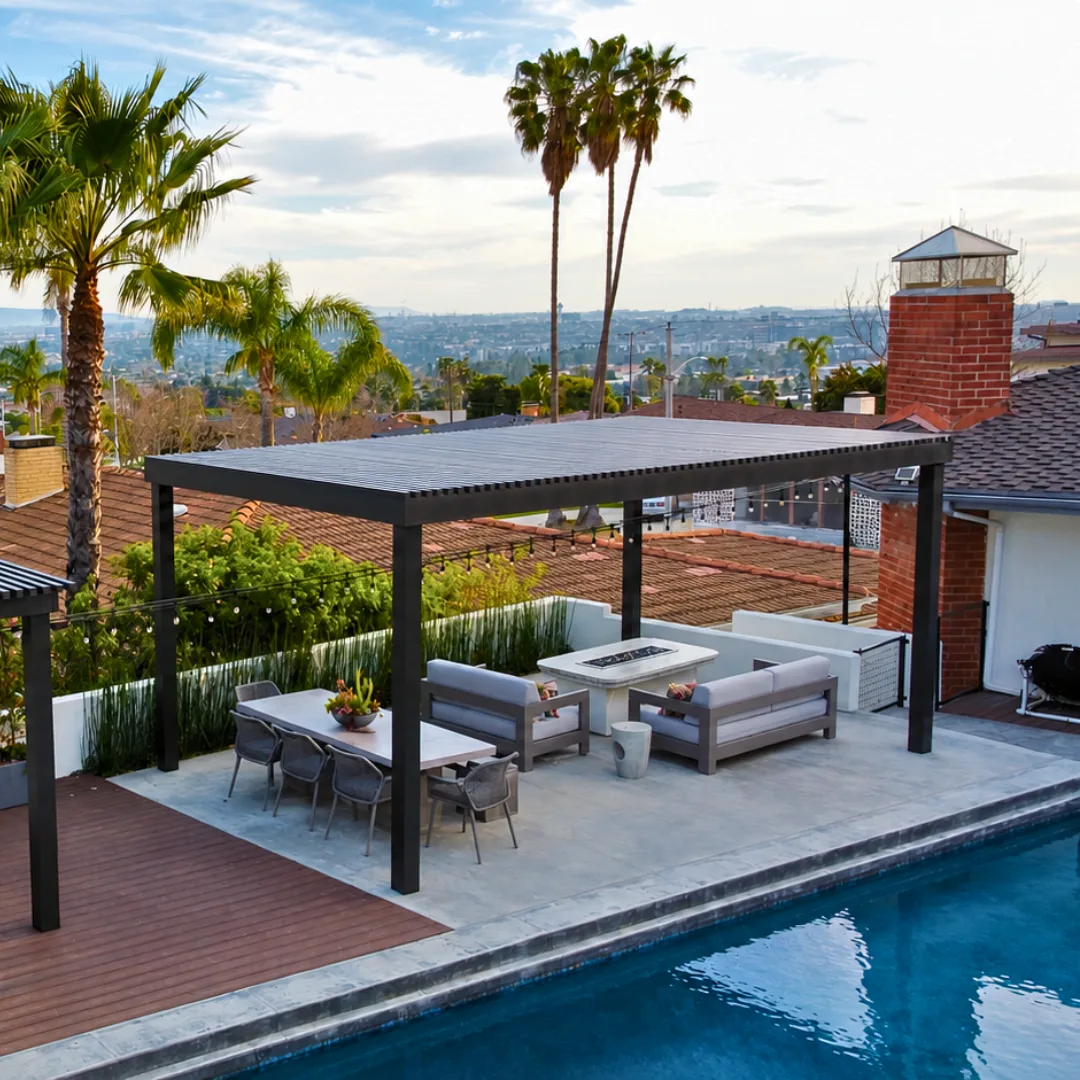

Black automatic louvered patio cover over a hillside patio in Burbank, CA

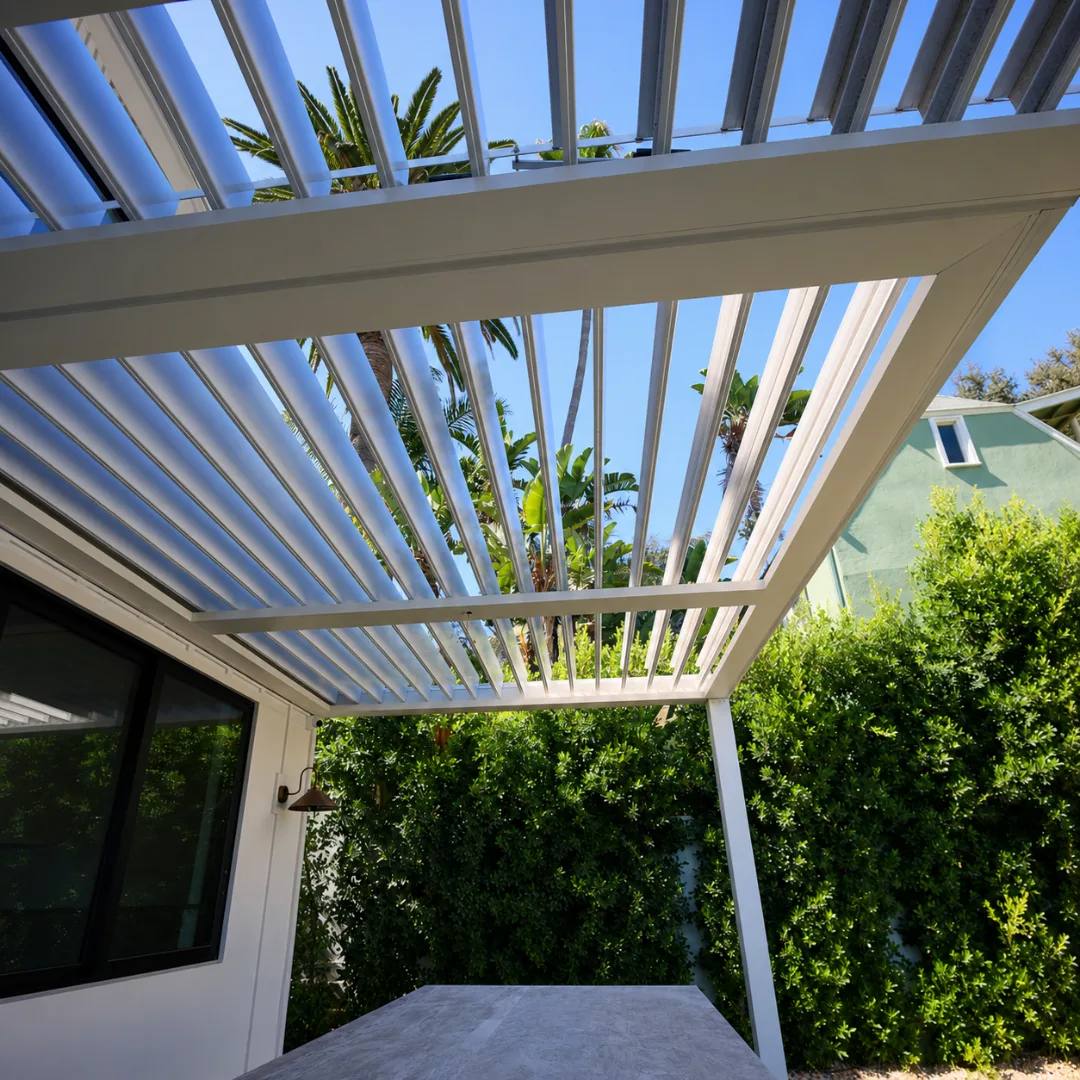

Automatic louver patio cover (ALU TANK) installed by Aluglobus

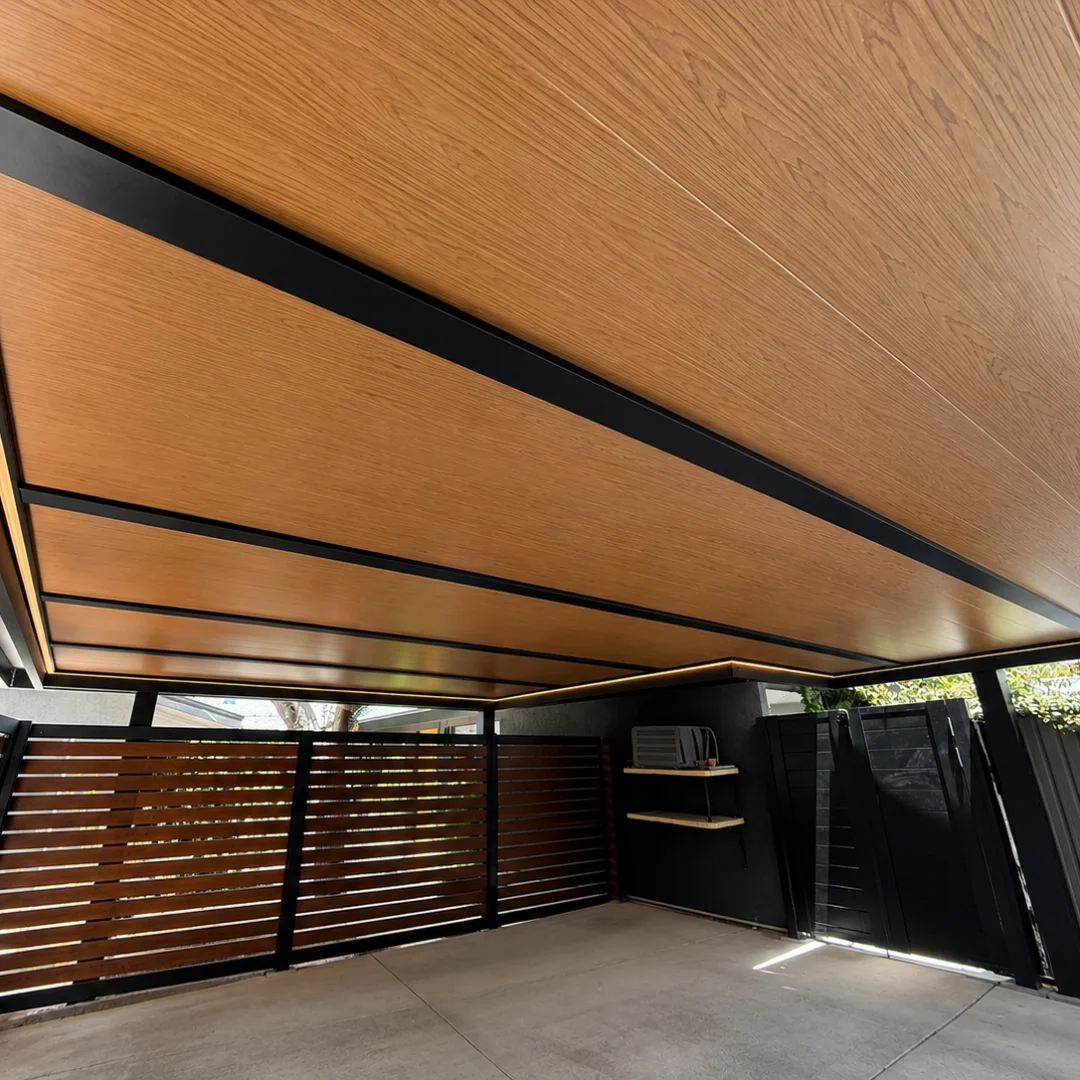

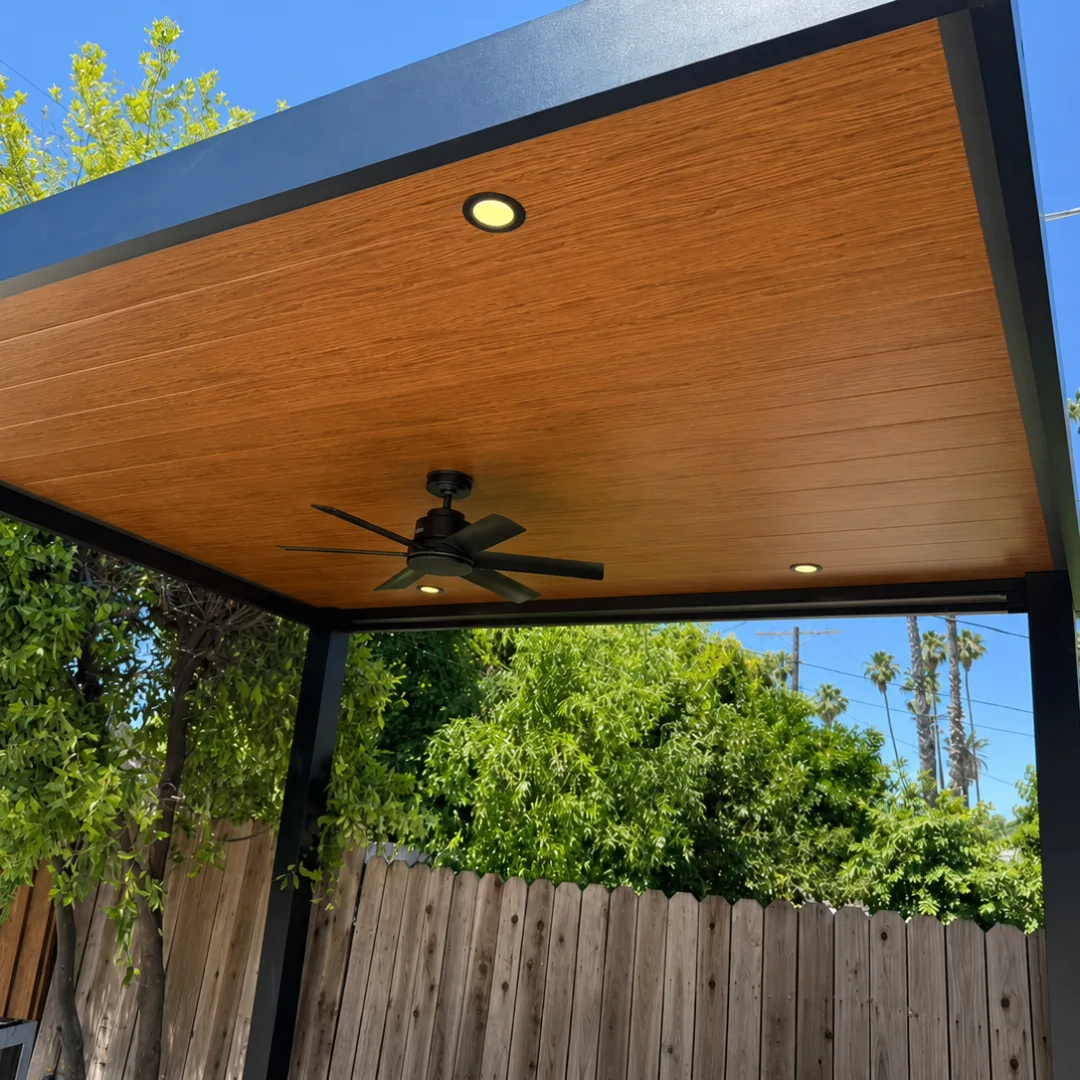

Woodgrain insulated patio cover with ceiling fan

White patio cover with ceiling fan and string lights over a lounge deck

4.9 ★Google rating, 100+ reviews

1,000+Active contractors nationwide

Factory directFabricated and powder coated in-house

9 systemsLouver, insulated, slat, cantilever and more

NationwideShipped to your job site or warehouse

The collection

Nine systems. One manufacturer.

Pick what you want overhead: adjustable louvers, a solid insulated ceiling, filtered slat shade, no front posts, or a laser-cut statement roof.

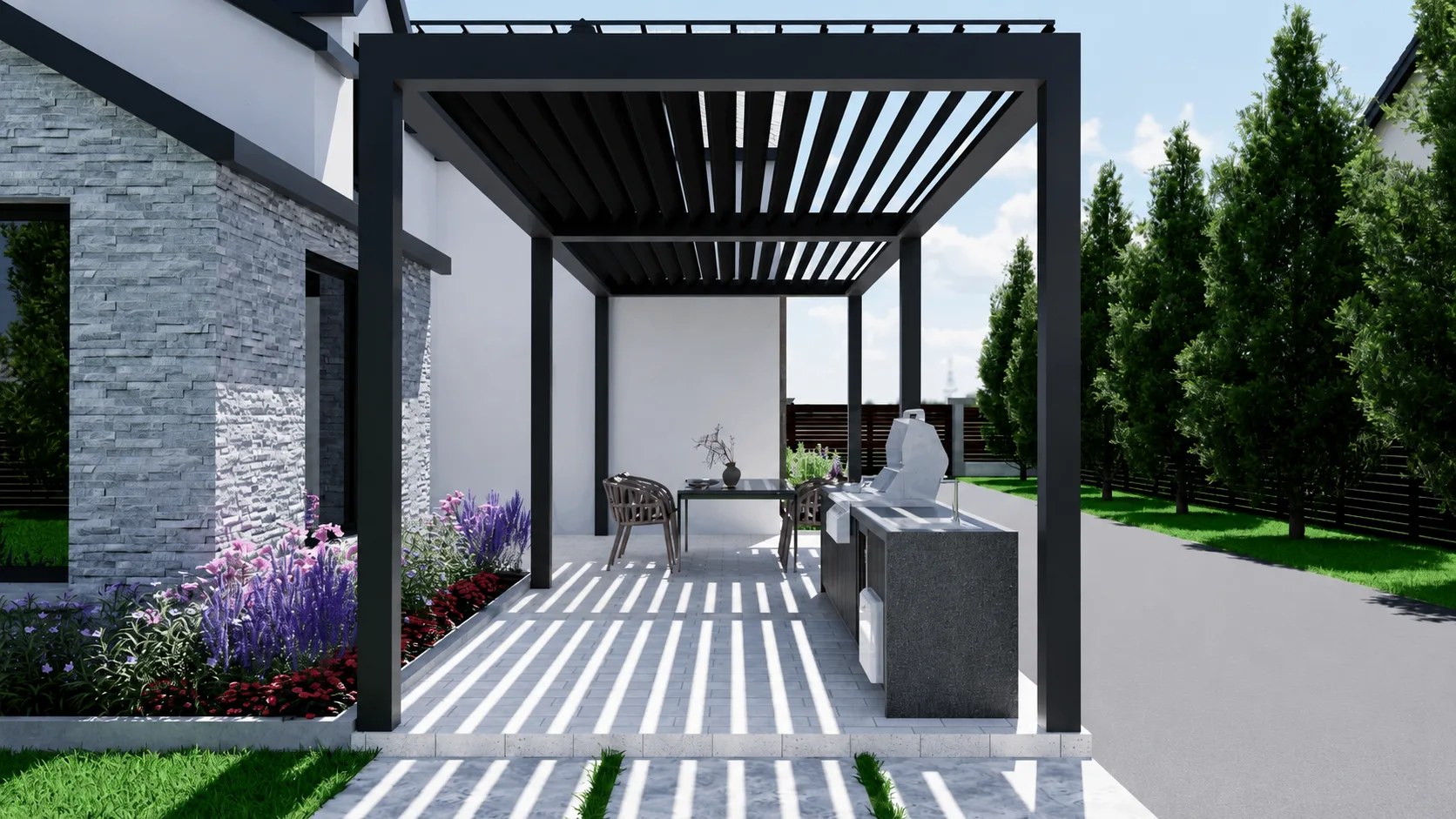

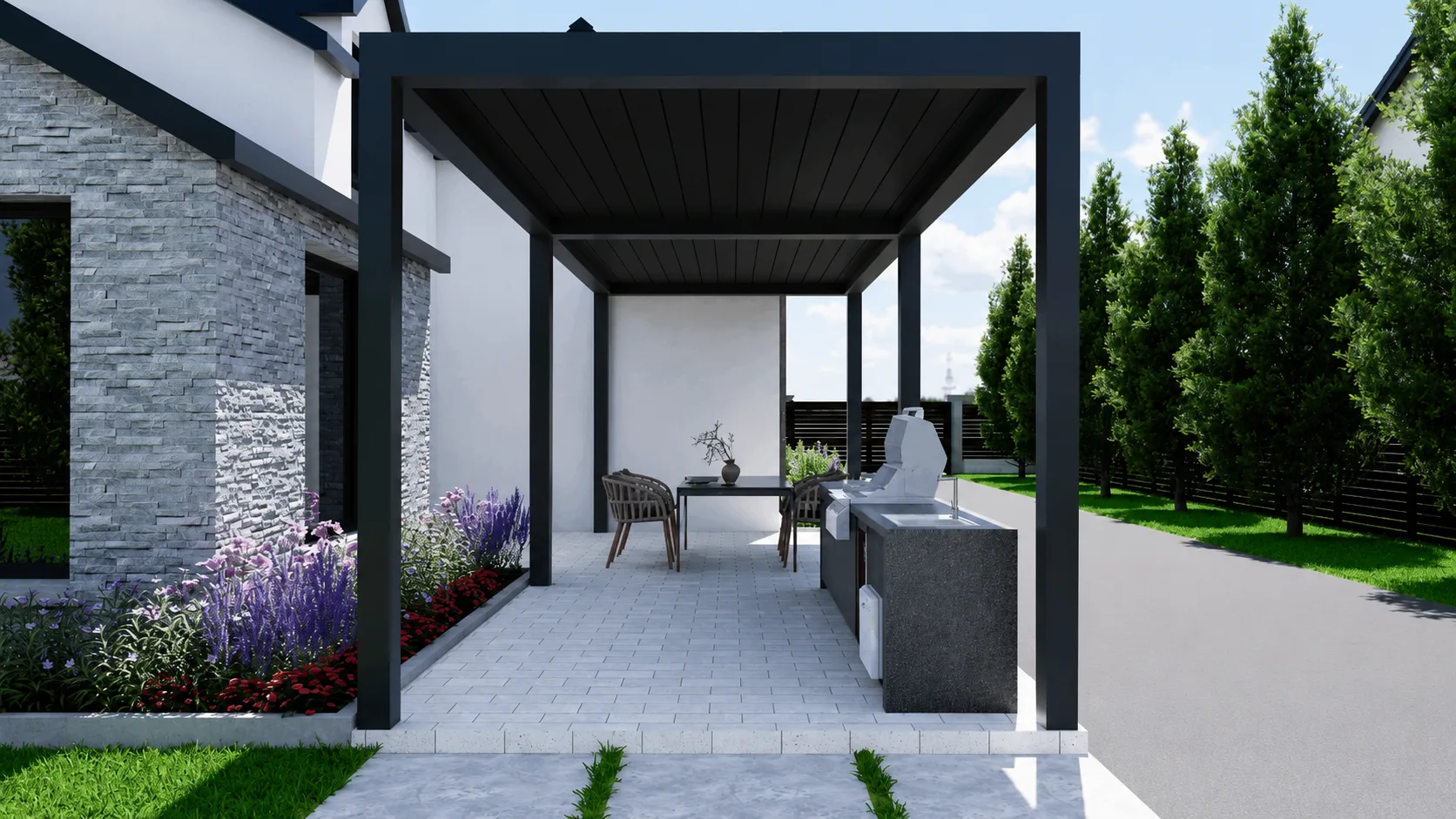

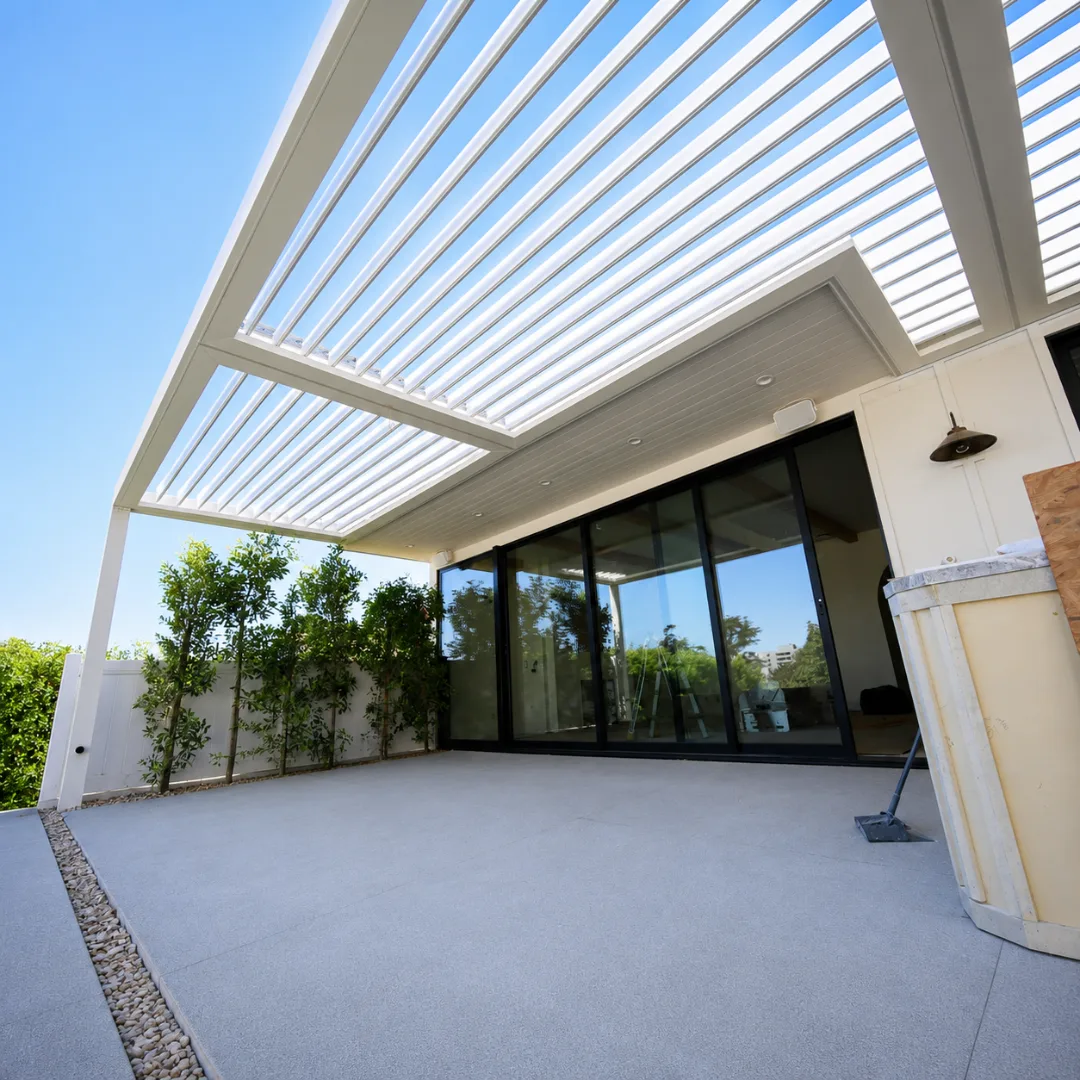

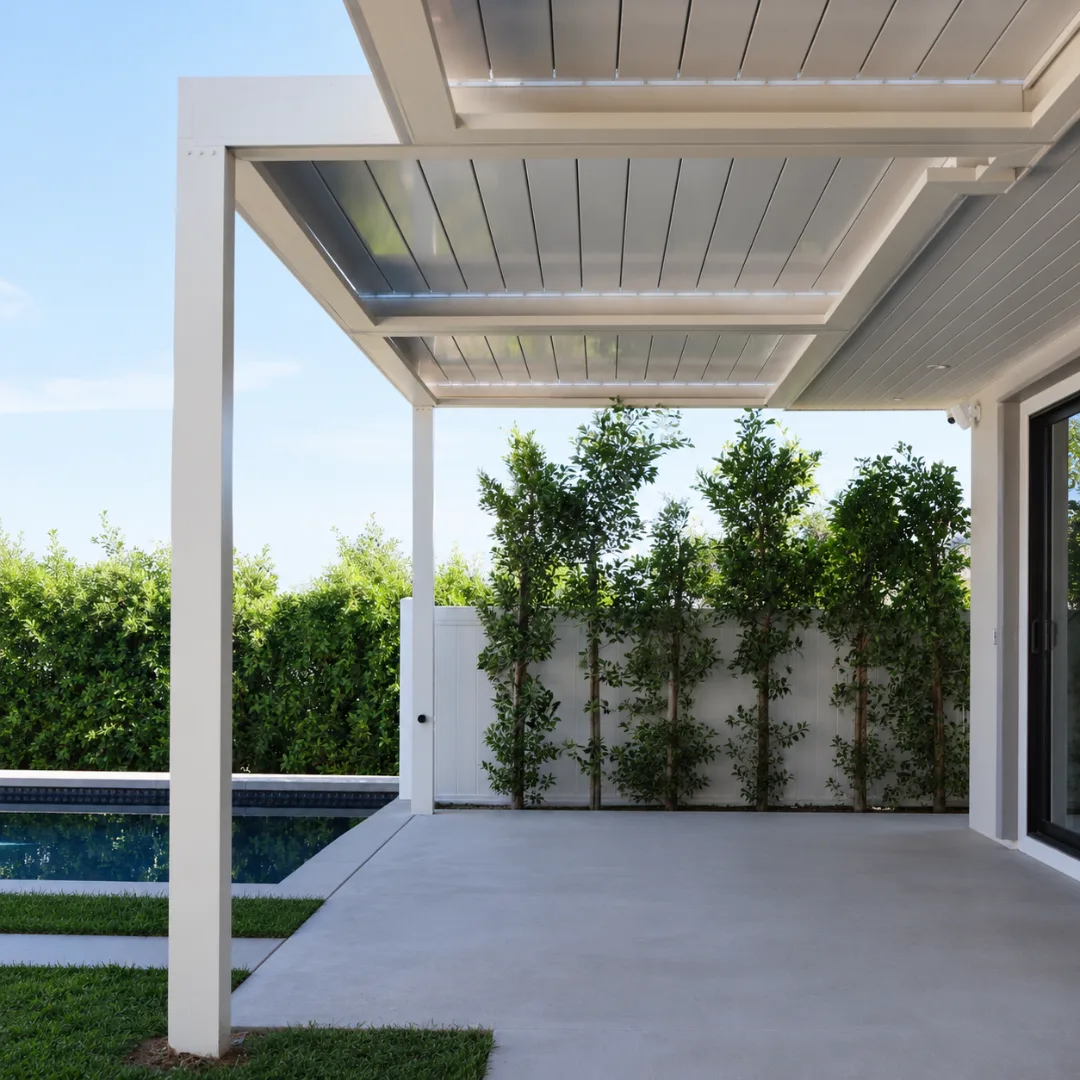

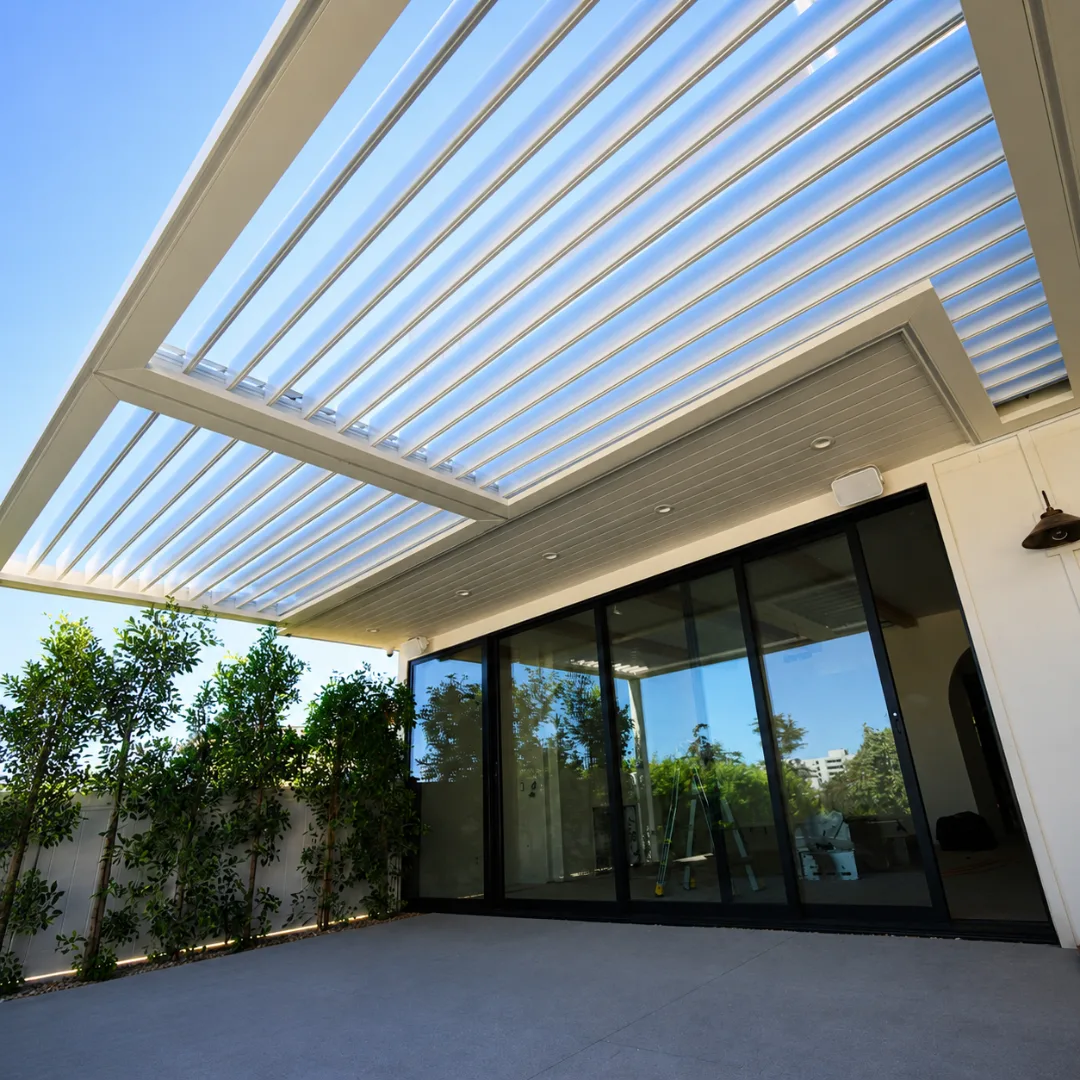

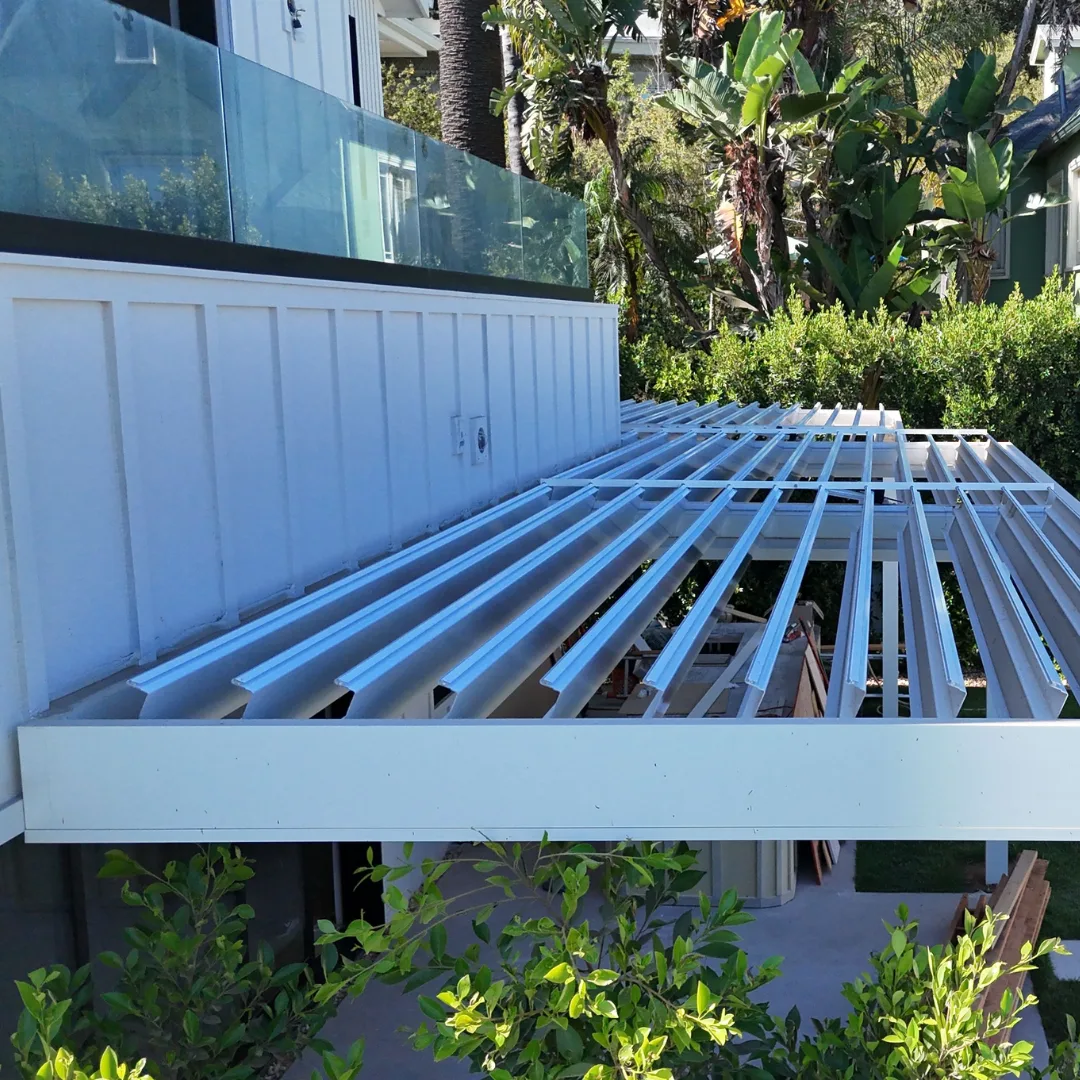

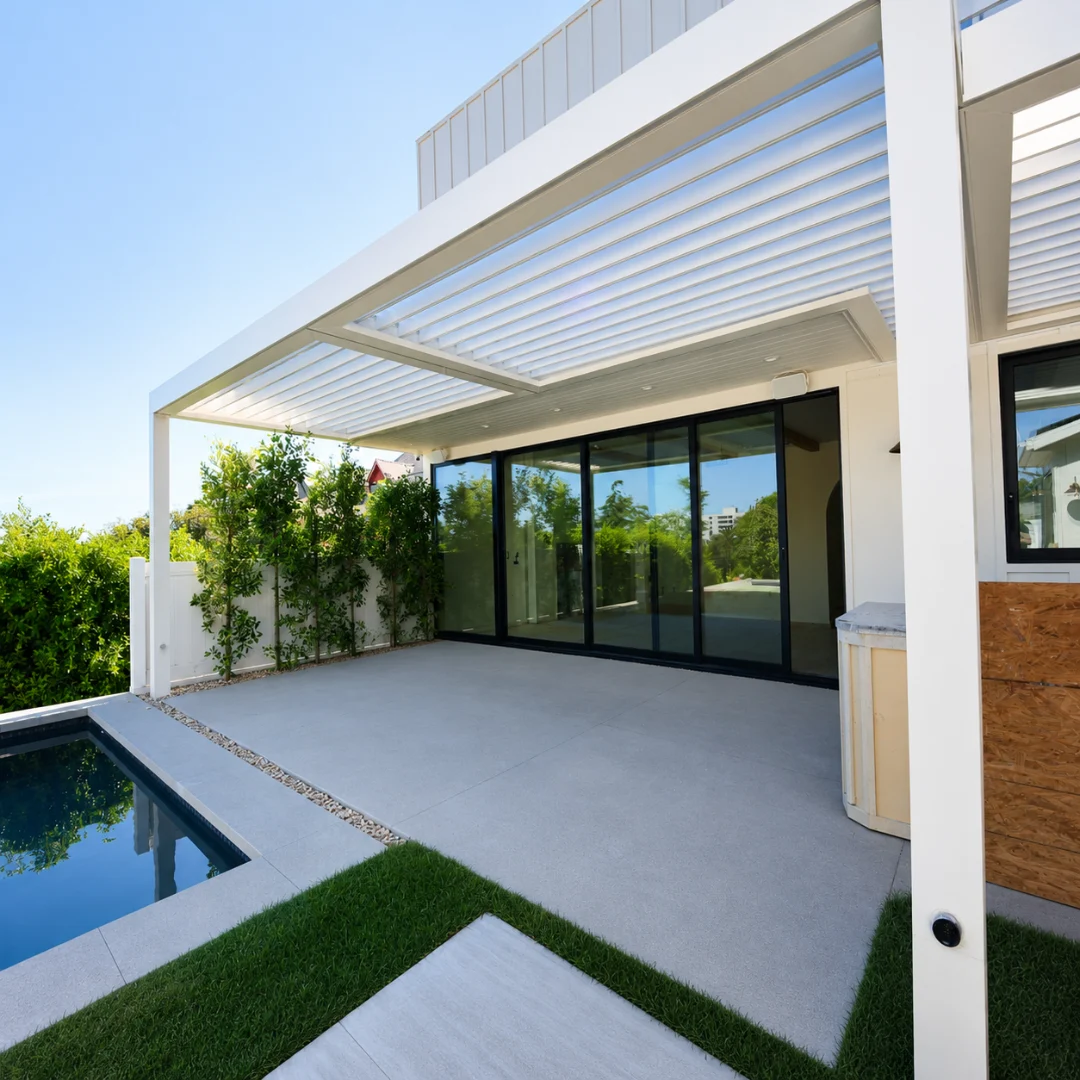

ALU TANK™

Architectural Automatic Louver System

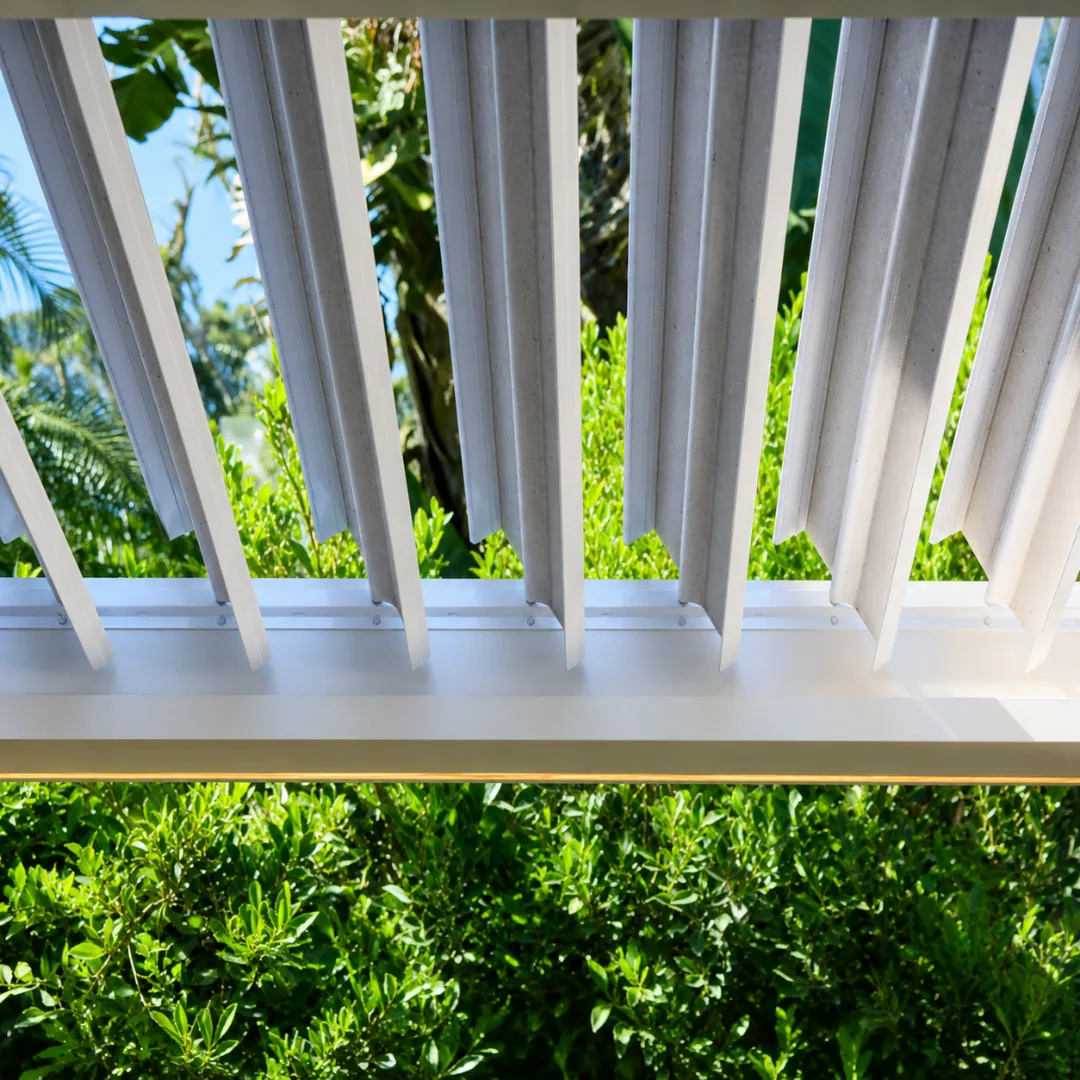

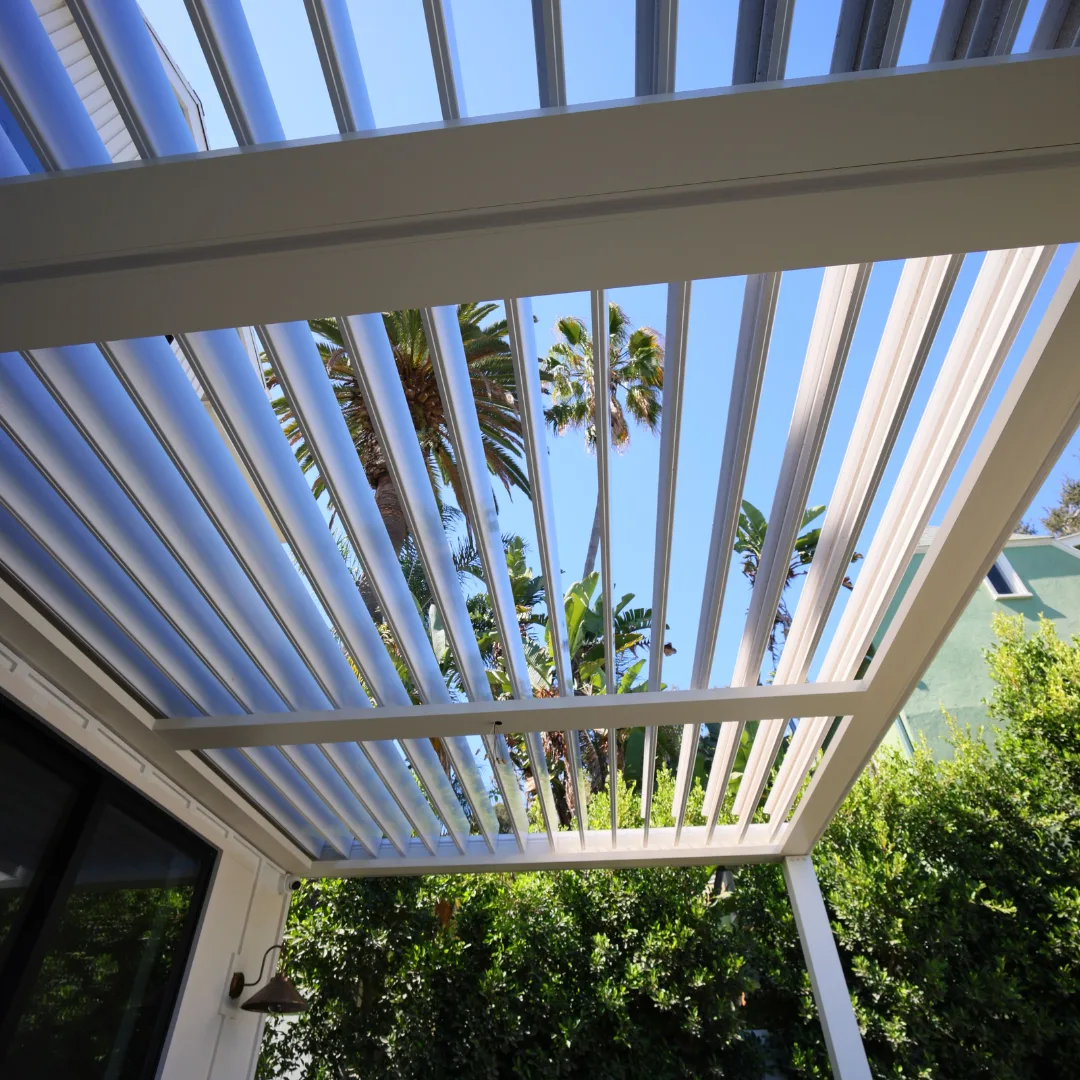

Motorized 8 inch louvers on a heavy-duty structure. Open for sky, close for shade and rain.

8 in 6005A-T61 louver blades
Up to 14 ft bays, 24 ft spans
Low-profile linear motor

Starting at$10,050

View system

ALU FLEX™

DIY Louver Patio Kit

A boxed 13 x 19 ft automatic louver kit with LED lighting, motor and rain sensor included.

13 x 19 ft boxed kit
LED in beams and louvers
110v motor with rain sensor

Starting at$11,551

View system

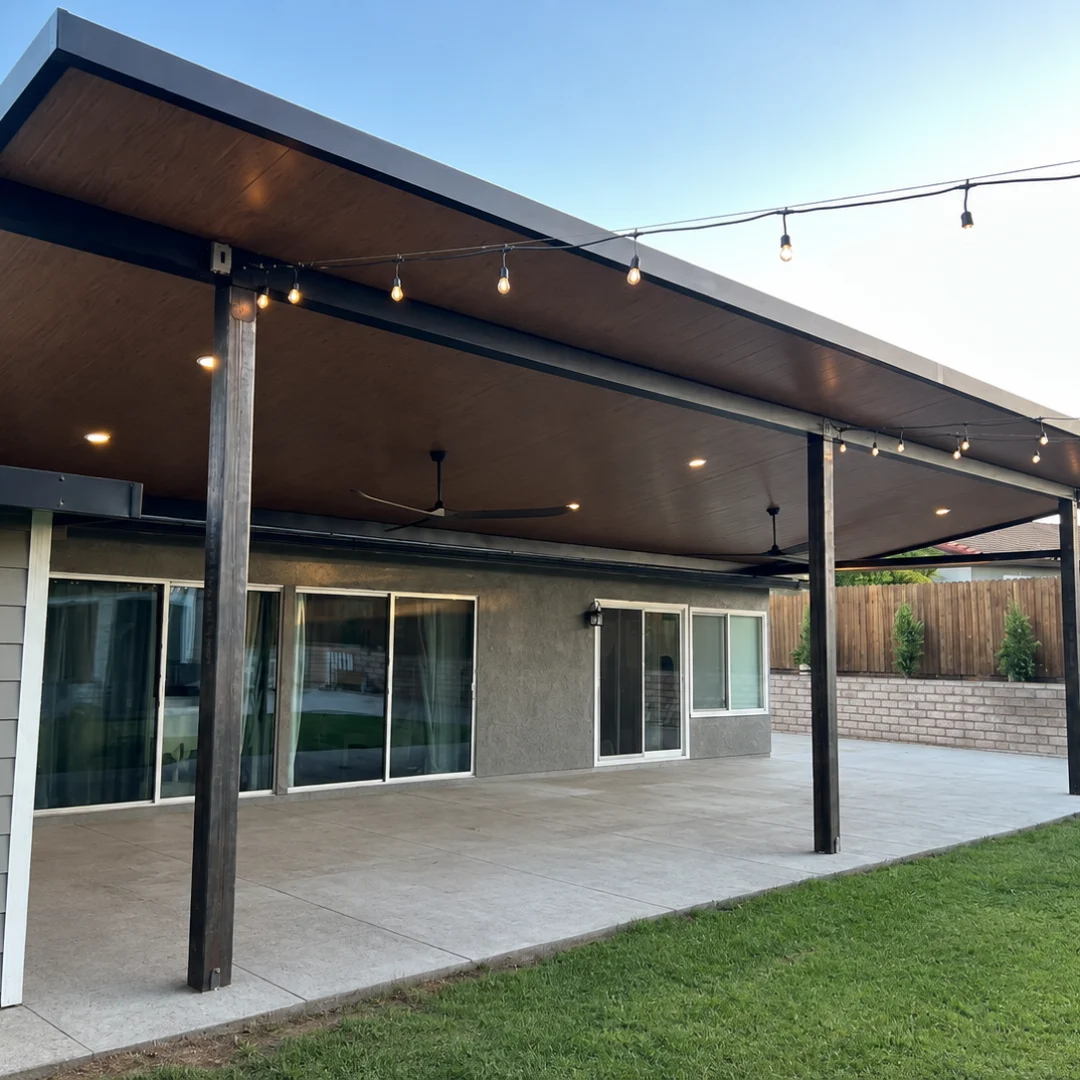

ALU THERMA™

Architectural Insulated Patio System

Solid insulated roof panels for full shade, weather cover and a finished outdoor-room ceiling.

3 in x 4 ft x 24 ft panels
White and wood-like finishes
Lighting and fan ready

Starting at$7,900

View system

ALU FORTIS™

Architectural Dual-Wall Patio System

Dual-wall roof system. Ask our team for specifications, photos and pricing.

Dual-wall roof system
Specifications on request
Quoted to your project

Price on request

View system

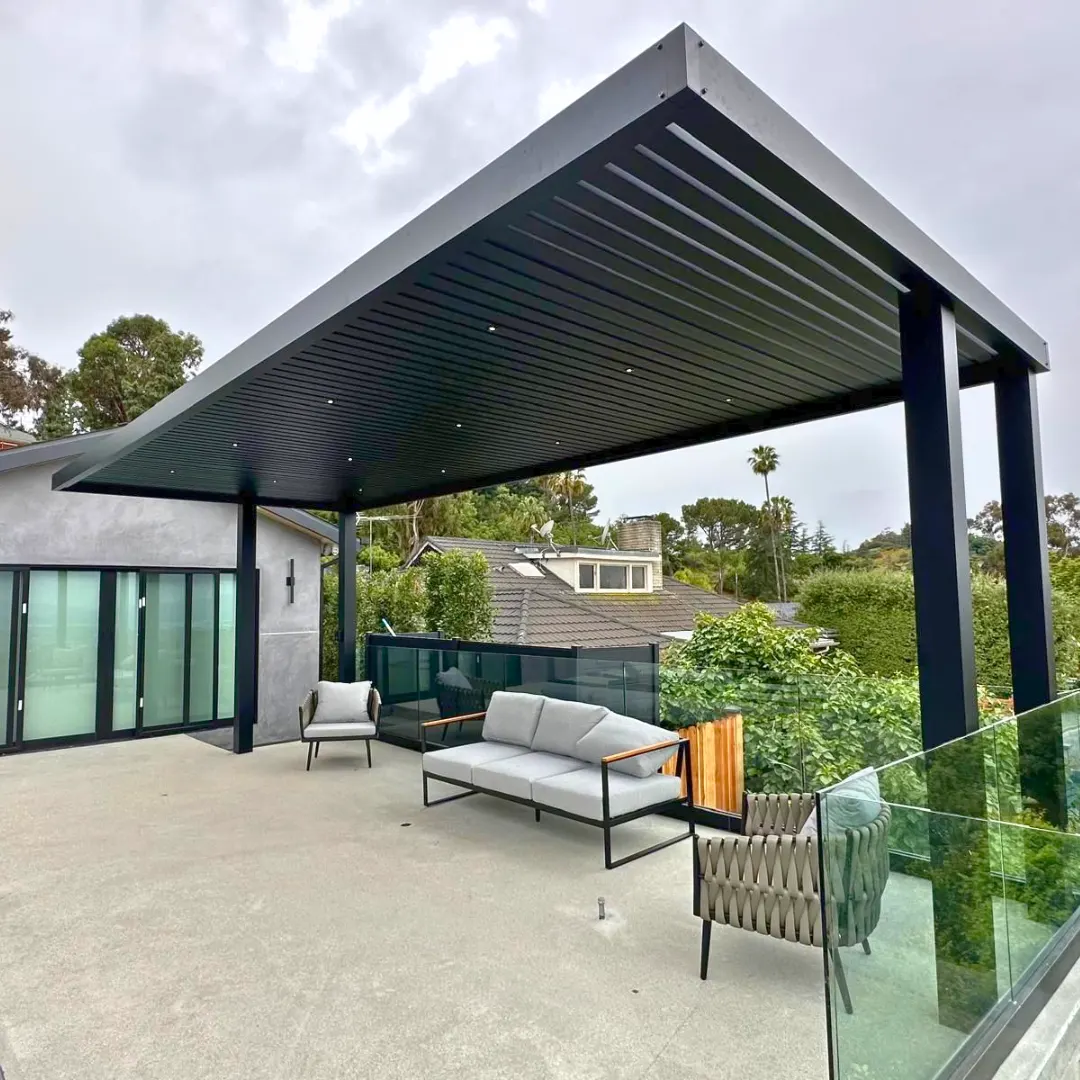

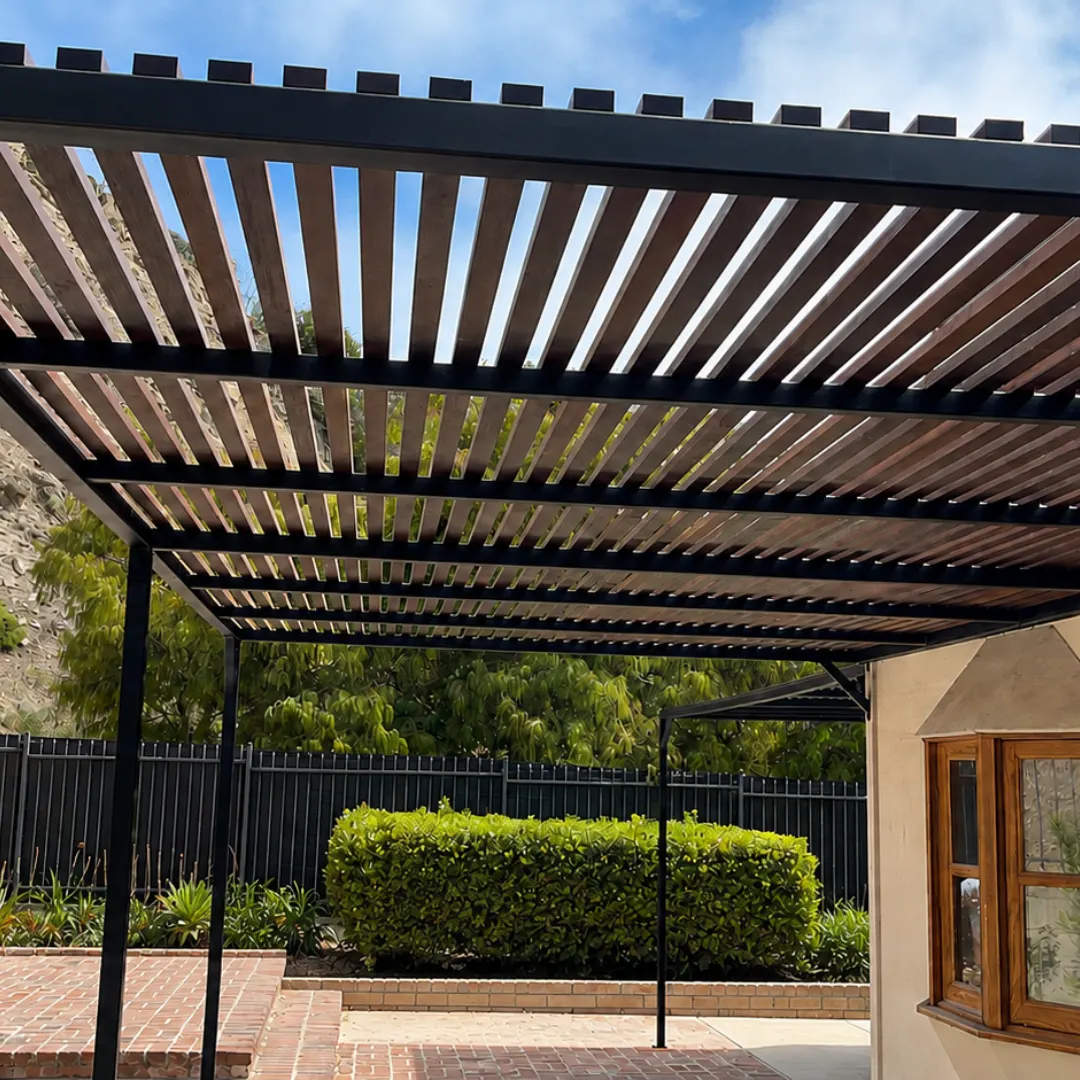

ALU LINEA™

Architectural Slat / Lattice Patio System

Fixed aluminum slats or lattice for clean, filtered shade without closing the roof.

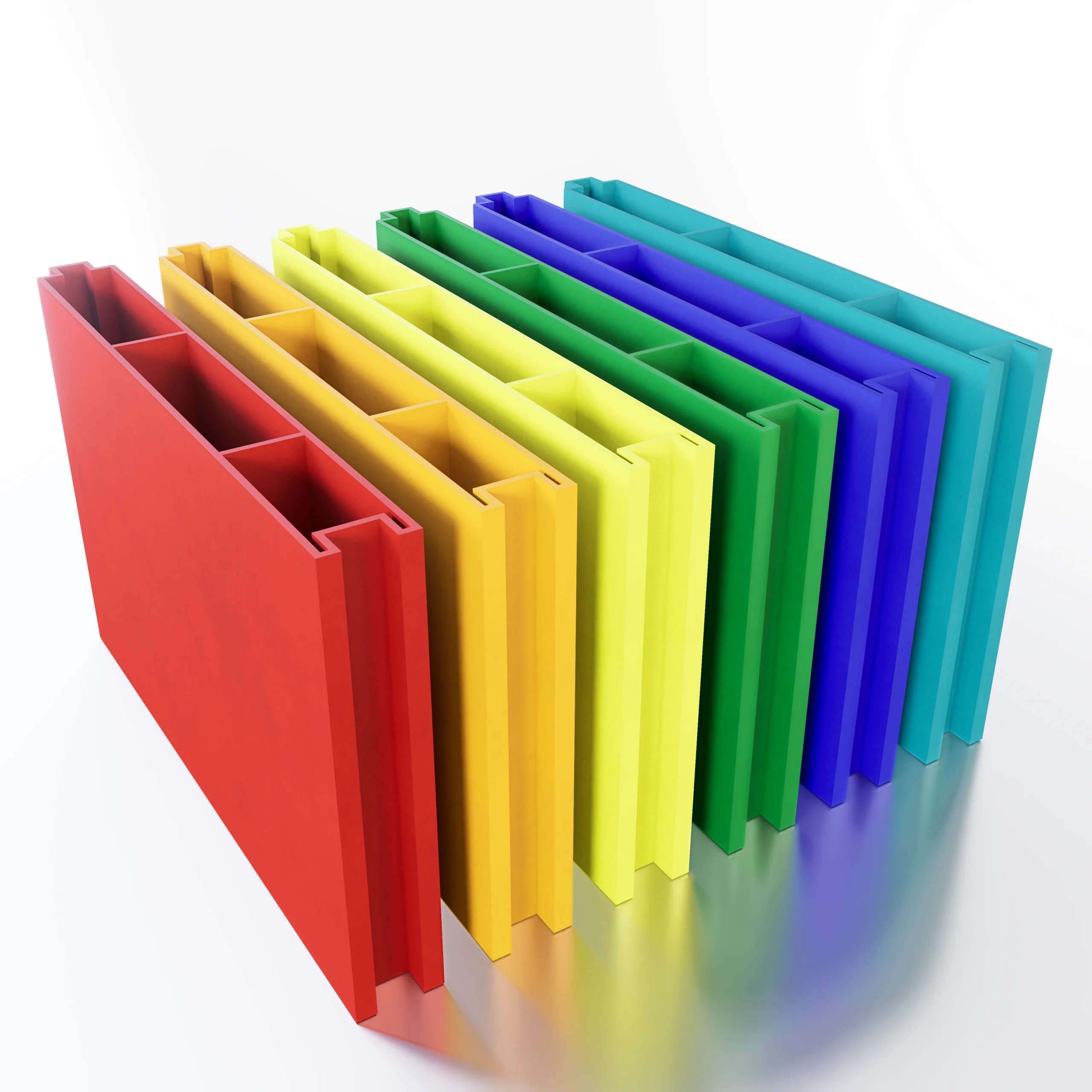

ALU-20, ALU-40 and ALU-60 T&G
Black, Ipe, Teak, Yellow Oak, custom
Lattice options

Starting at$5,720

View system

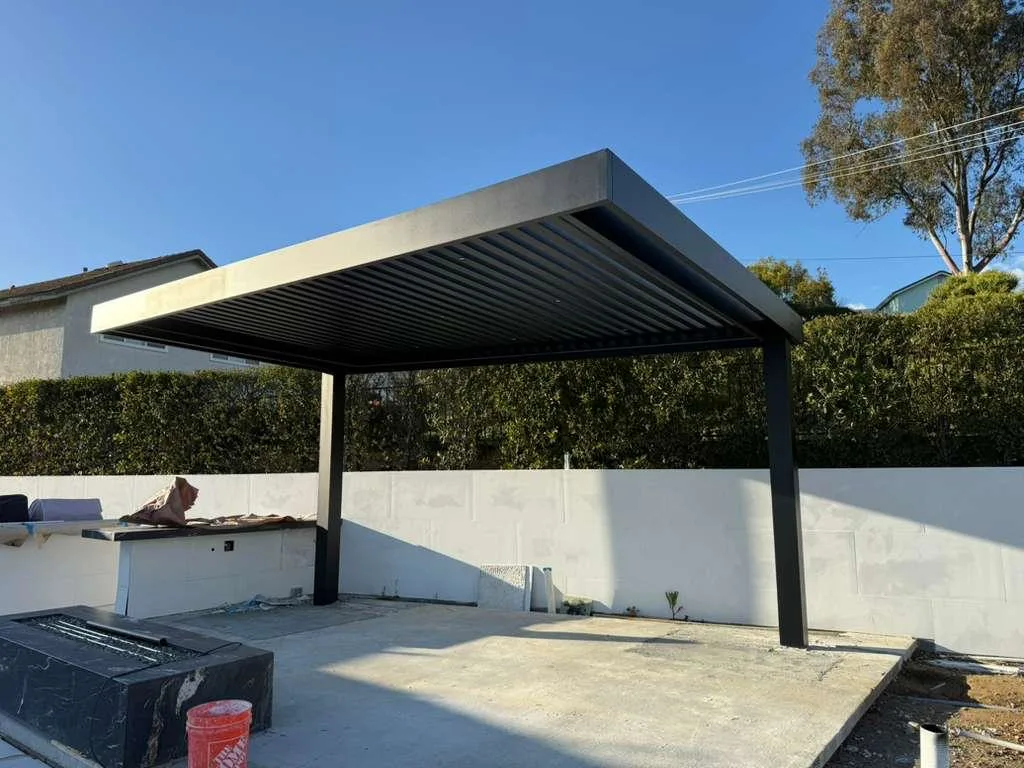

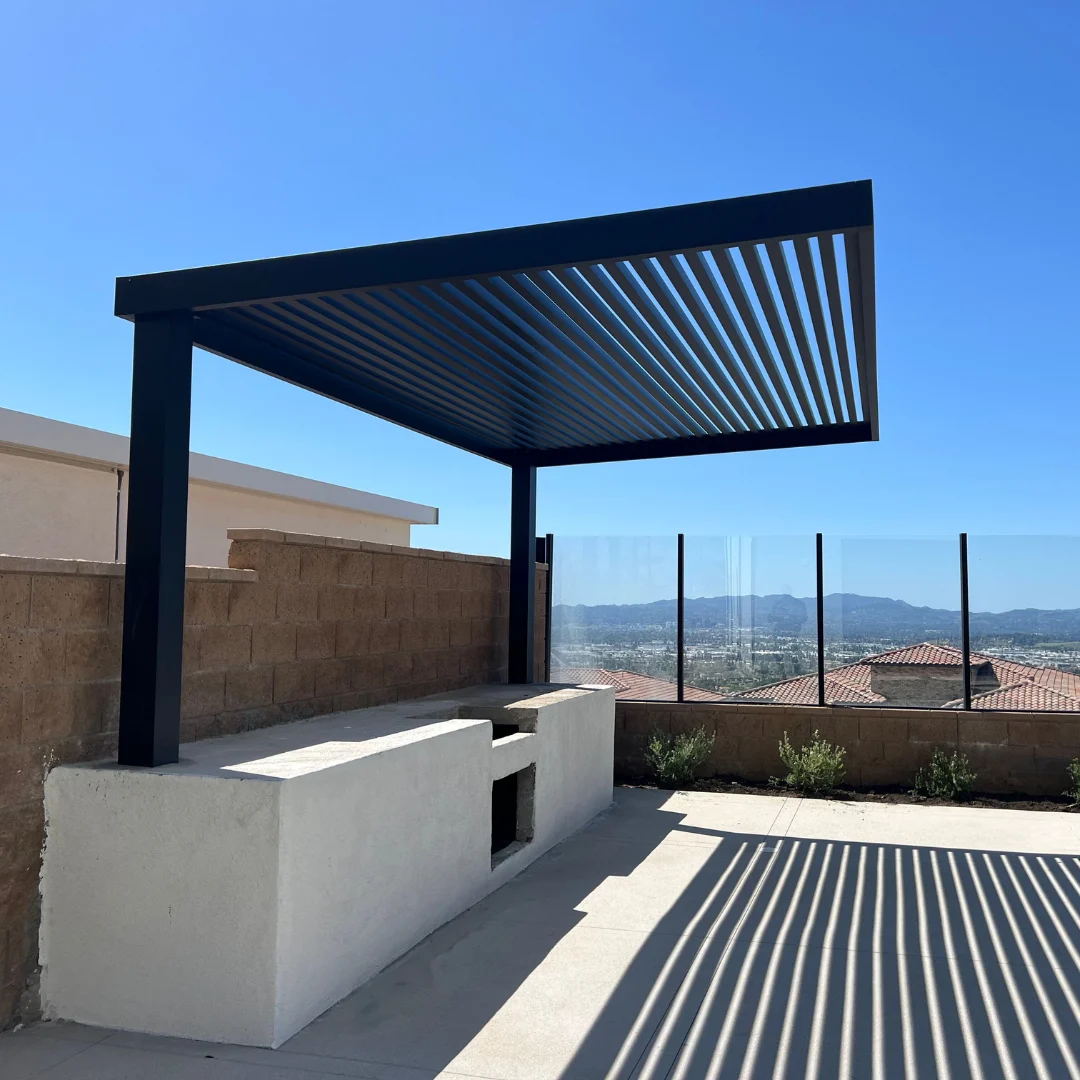

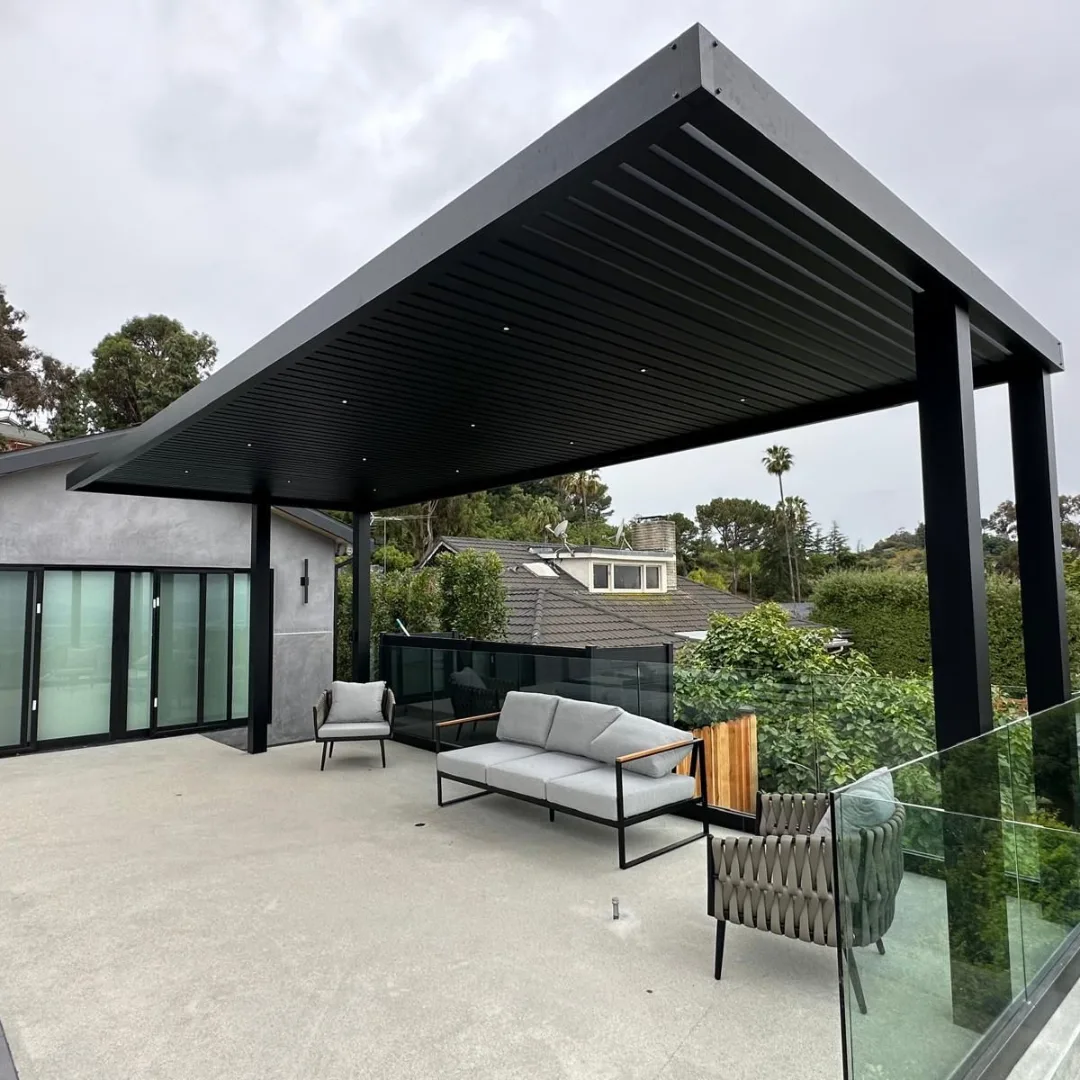

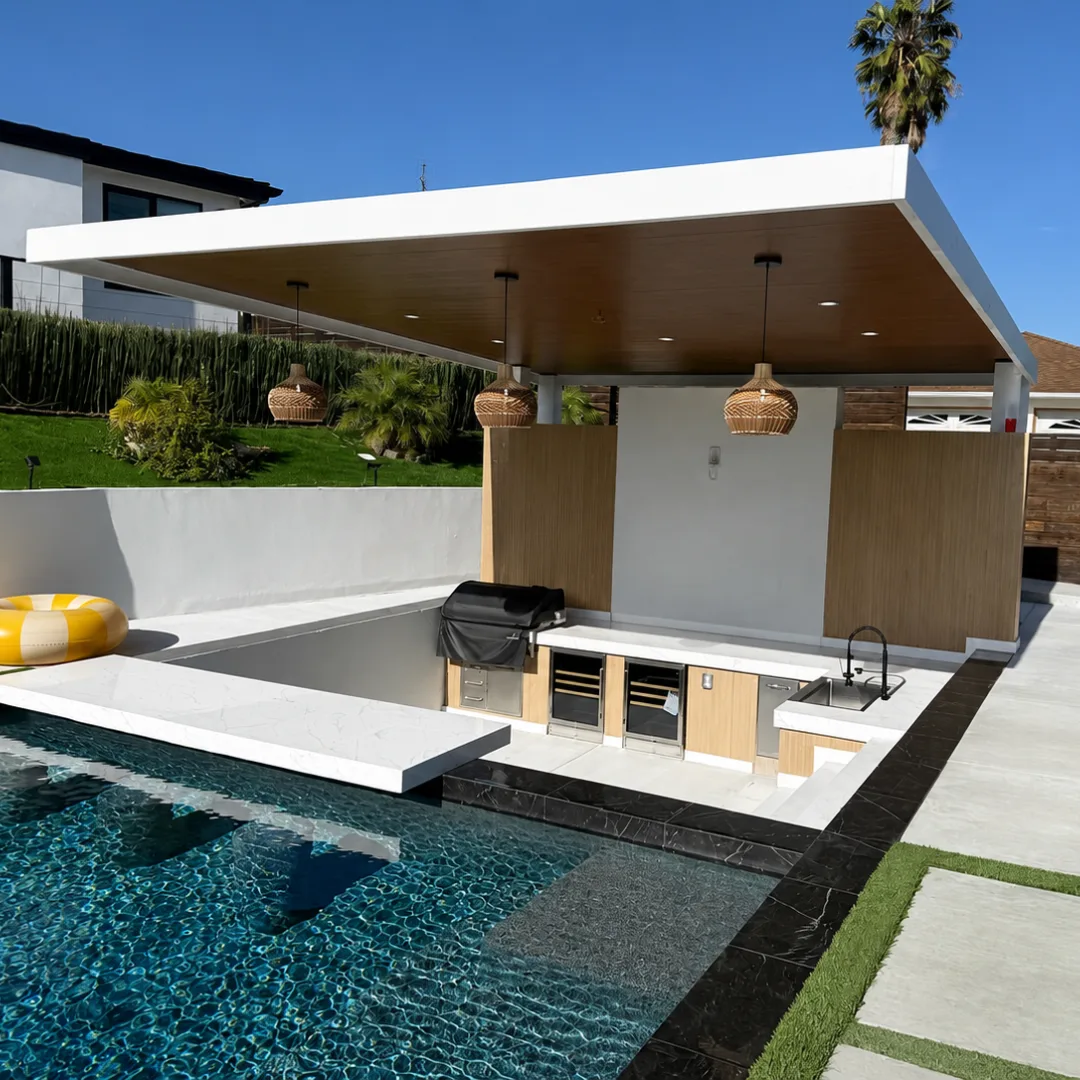

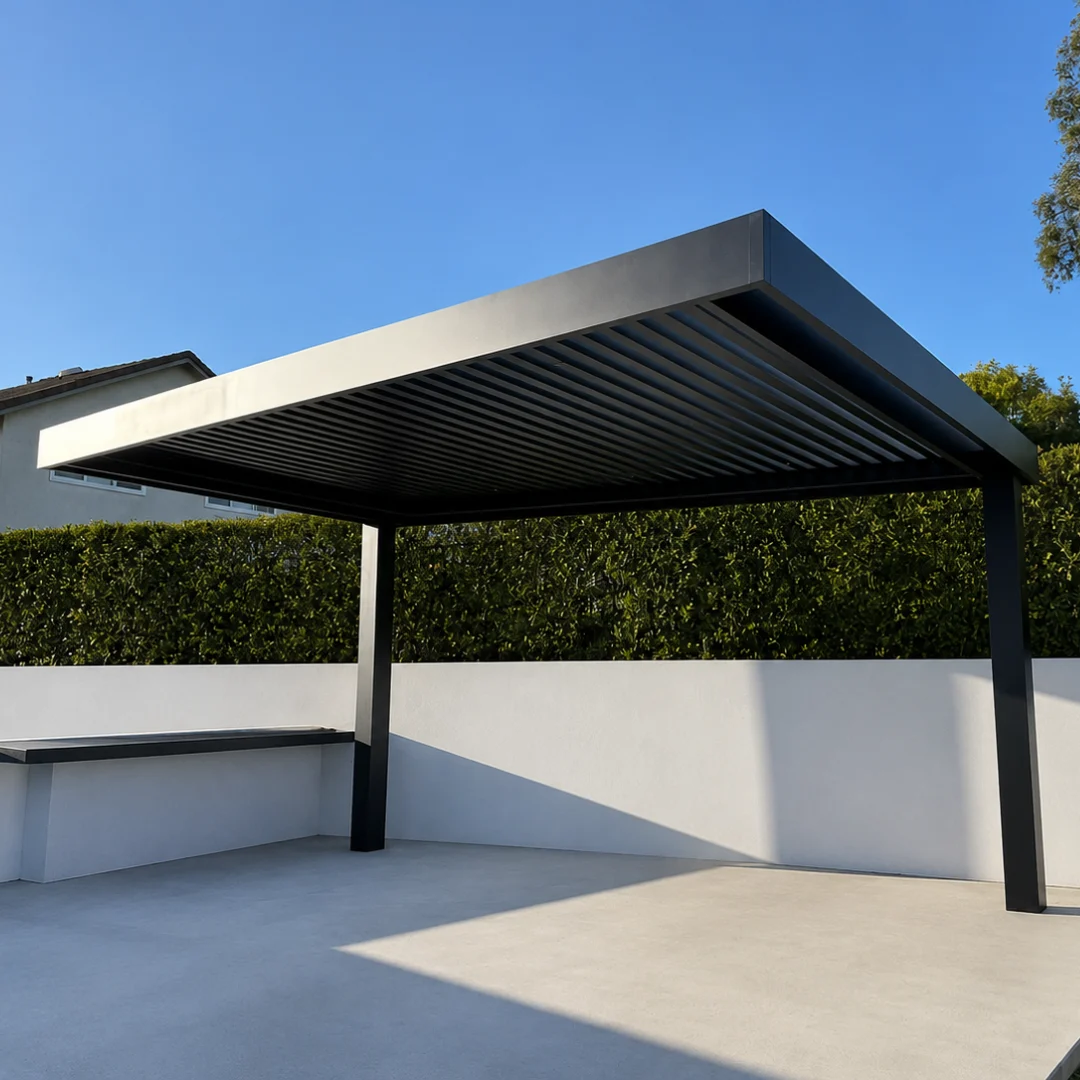

Black aluminum cantilever patio cover with no front posts

ALU FLOAT™

Architectural Cantilever Patio System

Coverage without front posts. Open space under the roof for dining, lounges and pools.

No front posts
Louver, insulated or slat roof
Engineered per project

Starting at$4,800

View system

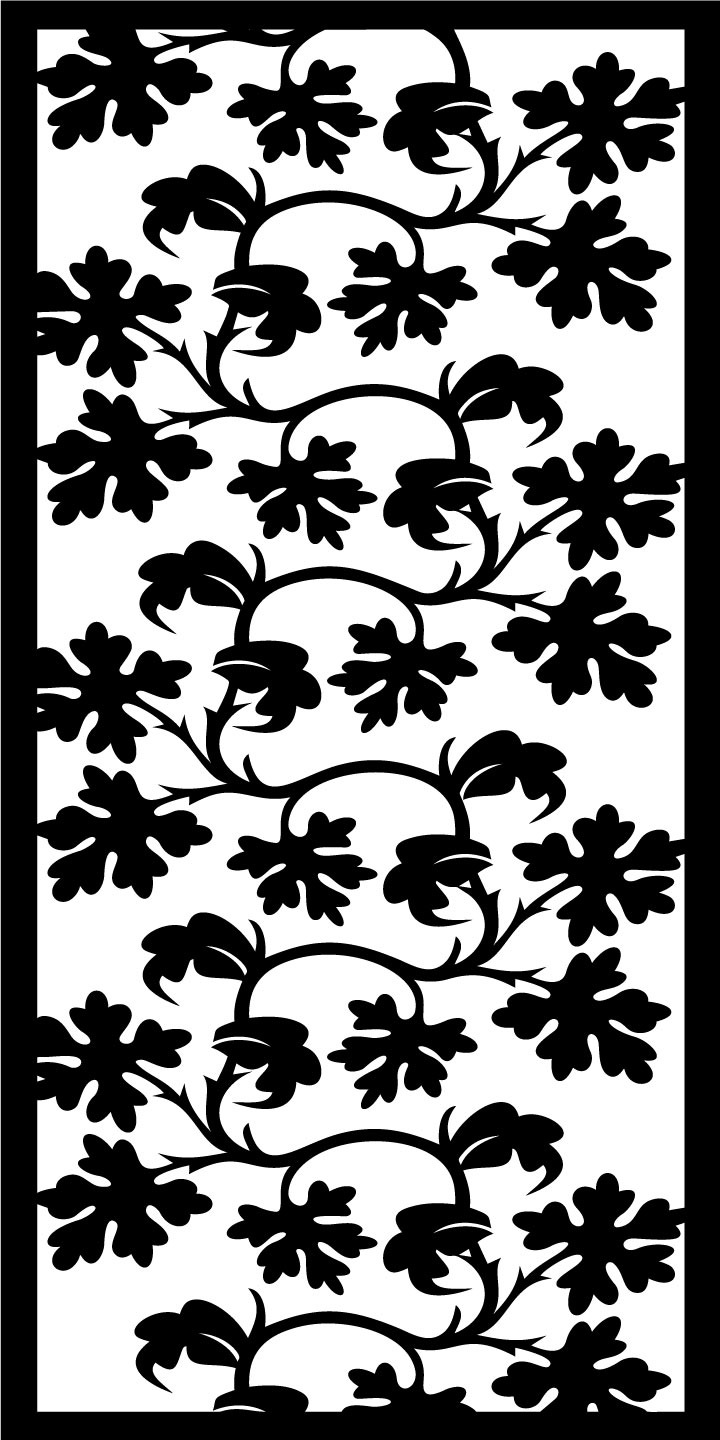

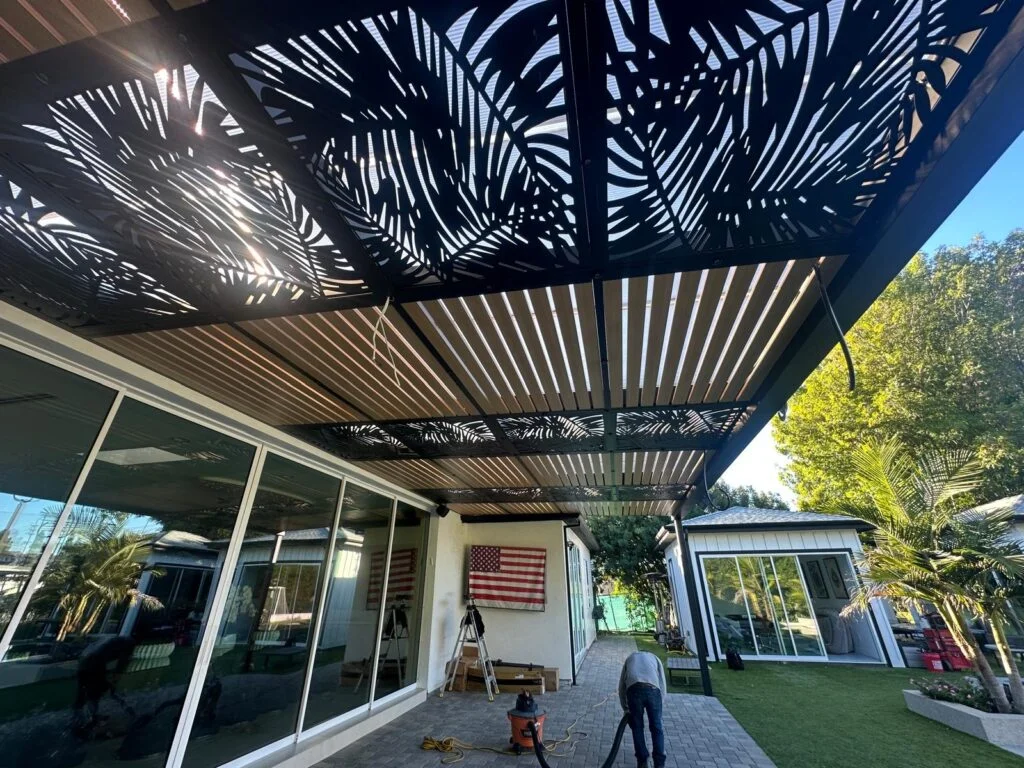

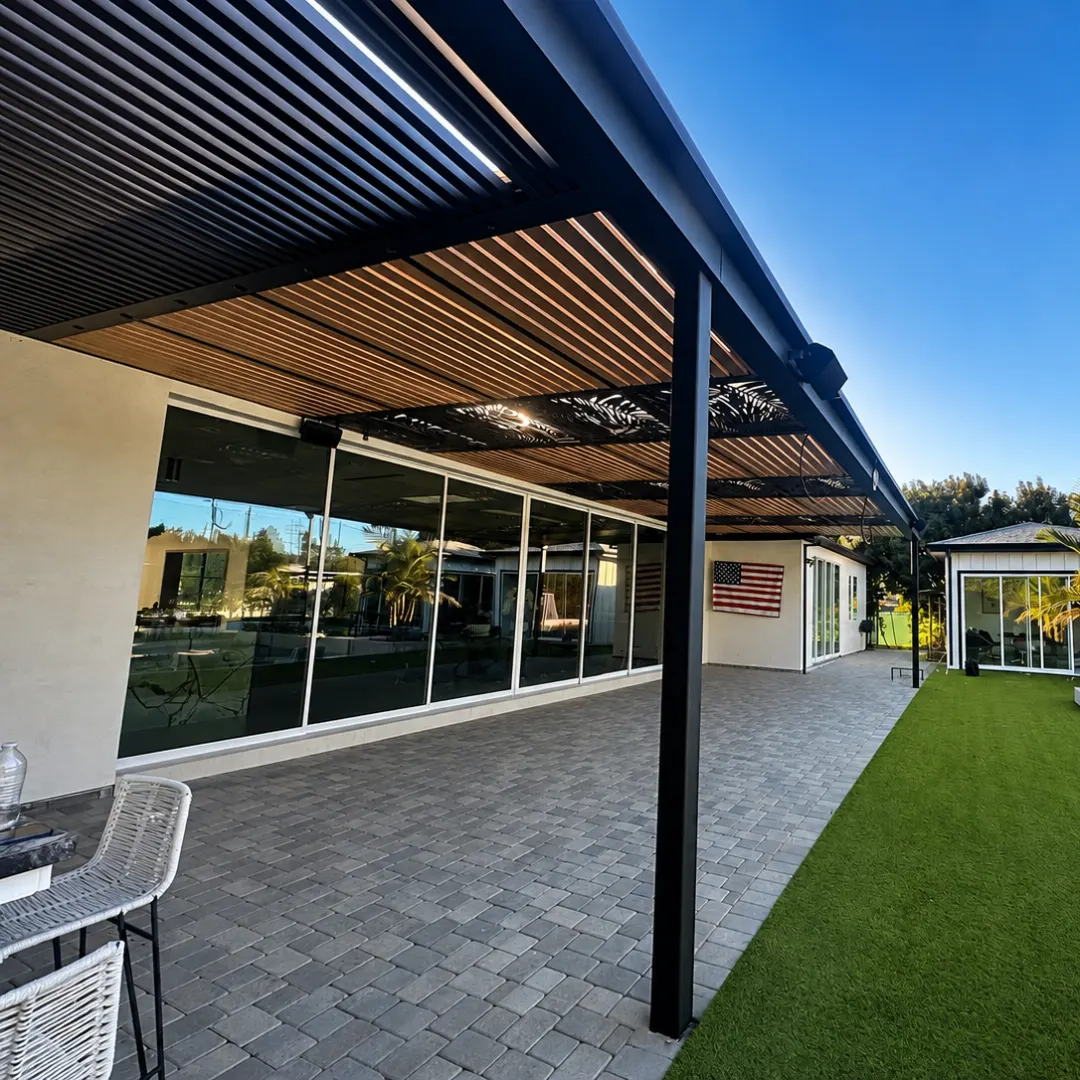

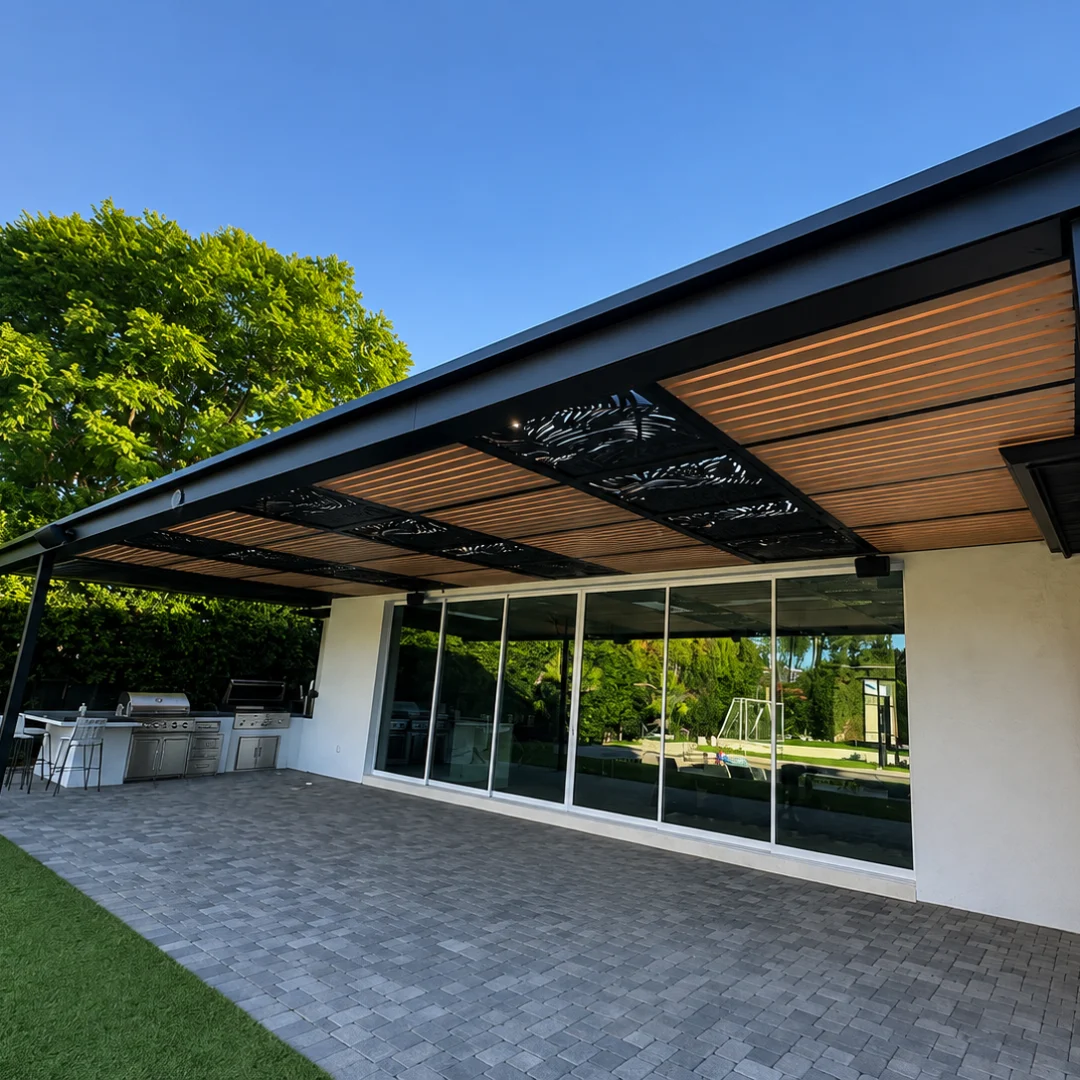

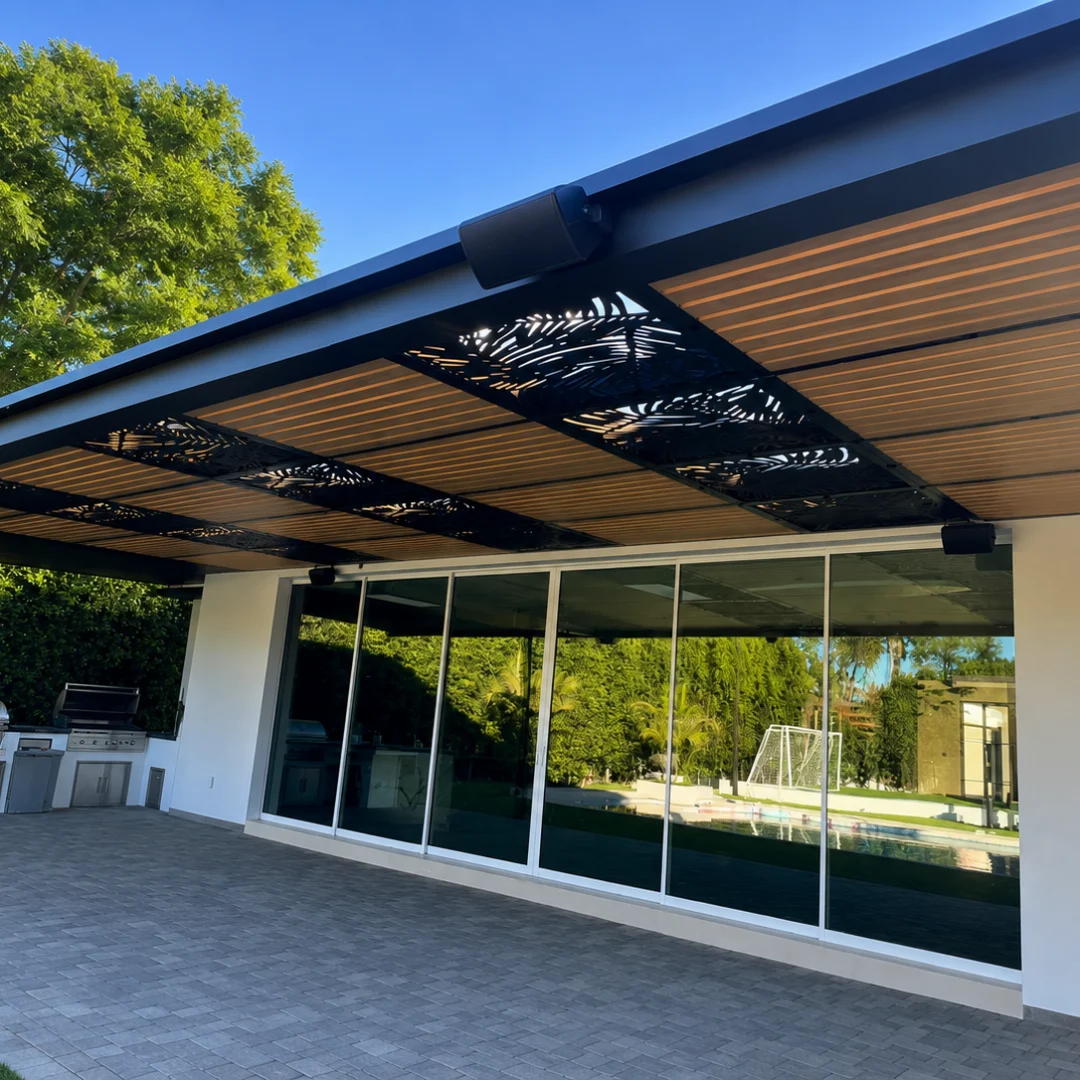

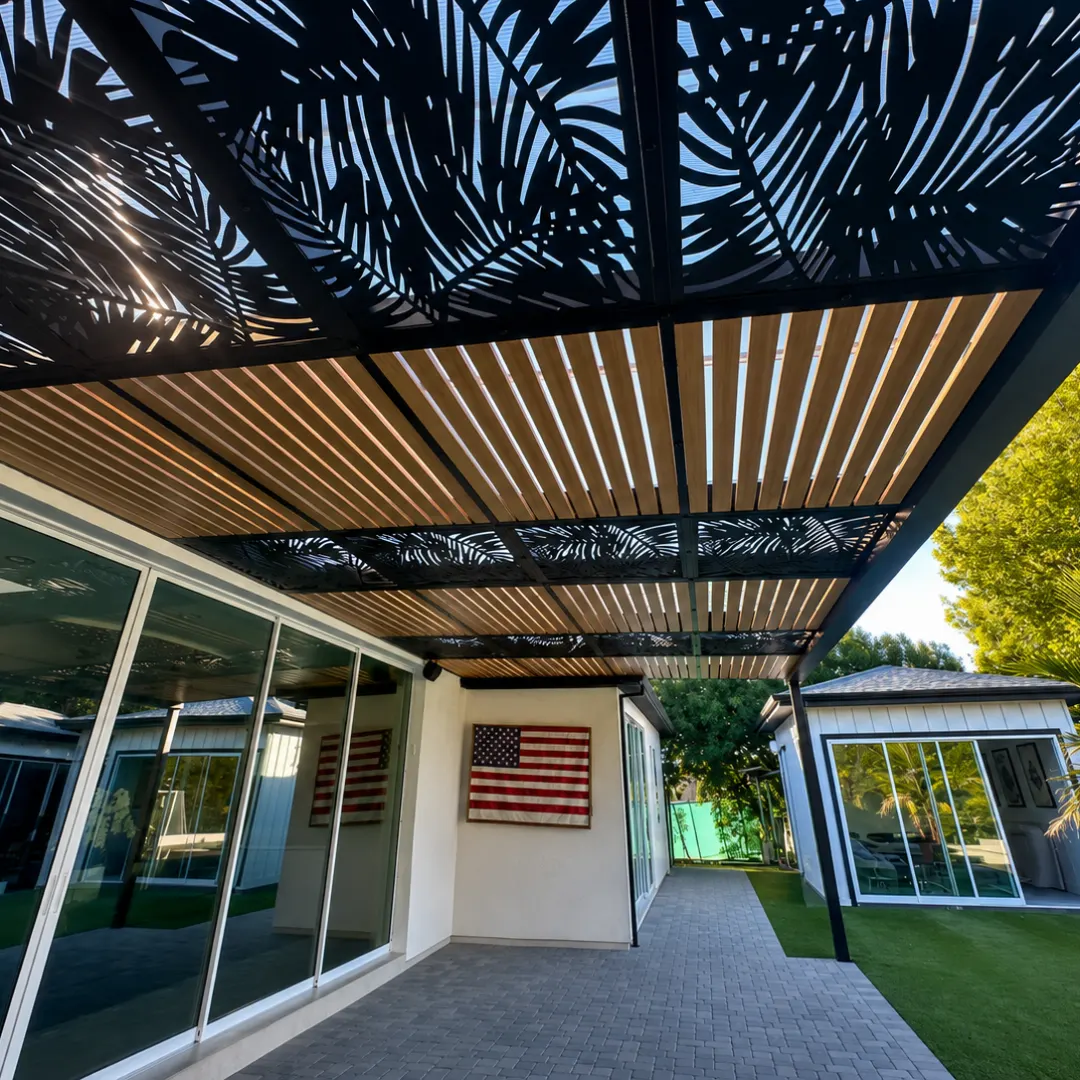

Laser-cut leaf pattern roof panels on an Aluglobus patio cover

ALU SIGNATURE™

Architectural Laser-Cut Patio System

Laser-cut roof panels that cast custom shadow patterns and give the property its own signature.

Custom cut patterns
Light and shadow effect
Combine with slats, louvers or panels

Price on request

View system

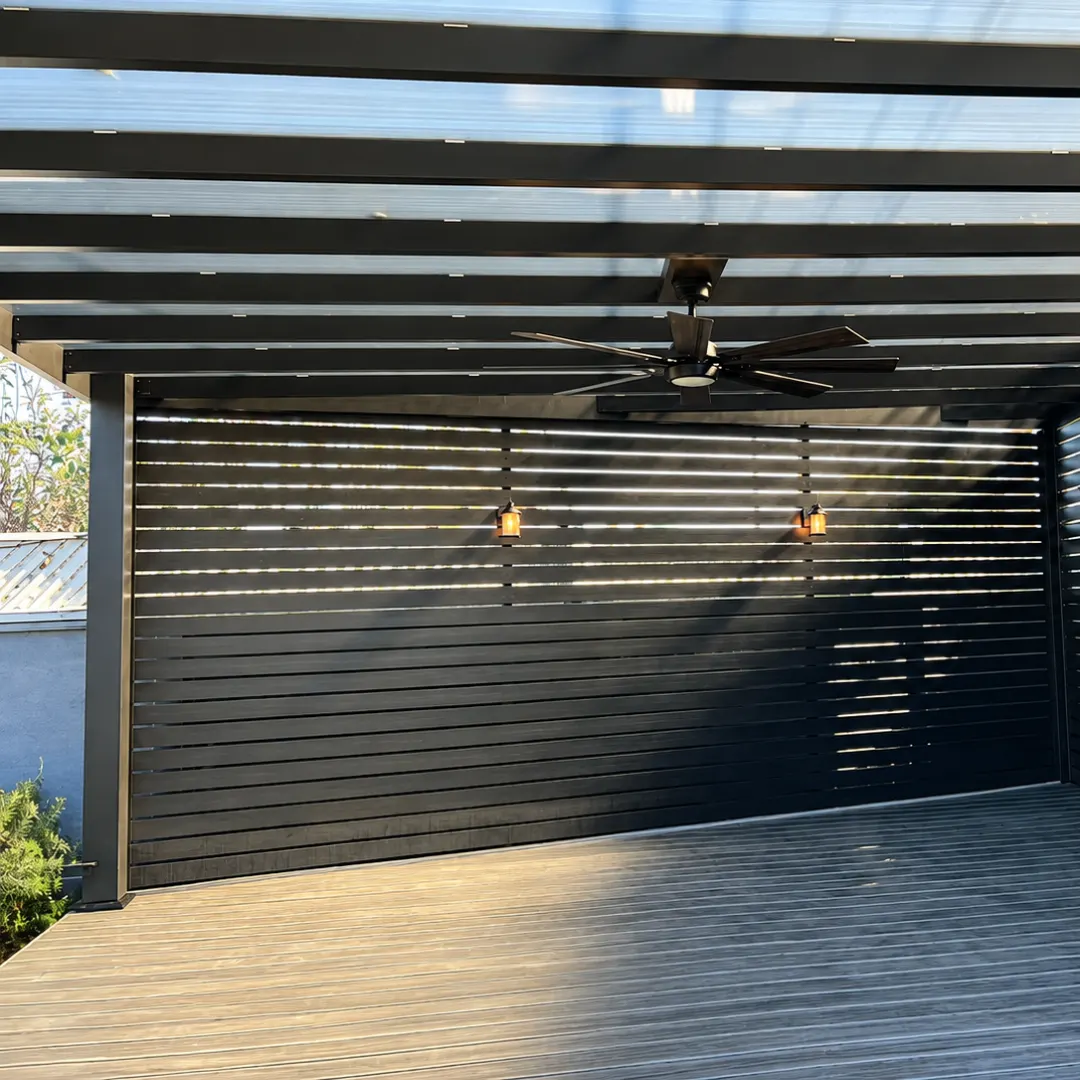

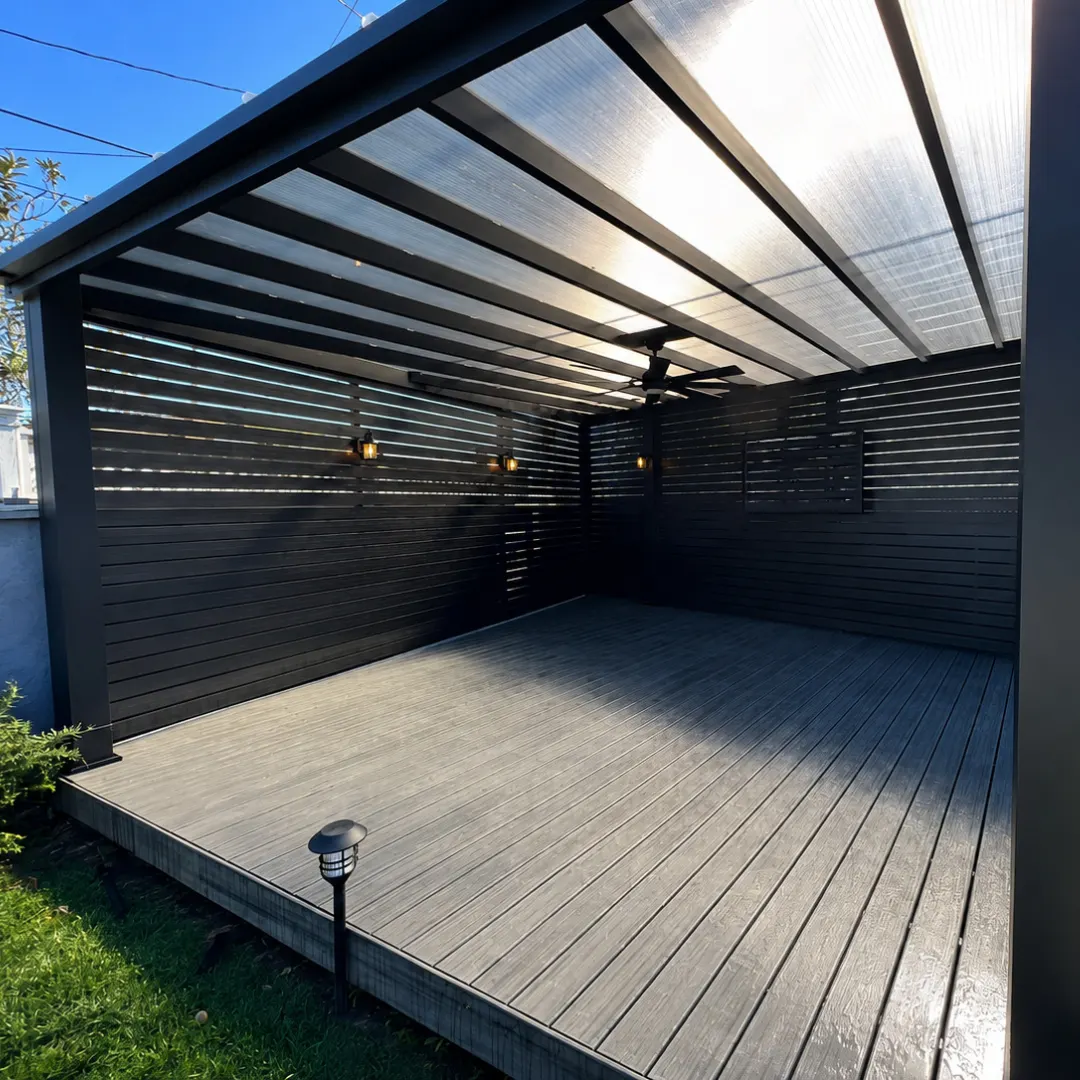

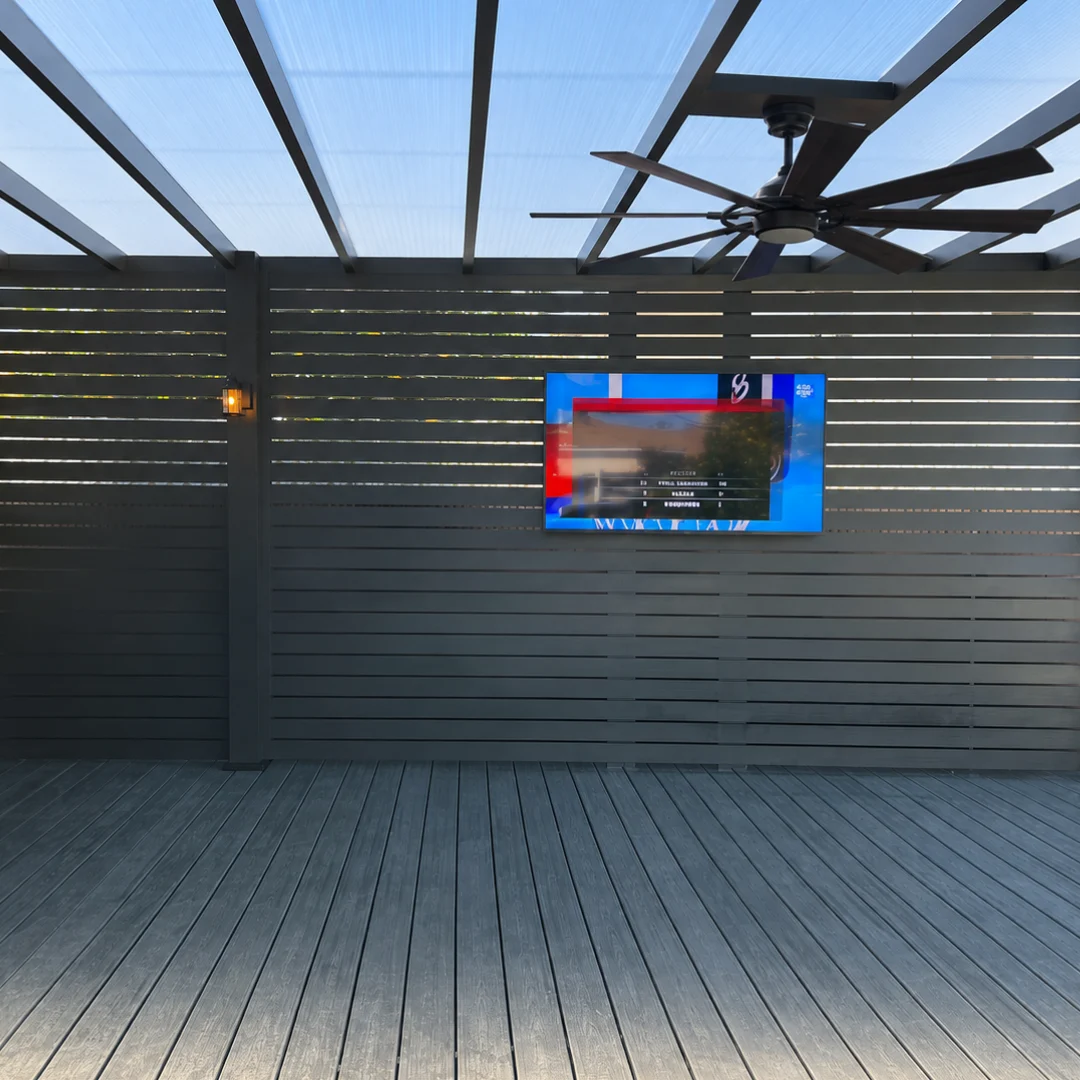

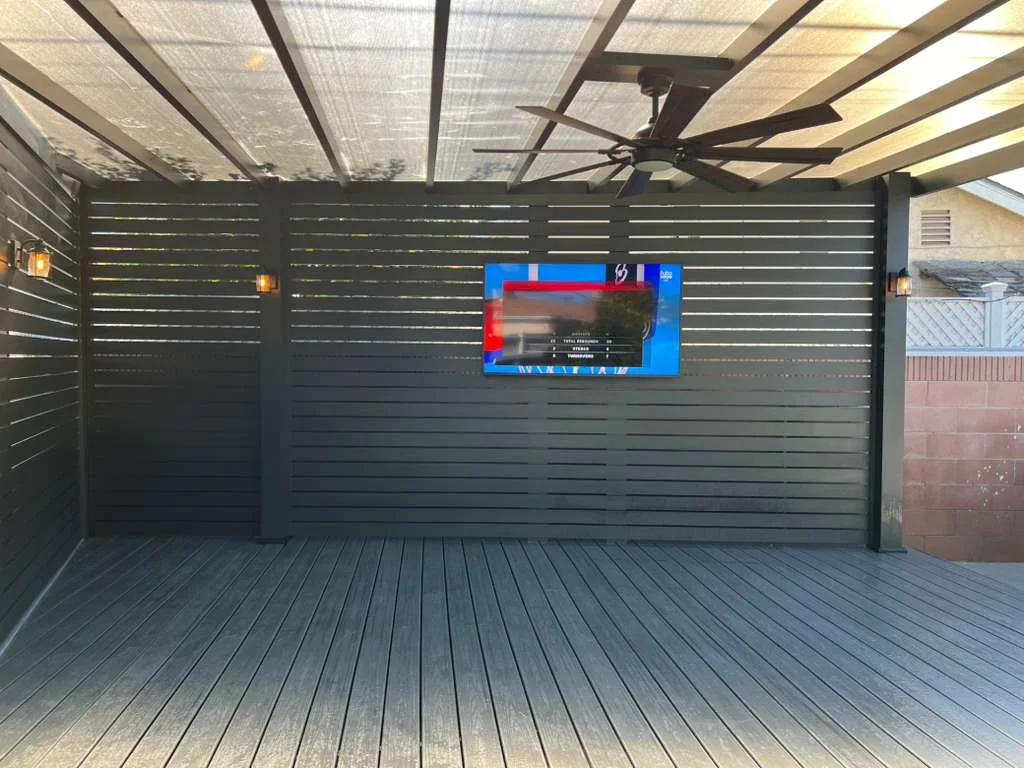

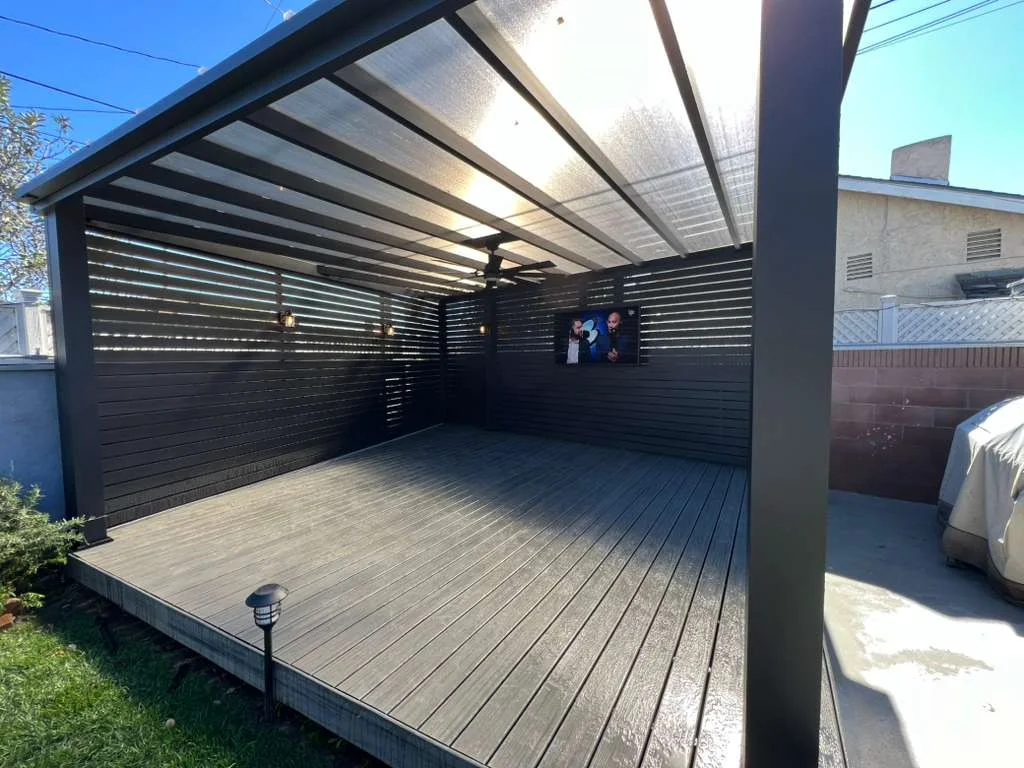

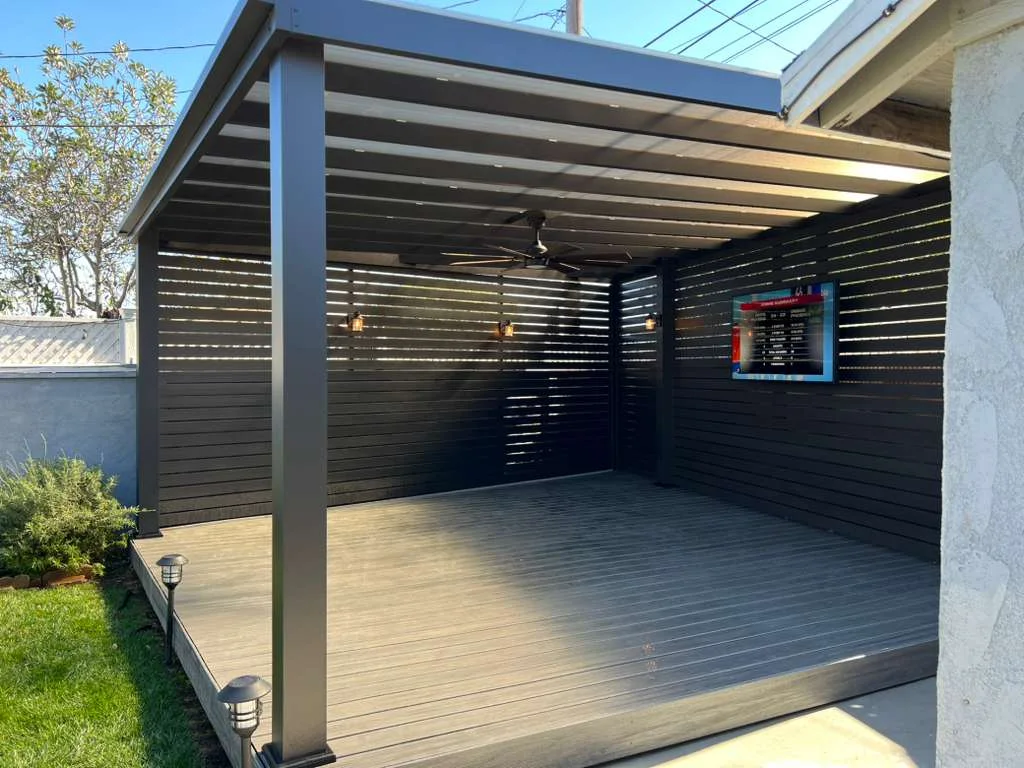

Aluminum beam patio cover with clear roof panels and slat privacy walls — Beam structure, shown with clear roof panels

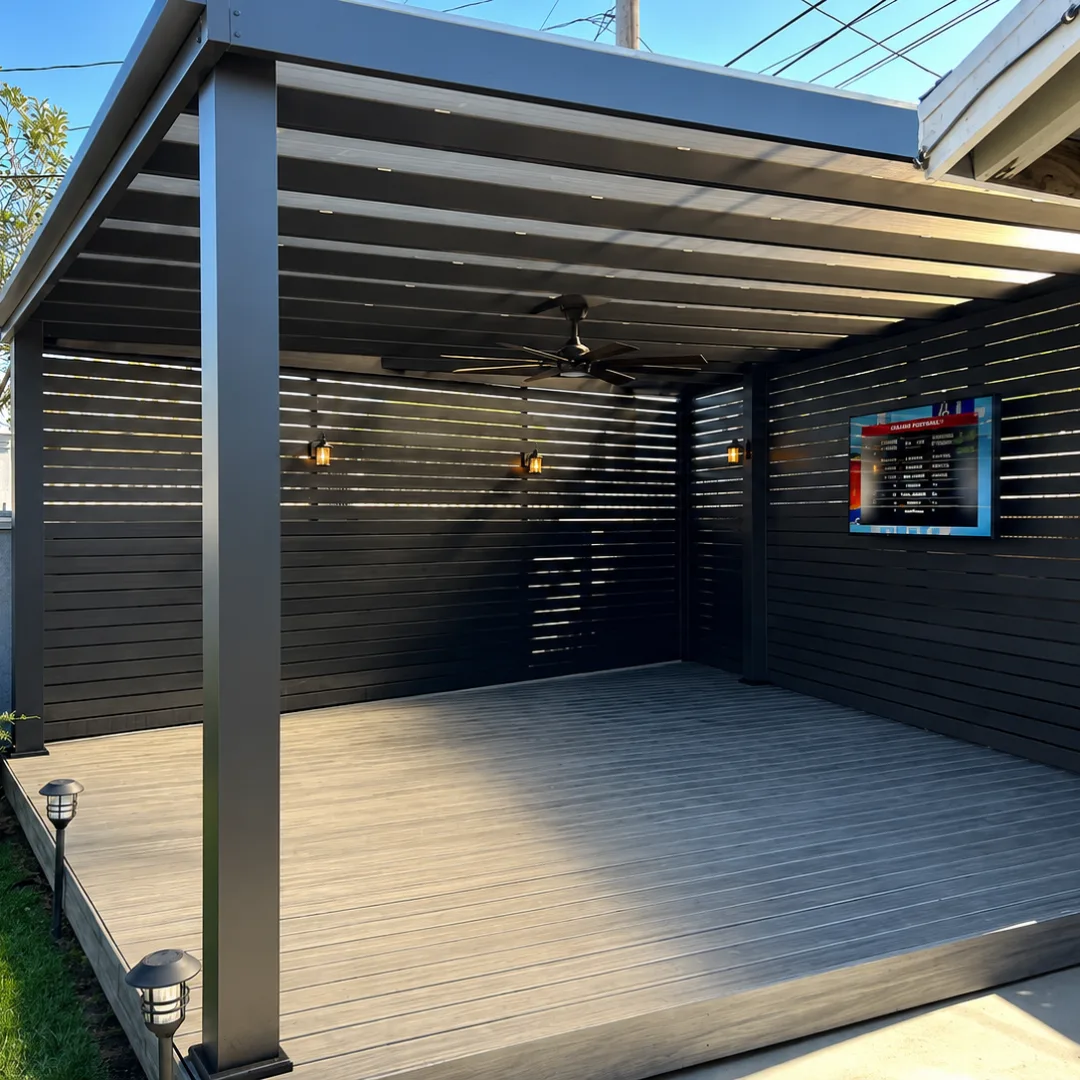

ALU SPAN™

Architectural Beam Patio System

The classic open beam pergola look, built in structural aluminum instead of wood.

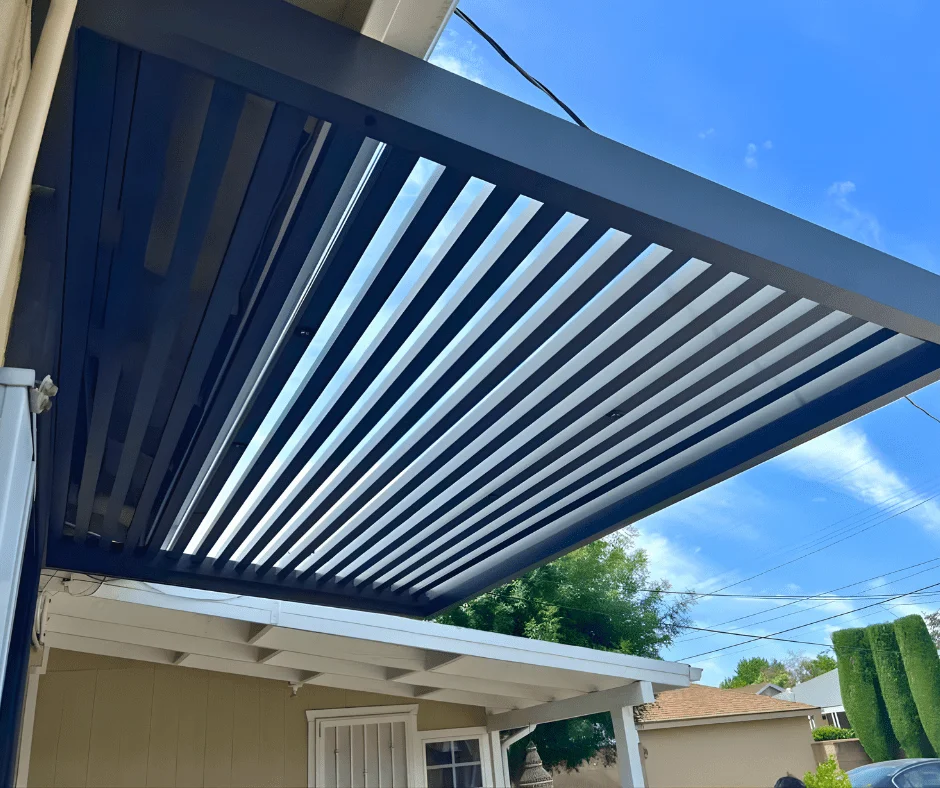

Open beam or lattice roof
Light and shadow pattern
Polycarbonate option

Starting at$4,130

View system

ALU LUMEN™

Architectural Polycarbonate Roof System

A light-filtering polycarbonate roof on a visible aluminum beam structure.

Light-filtering roof
Visible beam structure
Specifications on request

Price on request

View system

Starting prices are for a standard material package as listed by Aluglobus. Final pricing depends on size, layout, color, engineering, freight, installation and permits. Project photos on this page are real Aluglobus projects or our own facility. ALU FORTIS is shown in finish previews of one patio. ALU FLEX project photos are sent on request.

Aluglobus vs others

Why not a kit or a wood pergola?

How an Aluglobus aluminum system compares with a typical boxed patio kit and a traditional wood pergola.

Feature	Aluglobus systems	Typical patio kit	Wood pergola
Material	6063-T6 architectural aluminum, engineered profiles	Varies, alloy often unspecified	Wood framing
Fire	Non-combustible aluminum components	Depends on the product	Combustible
Finish	7-stage powder coat, AAMA 2604 compliant approach	Standard coatings, limited colors	Stain or paint
Maintenance	No sanding, sealing or staining	Varies by brand	Regular sealing or staining
Sizing	Built to your dimensions, multi-zone and wide spans	Fixed kit sizes	Built on site
Roof options	Louver, insulated, slat, cantilever, laser-cut, beam, polycarbonate	Usually one or two roof types	Open beams or a solid roof
Engineering	Project-based, with 2D and 3D drawings	Standard kit, limited engineering	Depends on the builder
Colors	Black, white, custom colors and woodgrain looks	A few stock colors	Natural wood or paint
Who you buy from	The manufacturer, factory direct	Often a reseller	A local builder

Factory directNo reseller markup between you and the manufacturer.

Non-combustibleAluminum components for fire-conscious projects.

Built to sizeYour dimensions, not the nearest kit size.

Gallery

Real projects, shown in full.

128 real photos of Aluglobus patio covers: job sites, professional shoots, drone views and vertical shots. Pick a tab, tap any photo to enlarge.

Louvered patio cover install in Santa Monica, CA

Showing 12 of 76

Before You Buy a Fence, Gate, or Patio... See Where It Actually Comes From

Inside the factory

See where your patio cover is actually made.

Aluglobus fabricates its own aluminum systems and ships them factory direct to homeowners and contractors across the U.S. Our most-watched video, with 250,041 views, walks through the shop.

Project-specific fabrication, not fixed kit sizes
Punching, laser cutting, milling and bending in the shop
7-stage powder coating with a 110 ft oven for long profiles
Packed and shipped to your job site or warehouse

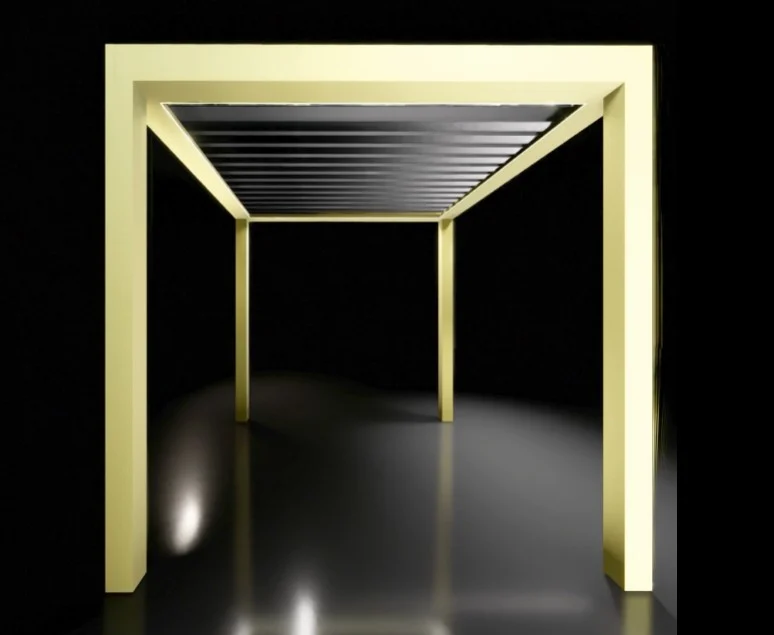

7-stage powder coating

A finish built to last outdoors.

Every patio system is finished through a 7-stage powder coating process, with an AAMA 2604 compliant approach.

Prep before powder. Most coating failures start before the powder goes on, so every part is pretreated in stages first.
110 ft oven. Long-span beams and patio profiles cure in one piece in a 110 ft powder coating oven.
Adhesion and corrosion resistance. The pretreatment helps the powder bond and protects the aluminum outdoors.
Colors and woodgrain. Black, white, custom colors and woodgrain-look finishes with TIGER and Cardinal powders.

Why Smart Contractors Are Switching to 7-Stage Powder Coated Aluminum (Direct From the Factory)

Showing 8 of 20

Video library

Compare the systems on video.

47 videos: team explainers, system walkthroughs, buying advice and factory shorts.

YouTube channel

Contractor supportHow we plan a project with your crew

Finishes and accessoriesColors, lighting and add-ons

Project dimensionsWidth, projection, height and site

Installation from aboveA louver roof going in

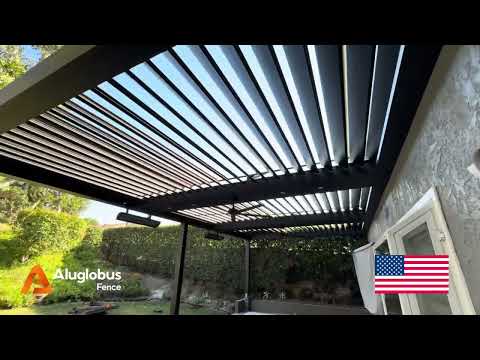

San Diego project reelALU TANK automatic louver

Instagram reelsInside the factory Cantilever patio cover Insulated roof system Powder coating Louver roof in action Coil vs extruded aluminum Follow @aluglobusaluminum

Reviews

Homeowners, contractors and a few famous names.

4.9

Aluglobus on Google, 100+ reviews

Read on Google

Daymond JohnSeen at our booth

MikeHomeowner

Philip, Empire GroupContractor

DesiignerClient

Watch PlugClient

DavidClient

CustomerClient

“AluGlobus was extremely helpful with my order, answering all my questions and delivering everything to Texas in perfect condition. The products were well-packed in a solid wood crate, and excellent quality.”

Jim MonahanCustomer, Texas

“We use Aluglobus 100% with every fence/gate job we have. As a contractor I can say they are working very hard and their product is highest quality I can find and the best price.”

Valley One Gates & AccessContractor

“I have had 2 projects done with Globus Gates. Both had fences and gates. So happy with the finished work! Even my neighbors have knocked on my door to ask who did the work.”

Suzi FisherCustomer

Client videos and reviews are about Aluglobus as a company, across our fence, gate and patio systems.

Compare

All nine systems side by side.

Roof, shade, rain cover, layout and starting price at a glance.

System	Roof	Shade	Rain cover	Layout	Install	Starting price
ALU TANK™Architectural Automatic Louver System	Motorized 8 in louvers	Adjustable, open to closed	Yes, when closed	Freestanding, attached or cantilever	Installed by pros	From $10,050
ALU FLEX™DIY Louver Patio Kit	Motorized 6 in louvers	Adjustable, open to closed	Yes, with rain sensor	4 posts	DIY boxed kit	From $11,551
ALU THERMA™Architectural Insulated Patio System	Insulated solid panels	Full shade	Yes	Freestanding or attached	Installed by pros	From $7,900
ALU FORTIS™Architectural Dual-Wall Patio System	Dual-wall roof	Ask our team	Ask our team	Ask our team	Ask our team	On request
ALU LINEA™Architectural Slat / Lattice Patio System	Fixed slats or lattice	Filtered shade	Open roof	Freestanding or attached	Installed by pros	From $5,720
ALU FLOAT™Architectural Cantilever Patio System	Louver, insulated or slat	Depends on roof	Depends on roof	No front posts	Engineered, installed by pros	From $4,800
ALU SIGNATURE™Architectural Laser-Cut Patio System	Laser-cut panels	Patterned shade	Depends on roof zones	Freestanding or attached	Installed by pros	On request
ALU SPAN™Architectural Beam Patio System	Open beams	Light and shadow	Open roof, polycarbonate option	Freestanding or attached	Installed by pros	From $4,130
ALU LUMEN™Architectural Polycarbonate Roof System	Polycarbonate on beams	Light-filtering	Covered roof	Freestanding or attached	Installed by pros	On request

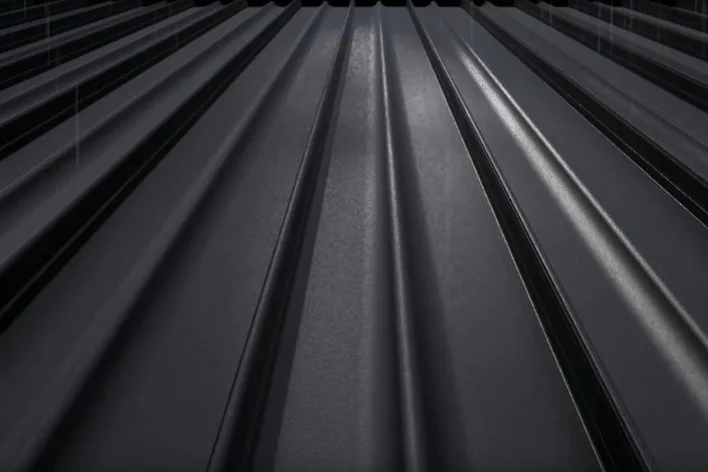

Rain cover and drainage depend on layout, slope and installation. Ask our team about your project.

System details

Specifications for every system.

Flagship system

ALU TANK™

Architectural Automatic Louver System

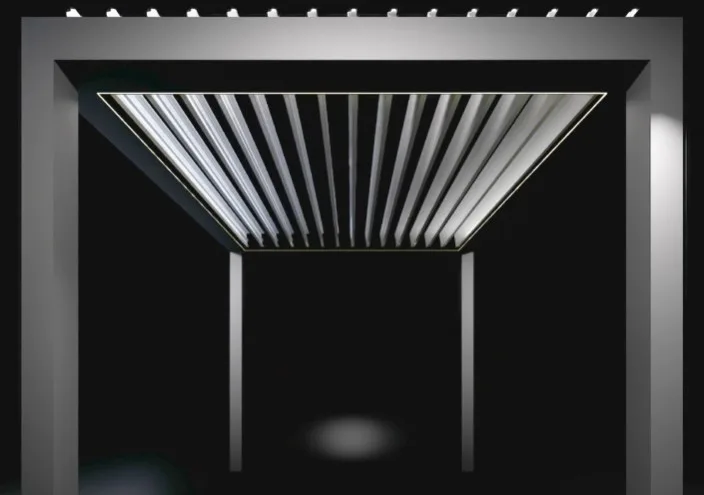

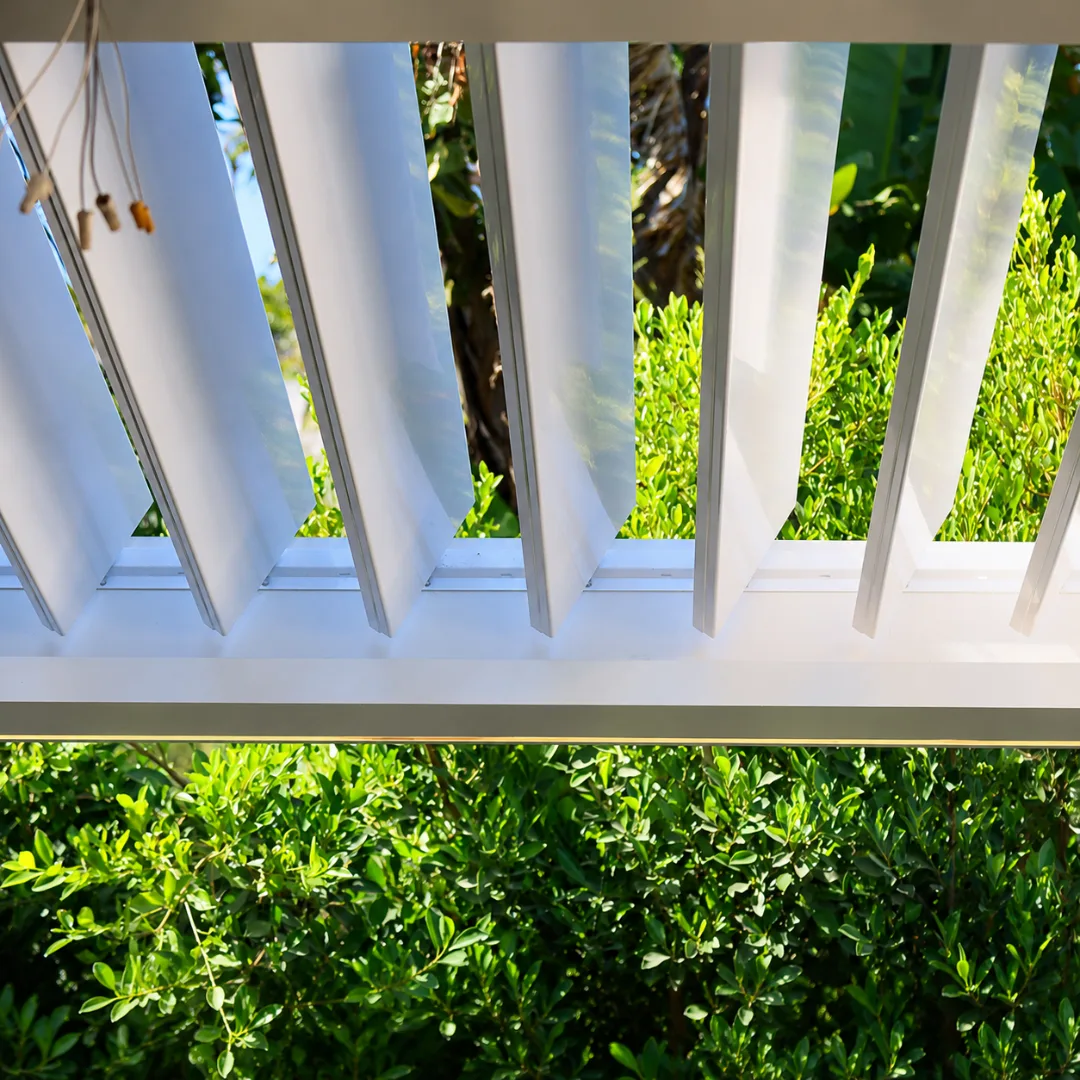

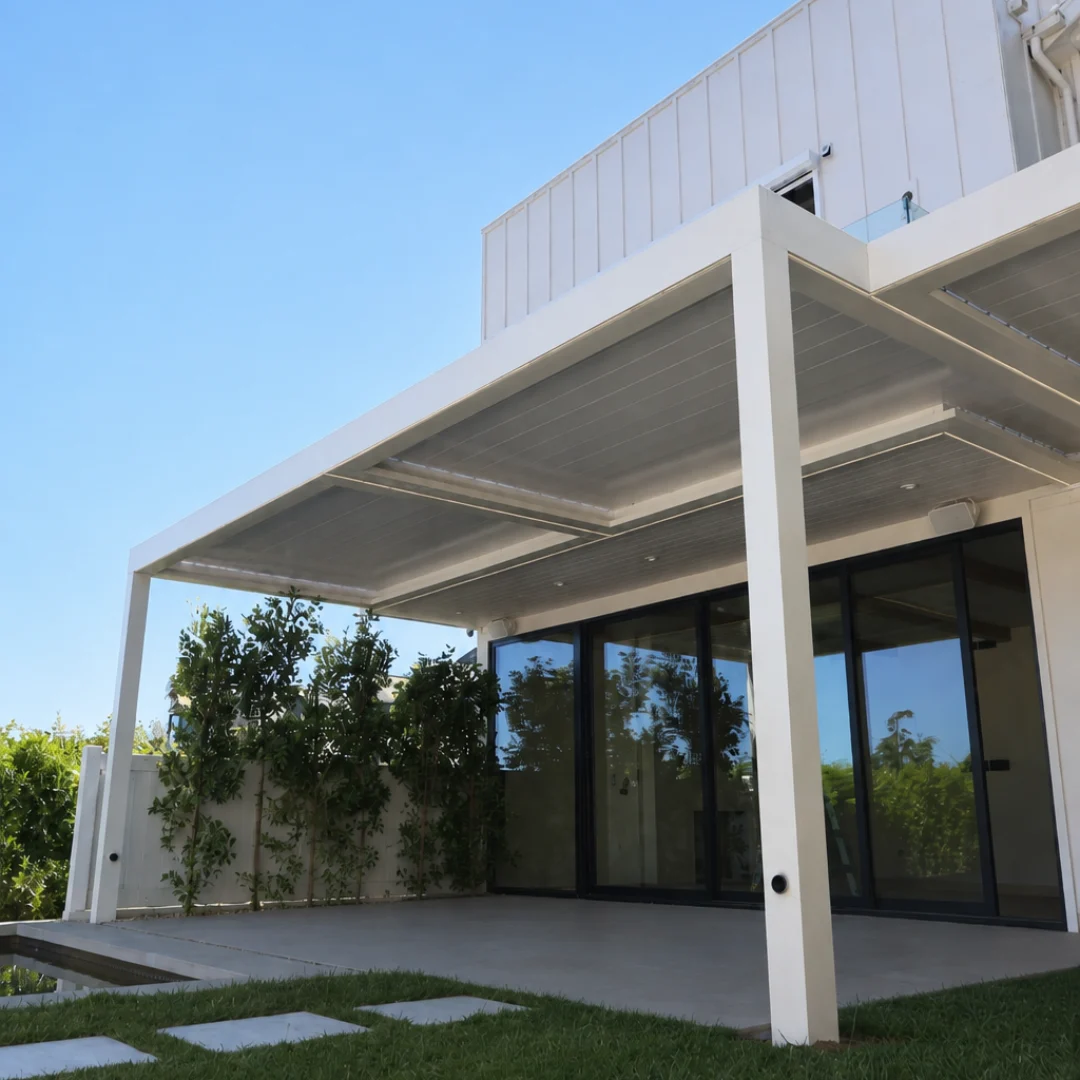

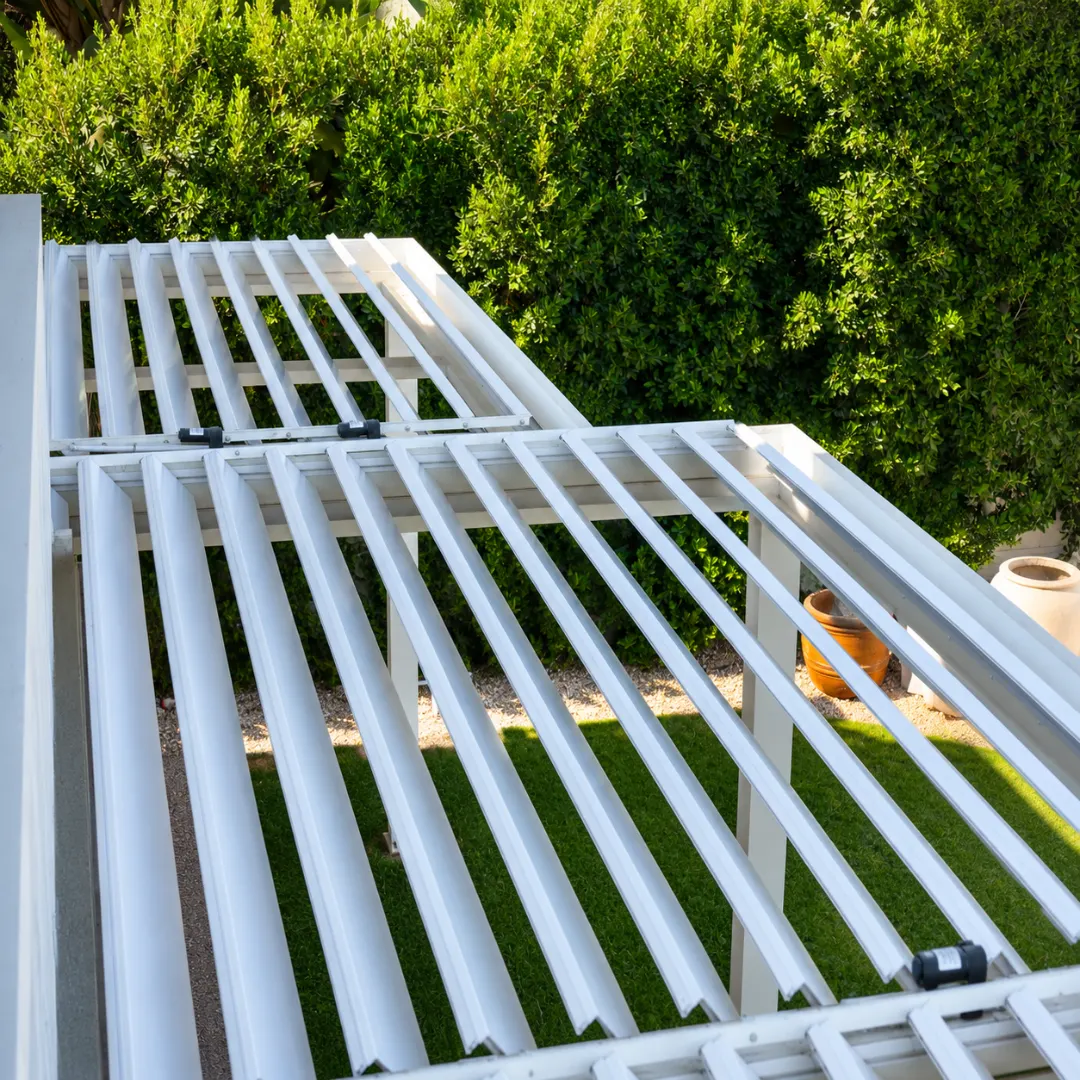

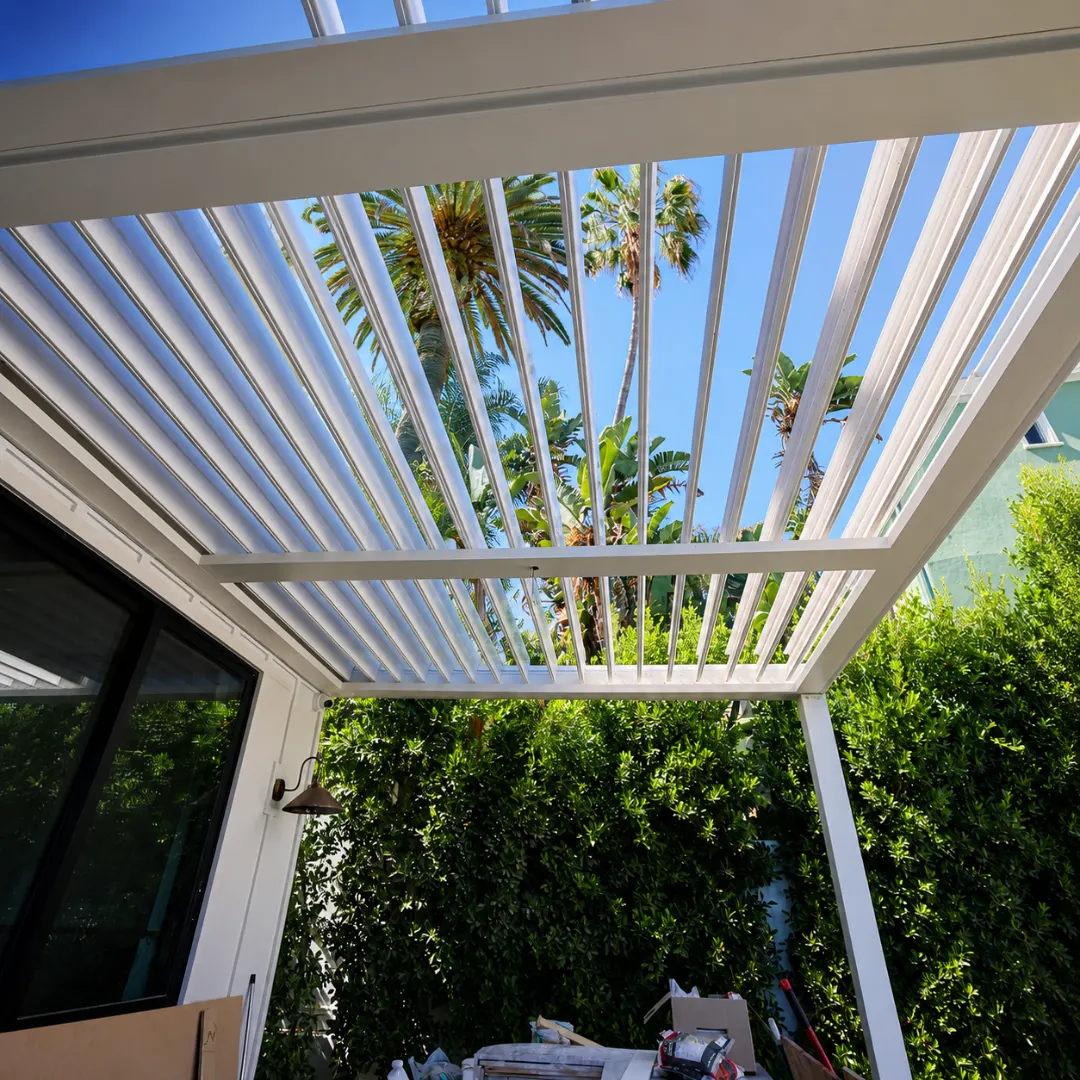

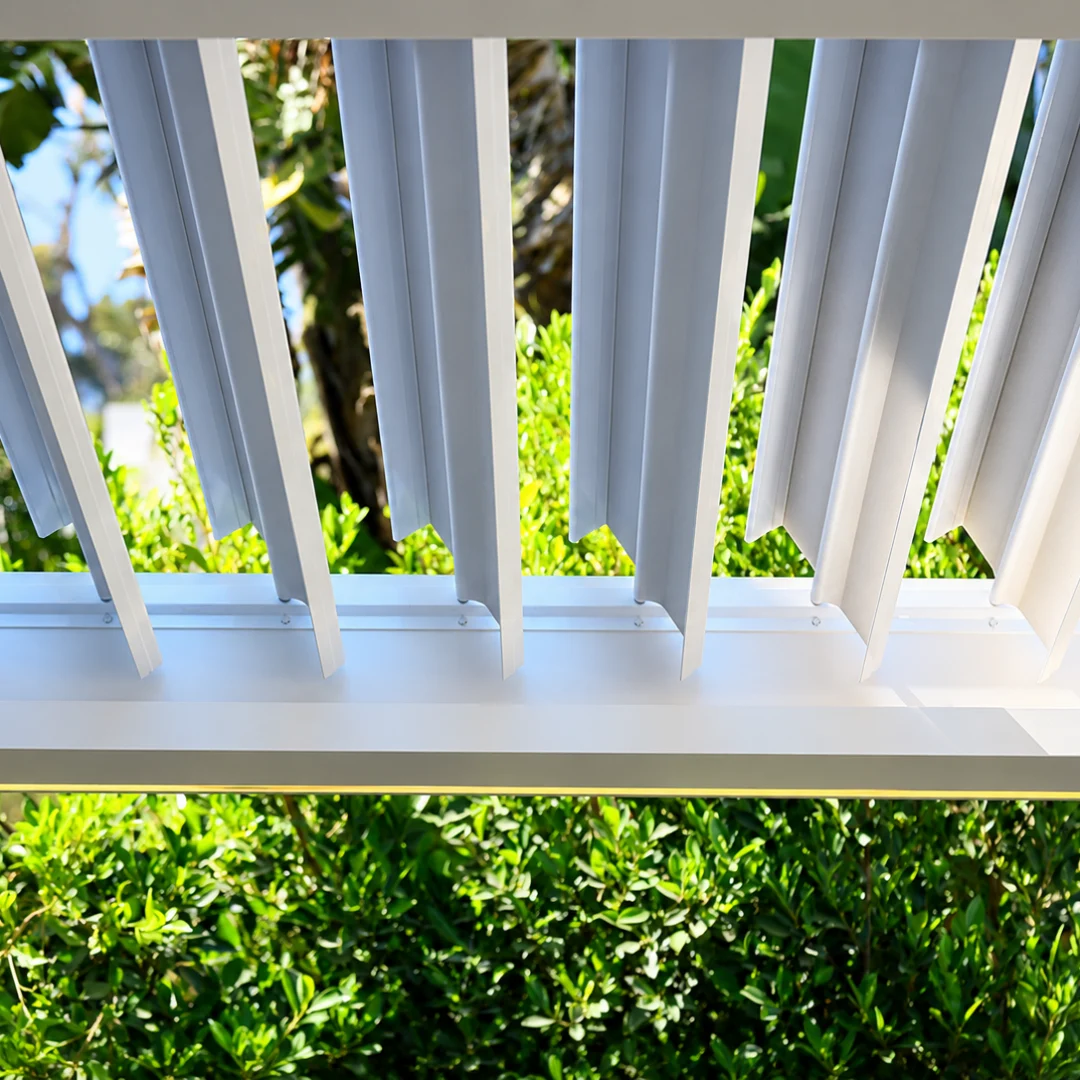

ALU TANK is the Aluglobus flagship automatic louver system. The blades rotate open for sunlight and airflow, then close for shade and rain protection, with gutter and drainage planning built into the structure.

It is sized to the project: freestanding, house-attached, cantilever or multi-zone, with LED lighting, fan beams, rain sensor and app control options.

Starting at$10,050

Key specifications
Roof	Motorized 8 in automatic louver
Blade alloy	6005A-T61 structural grade
Posts	6, 7 or 8 in square, 10 to 14 ft
Beams	2 x 8 or 2 x 10 in, up to 24 ft
Louver bay	Up to 14 ft
Gutter	3 x 5-1/2 in

Explore ALU TANK™ Call (888) 876-3006

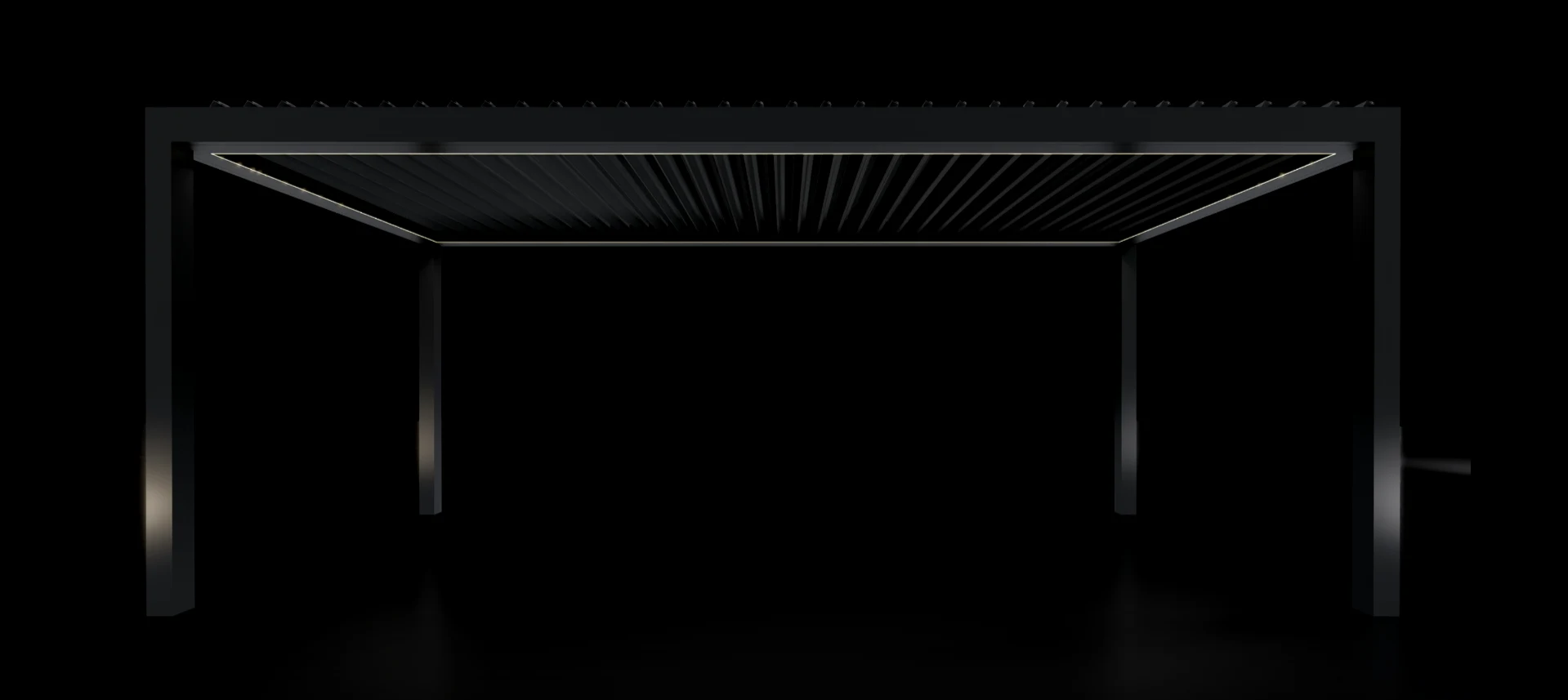

Product previews of the ALU FLEX kit, not an installed project. Tap to compare finishes and views.

This Patio Roof Adjusts to the Weather Automatically

DIY kit

ALU FLEX™

DIY Louver Patio Kit

ALU FLEX brings the Aluglobus automatic louver roof to one boxed package for do-it-yourself installers. Four 6 x 6 in posts, 10 x 4 in beams and 6 x 1.5 in louvers, with LED lighting in the beam and louvers and a 110v motor with a rain sensor.

Built from 6063-T6 aluminum with AAMA 2604 super-durable powder coating. Four finishes are listed as coming soon, so confirm availability for your finish before ordering.

Starting at$11,551

Key specifications
Kit size	13 x 19 ft
Posts	4 x 6 x 6 in
Beams	10 x 4 in
Louvers	6 x 1.5 in

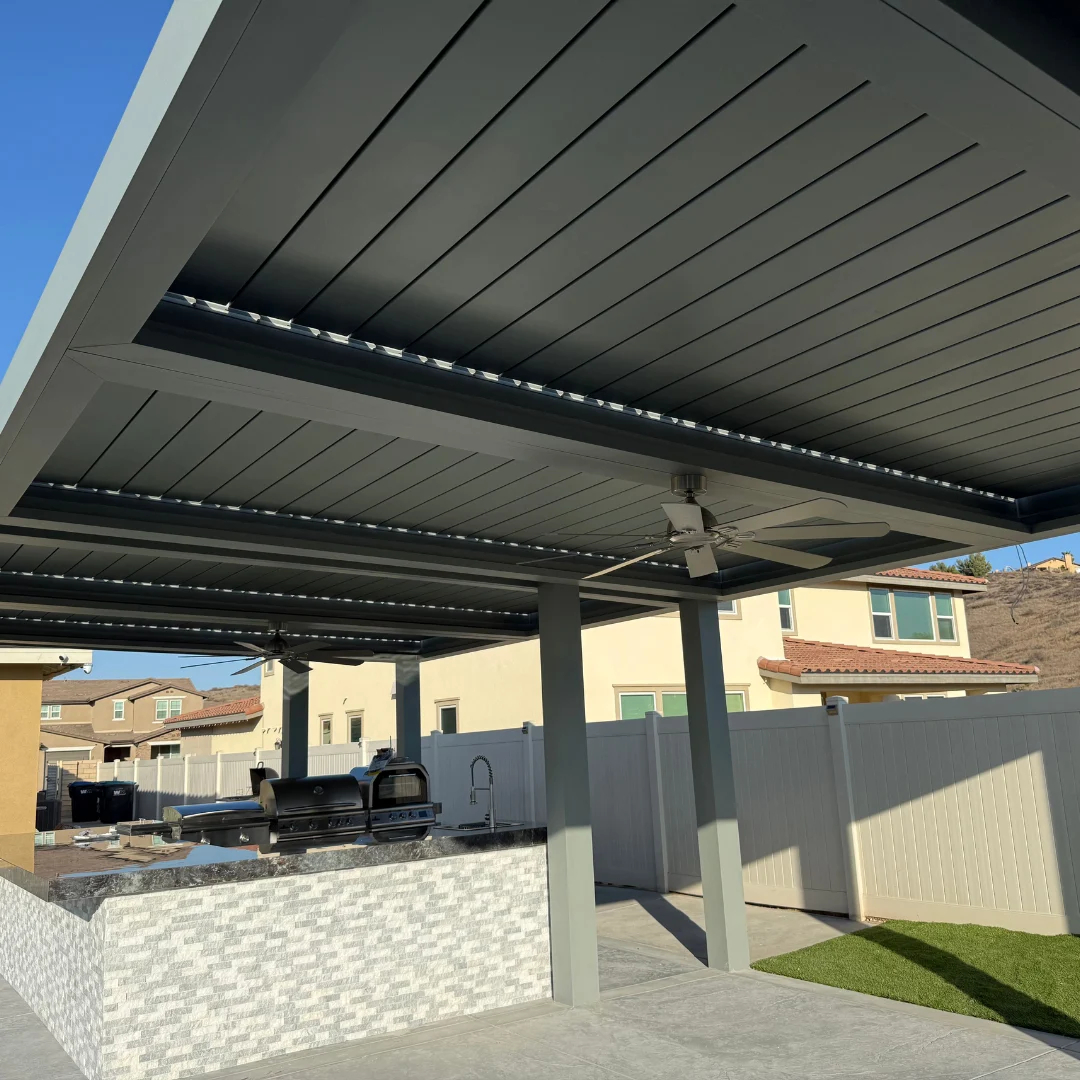

Lighting	LED in beam and louvers
Motor	110v with rain sensor
Material	6063-T6 aluminum
Finishes	Black, black with teak look, white, white with oak look (coming soon)

Explore ALU FLEX™ Call (888) 876-3006

Patio system

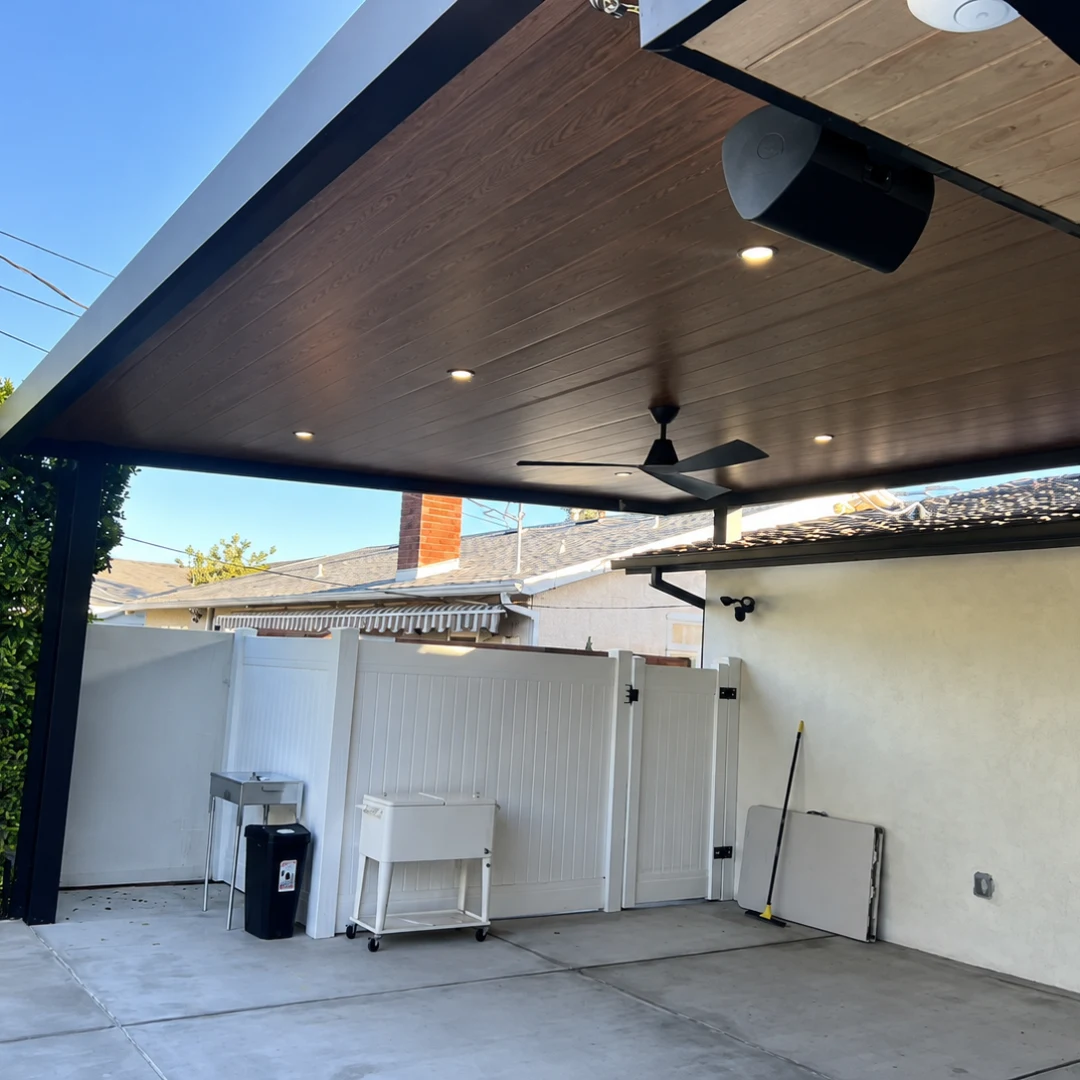

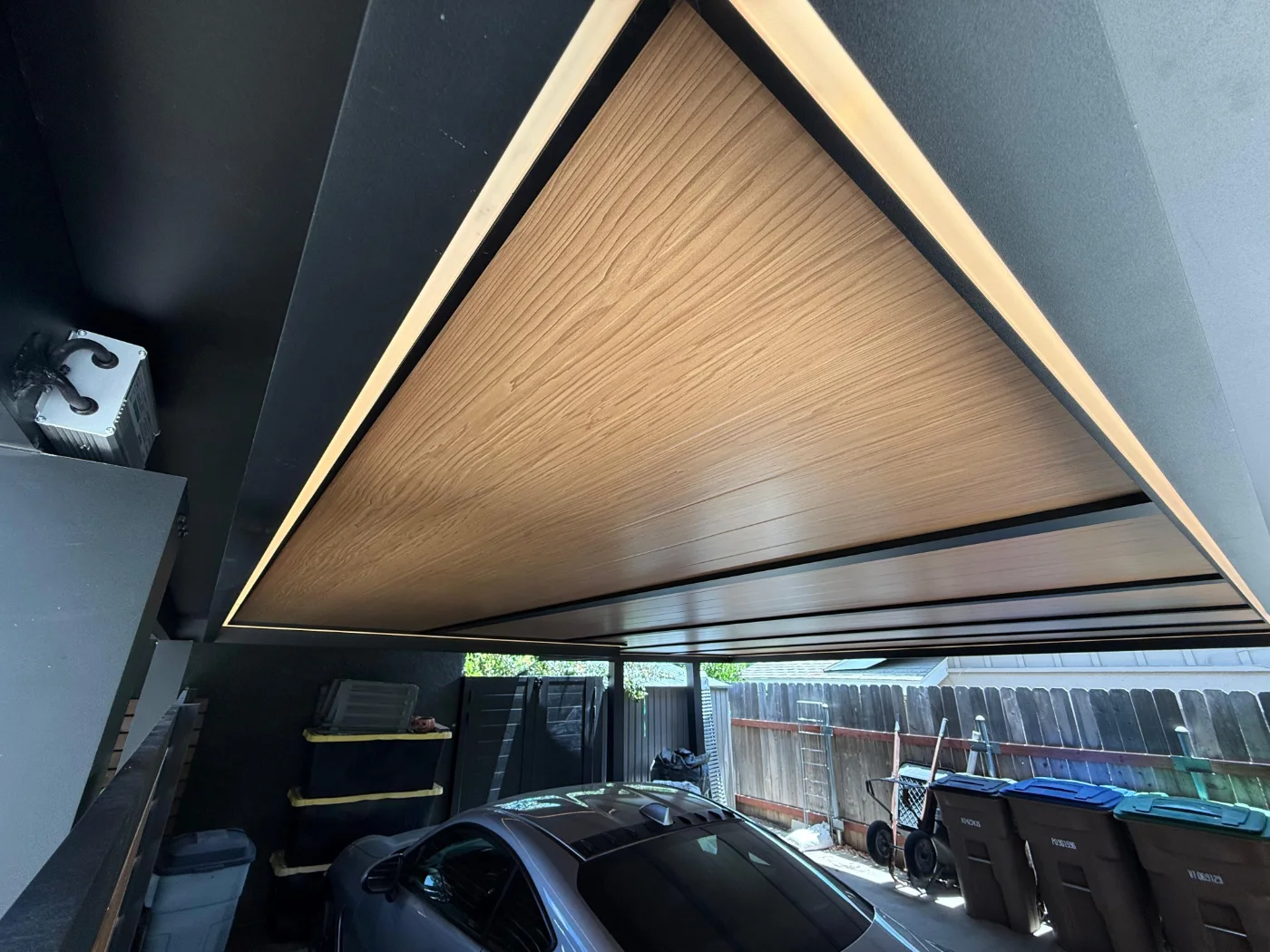

ALU THERMA™

Architectural Insulated Patio System

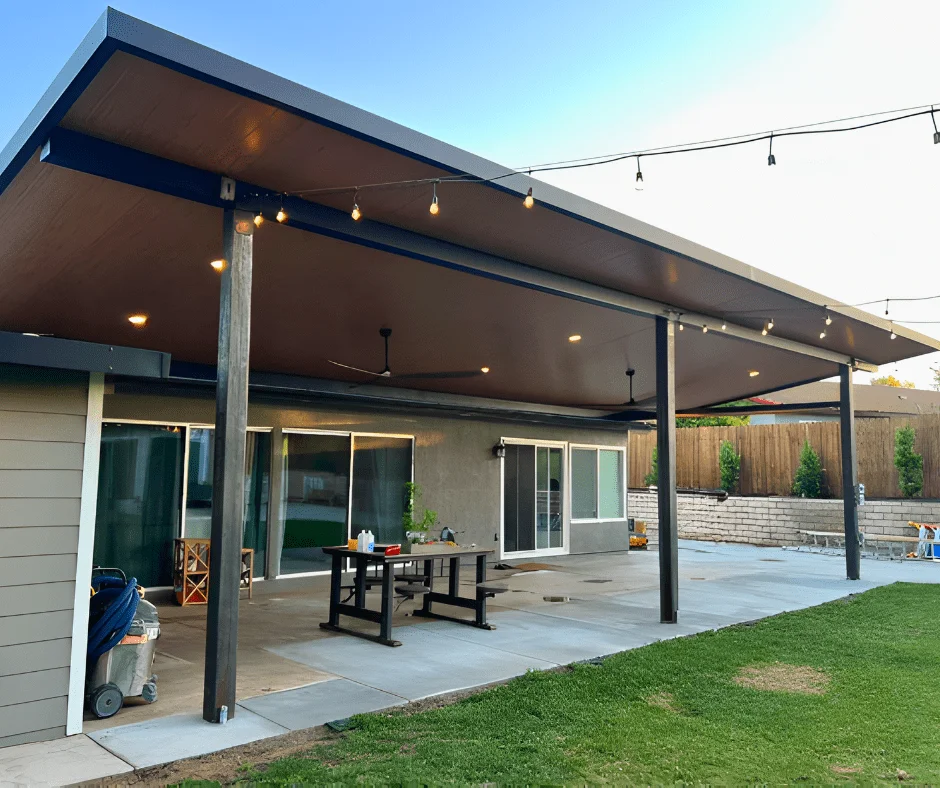

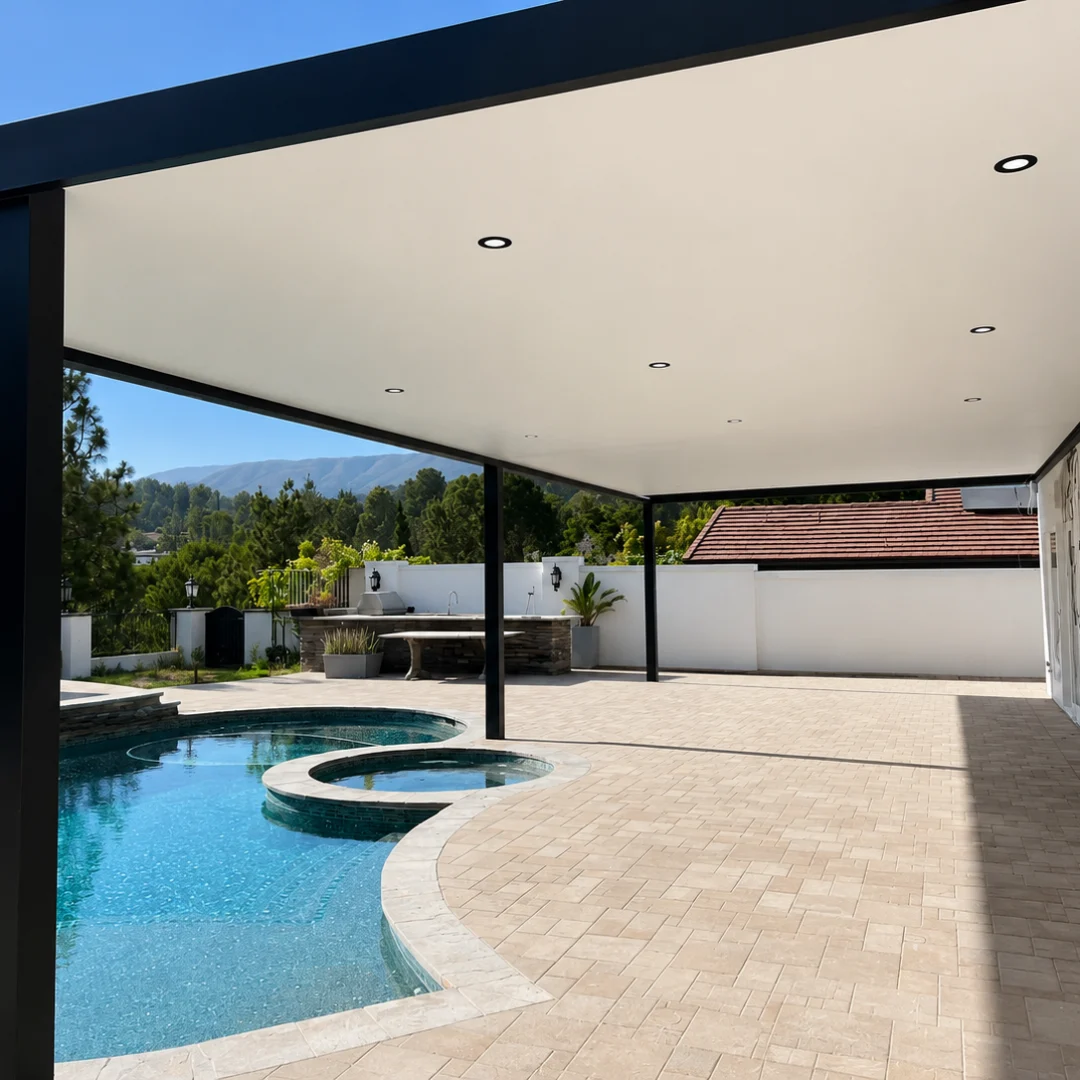

ALU THERMA uses insulated roof panels for full shade and cleaner weather protection. The panels create a usable ceiling surface that can carry lighting and fans, for outdoor kitchens, dining areas and lounges.

Aluminum framing keeps it modern, low maintenance and non-combustible.

Starting at$7,900

Key specifications
Roof	Insulated panel, 3 in x 4 ft x 24 ft

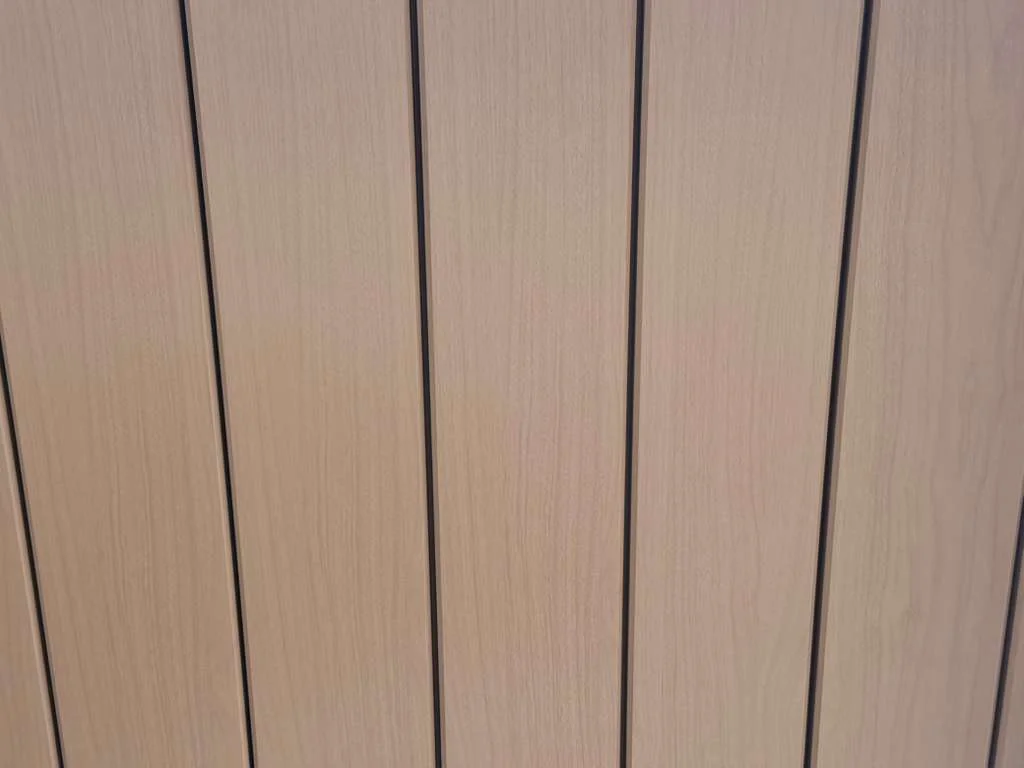

Panel finishes	White and wood-like styles
U-channel	3 in, 2.125 x 3.147 in
Posts	6, 7 or 8 in square, 10 to 14 ft
Beams	2 x 8 or 2 x 10 in, up to 24 ft
Gutter	3 x 5-1/2 in

Explore ALU THERMA™ Call (888) 876-3006

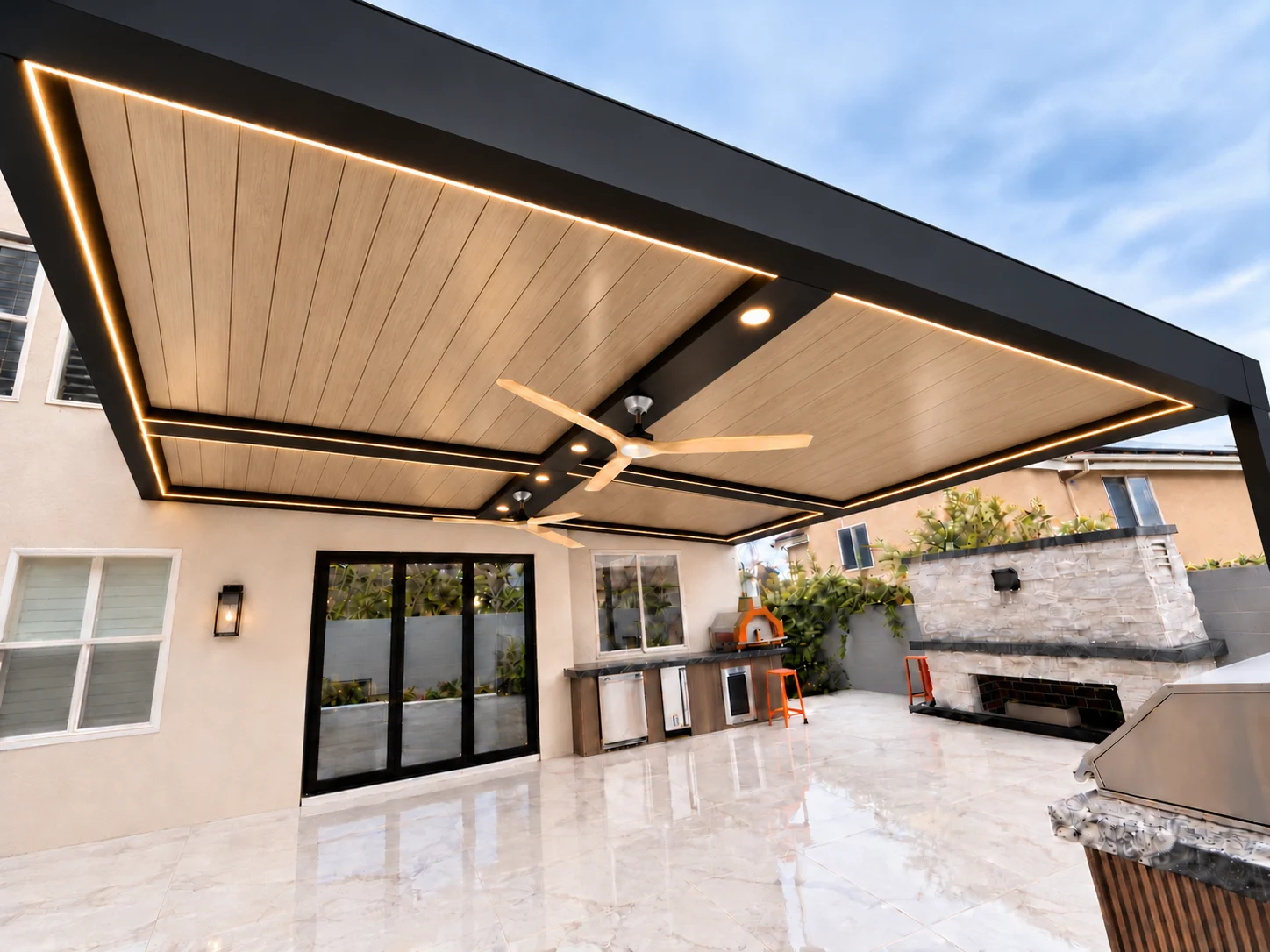

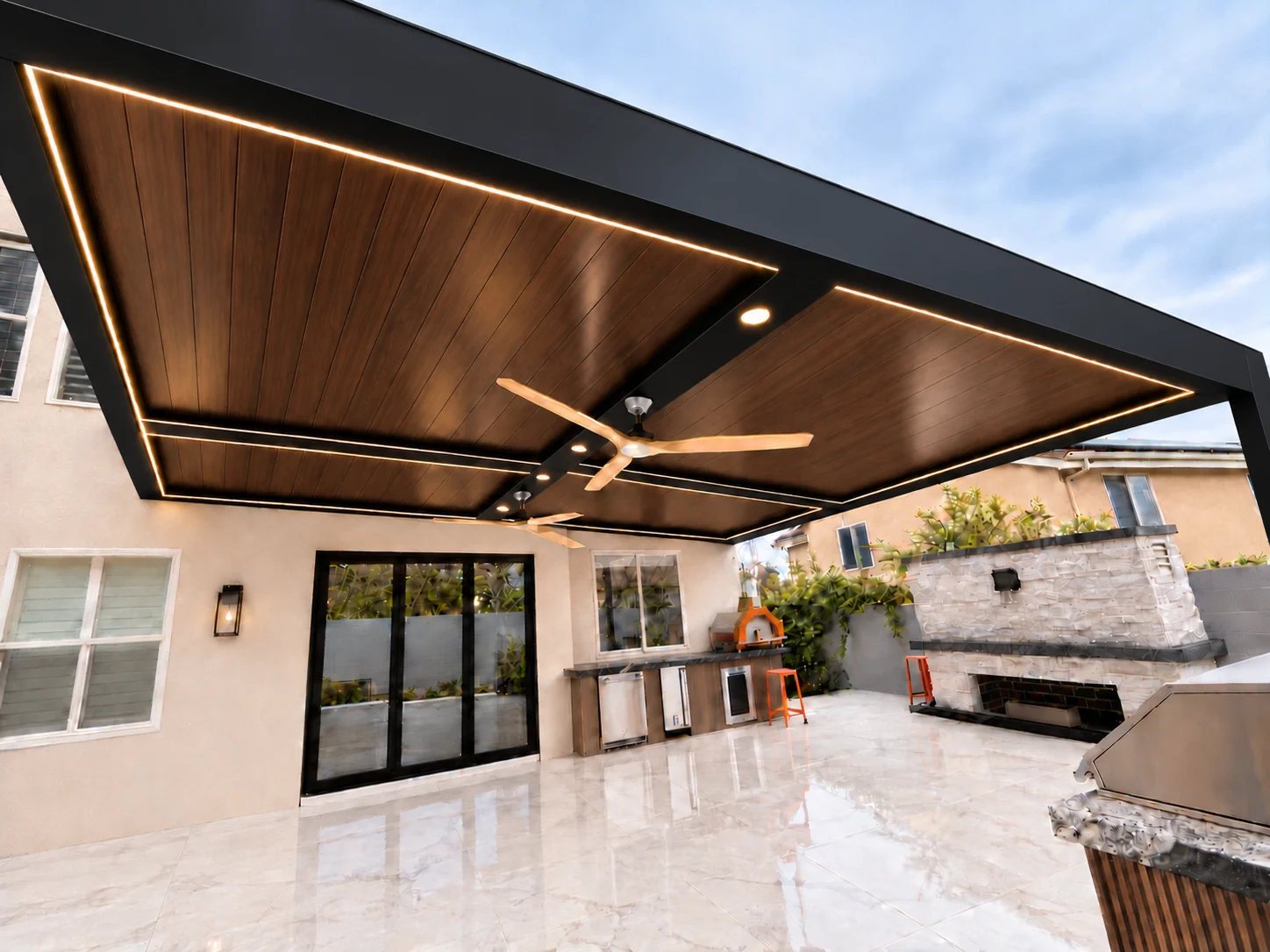

Finish previews of one ALU FORTIS patio. Tap a finish to compare.

Patio system

ALU FORTIS™

Architectural Dual-Wall Patio System

ALU FORTIS is the Aluglobus dual-wall patio system. Detailed specifications and pricing are shared with your quote.

Shown here in six finishes on the same patio: Ipe, black, white oak, walnut, dark bronze and white. Tell us your size, location and whether it is attached or freestanding, and we will send the details.

Price and specs on request

Full specifications and pricing are sent with your quote.

Explore ALU FORTIS™ Call (888) 876-3006

Patio system

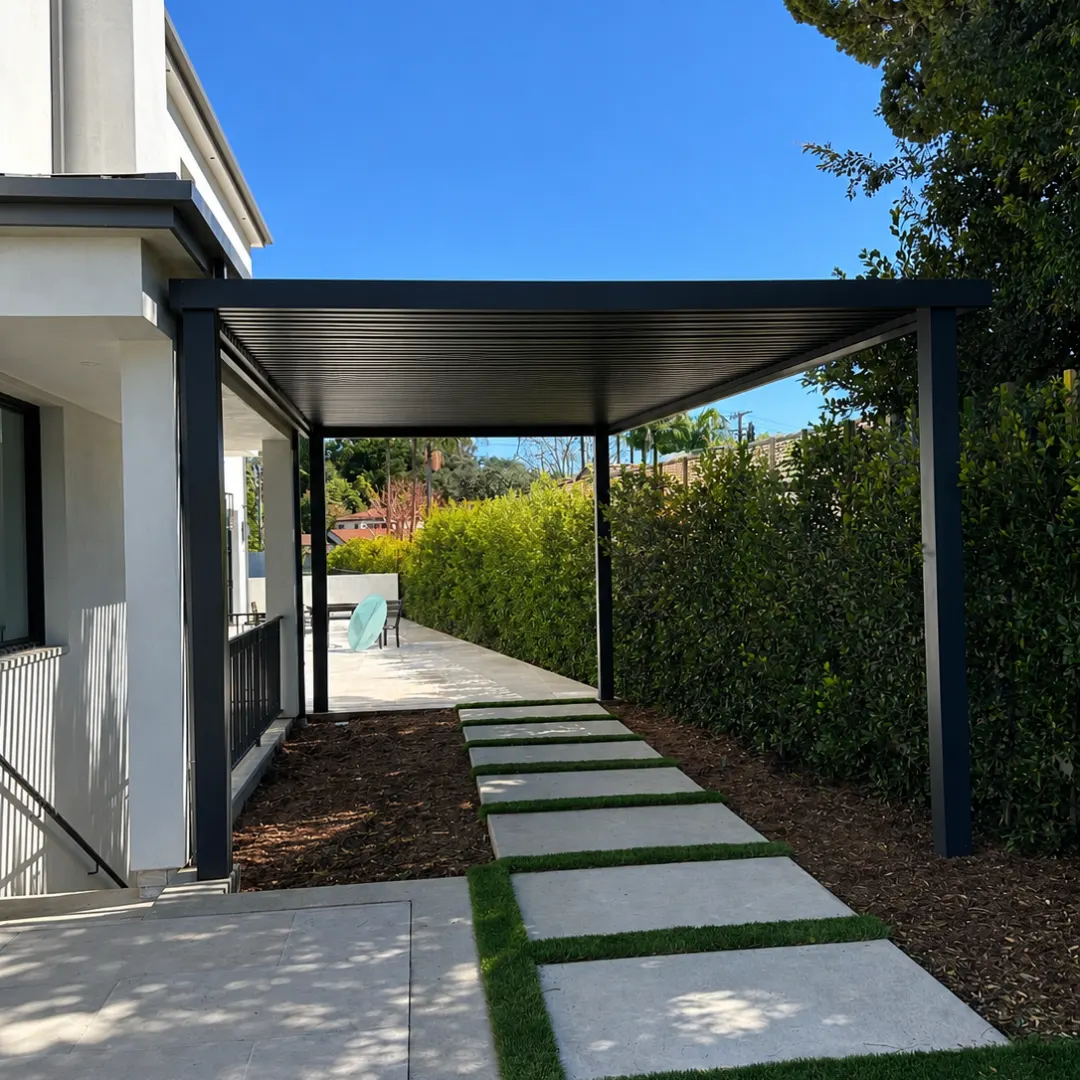

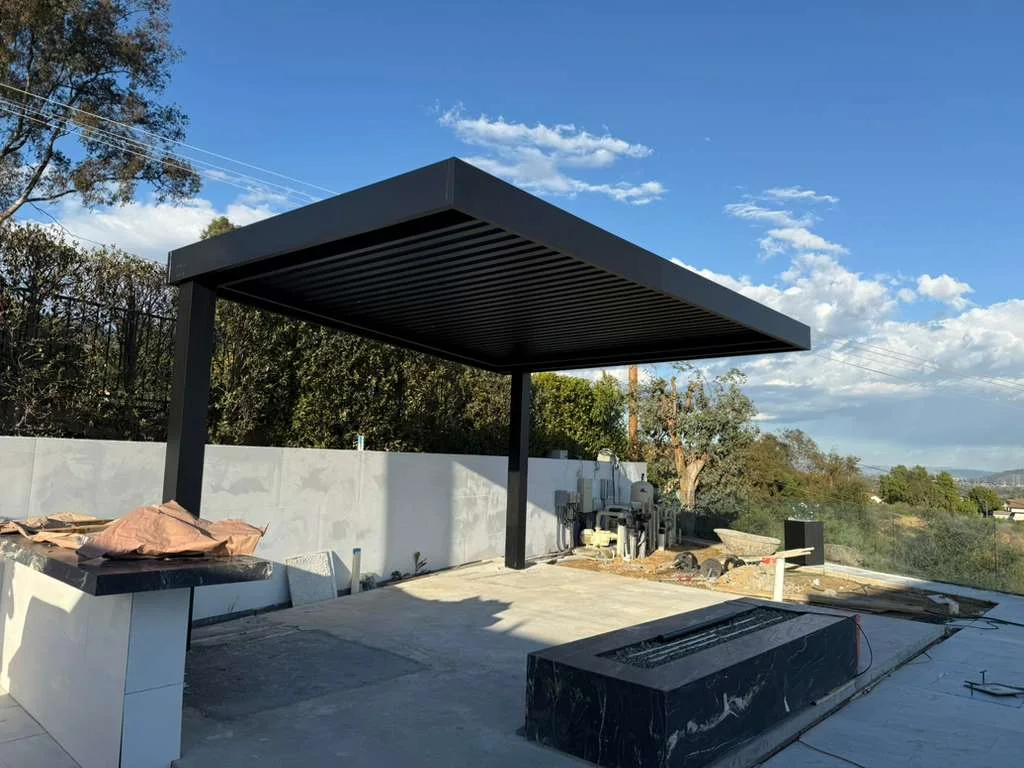

ALU LINEA™

Architectural Slat / Lattice Patio System

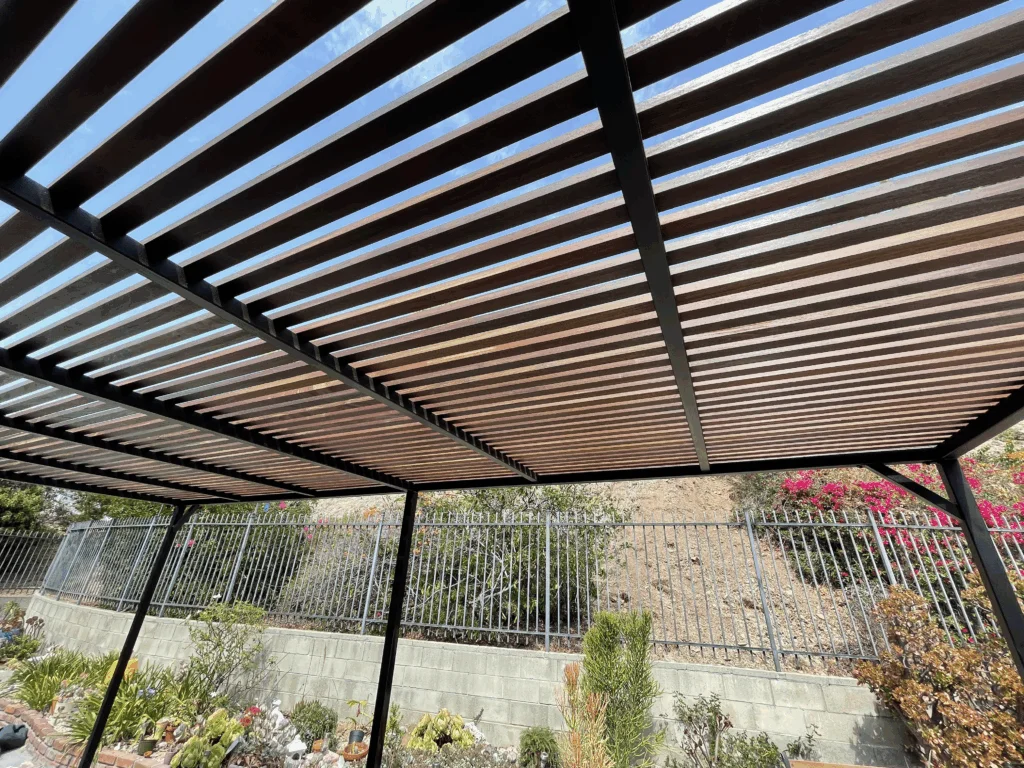

ALU LINEA creates a clean architectural shade line with fixed aluminum slats or a lattice grid. It suits modern homes, walkways, poolside shade and commercial spaces where filtered light is wanted instead of a solid ceiling.

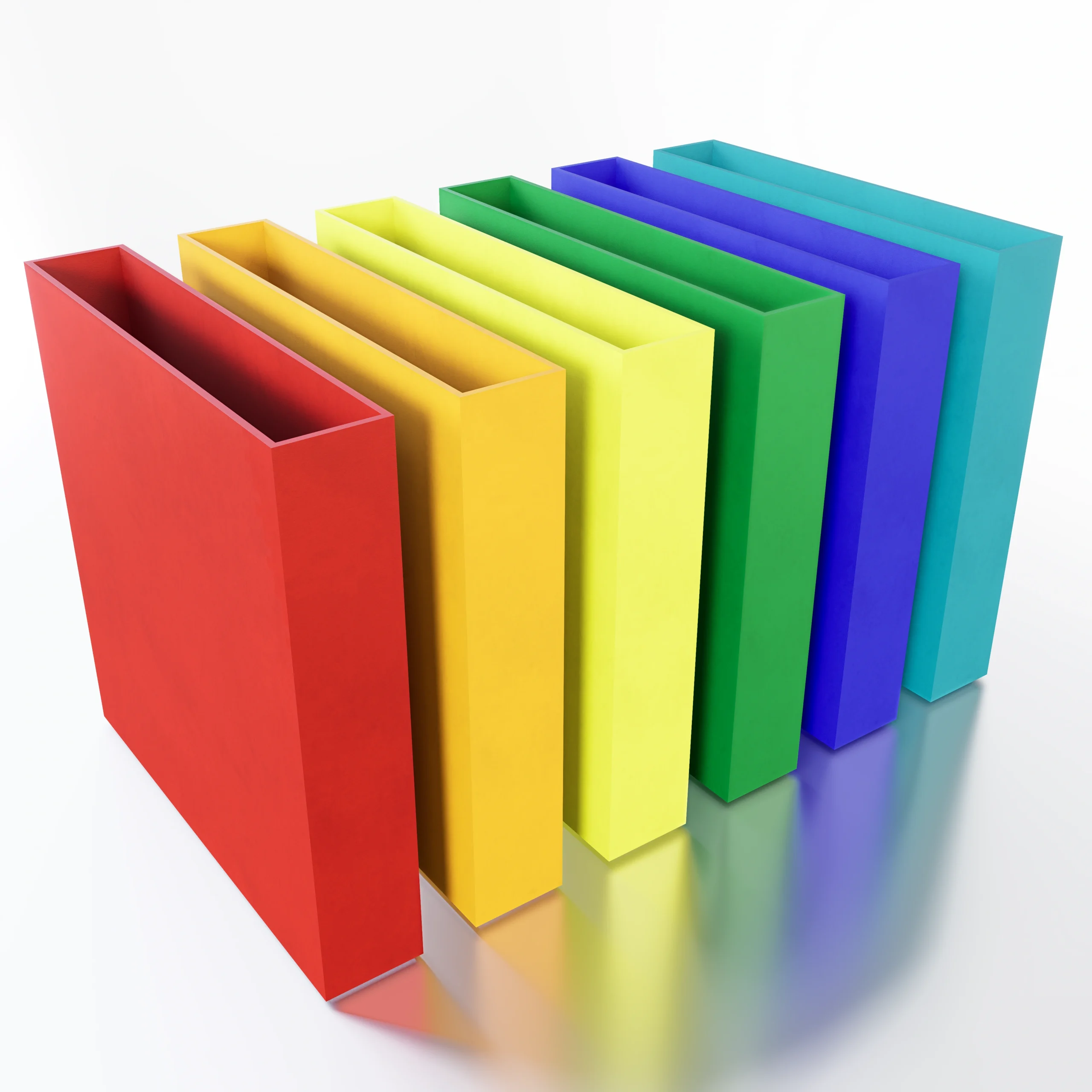

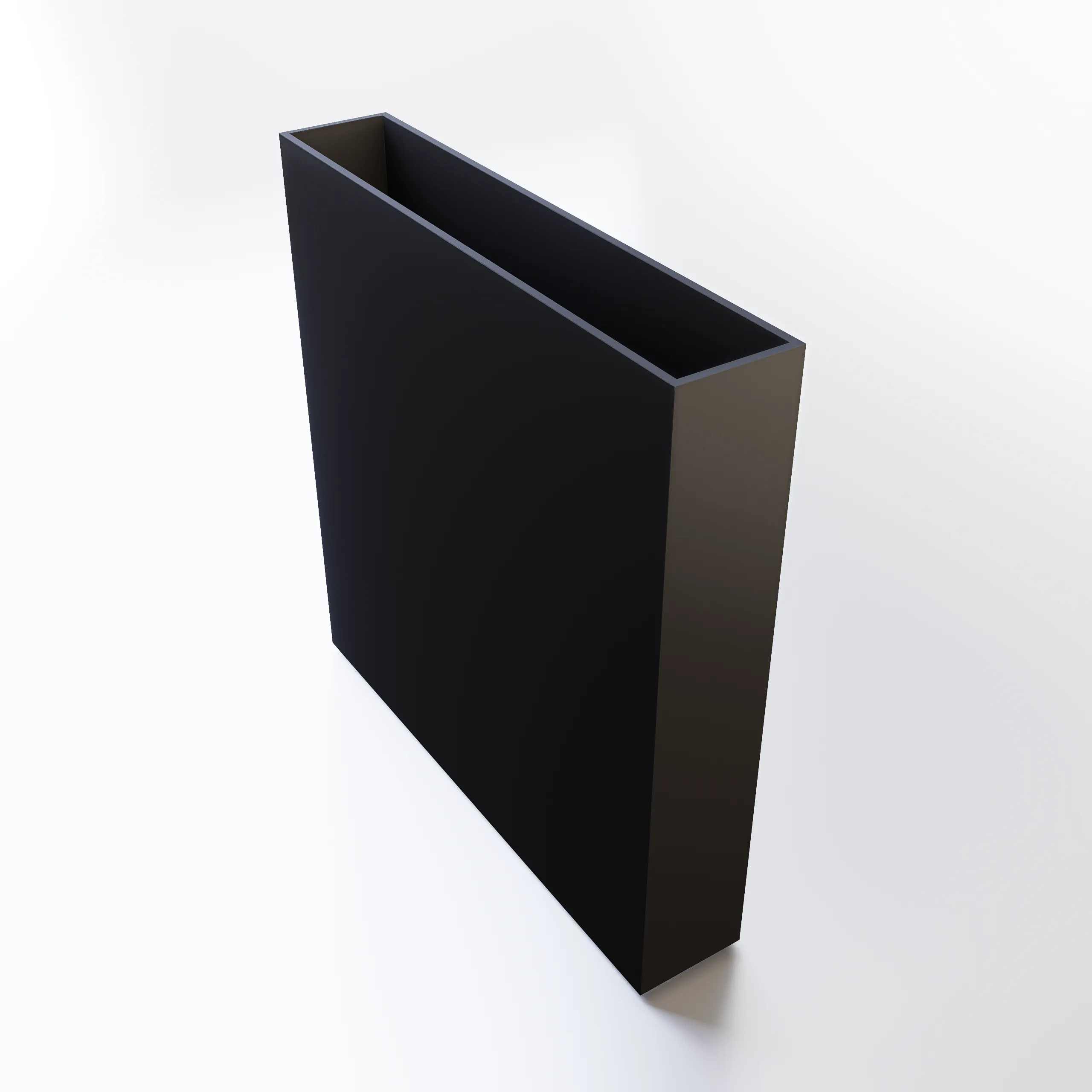

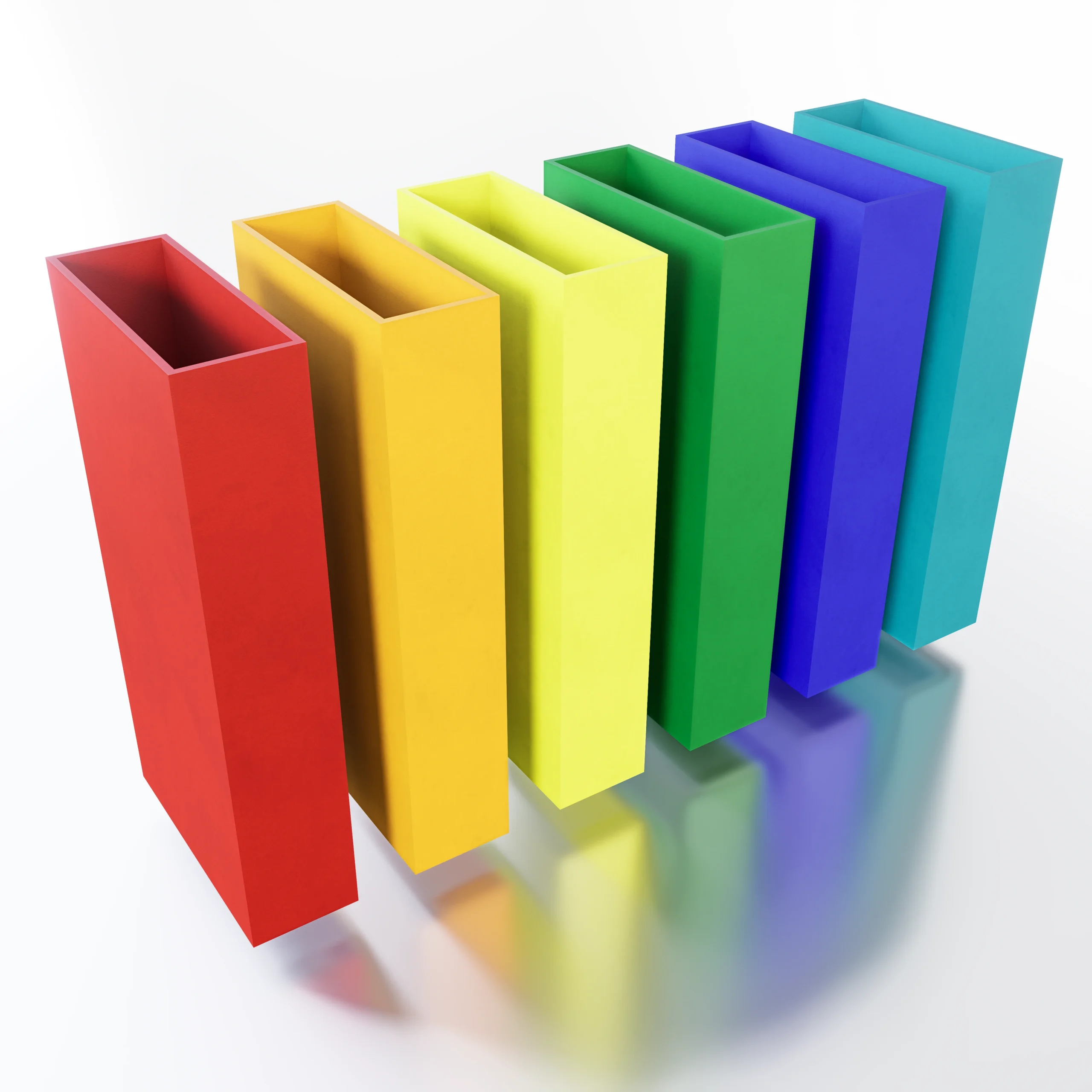

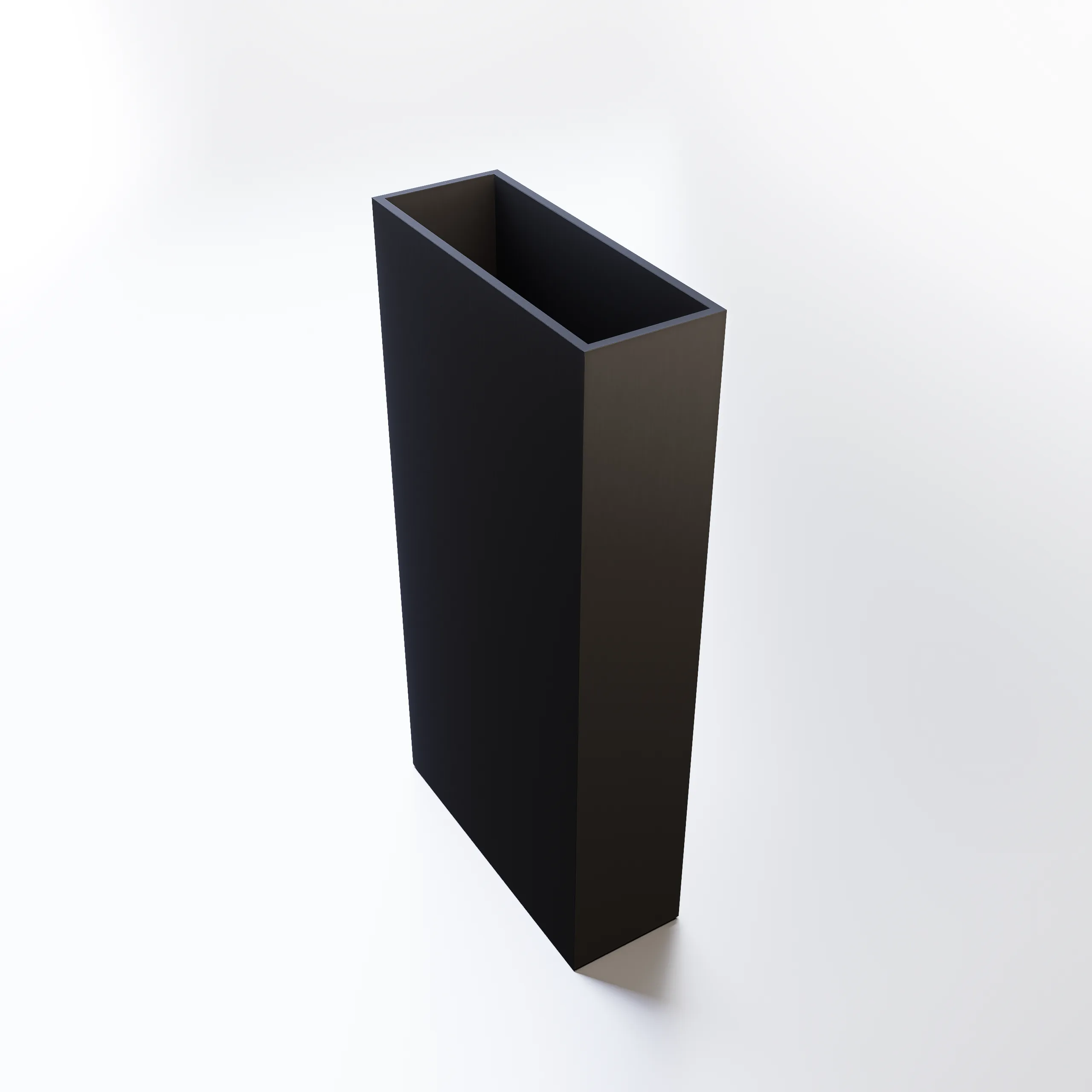

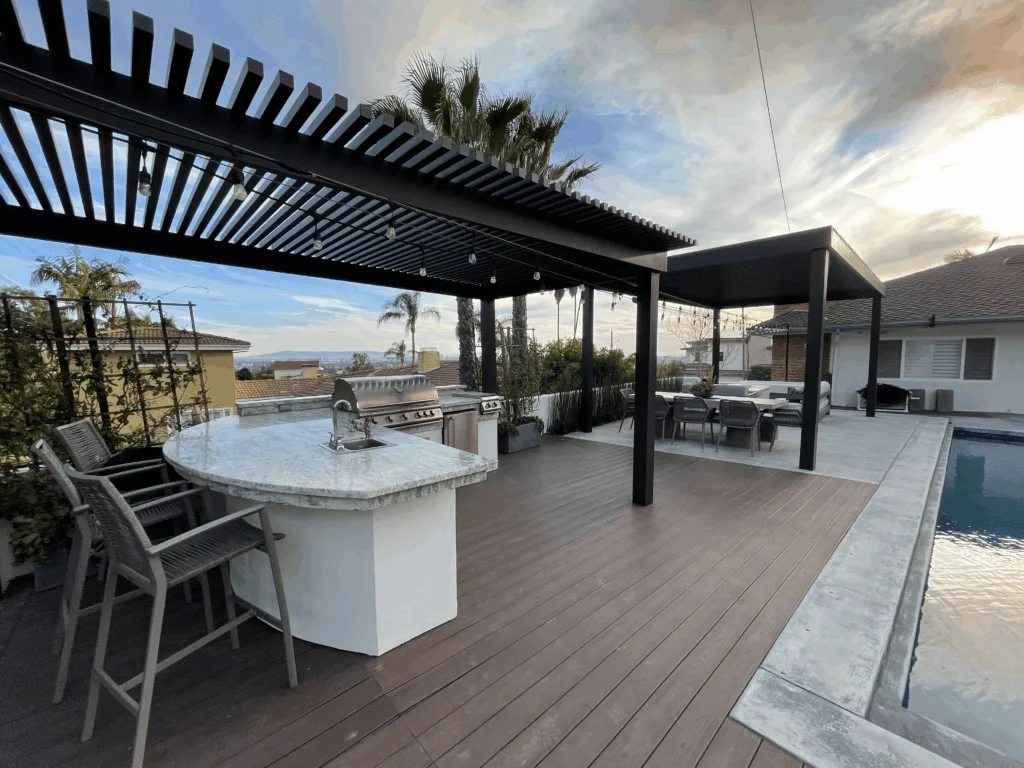

Choose the ALU-40 heavy-duty profile for a bolder look, the ALU-20 slim profile for a lighter one, or ALU-60 tongue and groove.

Starting at$5,720

Key specifications
Roof	Fixed slats or lattice

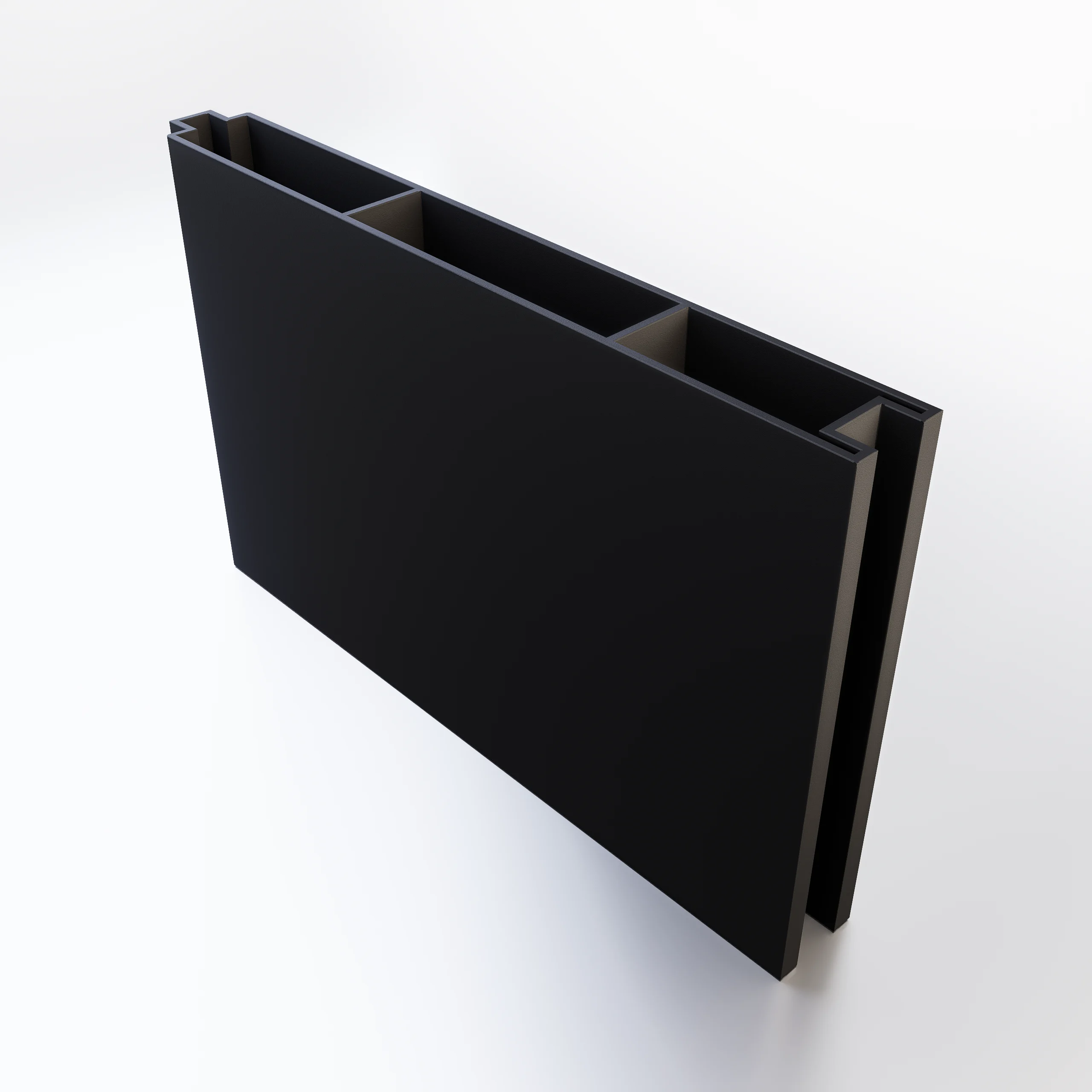

Slat profiles	ALU-20, ALU-40, ALU-60 T&G
Finishes	Black, Ipe, Teak, Yellow Oak, custom colors
Channel receiver	18 ft
Posts	6, 7 or 8 in square, 10 to 14 ft
Beams	2 x 8 or 2 x 10 in, up to 24 ft

Explore ALU LINEA™ Call (888) 876-3006

No Posts in the Way? This Cantilever Patio Was Built Different

How Is This Patio Corner Standing With No Post?

Patio system

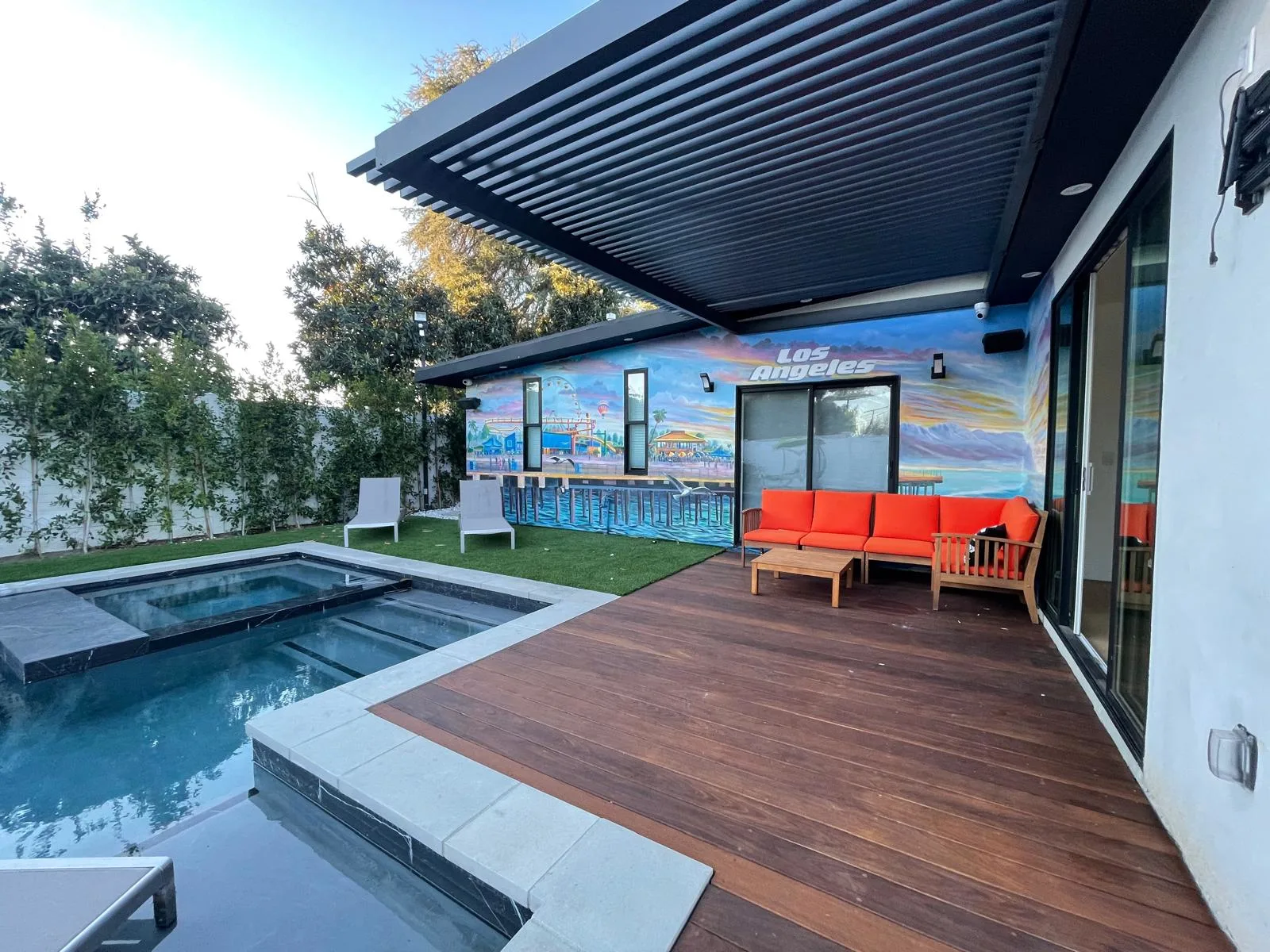

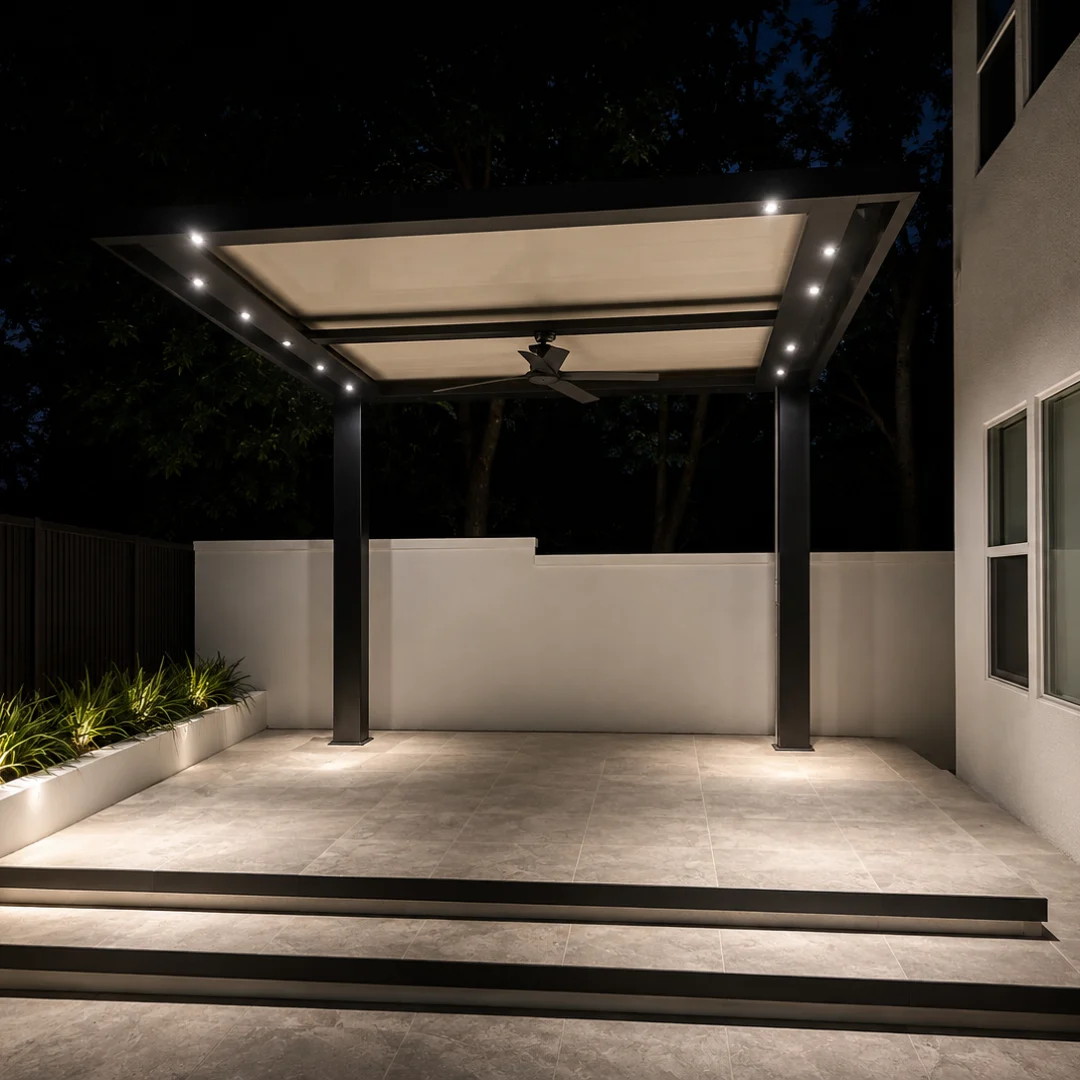

ALU FLOAT™

Architectural Cantilever Patio System

ALU FLOAT moves the support structure away from the front edge, so the space under the roof stays open for seating, dining, outdoor kitchens and views.

Roofs can be automatic louver, insulated panel, slat or selected beam roofs, depending on engineering. Every cantilever is configured around load, attachment, span and layout.

Starting at$4,800

Key specifications
Roof options	Automatic louver, insulated panel, slat, selected beam roofs
Starting packages	Slat $4,800, insulated $5,940, louver $7,580
Posts	6, 7 or 8 in square, 10 to 14 ft
Beams	2 x 8 or 2 x 10 in, up to 24 ft
Engineering	Required, site-specific

Explore ALU FLOAT™ Call (888) 876-3006

Patio system

ALU SIGNATURE™

Architectural Laser-Cut Patio System

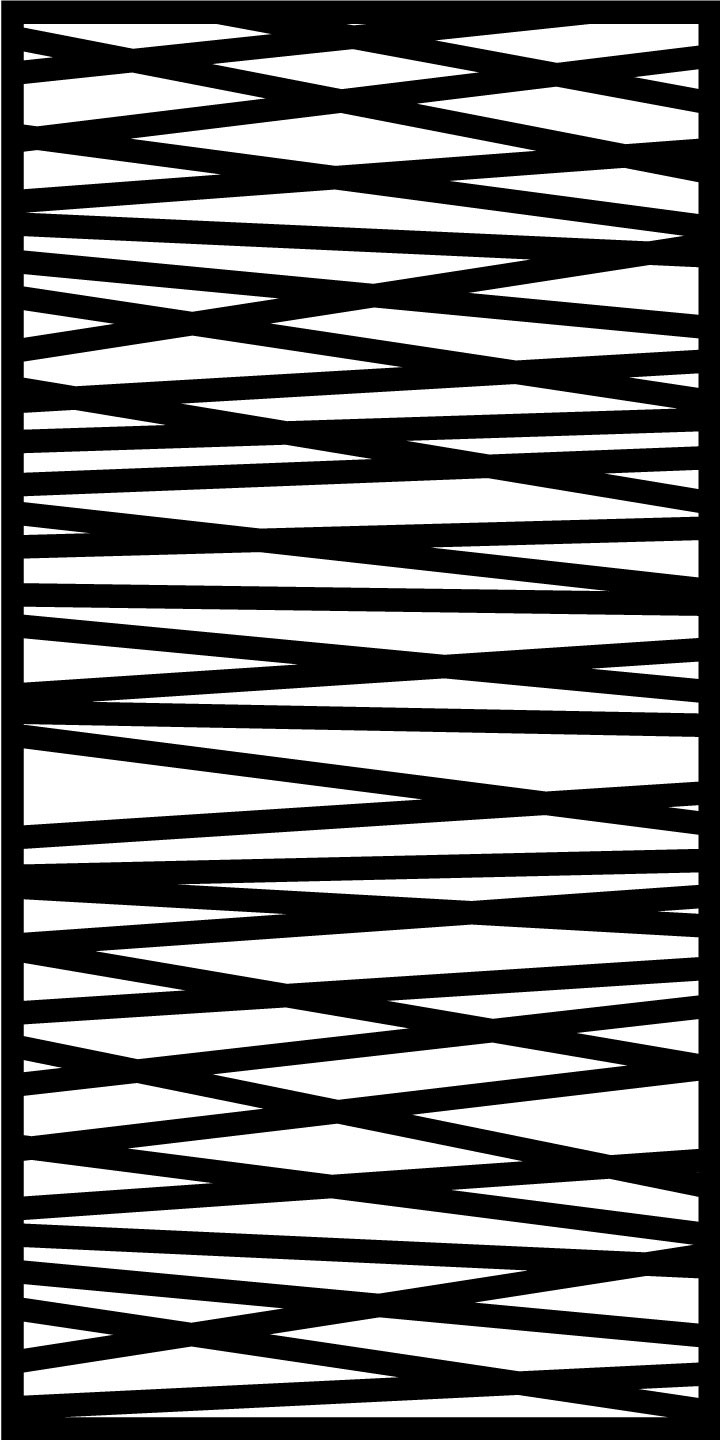

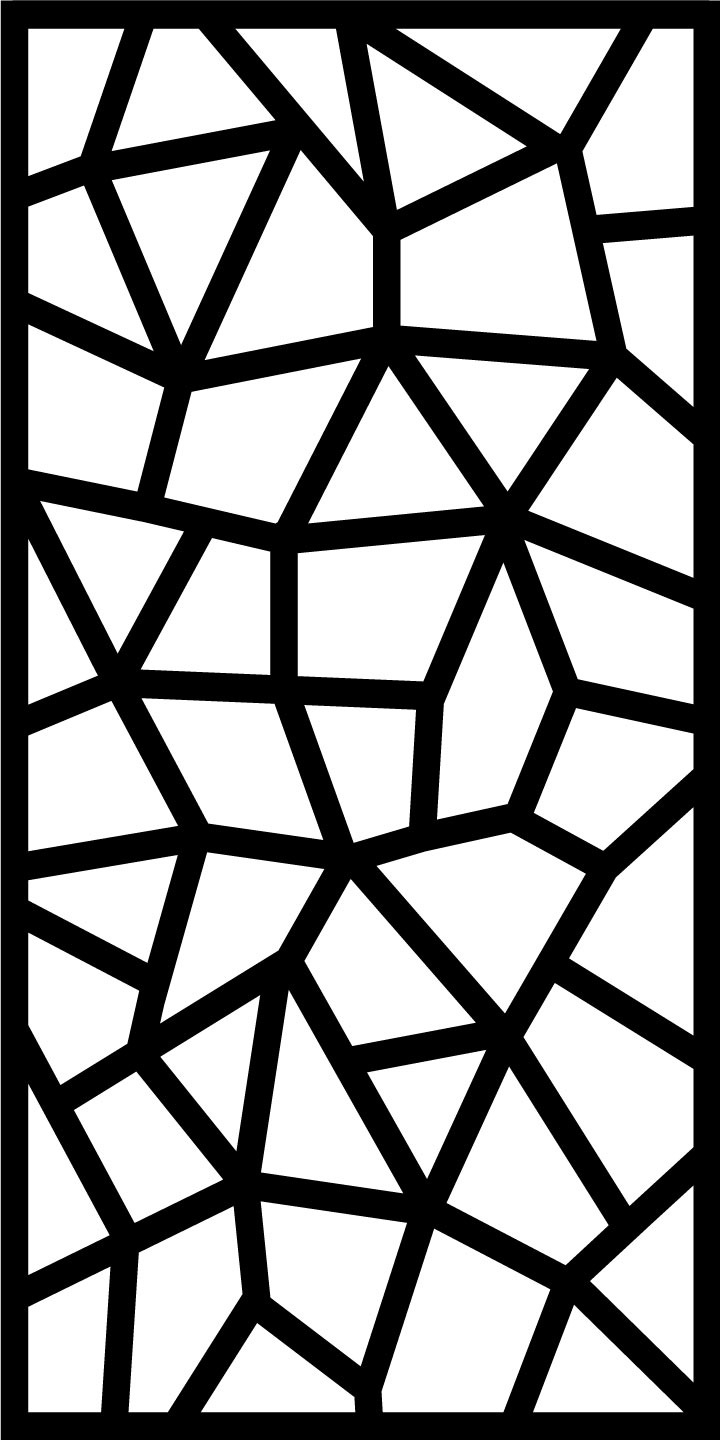

ALU SIGNATURE turns the roof into a design feature. Laser-cut panels create shadow patterns, privacy and identity: geometric, organic, decorative or fully project-specific.

The framing stays a factory-built aluminum patio system, and the panels can be combined with slat, louver or insulated roof zones.

Price and specs on request

Key specifications
Roof	Laser-cut panels, customized
Patterns	Library or custom design
Combine with	ALU-20, ALU-40, ALU-60 T&G, automatic louver, insulated panels
Posts	6 or 7 in square, 10 to 14 ft
Beams	2 x 8 or 2 x 10 in, up to 24 ft

Explore ALU SIGNATURE™ Call (888) 876-3006

Patio system

ALU SPAN™

Architectural Beam Patio System

ALU SPAN delivers the open-lattice pergola look with a stronger aluminum structure. The beams create a clean rhythm of light and shadow and a bold architectural ceiling line.

Add a light-filtering polycarbonate top (see ALU LUMEN) while keeping the beam structure visible.

Starting at$4,130

Key specifications
Roof	Open beams or lattice
Corner bracket cap	2 x 2 x 1 in
Finishes	Black, woodgrain, custom colors
Posts	6 or 7 in square, 10 to 14 ft
Beams	2 x 8 or 2 x 10 in, up to 24 ft

Explore ALU SPAN™ Call (888) 876-3006

Patio system

ALU LUMEN™

Architectural Polycarbonate Roof System

ALU LUMEN pairs the aluminum beam structure with a light-filtering polycarbonate roof, for coverage that still lets daylight through.

Panel specifications and pricing are shared with your quote.

Price and specs on request

Full specifications and pricing are sent with your quote.

Explore ALU LUMEN™ Call (888) 876-3006

Every system

Engineering that sets a new standard.

Whatever roof you choose, it is built on the same aluminum platform, finish and support.

True custom engineering

Project-specific dimensions
Wall-mounted and freestanding
Cantilever and wide-span layouts
Residential and commercial

Factory direct, no middlemen

6063-T6 architectural aluminum
Custom extrusion and fabrication
Contractor-focused supply
Nationwide material support

Non-combustible aluminum

Non-combustible components
Modern alternative to wood
Fits fire-conscious exterior projects
Durable outdoor material

Drainage and weather planning

Integrated gutter concepts
Internal post drainage options
Cleaner exterior detailing
Rain sensor options for louvers

Lighting, fans and smart upgrades

LED channels and strip lighting
Recessed light beams
Ceiling fan planning
Remote and app control

7-stage architectural powder coat

TIGER and Cardinal powders
AAMA 2604 compliant approach
Custom colors and textures
Woodgrain-look options

How to order

Factory direct and simple.

1Send your project info
Photos, rough measurements and a simple sketch. No complicated plans needed.
2Choose your model
Pick your system from this page or our digital magazine.
3We break down everything
Engineering and a full material breakdown: posts, beams, roof, hardware and accessories.
43D design and drawings
Layout drawings so you can see the result before production.
5Best price, highest quality
Factory-direct pricing on architectural-grade aluminum systems.
6Nationwide shipping
Packed and shipped to your job site or warehouse.
7Installation guidance
Clear installation and assembly support for contractors and installers.

FAQ

Patio cover questions

Straight answers on systems, pricing, sizing, shipping and finishes. Still unsure? Talk to the team.

Call (888) 876-3006 WhatsApp

Which patio system is right for me?

Start with what you want overhead. Adjustable sun and rain cover: ALU TANK or the DIY ALU FLEX kit. Full shade and a finished ceiling: ALU THERMA. Filtered shade: ALU LINEA or ALU SPAN. Light through with a covered roof: ALU LUMEN. No front posts: ALU FLOAT. A one-of-a-kind look: ALU SIGNATURE. Not sure? Send photos and we will recommend one.

How much does an aluminum patio cover cost?

Starting packages begin at $4,130 for the ALU SPAN beam roof, $4,800 for ALU FLOAT cantilever, $5,720 for ALU LINEA slats, $7,900 for ALU THERMA insulated, $10,050 for ALU TANK and $11,551 for the ALU FLEX DIY kit. Final pricing depends on size, layout, color, engineering, freight, installation and permits.

Do you make custom sizes?

Yes. Systems are built around your project dimensions, including wall-mounted, freestanding, multi-zone, wide-span and cantilever layouts.

Is aluminum non-combustible?

Yes. The aluminum components are non-combustible, which makes them a strong fit for fire-conscious exterior projects compared with wood framing.

Do you ship nationwide?

Yes. Aluglobus supplies factory direct across the U.S. and ships to your job site or warehouse. Freight is quoted with your project.

Can I install it myself?

ALU FLEX is a boxed DIY kit. The other systems are usually installed by contractors, and we provide installation and assembly guidance.

What finishes are available?

Black is standard on most systems, with custom colors, woodgrain-look finishes and TIGER and Cardinal powders available through our 7-stage powder-coat process.

Start your project

Send one photo. We will match the right system.

Send dimensions, photos, roof style and finish direction. We will help plan the system, the package and the price.

Compare systems

Call (888) 876-3006WhatsApp 1 (747) 352-8824Email office@aluglobusfence.com

Trusted by investors, architects, homeowners and contractors

Watch Plug ✔

@watchplug

"I couldn't be happier with the fence. From the moment it went up, it completely transformed my backyard. The sleek design without visible posts gives it such a modern, high-end look. It's like having a piece of art around my home. I also love that it's fire-resistant, which gives me peace of mind living in this area. Definitely worth every penny!"

Mike

Home Owner

Daymond John

CEO, Entrepreneur & Investor

DW Design & Build ✔

@dannywangdesign

"We're honored to be recommended by Danny Wang Design, a premier contractor known for exceptional outdoor living spaces. In our latest collaboration, Danny created a stunning backyard and entrusted us with the gate and fence system. We're proud to be his trusted partner for quality and reliability."

Jim Monahan

★★★★★

"AluGlobus was extremely helpful with my order, answering all my questions and delivering everything to Texas in perfect condition. The products were well-packed in a solid wood crate, and excellent quality. I'm so glad I found them online. Highly recommended. I'll be buying from them again. Thanks to everyone who made it happen!"

David

Customer

Service Department

Mercedes Benz Engineer

Valley One Gates & Access

"We use Aluglobus 100% with every fence/gate job we have. As a contractor I can say they are working very hard and their product is the highest quality I can find and the best price. We're very happy working with them! Our experience working with them is always top notch."

22 July 2025

Shopping cart

Aluminum patio covers, built around your project.

Nine systems. One manufacturer.

ALU TANK™

ALU FLEX™

ALU THERMA™

ALU FORTIS™

ALU LINEA™

ALU FLOAT™

ALU SIGNATURE™

ALU SPAN™

ALU LUMEN™

Why not a kit or a wood pergola?

Real projects, shown in full.

See where your patio cover is actually made.

A finish built to last outdoors.

Compare the systems on video.

Homeowners, contractors and a few famous names.

All nine systems side by side.

Specifications for every system.

ALU TANK™

ALU FLEX™

ALU THERMA™

ALU FORTIS™

ALU LINEA™

ALU FLOAT™

ALU SIGNATURE™

ALU SPAN™

ALU LUMEN™

Engineering that sets a new standard.

True custom engineering

Factory direct, no middlemen

Non-combustible aluminum

Drainage and weather planning

Lighting, fans and smart upgrades

7-stage architectural powder coat

Factory direct and simple.

Patio cover questions

Send one photo. We will match the right system.

Wholesale buyers get $150 OFF their order for a limited time.
