Posts and accessories

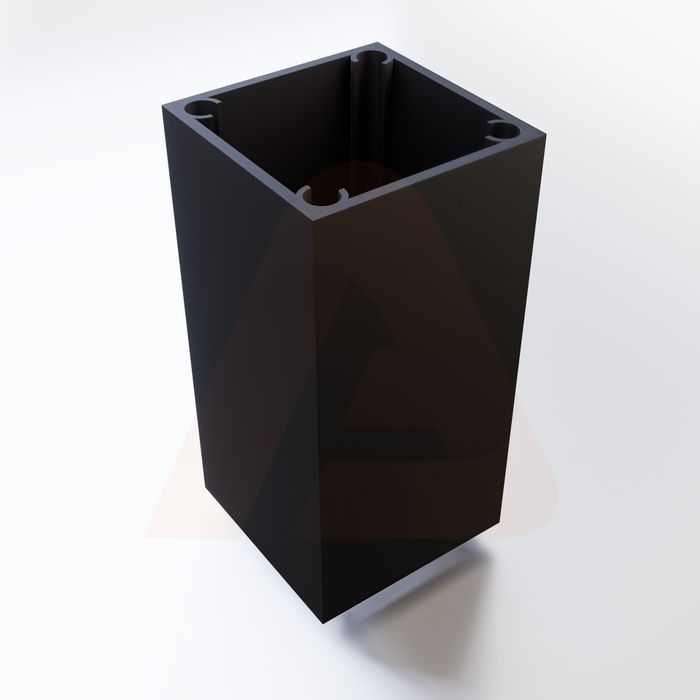

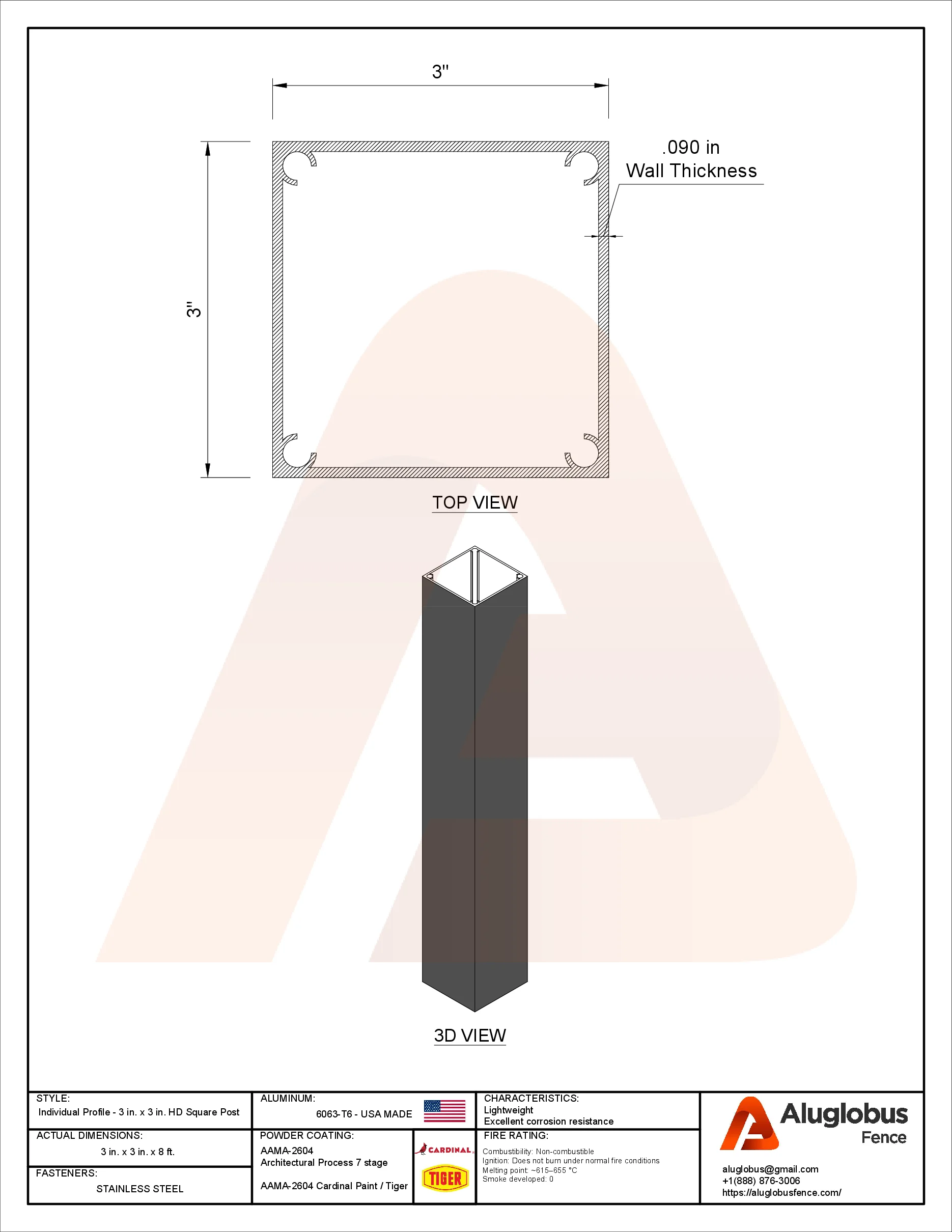

A 3x3 in. x 6ft. square post with .090 wall thickness and screw bush, in black powder-coated 6063-T6 aluminum, for pedestrian and sliding gates.
$101.75
This 3×3 aluminum gate post 6 ft long from Aluglobus Aluminum Systems is a 3×3 in. square post with a .090 wall thickness, supplied with screw bush. It is 6063-T6 aluminum finished in black AAMA 2604 super-durable powder coating, and its listed usage is pedestrian gates and sliding gates.
In the pedestrian gate post options, the 3×3 in. Heavy Duty Square Post (.090 Thk) is listed for concrete footing or baseplate, and the sliding gate kits list a 3 in. square post for concrete footing or wall. For surface mounting, pair it with the 5×5 in. base plate for 3×3 posts. For a footing or a taller gate, check the longer lengths below. Follow the included instructions and local code for either method.
All three share the 3×3 in. size, .090 wall and screw bush. Pick the length from your gate height and mounting method, and confirm with our team if you are unsure.
The pedestrian gate post options run from wall-mounted hinge and L-side posts and the 2.75 2-way post (wall mount only) to the 3 in. HD post for concrete footing and the 4 in. HD post as a standalone post. The 3×3 in. post is the middle option, suited to gates that need a free-standing post but not the 4×4 in. profile.
Close the top with a matching flat press cap and choose fasteners suited to your surface. The price list lists #14×2" stainless steel screws as a fastener for the 3×3 HD post. Check your opening width and hinge side before ordering.
A 6 ft. post is the shortest 3×3 in. length, which makes it a natural match for base plate mounting, where no length is lost below grade. If you plan to set the post in concrete instead, compare the 8 ft. and 12 ft. lengths so enough post remains above the footing for your gate height.
Material & finish
3×3 in. x 6ft. Square Post (.090 Thk) – Black is made from aluminum 6063-t6, finished with AAMA 2604 Super-Durable Powder Coating in black.
6063-T6 is an architectural aluminum alloy made for extruded profiles. It gives clean, consistent shapes and takes a powder coating evenly, which is why it is widely used for fences, gates and other exterior building products.
AAMA 2604 is the American Architectural Manufacturers Association specification for high-performance organic coatings, powder coatings included, on aluminum extrusions. It sets test requirements for outdoor color and gloss retention, chalking and corrosion resistance.
Material
Aluminum 6063-T6
Finish
AAMA 2604 Super-Durable Powder Coating
Color
Black
Wall thickness
.090
Where it is used
Listed use: Pedestrian Gates, Sliding Gates.
Watch
Installation, product and factory videos from Aluglobus Aluminum Systems.
Specifications
Check sizes, material and configuration against your project before ordering.
Complete the system
Square aluminum posts (2×2, 3×3, 3.15 and 4×4 in.) with C-channel kits, C-channel and channel-cover spacers, press caps and base plates, as used on the Aluglobus fence kits and gates.
Choose the post size and wall thickness for the job (light duty or HD).
Match the cap to the post size (2, 3, 3.15 or 4 in.).
Add C-channel kits for each post face that holds slats, and the spacers that set the gap.
Decide between posts set in concrete and base plates (anchors sold separately).
Confirm color and lengths before ordering.
FAQ
Send your measurements and photos. Our team will help you choose the right system and parts.
The post is listed as .090 Thk.
Yes. In the pedestrian gate post options, the 3x3 in. post is listed for concrete footing or baseplate, and the 5x5 in. Base Plate for 3x3 in. HD Post is listed beside it.
The 3x3 in. (.090 Thk) post is also listed in 8 ft. and 12 ft. lengths.
The price list lists this post With Screw Bush. For details on how it is used in your gate hardware, confirm with our team.
