MaterialAluminum 6063-T6

FinishAAMA 2604 powder coating, Black

Size6 ft wide x 6 ft high

Aluminum systems

Aluminum Gate Kit Alu40 Universal DIY 6' x 6' BLACK

6' x 6' Universal DIY pedestrian gate kit with 4" ALU40 horizontal slats in black powder coat. The 6063-T6 aluminum frame is designed for wall-to-wall installs and includes a heavy-duty 5" HD support hinge.

Aluminum 6063-T6
AAMA 2604 powder coating, Black
6 ft wide x 6 ft high

$1,210.19

Add to cart

Buy Now

Request a project quote

Factory direct from Aluglobus Aluminum Systems
Nationwide shipping across the U.S.
Project support for homeowners and trade pros

MaterialAluminum 6063-T6

FinishAAMA 2604 powder coating, Black

Size6 ft wide x 6 ft high

4.9 ★100+ Google reviews

1,000+Active contractors nationwide

USA-made6063-T6 aluminum

No weldingUniversal DIY

Get the Highlights

Wide 4″ ALU40 slats. A bold, modern face with even gaps.

Wide lock-side frame. Fits most U.S. and smart locks.

6063-T6 aluminum. It can't rust like steel or rot like wood.

AAMA 2604 powder coat over a 7-stage pretreatment.

Heavy-duty hinges. A full frame, not a panel on hinges.

Clean lines that look custom

4″ ALU40 slats sit inside a complete aluminum frame, so the gate reads as one crisp, architectural piece. Pair it with matching fence panels for one continuous look.

Built to stay new outside

USA-made 6063-T6 aluminum doesn't form iron rust, rot, warp or attract termites. The AAMA 2604 architectural powder coat is applied over a 7-stage pretreatment.

A surprisingly simple install

The Universal DIY frame bolts together with standard tools and the slats slide into place. No welding, no painting. It's made for wall-to-wall openings and rated an intermediate DIY job.

Ready for your lock

The wide lock-side frame takes most U.S.-size lock hardware, including keypad and smart locks. The lock isn't included, so you choose exactly what you want.

Never rustsNo weldingMade in the USAAAMA 2604 finishShips nationwideNon-combustibleFactory directNever rustsNo weldingMade in the USAAAMA 2604 finishShips nationwideNon-combustibleFactory direct

What's included

Everything for the 6′ × 6′ gate.

The listing combines the frame, gate stops, hinge support and slats into one pedestrian gate package.

**ALU40 Universal DIY gate drawing**Assembly drawing with isometric, elevation, blow-up views, post options and part gauges. Tap to enlarge.

Complete aluminum gate frameThe Universal DIY frame creates the single-swing gate structure without requiring welded field fabrication.

Wide lock-side frameThe wider side frame is designed to accommodate most U.S.-size lock hardware so the latch and handle can be planned into the gate.

Top and bottom frameFactory-prepared top and bottom frame components complete the Universal DIY gate perimeter.

Gate T-stopperA coordinated T-stopper is included for the finished closing condition.

Receiver L-stopper side componentThe receiver-side component supports clean wall-to-wall closure and lock-side planning.

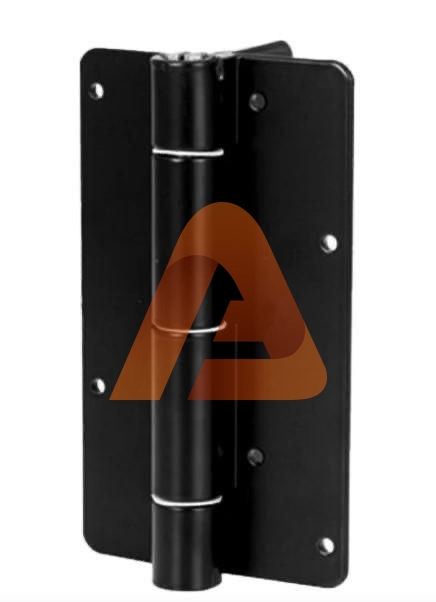

5″ HD support hinge · Qty 1One heavy-duty 5-inch support hinge is included. For true self-closing operation, a compatible hydraulic spring is recommended and sold separately.

16 black ALU40 slatsSixteen 4″ × 6′ powder-coated 6063-T6 aluminum slats create the horizontal infill.

What is not includedConcrete footing, lock hardware, hydraulic self-closing spring and installation tools are not included with the standard kit.

ALU40 slat profile drawing ↗

Universal gate frame profile drawing ↗

5″ DIY vertical frame profile drawing ↗

Slat track profile drawing ↗

aluminum gate kit

A horizontal aluminum gate kit you can install yourself

This DIY aluminum gate kit builds a horizontal slat pedestrian gate for side yards, walkways and garden entries. The parts are pre-cut at our Southern California factory, so it assembles with standard tools and no welding. 6063-T6 aluminum with an AAMA 2604 powder coat means it will not rust, rot or need painting.

How it is built

Universal DIY or Heavy-Duty. See every part.

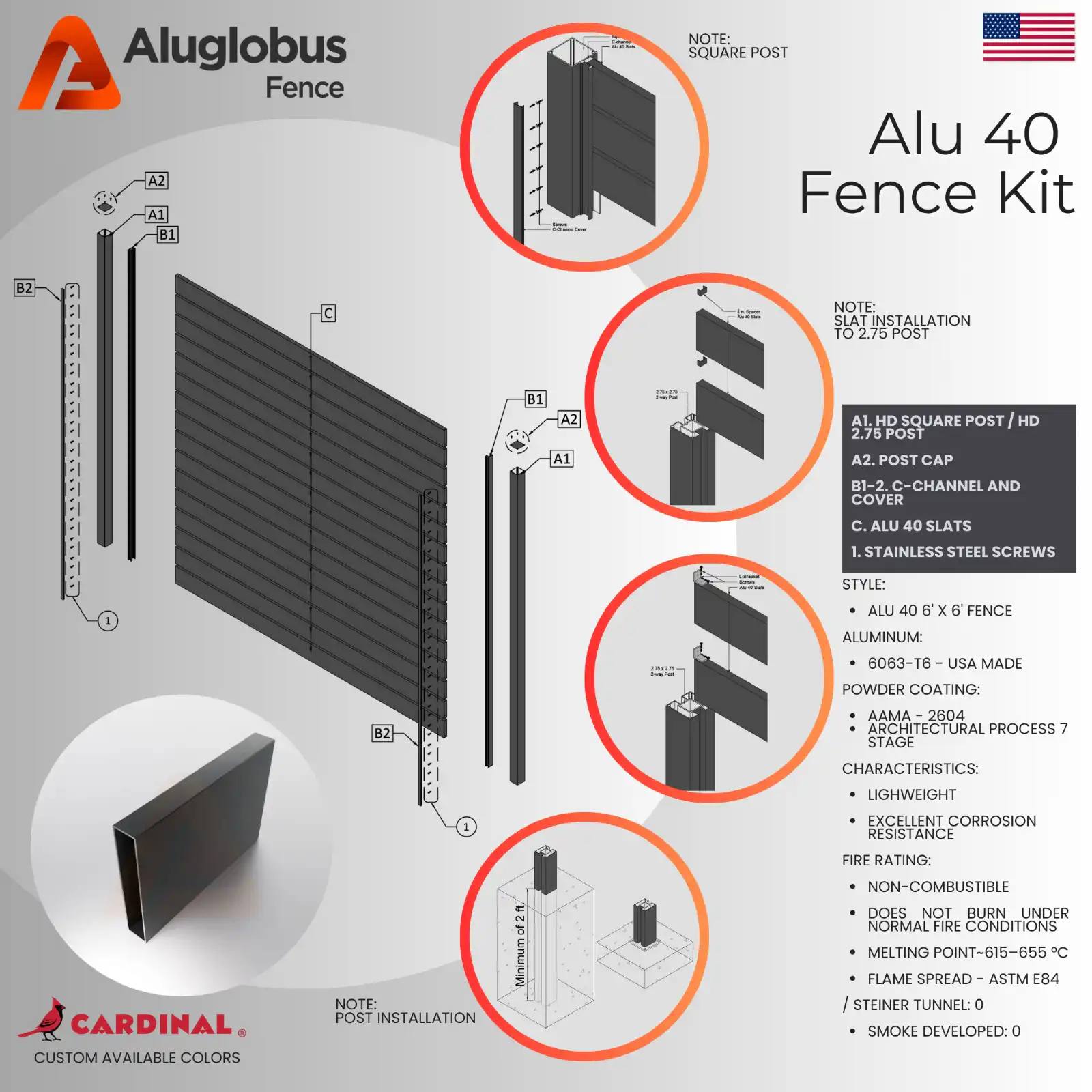

Official Aluglobus exploded drawings. Every gate is a complete frame system with top and bottom members, never a fence panel on hinges.

Universal DIY

DIY Universal pedestrian gate

Pre-cut universal frames, slat track and T-stopper. Assembles on site with standard tools, no welding.

Single swing pedestrian gates, kits in 4 × 6 and 6 × 6 ft
Horizontal slats, ALU20, ALU40 or ALU50/60 T&G
Wide 5 in lock-side frame for standard U.S. locks
DIY sliding kit 19 × 6 ft

Heavy-Duty

Heavy-Duty pedestrian gate

A 2 × 4 in HD frame locked square with big and small L-brackets and C-channels. Built to your opening.

Single swing, double swing and sliding
Horizontal, vertical, diagonal or custom slats
Double-support hinges
Any size, any powder-coat color

Heavy-Duty sliding

Heavy-Duty sliding gate

HD frames with inner connectors, C-channels, 2.5 in C wheels on a C track, roller guide, gate stopper and gate catcher. Sliding kits in 12 × 6 and 18 × 6 ft, or built to your driveway.

Horizontal and vertical HD frames, small and big L-brackets
Stainless slat and frame screws
Ready for a gate operator when you want automation

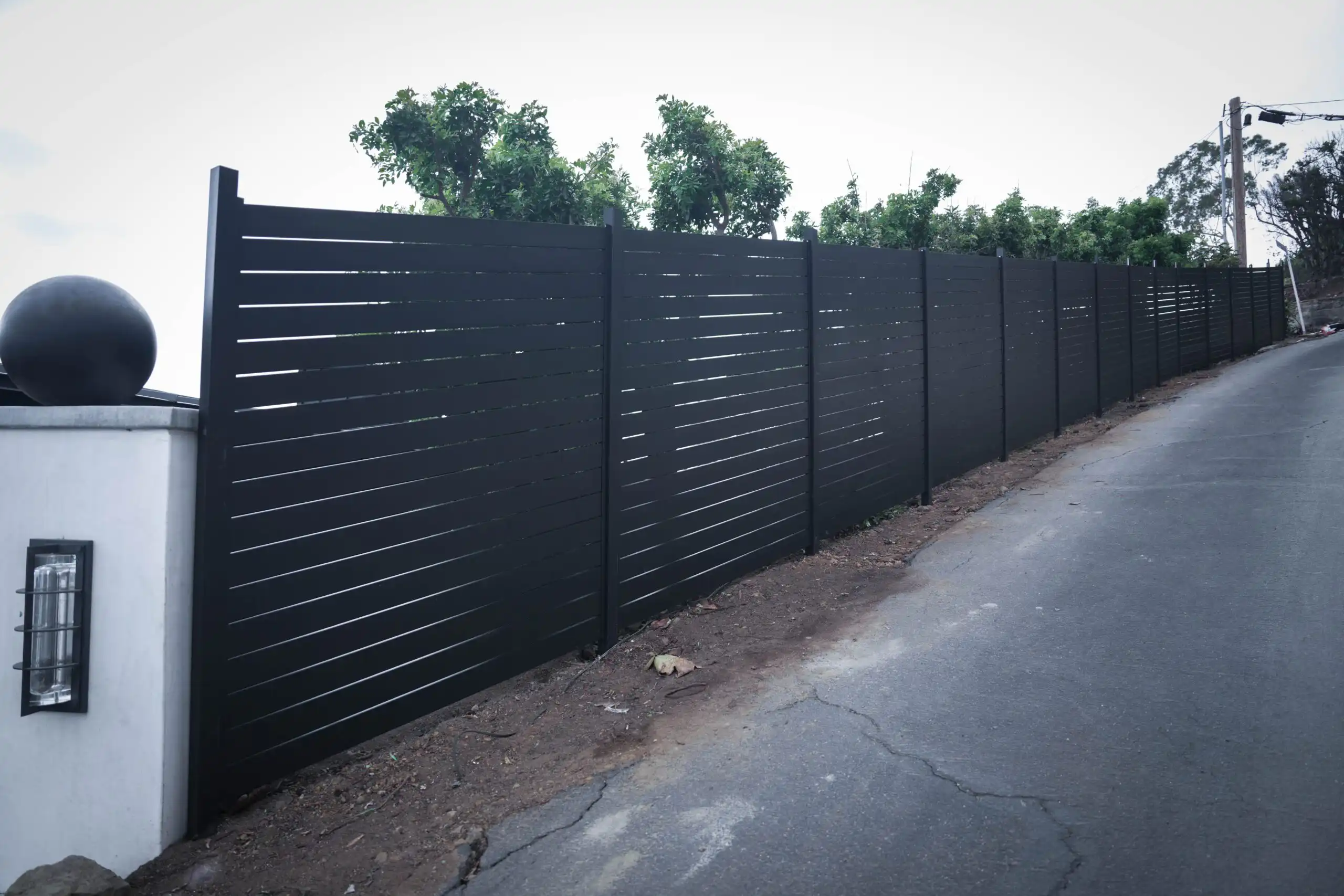

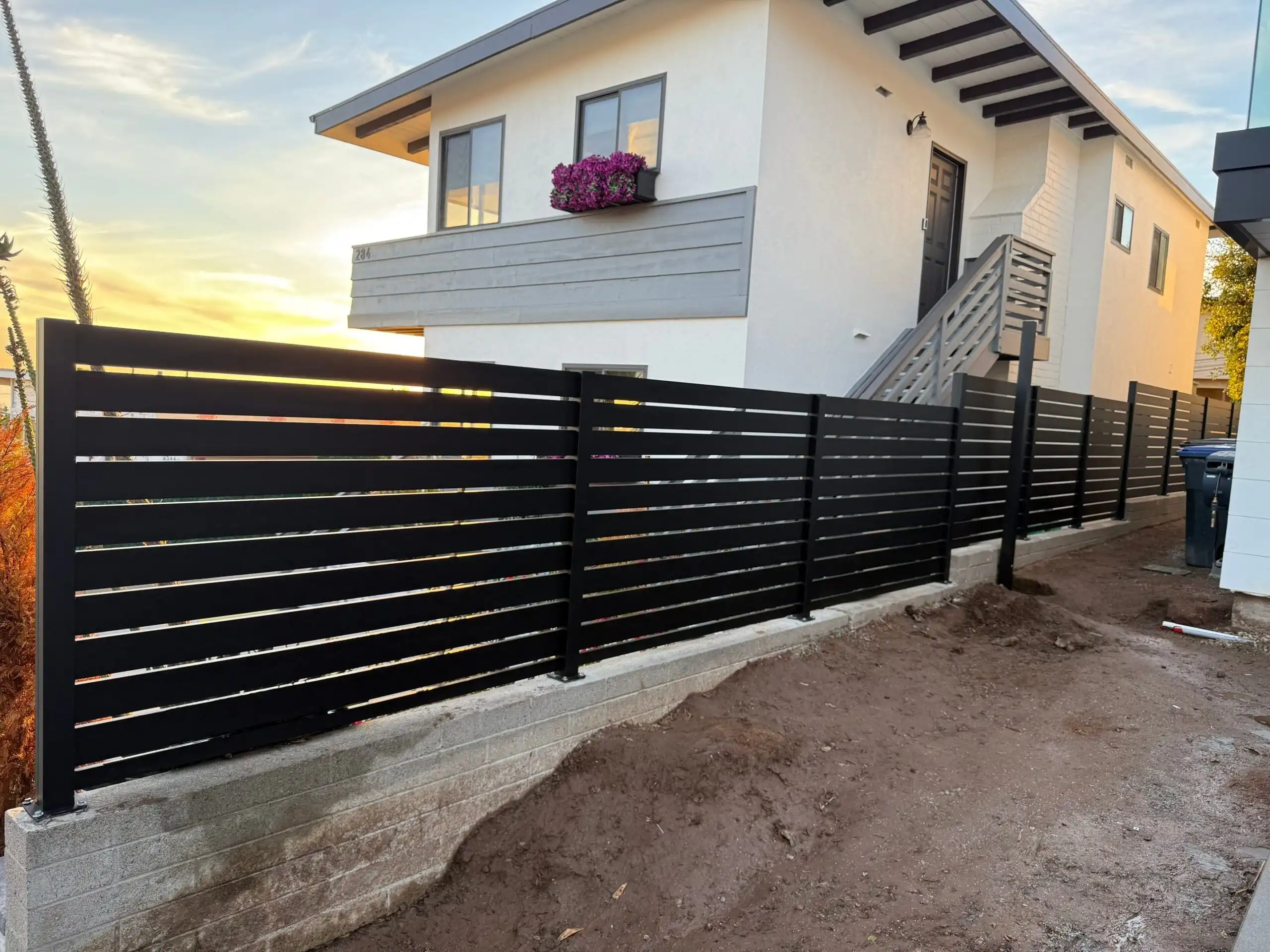

The fence systems your gate matches

Fence system

ALU INTEGRAL™

Two-Way Integrated Post System

Slats slide straight into the posts and stack on aluminum spacers. No exposed rails, quick to install.

2.75 × 2.75 in posts with caps
Same slat profiles and finishes as the gates
Aluminum spacers set the slat gap

Fence system

ALU FRAME™

C-Channel Mounting System

Square aluminum posts with a channel and cover on each side. Clean lines with every screw hidden.

Channel and cover on each post side
Stainless steel screws throughout

See the system come together

A 3D walk-through of the ALU40 DIY pedestrian gate: frame, slats and hardware.

Black Aluglobus aluminum gate frame with heavy hinge and Aluglobus badge

Gate frame engineering

A fence panel on hinges is not a gate.

Every Aluglobus gate starts with a complete frame: vertical frames, top and bottom members, a slat track and a stopper. The slats sit inside the frame, so the leaf stays square and the hinges carry a frame, not a loose panel.

Keypad lever lock mounted on the wide lock-side gate frame

Universal DIY

Assembles with standard tools. No welding.

Pre-cut parts, a universal slat track and a wide 5 in lock-side frame made for common U.S. gate locks. Universal DIY kits are built for wall-to-wall pedestrian openings.

Single swing pedestrian kits in 4 × 6 and 6 × 6 ft
19 × 6 ft DIY sliding kit
HD post upgrade for concrete footings

Heavy-Duty

Built for driveways and wide openings.

A 2 × 4 in HD frame locked square with big and small L-brackets, C-channels for the infill and double-support hinges. HD sliding kits add inner connectors, C wheels, C track, roller guide, gate catcher and stopper.

Swing, double swing and sliding
Horizontal, vertical, diagonal or custom slats
Sliding kits in 12 × 6 and 18 × 6 ft

Custom vertical wood grain aluminum gate and fence on a hillside

Made to your project

Your size. Your color. Your slat direction.

Standard kits cover common openings. Custom gates are built to your exact width and height, in any powder-coat color, with horizontal, vertical, diagonal or custom slat layouts on the HD frame.

Applications

Where this gate fits.

Front pedestrian entriesCreate a substantial modern entrance with six-foot height and broad horizontal aluminum lines.

Side-yard gatesUse the six-foot-wide pedestrian leaf where the property needs more passage width than a narrow walkway gate.

Courtyards and entrywaysCoordinate the black gate with contemporary walls, fence systems and exterior architecture.

Privacy-oriented entriesThe 4-inch horizontal ALU40 layout creates a strong architectural rhythm for private residential spaces.

Light-commercial pedestrian accessA practical aluminum option for pedestrian-only openings with suitable structural mounting conditions.

Coastal and humid climatesAluminum does not develop iron-oxide rust like steel and is well suited to environments where corrosion maintenance is a concern.

Highlights

One gate system. Three slat profiles.

ALU40 black gate with matching ALU40 fence panels — ALU40: wide 4 in slats for a bold face with fewer lines.

ALU20 black slat gate across a side yard walkway — ALU20: slim 2 in slats, a fine linear look.

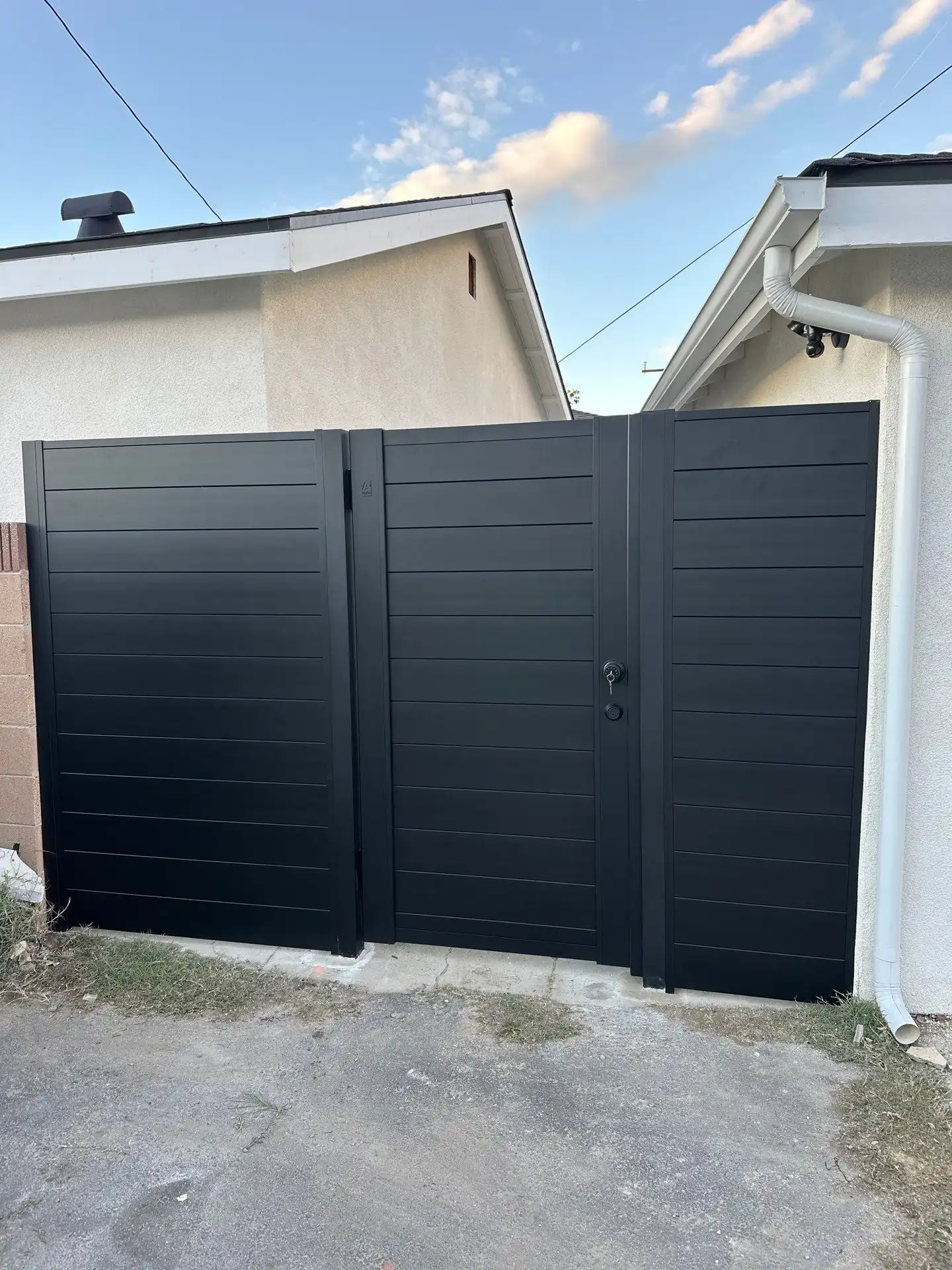

ALU60 T&G full privacy gate — ALU50/60 T&G: interlocking, no gap, full privacy.

Heavy-duty aluminum sliding driveway gate — Heavy-Duty frames for double swing and sliding driveway gates.

Aluminum gate frame corner with Aluglobus badge — Complete frames, top and bottom members included.

ALU40 wood grain gate in a matching wood grain fence — Black, bronze, white, wood grain or custom color.

Powder-coated aluminum frame and wood grain slats with deadbolt and lever — 6063-T6 aluminum with AAMA 2604 powder coat.

Vertical wood grain aluminum gate at a garden entry — Horizontal, vertical or custom slat direction on HD frames.

Gallery

Installed ALU20, ALU40 and ALU50/60 gates.

Real Aluglobus gates on real projects. Tap any photo to open it full size.

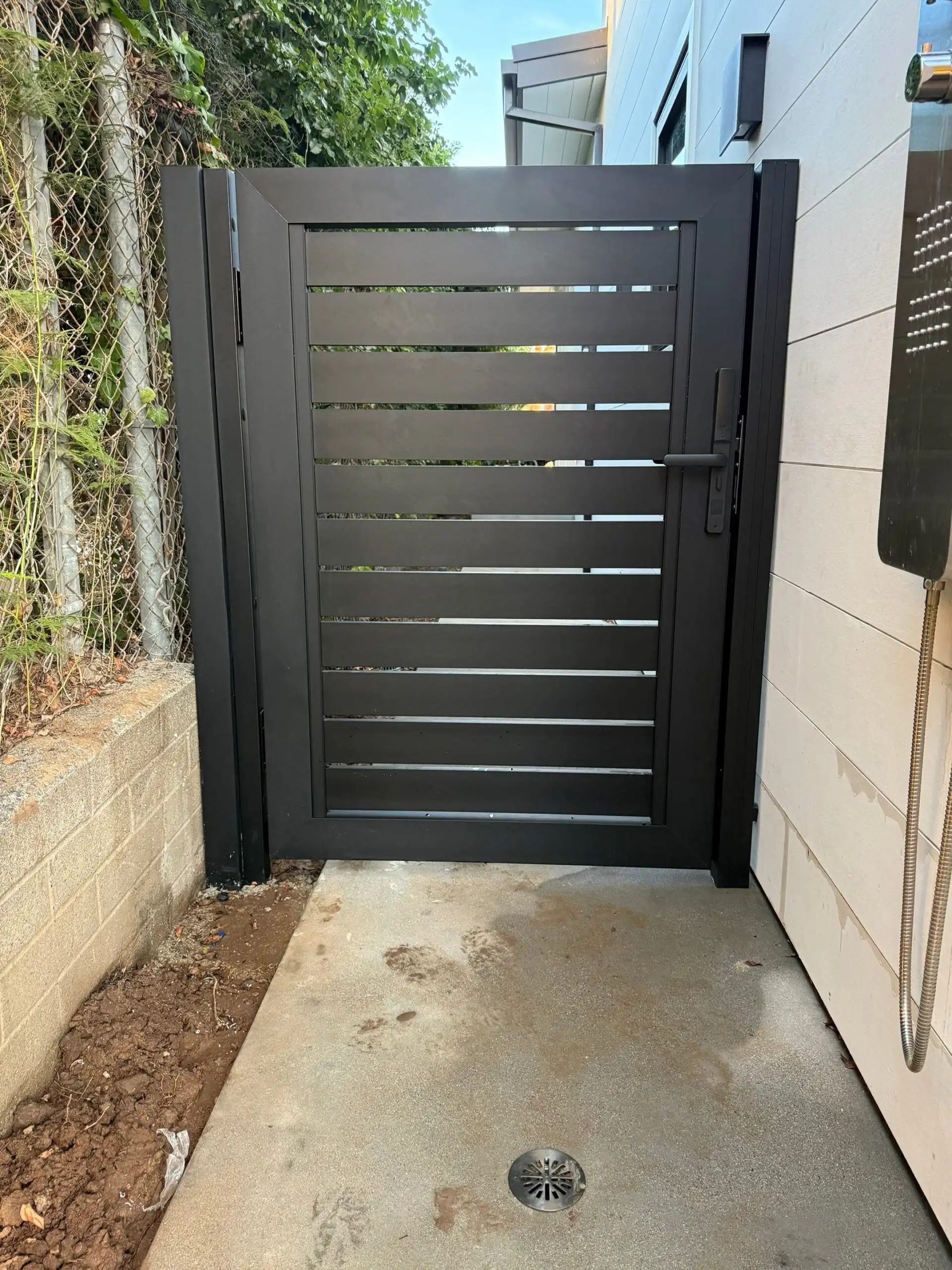

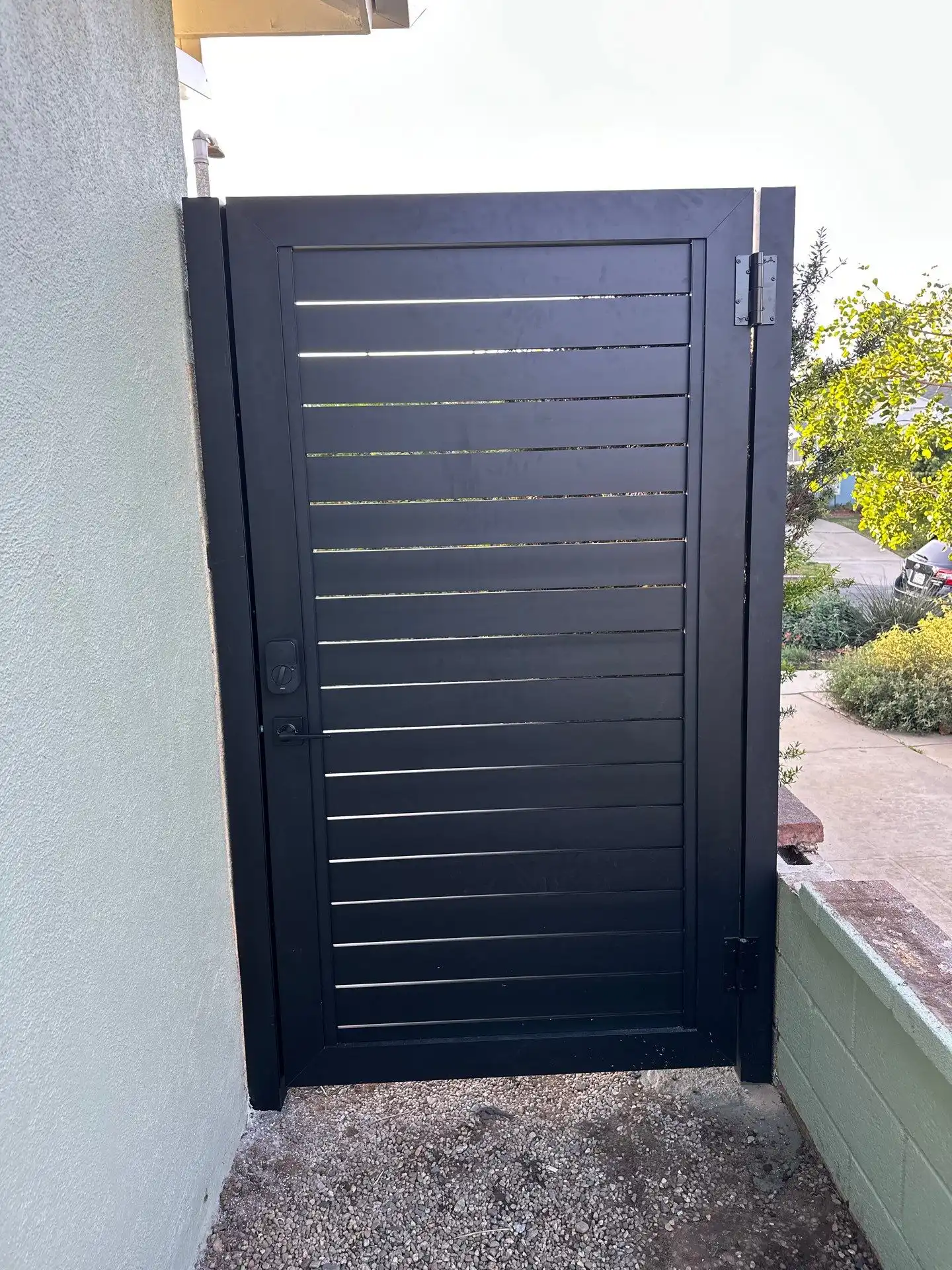

ALU40 black slat gate between white pillars on a walkway

ALU40 black double drive gate over pavers

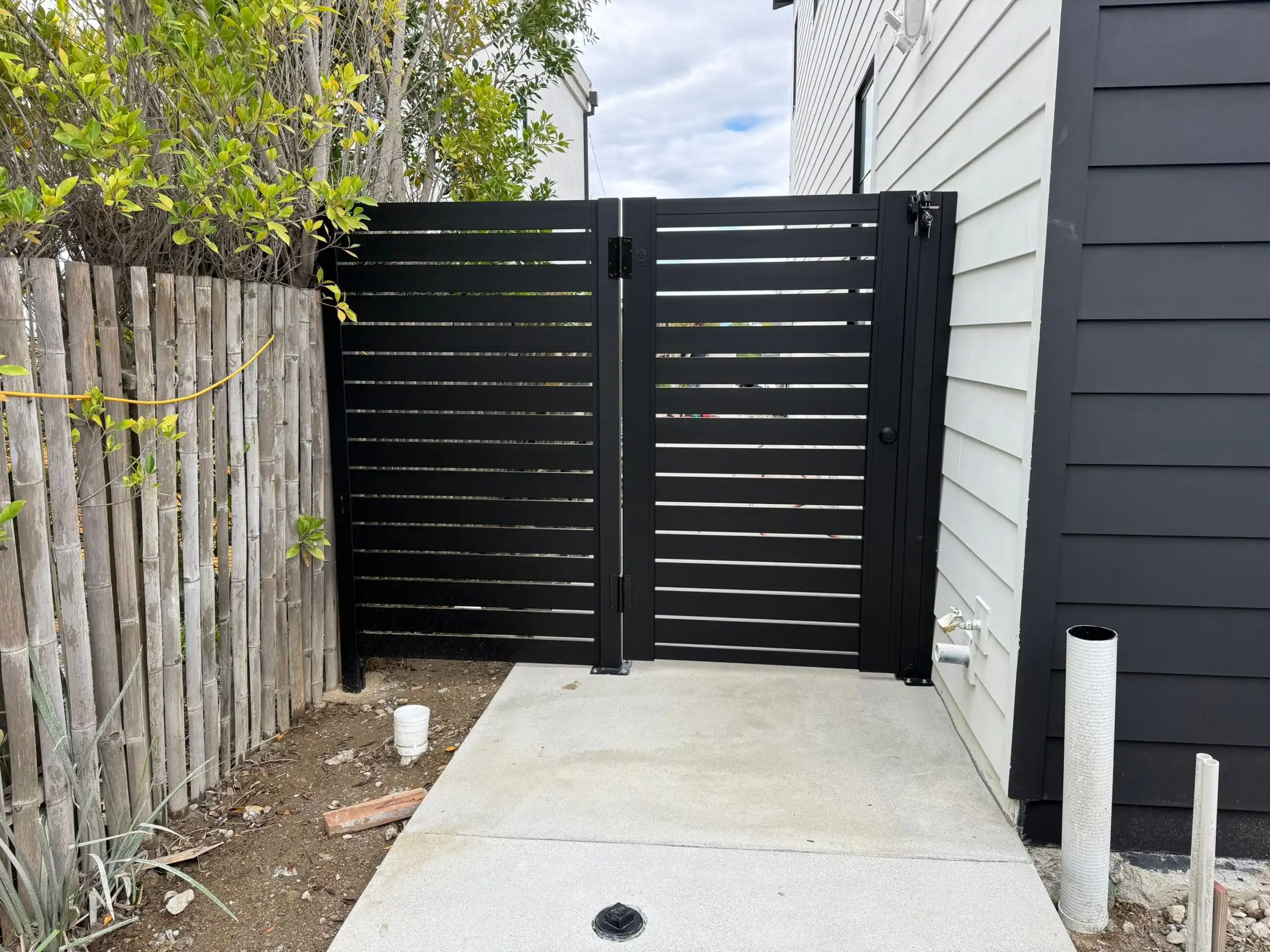

ALU40 black gate with side panel beside siding

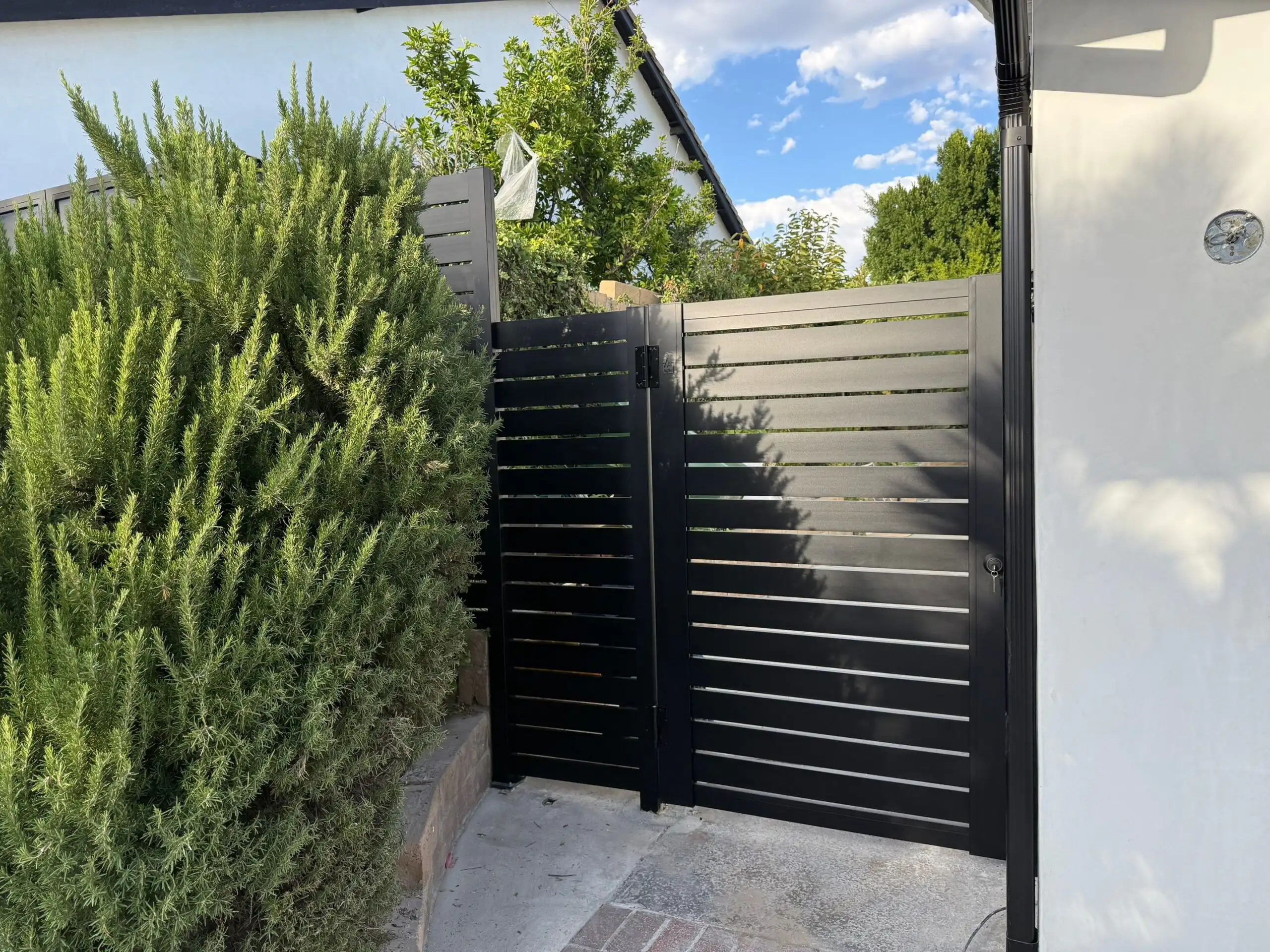

ALU40 black gate with side panel in a garden side yard

Aluglobus vs other aluminum gates

Aluminum is the raw material. The system is what you buy.

Two gates can both say aluminum and perform nothing alike. Here is what changes from one system to the next.

Aluglobus gate frame corner with badge — Aluglobus: a complete gate frame with top and bottom members.

Not an Aluglobus product. Field photo: imported aluminum double slat gate — Imported slat gate: check the frame, wall thickness and connections.

Point by point

Tap any row for the details and the question to ask.

Aluglobus, published specTypical aluminum gate kitNot disclosed: ask the seller

01Gate frame

Complete frame

Slats and screwsAsk: Does the gate have top and bottom frame members?

Slats and screwsPartial frameComplete frame

AluglobusComplete frame with top and bottom members, or a 45° mitered HD frame with internal brackets.

Typical aluminum gate kitSlats and screws, often with no structural frame.

Ask the sellerDoes the gate have top and bottom frame members?

02Alloy

6063-T6 only

Not statedAsk: Which alloy is it, in writing?

Not statedMixed metals6063-T6 only

Aluglobus6063-T6 extrusion, no mixed metals.

Typical aluminum gate kitOften unstated; mixed metal makes screws strip and profiles weaker.

Ask the sellerWhich alloy is it, in writing?

03Pretreatment

7 stages

1 stepAsk: How many pretreatment stages before the powder?

7 stages

Aluglobus7-stage architectural line.

Typical aluminum gate kitSingle degrease or buff, then a small oven.

Ask the sellerHow many pretreatment stages before the powder?

04Powder coating

Before assembly, 360°

After assemblyAsk: Is it coated before or after assembly?

After assemblyBefore assembly, 360°

AluglobusAAMA 2604 architectural finish, coated before assembly, 360° inside the channels.

Typical aluminum gate kitOften coated after assembly, so channels and seams can be missed.

Ask the sellerIs it coated before or after assembly?

05Repairs

Swap one profile

Replace the panelAsk: Can one damaged profile be replaced on its own?

Replace the panelSwap one profile

AluglobusBolt-together system: replace or recoat a single profile.

Typical aluminum gate kitWelded or riveted panels, often replaced whole.

Ask the sellerCan one damaged profile be replaced on its own?

06Sizes and colors

Any size, any color

Fixed sizes, few colorsAsk: Which sizes and colors can be made to order?

Fixed sizes, few colorsAny size, any color

AluglobusAny size, any powder-coat color, horizontal, vertical, diagonal or custom.

Typical aluminum gate kitFixed kit sizes and a few stock colors.

Ask the sellerWhich sizes and colors can be made to order?

07Who stands behind it

Factory direct

Reseller or import kitAsk: Who made the aluminum and the coating?

Reseller or import kitFactory direct

AluglobusFactory direct, with extrusion and coating shown openly.

Typical aluminum gate kitReseller or import kit; factory, coating stages and powder brand rarely disclosed.

Ask the sellerWho made the aluminum and the coating?

08Written warranty

25 years

Varies by sellerAsk: Can I see the warranty in writing?

25 years

Aluglobus25-year limited manufacturer warranty on covered aluminum materials.

Typical aluminum gate kitVaries by seller.

Ask the sellerCan I see the warranty in writing?

Comparison with typical market kits in general, not with any named brand. Ask any supplier for their alloy, pretreatment stages, powder brand and written warranty.

Compare in pictures

Infographic: full Aluglobus gate frame compared with an imported slat gate

Infographic: Aluglobus U.S. warranty support compared with an imported gate

Field photos show other products for illustration, not any named brand.

7-stage vs standard powder coating

Same color. Very different finish.

Standard powder coating cleans the aluminum and puts it in an oven. Architectural 7-stage coating runs it through a full pretreatment line first.

Aluglobus black aluminum fence with 7-stage powder coat on a garden wall — Aluglobus: pretreated in 7 stages and powder coated before assembly.

Not an Aluglobus product. Field photo: standard powder coat peeling off an aluminum fence — Standard coating: powder peeling off the aluminum.

Point by point

Tap any row for the details and the question to ask.

Aluglobus, published specStandard single-stageNot disclosed: ask the seller

01Pretreatment

7 stages

1 stepAsk: How many pretreatment stages before the powder?

7 stages

AluglobusRinse, degrease, acid wash, rinses, zirconium coating, DI and reverse-osmosis rinse.

Standard single-stageAn acid clean or degreaser, sometimes just buffing.

Ask the sellerHow many pretreatment stages before the powder?

02Cure oven

110 ft

A small single ovenAsk: How long is the cure oven?

110 ft

AluglobusPowder baked on at 400 degrees in a 110 linear foot oven.

Standard single-stageA small single oven.

Ask the sellerHow long is the cure oven?

03Dry-off oven

40 ft

Not listedAsk: Is there a dry-off oven before the powder?

110 ft

AluglobusA 40 ft oven at 400 degrees dries off every rinse.

Standard single-stageNot listed.

Ask the sellerIs there a dry-off oven before the powder?

04When it is coated

Before assembly, 360°

After assemblyAsk: Is it coated before or after assembly?

After assemblyBefore assembly, 360°

AluglobusBefore assembly, so every piece is coated 360° inside the channels.

Standard single-stageOften after assembly; hidden faces and seams can be missed.

Ask the sellerIs it coated before or after assembly?

05Inspection

LED check, missed pieces recoated

Not statedAsk: How are coating defects caught?

Not statedLED check, missed pieces recoated

AluglobusLED inspection; anything missed is pulled and recoated.

Standard single-stageAir and dust bubbles can pop and chip later.

Ask the sellerHow are coating defects caught?

06Big parts

Sized for long frames and beams

Limited by oven sizeAsk: Can the line fit long gate frames?

Limited by oven sizeSized for long frames and beams

AluglobusLine sized for long gate frames and patio beams.

Standard single-stageLimited by oven size.

Ask the sellerCan the line fit long gate frames?

07Finish standard

AAMA 2604 architectural

Not architecturalAsk: Which finish standard is it coated to?

Not architecturalAAMA 2604 architectural

AluglobusAAMA 2604 architectural finish.

Standard single-stageNot an architectural process, so no architectural finish warranty.

Ask the sellerWhich finish standard is it coated to?

See each of the 7 stages →

Compare in pictures

Infographic: Aluglobus 7-stage finish compared with an imported gate finish

Infographic: Aluglobus architectural powder coat finish compared with a composite gate

Field photos show other products for illustration, not any named brand.

Inside the factory

See where your gate is actually made.

Inside the Aluglobus aluminum extrusion line, where the profiles for your gate are made. From there every piece goes through the 7-stage pretreatment line, the powder booths and the 110 ft cure oven. Factory direct, no middlemen.

6063-T6 USExtruded architectural aluminum

7 stagesArchitectural pretreatment before powder

110 ftCure oven, long enough for gate and patio beams

NationwideFactory direct shipping to your site

Manufacturing warranty

No Factory Proof.
No Manufacturing Transparency.
No Warranty You Can Verify.

Know who manufactures your aluminum and who stands behind it.

U.S. company
U.S. warranty support

Powder coating warranty

No Coating Brand.
No Preparation Proof.
No Finish Warranty You Can Verify.

Know the coating manufacturer, the preparation process, and who's responsible for the finish.

Made in our shop, not resold

Cutting, punching, milling, bending and finishing under one roof.

Aluglobus fabricates its own aluminum systems and ships them factory direct to homeowners and contractors across the U.S. That keeps engineering, quality control and pricing in one place.

Project-specific fabrication, not fixed kit sizes
Punching, laser cutting, milling and bending in the shop
7-stage powder coating with a 110 ft oven for long profiles
Packed and shipped to your job site or warehouse

Inside our U.S. machine shop

Engineered first. Manufactured in-house. Built with precision.

At Aluglobus, we don't just supply aluminum systems. We engineer and manufacture the components that make them work.

Inside our U.S. machine shop we make custom aluminum parts with CNC aluminum machining, precision laser cutting and aluminum sheet metal fabrication: engineered brackets and connection plates, specialized mounting hardware and custom components for our gates, fences and architectural aluminum systems. Making them ourselves gives us more control over quality, fit and customization.

U.S.-manufactured componentsEngineered aluminum gate components, custom aluminum brackets and aluminum fence hardware, made in our own machine shop.

Precision machining of an aluminum bracket and connection plate in the Aluglobus U.S. machine shop — **Precision machining**Custom aluminum components machined for accurate system connections.

Precision laser cutting of aluminum sheet into mounting plates and brackets in the Aluglobus machine shop — **Laser-cut aluminum parts**Precision-cut brackets, mounting plates and fabricated components.

Laser cutter control station and live cutting camera in the Aluglobus U.S. machine shop — **Engineering and design**Technical design comes before precision manufacturing.

Laser-cut aluminum connection plates for engineered aluminum gate components and aluminum fence hardware — **Custom components**Purpose-built aluminum brackets, connectors and mounting plates.

U.S.-based manufacturing facility

Our American machine shop manufactures aluminum components and custom parts for Aluglobus systems.

Engineered before manufacturing

Components start with technical design and engineering before they move into precision production.

Precision CNC machining

Custom aluminum parts are CNC-machined for consistent dimensions, accurate connections and dependable fit.

In-house laser cutting

Precision-cut aluminum sheets, mounting plates, brackets and specialized components.

Custom aluminum fabrication

Specialized brackets, connectors, mounting solutions and custom-designed parts made to your project requirements.

Quality control through direct manufacturing

More oversight of production for consistent components, accurate tolerances and reliable system compatibility.

Built for contractors and custom projects

Our fabrication supports aluminum gates, fencing, patio systems, architectural applications and specialized installations.

A manufacturer behind the system

We show the process. So you know who stands behind the product.

Not just a supplier. From engineering drawings to finished aluminum components, we make the parts that make the system work.

Build your gate

7-stage powder coating

A finish built to last outdoors.

Every gate profile is pretreated in stages and powder coated before assembly, to the AAMA 2604 architectural standard.

Powder coating line for Aluglobus aluminum

Prep before powder. Most coating failures start before the powder goes on, so every part is pretreated in stages first.
110 ft oven. Long gate frames and slats cure in one piece in a 110 ft powder coating oven.
Coated before assembly. Every piece is coated 360°, inside the channels, before the gate is put together.
Colors and woodgrain. Black, bronze, white, custom colors and woodgrain-look finishes with TIGER and Cardinal powders.

Real gates. Real homes.

Aluglobus ALU40 gates installed by customers and contractors. Swipe to see more.

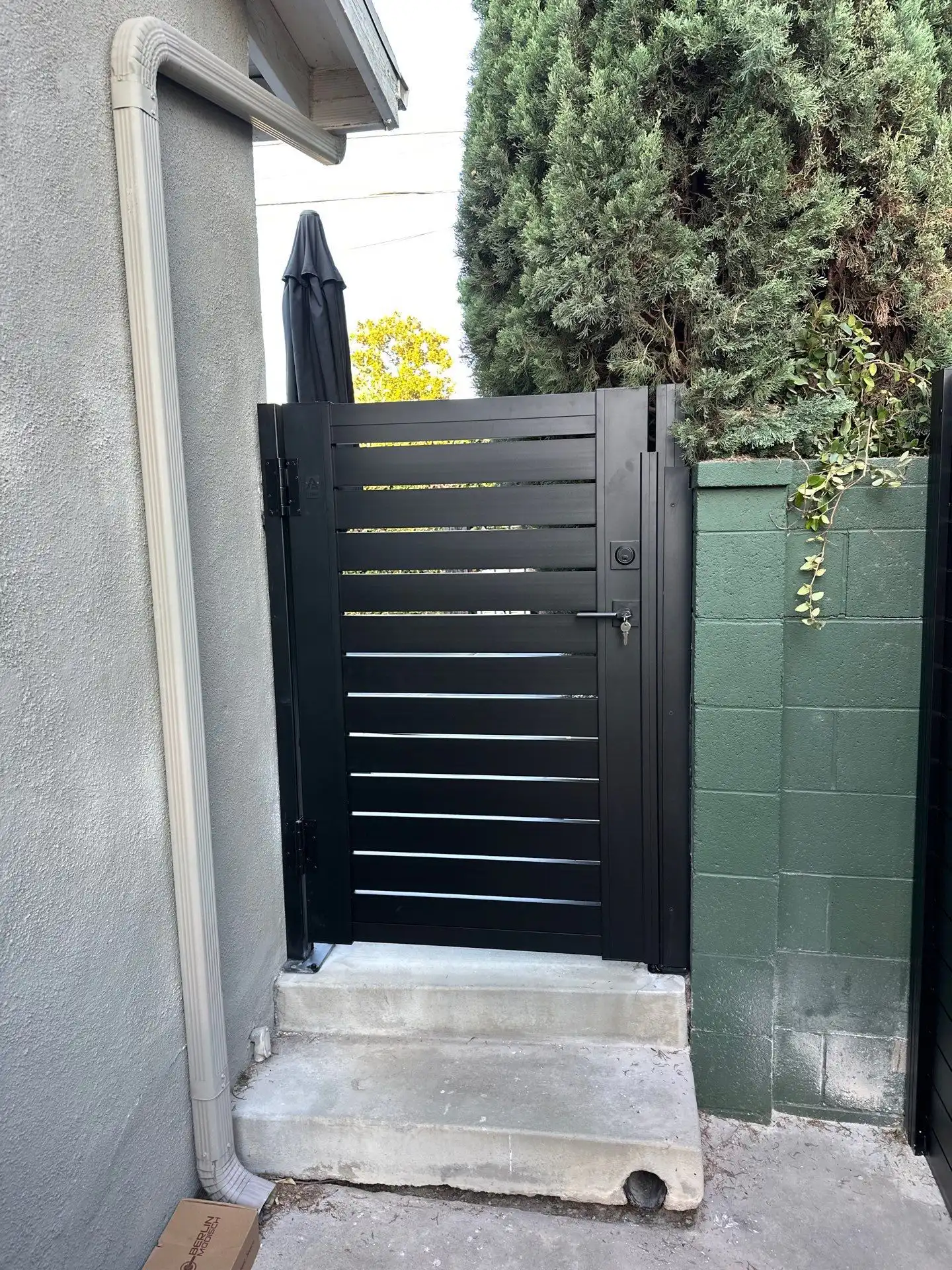

Side yard gate

Keypad-ready entry

Gate and slat fence

Double gate

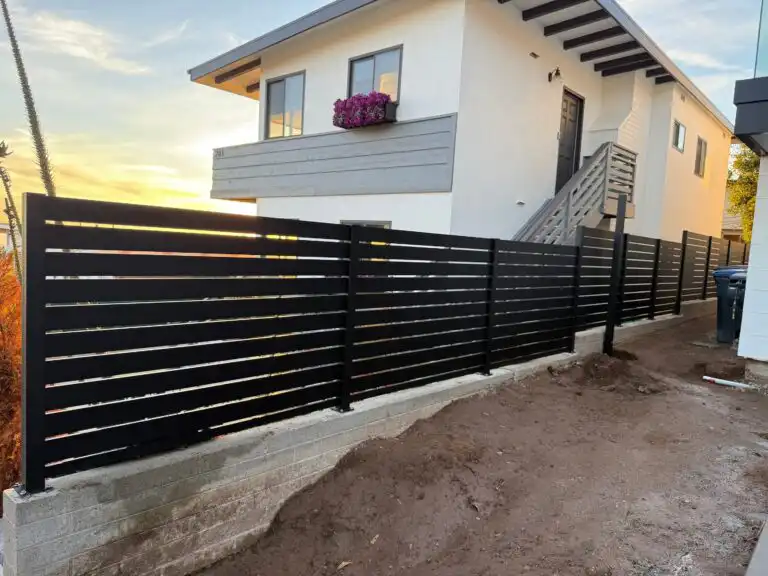

Gate and fence run

Why Aluglobus

A real gate, built with standard tools.

Easy to installBolt-together aluminum with standard tools. No welding, no painting.

Ships nationwideFactory-direct kits shipped across the U.S.

Real expert supportHomeowner and contractor support from the people who make it.

Trusted by thousands4.9 stars on Google and 1,000+ active contractors nationwide.

Architectural qualityUSA 6063-T6 aluminum and an AAMA 2604 powder-coat finish.

Built for any weatherNo rust, no rot, non-combustible, with smoke developed 0.

Reviews

Real installs. Real reviews.

Homeowners and contractors on their Aluglobus gates.

All reviews

DAYMOND JOHNCEO, Entrepreneur and Investor

MIKEHomeowner

DAVIDCustomer

4.9★★★★★Google rating, 100+ reviews

Installed Aluglobus gates

Read all reviews

Araceli U.

★★★★★

“Chris was amazing. He was very professional and guided us to get the perfect gates for our home. The installers were here when they said they would and worked diligently and efficiently.”

Valley One Gates & Access

★★★★★

“We use Aluglobus 100% with every fence/gate job we have. As a contractor I can say they are working very hard and their product is highest quality I can find and the best price.”

Contractor

Albert Torcaso

17 Sep 2025

“AluGlobus delivered a custom gate that is not only gorgeous but also highly functional. We love it!”

Google review

Jim Monahan

★★★★★

“AluGlobus was extremely helpful with my order, answering all my questions and delivering everything to Texas in perfect condition. The products were well-packed in a solid wood crate, and excellent quality.”

Shipped to Texas

Tiffany Salguero

28 Aug 2025

“I’m thrilled with the custom gate AluGlobus made for us. The team’s attention to detail was amazing.”

Google review

Cynthia Dalessandro

10 Sep 2025

“The AluGlobus team was fast, friendly, and professional. The gate looks beautiful, and we are very satisfied.”

Google review

Semra Sevim

8 Sep 2025

“AluGlobus was able to create a custom gate that matched our vision. The quality is outstanding!”

Google review

Michael Sharp

16 Sep 2025

“I’m beyond impressed with the custom gate AluGlobus made for us. They delivered exactly what we asked for.”

Google review

Wendy Van Den Berg

29 Aug 2025

“Very professional and efficient installation by AluGlobus Fence. Our new gate is sturdy and looks fantastic.”

Google review

Bonnie Paulson

9 Apr 2025

“AluGlobus Fence was a pleasure to work with. The installation was fast, and the gate looks fantastic.”

Google review

Patricia Williams

12 Sep 2025

“I highly recommend AluGlobus for your gate installation. The service was quick, and the results are excellent.”

Google review

Cecil Chavez

9 Apr 2025

“AluGlobus Fence exceeded my expectations with their high-quality gates and quick installation.”

Google review

Daymond John shaking hands with the Aluglobus team at the Aluglobus booth — At the Aluglobus booth

Seen at our booth

Daymond John put his hands on our gate.

The entrepreneur and Shark Tank investor stopped by the Aluglobus booth, shook the gate to test it, and talked about how strong it is.

“This thing is a real deal.”
“Excellent stuff.”
Daymond John, at the Aluglobus booth

Build your gate

See it built

How to measure for a gate between two walls

Why gate frames matter: framed vs no-frame gates

More from the Aluglobus channel

Gate construction, finishes and the factory.

Welding sounds stronger, but is it better for gates?

Vertical aluminum swing gate: ALU20, ALU40, ALU60

Why contractors are switching to 7-stage powder coated aluminum

How it works

From measured opening to aligned gate.

Verify the openingMeasure the opening at the top, middle and bottom and confirm the wall-to-wall mounting surfaces are plumb, solid and suitable for the gate hardware.
Lay out the Universal framePlace the frame components on a protected flat surface, confirm orientation and keep the assembly square as the frame comes together.
Install the 16 ALU40 slatsInstall the sixteen 4-inch horizontal slats consistently according to the supplied system instructions and ordered gate configuration.
Set hinge hardwarePosition the 5-inch HD support hinge for the required swing direction and verify the hinge-side structure can support the assembled leaf.
Set the receiver sideAlign the receiver-side components, T-stopper, L-stopper and selected lock hardware for clean closure.
Align and testCheck clearances, fasteners, latch engagement and smooth swing through the full arc before regular use.

FAQ

Questions about the ALU40 6′ × 6′ gate.

What is included in the ALU40 Universal DIY 6′ × 6′ kit?

The listing includes the complete aluminum gate frame, wide lock-side frame, top and bottom frame, gate T-stopper, receiver L-stopper side component, one heavy-duty 5-inch support hinge and sixteen black 4-inch by 6-foot ALU40 horizontal slats.

Is the aluminum gate rust-resistant?

Yes. The 6063-T6 aluminum does not develop iron-oxide rust like steel. The AAMA 2604 architectural powder coating adds exterior surface protection. Routine cleaning is still recommended, especially in coastal environments.

Can I install the gate myself?

The system is designed for DIY assembly and is listed at an intermediate DIY skill level. Accurate measurement, frame squaring, drilling, fastening and hinge alignment are still important.

Can I modify this 6′ × 6′ kit to any other size?

This SKU is supplied as a 6′ × 6′ gate. The Universal platform is used across multiple ALU40 gate sizes, but do not assume this specific kit should be cut or changed to an arbitrary dimension. Confirm the correct size or custom configuration with Aluglobus before altering components.

How long will the powder-coated finish last?

The gate uses an AAMA 2604 architectural powder-coated finish intended for exterior exposure. Actual appearance over time depends on climate, cleaning, physical wear and site conditions.

Does the wide side frame accept common lock hardware?

The product listing states that the wide side frame fits most U.S.-size lock hardware. The lock itself is not included, so confirm the selected lock body and installation requirements before assembly.

Can the standard gate be installed with posts set in concrete?

Not in the standard configuration. This Universal DIY gate is listed for wall-to-wall installation only. A concrete-footing condition requires the appropriate HD post upgrade and should be specified before installation.

Can the gate be self-closing?

The heavy-duty support hinge is listed as self-closing capable, but the product page recommends a hydraulic spring for true self-closing operation. That spring is sold separately.

Are installation tools included?

No. Installation tools are not included. The exact anchors, drill bits and fastening hardware required can vary with the wall or structural mounting surface.

What size is a standard pedestrian gate?

Most walk gates are 3 to 4 ft wide. Our kits come in 4 × 6 ft and 6 × 6 ft; a 4 ft wide gate fits wheelbarrows and most mowers.

Can I install an aluminum gate kit myself?

Yes. The kit is pre-cut, so it assembles with a drill, a level and standard tools. No welding is needed.

Do aluminum gates rust or sag?

Aluminum does not rust like steel. The gate is built around a full perimeter frame, which keeps the leaf square instead of hanging loose slats on hinges.

Aluminum vs wood gate: which lasts longer?

Aluminum does not warp, rot or attract termites and never needs staining. It is also lighter, which is easier on the hinges.

Still not sure? Call (888) 876-3006 or send us your project.

Description

Specifications

Gate size	6′ wide × 6′ high
Operation	Pedestrian single swing
ALU40 slats	16 × 4″ × 6′
Slat gap	3/8″ or 1/2″
Material	6063-T6 aluminum
Finish	AAMA 2604 powder coat
Standard color	Black
Installation	Wall-to-wall only

What's in the box

Complete Universal DIY gate frame
ALU40 4″ horizontal slats
Heavy-duty support hinge
Gate stopper and receiver stopper

Sizes and mounting

This kit is 4′ × 6′ and made for wall-to-wall openings. Don't cut components. For other sizes, or posts set in concrete, contact Aluglobus or choose the Heavy-Duty gate system. A 6′ × 6′ ALU40 kit is also available.

Finish care

Rinse now and then, especially near the coast. Appearance over time depends on climate, cleaning and wear.

Fire safety

Aluminum is non-combustible and does not burn under normal fire conditions. Smoke developed: 0.

Full product description: Aluminum Gate Kit Alu40 Universal DIY 6′ x 6′ BLACK

ALU40 · Universal DIY pedestrian gate

A black 6′ × 6′ single-swing aluminum gate built around the Universal DIY frame.

The ALU40 Universal DIY Aluminum Gate Kit 6′ × 6′ combines a complete aluminum gate frame, sixteen 4-inch ALU40 horizontal slats and heavy-duty support hardware in a wall-to-wall pedestrian-gate package. It is made from USA-made 6063-T6 aluminum and finished with an AAMA 2604 architectural powder coating for a modern, low-maintenance exterior system.

Gate size6′ wide × 6′ high
OperationPedestrian single swing
ALU40 slats16 × 4″ × 6′
Standard colorBlack

The 6′ × 6′ Universal DIY system

See the frame, ALU40 slat system, finish and hardware from multiple angles.

Explore the Universal DIY frame, ALU40 slat system, black exterior finish and support hardware from multiple views. Open any image for a larger look without leaving the product page.

Full-frame strengthUniversal DIY frame

Universal ALU40 compatibilityALU40 horizontal system

Long-lasting powder coatExterior black finish

Reinforced hinge supportSingle-swing hardware

Premium aluminum construction6063-T6 system

DIY-oriented assemblyPre-engineered system
Designed around assembly

A factory-prepared aluminum gate system without welded field fabrication.

The Universal DIY platform organizes the gate around pre-engineered aluminum frame components, ALU40 horizontal slats and dedicated support hardware. The goal is a cleaner path from a verified wall-to-wall opening to an aligned finished pedestrian gate.

Built for DIY assemblyFactory-prepared components reduce the need for welded gate fabrication in the field.
Universal ALU40 platformThe frame system is shared across ALU40 gate configurations, while this SKU is supplied specifically as a 6′ × 6′ black gate.
Exterior-ready aluminum6063-T6 aluminum and AAMA 2604 architectural powder coating support long-term exterior use.

Product specifications

The ALU40 Black 6′ × 6′ Universal DIY gate at a glance.

This listing is a black 6′ × 6′ pedestrian single-swing gate with sixteen 4-inch ALU40 horizontal slats and a complete Universal DIY aluminum frame. The standard configuration is wall-to-wall only.

Installation requirement: The standard Universal DIY configuration is wall-to-wall only. Concrete-footing installations require the appropriate HD post upgrade and must be specified for the project before installation.

Product: ALU40 Black Universal DIY Aluminum Gate Kit
SKU: 26834
Gate type: Pedestrian / single-swing aluminum gate
Finished size: 6′ wide × 6′ high
Material: USA-made 6063-T6 aluminum
ALU40 slats: 16 pieces · 4″ × 6′ horizontal aluminum slats
Finish: Architectural powder coating
Coating standard: AAMA 2604
Paint brands: Cardinal Paint / TIGER
Standard color: Black
Custom colors: Available upon request
Lock planning: Wide side frame fits most U.S.-size lock hardware
Combustibility: Non-combustible aluminum substrate
Ignition behavior: Does not burn under normal fire conditions
Melting point: Approximately 615–655 °C
Smoke developed: 0
Installation: Wall-to-wall installation only
Concrete footing: Not included · HD post upgrade required
DIY skill level: Intermediate
Tools: Not included
Country of origin: Made in the USA

What’s included

A coordinated 6′ × 6′ gate package built around the Universal DIY frame.

The product listing combines the frame, gate stops, hinge support and sixteen black ALU40 slats into one pedestrian-gate package.

Complete aluminum gate frame

The Universal DIY frame creates the single-swing gate structure without requiring welded field fabrication.

Wide lock-side frame

The wider side frame is designed to accommodate most U.S.-size lock hardware so the latch and handle can be planned into the gate.

Top and bottom frame

Factory-prepared top and bottom frame components complete the Universal DIY gate perimeter.

Gate T-stopper

A coordinated T-stopper is included for the finished closing condition.

Receiver L-stopper side component

The receiver-side component supports clean wall-to-wall closure and lock-side planning.

5″ HD support hinge · Qty 1

One heavy-duty 5-inch support hinge is included. For true self-closing operation, a compatible hydraulic spring is recommended and sold separately.

16 black ALU40 slats

Sixteen 4″ × 6′ powder-coated 6063-T6 aluminum slats create the horizontal infill.

What is not included

Concrete footing, lock hardware, hydraulic self-closing spring and installation tools are not included with the standard kit.

Optional posts and caps

Post and cap options are selected separately when the project requires them. Concrete-footing conditions require the correct HD post configuration.

Why this 6′ × 6′ configuration

Six feet of width and height with a clean horizontal ALU40 rhythm.

At six feet wide and six feet high, this configuration creates a substantial pedestrian entry for front yards, side yards, courtyards and suitable light-commercial access points. The horizontal 4-inch ALU40 slats give the gate a broader architectural rhythm than narrower-slat systems, while the full aluminum frame keeps the design visually contained.

6′ × 6′ pedestrian format
Single-swing operation
16 horizontal ALU40 slats
Black architectural finish
6063-T6 aluminum
Non-combustible substrate
DIY-oriented assembly
Wall-to-wall configuration

More product views

Additional views of the ALU40 6′ × 6′ gate system.

Open any image to inspect additional product views in the built-in lightbox without leaving the product page.

ALU40 6′ × 6′ gate view 01Product view

ALU40 6′ × 6′ gate view 02Product view

ALU40 6′ × 6′ gate view 03Product view

ALU40 6′ × 6′ gate view 04Product view

ALU40 6′ × 6′ gate view 05Product view

ALU40 6′ × 6′ gate view 06Product view
Technical drawings and component reference

ALU40 profile geometry and the 6′ × 6′ Universal DIY gate layout.

Use these drawings to understand the ALU40 profile and the gate-kit component relationship. Final opening conditions, mounting surfaces and hardware placement must still be verified for the actual installation.

ALU40 profile2D and 3D technical view

6′ × 6′ gate layout3D view and parts legend

Hinge referenceHeavy-duty support hardware
ALU40 Universal DIY hardware and parts

Understand the frame, receiver hardware, ALU40 slats and support components before assembly.

The Universal DIY package combines the gate frame, receiver-side components, ALU40 slat material and heavy-duty hinge support. Optional post and cap selections remain separate so the project can be matched to the actual mounting condition.

Universal gate frame

Complete aluminum frame with wide lock side, top and bottom frame components for the 6′ × 6′ single-swing gate.

Receiver and striker side

Gate T-stopper and receiver L-stopper components support the finished closing condition and lock-side alignment.

ALU40 slat package

Sixteen 4″ × 6′ black powder-coated 6063-T6 aluminum slats are listed with this kit.

5″ HD support hinge

One heavy-duty support hinge is included. A hydraulic closer or spring is a separate selection when true self-closing operation is required.

Optional HD post upgrade

The standard gate is wall-to-wall. Projects that require concrete footing must use the correct HD post upgrade instead of assuming posts are included.

Optional posts and caps

Additional posts and matching caps can be selected separately from the product-page options when the project condition requires them.

Applications

Built for pedestrian openings where a modern aluminum gate and low routine maintenance matter.

The 6′ × 6′ format is suited to residential and light-commercial pedestrian applications when the opening and wall-to-wall support conditions match the Universal DIY system.

Front pedestrian entries

Create a substantial modern entrance with six-foot height and broad horizontal aluminum lines.

Side-yard gates

Use the six-foot-wide pedestrian leaf where the property needs more passage width than a narrow walkway gate.

Courtyards and entryways

Coordinate the black gate with contemporary walls, fence systems and exterior architecture.

Privacy-oriented entries

The 4-inch horizontal ALU40 layout creates a strong architectural rhythm for private residential spaces.

Light-commercial pedestrian access

A practical aluminum option for pedestrian-only openings with suitable structural mounting conditions.

Coastal and humid climates

Aluminum does not develop iron-oxide rust like steel and is well suited to environments where corrosion maintenance is a concern.

Durability and finish

6063-T6 aluminum, architectural powder coating and no iron-oxide rust.

The frame and ALU40 slats use 6063-T6 aluminum with an AAMA 2604 architectural powder-coated finish. The aluminum substrate does not rust like iron-based metal and will not rot, swell or splinter like wood.

6063-T6 aluminumArchitectural aluminum used throughout the listed gate system.
AAMA 2604 finishArchitectural coating performance for exterior color retention and surface protection.
Non-combustible substrateThe aluminum material itself does not ignite or sustain flame under normal fire exposure.

Assembly sequence

A six-step path from verified opening to aligned single-swing gate.

This standard SKU is designed for wall-to-wall mounting. Start with the opening and structural mounting surfaces, then assemble and align the gate around the actual site condition.

Verify the opening

Measure the opening at the top, middle and bottom and confirm the wall-to-wall mounting surfaces are plumb, solid and suitable for the gate hardware.

Lay out the Universal frame

Place the frame components on a protected flat surface, confirm orientation and keep the assembly square as the frame comes together.

Install the 16 ALU40 slats

Install the sixteen 4-inch horizontal slats consistently according to the supplied system instructions and ordered gate configuration.

Set hinge hardware

Position the 5-inch HD support hinge for the required swing direction and verify the hinge-side structure can support the assembled leaf.

Set the receiver side

Align the receiver-side components, T-stopper, L-stopper and selected lock hardware for clean closure.

Align and test

Check clearances, fasteners, latch engagement and smooth swing through the full arc before regular use.

Buying and installation guide

Confirm the opening, swing, lock hardware and support condition before assembly.

The Universal DIY system reduces fabrication work, but a six-foot-wide pedestrian leaf still depends on accurate site conditions and correct hardware planning.

Measure wall to wall

Confirm the finished opening at multiple heights and account for hinge, latch and receiver-side clearances.

Confirm the listed size

This SKU is supplied as a 6′ × 6′ gate. Do not assume the frame should be cut to an arbitrary size without confirming the correct configuration with Aluglobus.

Confirm swing direction

Plan the hinge side and swing direction around clearance, traffic flow and the actual opening.

Plan lock hardware

Confirm the selected latch or lock body and required clearances before finalizing the lock-side setup.

Check self-closing needs

If true self-closing operation is required, select the appropriate hydraulic spring or compatible closing hardware separately.

Confirm mounting condition

The standard configuration is wall-to-wall. Concrete-footing projects require the correct HD post upgrade before installation.

Product videos

See the Universal DIY gate system in motion.

Watch the Universal DIY gate system and ALU40 gate footage for a closer look at the aluminum profiles, assembly approach and finished design language. Both videos load only after the visitor clicks the poster.

Universal DIY gate systemGate system video
ALU40 gate videoAluglobus video
Frequently asked questions

Answers before you assemble the 6′ × 6′ gate.

Common questions about the package, aluminum construction, wall-to-wall installation, finish, hardware and ALU40 system.

What is included in the ALU40 Universal DIY 6′ × 6′ kit?

Is the aluminum gate rust-resistant?

Can I install the gate myself?

The system is designed for DIY assembly and is listed at an intermediate DIY skill level. Accurate measurement, frame squaring, drilling, fastening and hinge alignment are still important.

Can I modify this 6′ × 6′ kit to any other size?

How long will the powder-coated finish last?

The gate uses an AAMA 2604 architectural powder-coated finish intended for exterior exposure. Actual appearance over time depends on climate, cleaning, physical wear and site conditions.

Does the wide side frame accept common lock hardware?

Can the standard gate be installed with posts set in concrete?

Can the gate be self-closing?

The heavy-duty support hinge is listed as self-closing capable, but the product page recommends a hydraulic spring for true self-closing operation. That spring is sold separately.

Are installation tools included?

No. Installation tools are not included. The exact anchors, drill bits and fastening hardware required can vary with the wall or structural mounting surface.

Ready to order?

Buy the listed 6′ × 6′ kit, or verify the opening first.

If the opening is already confirmed as a compatible wall-to-wall 6′ × 6′ condition, proceed with the listed gate. If not, send the opening dimensions and photos before ordering.

Contact Aluglobus

Project checkpoint

Do not guess on a 6-foot-wide single leaf.

Before assembly, make sure the opening and support conditions match the Universal DIY system.

Finished opening width + height
Wall-to-wall support condition
Hinge side + swing direction
Bottom and side clearances
Latch / lock requirement
Photos from both sides of the opening
Project city / state
Choose your next step

Confirm the fit first, or order the listed 6′ × 6′ kit.

For nonstandard openings, concrete-footing conditions or uncertainty about the hinge and receiver sides, send the project information before ordering. For a verified standard wall-to-wall condition, purchase the listed kit directly.

Buy this 6′ × 6′ gate
Call (888) 876-3006
Aluglobus Aluminum Systems · Aluminum gates · Fence systems · Patio covers · Wall cladding · Nationwide supply

Warranty

25-year limited manufacturer warranty on covered gate and fence aluminum materials.

Written terms and exclusions apply. Finish and hardware coverage differ; ask for the written terms with your quote.

Powder coating

Pretreated in 7 stages. Powder coated before assembly. Coated 360°.

AAMA 2604 architectural finish with AkzoNobel and TIGER powders, baked in a 110 ft cure oven.

Locations

Showrooms, wholesale and partners near you.

See gates in person at an Aluglobus showroom, pick up from a wholesale location, or work with an authorized partner. Nationwide U.S. shipping from the factory everywhere else.

ShowroomSouthern California16721 Roscoe Blvd, North Hills, CAGet directions ↗ShowroomNorthern California4909 Auburn Blvd #1, Sacramento, CA 95841Get directions ↗

WholesaleBay AreaSan Jose, CA · address upon request

WholesaleSacramento12355 Quicksilver Dr, Rancho Cordova, CA 95742Get directions ↗WholesaleFlorida5060 N.E. 12th Ave, Oakland Park, FL 33334Get directions ↗WholesaleHawaiʻi91-226 Kauhi St #2D, Kapolei, HI 96707 · OʻahuGet directions ↗

WholesaleIndio45080 Golf Center Parkway, Suite G, Indio, CA 92201

Authorized partnerCalabasas24000 Ventura Blvd, Calabasas, CAGet directions ↗Authorized partnerSan Diego9072 Clairemont Mesa Blvd, San Diego, CA 92123Get directions ↗

Authorized partnerColoradoContact us for partner details

Project supportLos AngelesOrange CountySan DiegoBay AreaSacramentoLancasterRancho CucamongaIndioNationwide shipping

Call (888) 876-3006 All contact options

Mon to Fri, 9:00 AM to 5:00 PM

Let's size one for your project.

Send your measurements and photos and a specialist will get back to you with options and a project price.

Get a free quote Contractor pricing

Real projects

ALU 40 black slat gates in real projects

Completed installations by Aluglobus Aluminum Systems using this system. Sizes, layouts and accessories vary by project.

Watch

See it built and installed

Installation, product and factory videos from Aluglobus Aluminum Systems.

Specifications

Technical details

Check sizes, material and configuration against your project before ordering.

Product: ALU40 Universal DIY pedestrian gate kit
Size: 6 ft wide x 6 ft high
Operation: Single swing, wall-to-wall installation
Infill: 16 ALU40 horizontal slats, 4 in. x 6 ft
Frame: Universal DIY aluminum frame with wide lock-side profile
Hardware: 1 heavy-duty 5 in. support hinge, gate T-stopper, receiver L-stopper side post
Material: Aluminum 6063-T6
Finish: AAMA 2604 powder coating, Black

Product views & drawings6 images

FAQ

Questions, answered

Still deciding?

Send your measurements and photos. Our team will help you choose the right system and parts.

Request a quote

Can I install this gate on concrete footings instead of between walls?

The standard Universal DIY configuration is wall-to-wall only. Concrete-footing installs need the appropriate HD post upgrade, which should be specified before installation.

What comes in the box?

The complete aluminum gate frame with T-stopper and receiver L-stopper side post, one heavy-duty 5 in. support hinge, and sixteen 4 in. x 6 ft ALU40 slats.

Will my lock fit the gate?

The lock-side frame is wide and designed to fit most US-size lock hardware. The lock itself is not listed as included.

Is the gate self-closing?

The HD support hinge is self-closing capable. For controlled self-closing, a compatible hydraulic spring is recommended and sold separately.

What should I measure before ordering?

Verify the finished opening between walls, the mounting surfaces, hinge side and swing clearance, plus where the lock and stoppers will go.

Ready when you are

Ready to start your project?

Order online or send your project details for a factory-direct quote.

Choose options Request a quote

Trusted by investors, architects, homeowners and contractors

Watch Plug ✔

@watchplug

"I couldn't be happier with the fence. From the moment it went up, it completely transformed my backyard. The sleek design without visible posts gives it such a modern, high-end look. It's like having a piece of art around my home. I also love that it's fire-resistant, which gives me peace of mind living in this area. Definitely worth every penny!"

Mike

Home Owner

Daymond John

CEO, Entrepreneur & Investor

DW Design & Build ✔

@dannywangdesign

"We're honored to be recommended by Danny Wang Design, a premier contractor known for exceptional outdoor living spaces. In our latest collaboration, Danny created a stunning backyard and entrusted us with the gate and fence system. We're proud to be his trusted partner for quality and reliability."

"AluGlobus was extremely helpful with my order, answering all my questions and delivering everything to Texas in perfect condition. The products were well-packed in a solid wood crate, and excellent quality. I'm so glad I found them online. Highly recommended. I'll be buying from them again. Thanks to everyone who made it happen!"

David

Customer

Service Department

Mercedes Benz Engineer

"We use Aluglobus 100% with every fence/gate job we have. As a contractor I can say they are working very hard and their product is the highest quality I can find and the best price. We're very happy working with them! Our experience working with them is always top notch."

22 July 2025

Shopping cart

Search

Aluminum Gate Kit Alu40 Universal DIY 6' x 6' BLACK

Get the Highlights

Clean lines that look custom

Built to stay new outside

A surprisingly simple install

Ready for your lock

Everything for the 6′ × 6′ gate.

A horizontal aluminum gate kit you can install yourself

Universal DIY or Heavy-Duty. See every part.

DIY Universal pedestrian gate

Heavy-Duty pedestrian gate

Heavy-Duty sliding gate

ALU INTEGRAL™

ALU FRAME™

See the system come together

A fence panel on hinges is not a gate.

Assembles with standard tools. No welding.

Built for driveways and wide openings.

Your size. Your color. Your slat direction.

Where this gate fits.

One gate system. Three slat profiles.

Installed ALU20, ALU40 and ALU50/60 gates.

Aluminum is the raw material. The system is what you buy.

Same color. Very different finish.

See where your gate is actually made.

No Factory Proof.No Manufacturing Transparency.No Warranty You Can Verify.

No Coating Brand.No Preparation Proof.No Finish Warranty You Can Verify.

Cutting, punching, milling, bending and finishing under one roof.

Engineered first. Manufactured in-house. Built with precision.

We show the process. So you know who stands behind the product.

A finish built to last outdoors.

Real gates. Real homes.

A real gate, built with standard tools.

Real installs. Real reviews.

Daymond John put his hands on our gate.

See it built

More from the Aluglobus channel

From measured opening to aligned gate.

Questions about the ALU40 6′ × 6′ gate.

A black 6′ × 6′ single-swing aluminum gate built around the Universal DIY frame.

See the frame, ALU40 slat system, finish and hardware from multiple angles.

A factory-prepared aluminum gate system without welded field fabrication.

The ALU40 Black 6′ × 6′ Universal DIY gate at a glance.

A coordinated 6′ × 6′ gate package built around the Universal DIY frame.

Complete aluminum gate frame

Wide lock-side frame

Top and bottom frame

Gate T-stopper

Receiver L-stopper side component

5″ HD support hinge · Qty 1

16 black ALU40 slats

What is not included

Optional posts and caps

Six feet of width and height with a clean horizontal ALU40 rhythm.

Additional views of the ALU40 6′ × 6′ gate system.

ALU40 profile geometry and the 6′ × 6′ Universal DIY gate layout.

Understand the frame, receiver hardware, ALU40 slats and support components before assembly.

Universal gate frame

Receiver and striker side

ALU40 slat package

5″ HD support hinge

Optional HD post upgrade

Optional posts and caps

Built for pedestrian openings where a modern aluminum gate and low routine maintenance matter.

Front pedestrian entries

Side-yard gates

Courtyards and entryways

Privacy-oriented entries

Light-commercial pedestrian access

Coastal and humid climates

6063-T6 aluminum, architectural powder coating and no iron-oxide rust.

A six-step path from verified opening to aligned single-swing gate.

Verify the opening

Lay out the Universal frame

Install the 16 ALU40 slats

Set hinge hardware

Set the receiver side

Align and test

No Factory Proof.
No Manufacturing Transparency.
No Warranty You Can Verify.

No Coating Brand.
No Preparation Proof.
No Finish Warranty You Can Verify.
