Pedestrian gate kits
4' x 6' Universal DIY pedestrian gate kit with black ALU20 horizontal slats and a 3/8" or 1/2" gap. Includes the aluminum gate frame, a heavy-duty 5" HD support hinge and 15 ALU20 slats for wall-to-wall installs.
$765.54

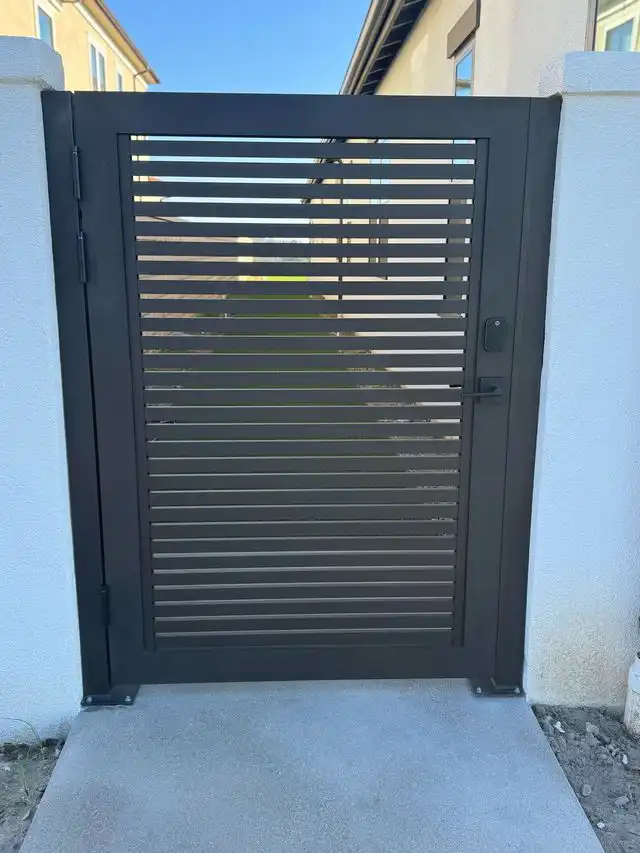

ALU20 · Universal DIY pedestrian gate
The ALU20 Universal DIY Horizontal Gate Kit is a lightweight, architectural-grade pedestrian gate system built for homeowners, contractors and designers who want a clean aluminum result without field fabrication. Its pre-engineered, factory-cut system combines 6063-T6 aluminum, AAMA 2604 architectural powder coating and a universal frame designed around straightforward assembly.
Gate size
4′ wide × 6′ high
System
Universal DIY · single swing
Material
6063-T6 aluminum
Installation
Wall-to-wall only

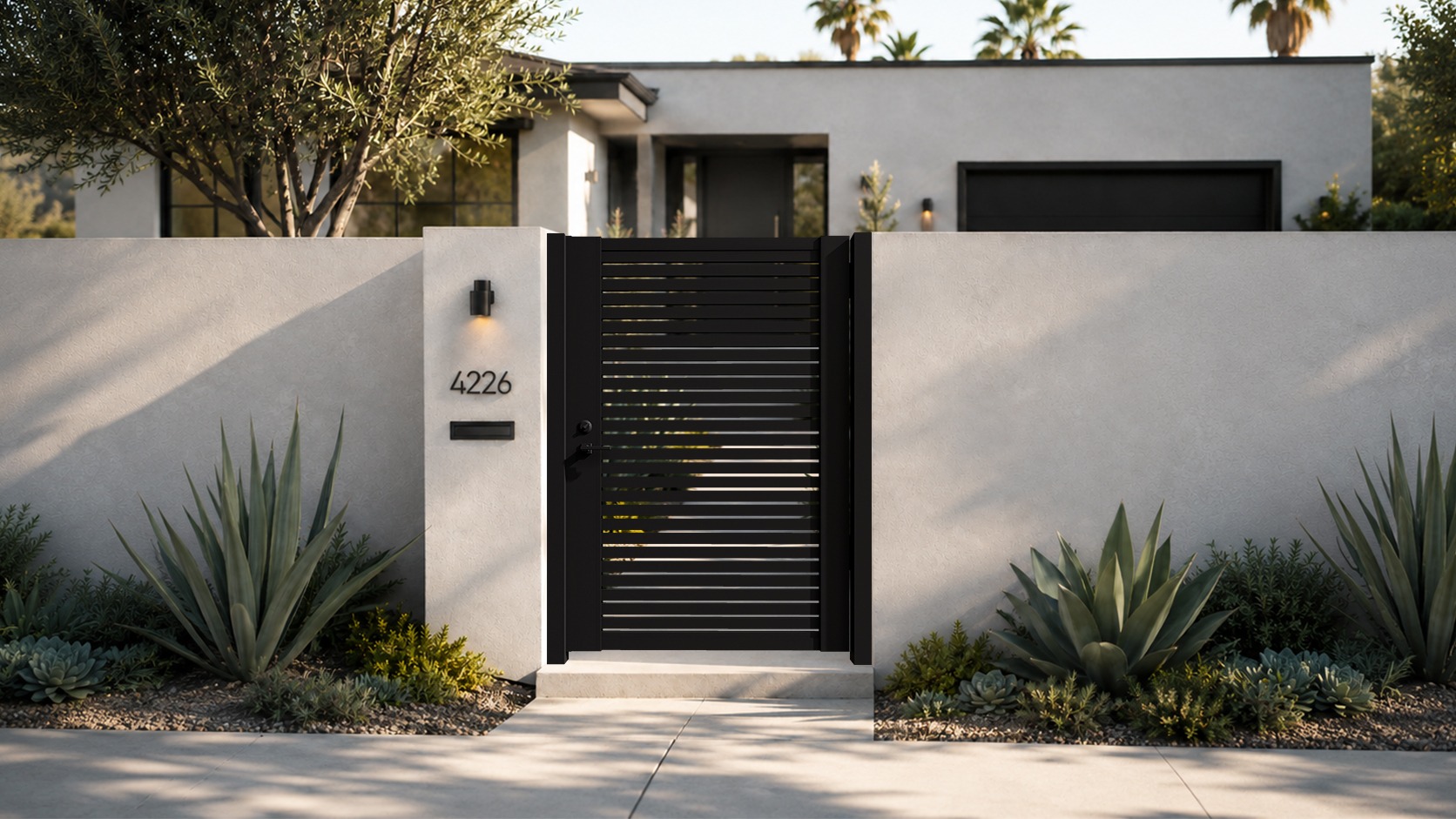

ALU 20 black slat pedestrian gate project
Aluglobus Universal DIY Gate System
Complete Gate Package

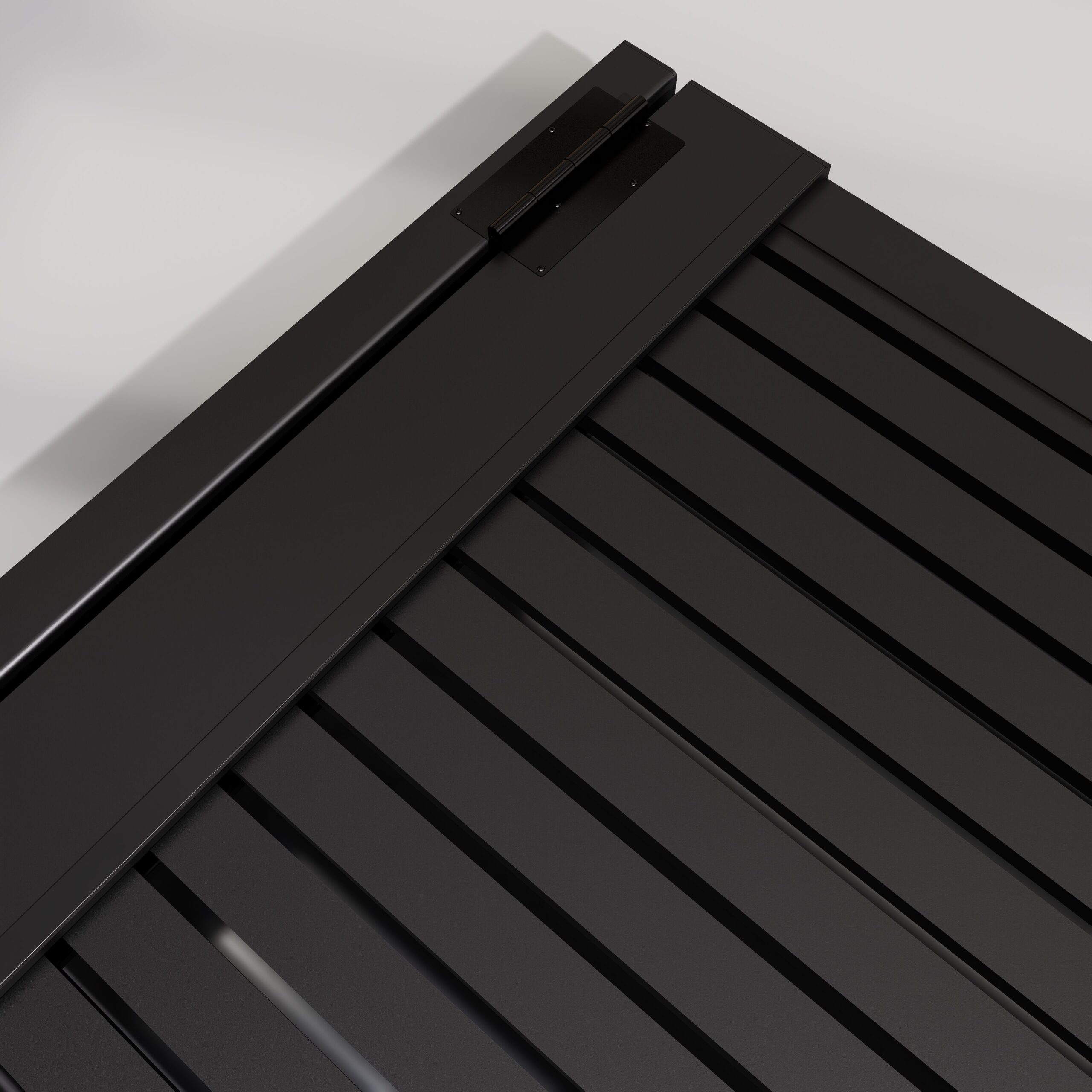

Heavy-duty support hinge designed for the pedestrian gate system.
Self-closing capable. For true controlled self-closing operation, a compatible hydraulic spring is recommended and sold separately.
Quantity: 1
Quantity: 16
The Universal DIY system
Explore the frame concept, ALU20 slat system, exterior finish, hinge support, aluminum construction and assembly approach from multiple angles.
Built for DIY
The Universal DIY platform is built around three priorities: fast assembly, a flexible frame that coordinates with common gate layouts and a durable aluminum system finished for exterior exposure.
See how the universal gate system is designed to go together quickly and cleanly without welding or field fabrication.
The frame is intended to coordinate with multiple gate sizes, styles and common lock setups within the Universal DIY family.
6063-T6 aluminum and AAMA 2604 architectural powder coating provide a rust-free, exterior-ready material platform.
Product specifications
This is the compact no-weld pedestrian-gate platform in the ALU20 family, designed for wall-to-wall installation with 6063-T6 aluminum, architectural powder coating and an intermediate DIY skill level.
Important installation note: This Universal DIY configuration is designed for wall-to-wall installation only. A concrete-footing application requires an HD post upgrade and should be requested before ordering.
Wall-to-wall application: this Universal DIY system is intended for installations where the pedestrian gate is supported between appropriate structural mounting surfaces. Verify finished opening dimensions, hinge orientation, lock hardware, clearances, and mounting conditions before assembly and installation.
What the kit is designed to provide
A pre-engineered, factory-cut package reduces fabrication time, labor and material waste while maintaining a modern horizontal-slat appearance.
Pre-engineered aluminum frame components create the structure of the pedestrian gate without requiring welded fabrication.

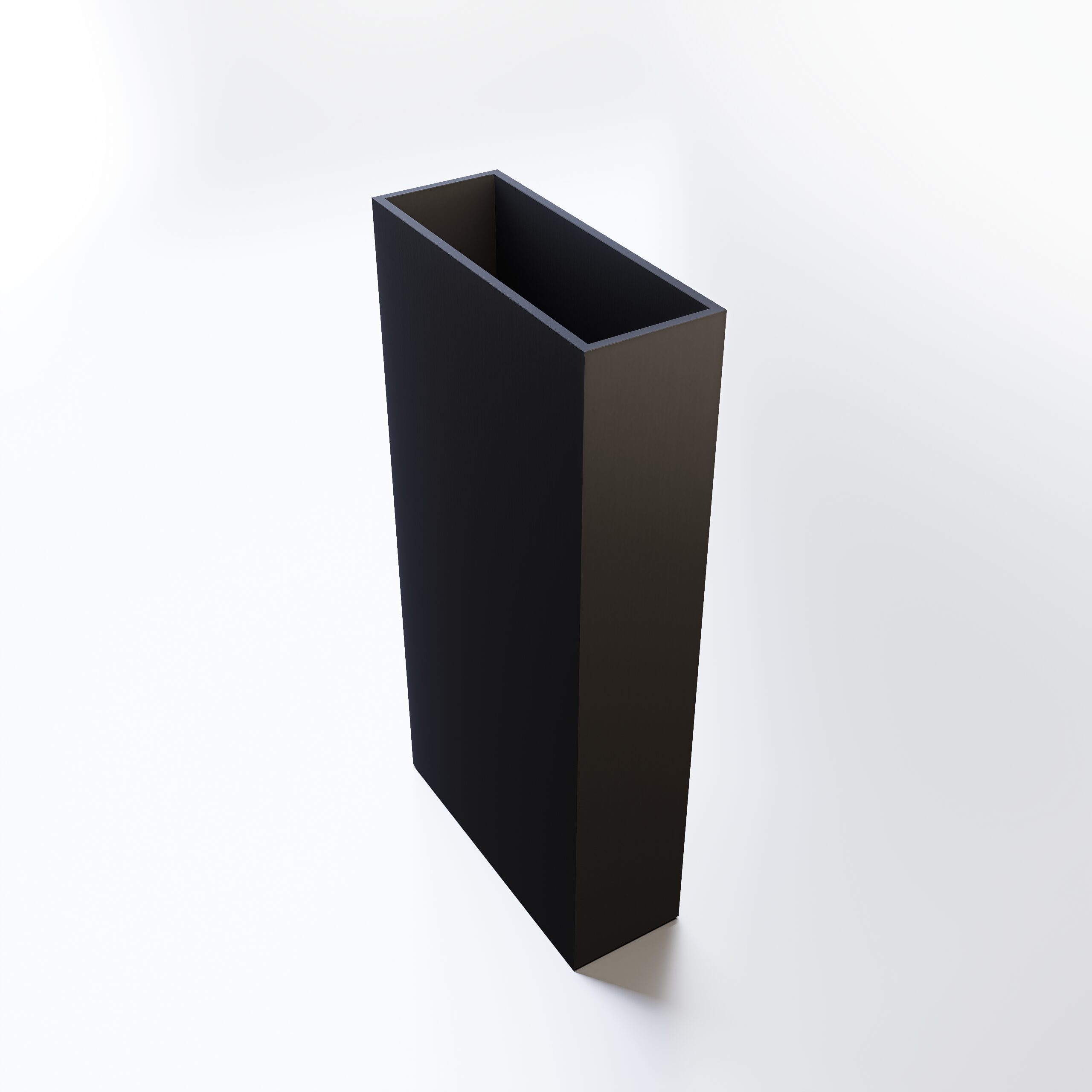

Horizontal ALU20 infill is factory-cut for the gate configuration so assembly can be completed with a consistent slat rhythm.
Frame and slat components are prepared for assembly with coordinated fasteners and connections used to secure the structure and infill.
The Universal DIY family is designed around common U.S.-size lock hardware so access hardware can be planned into the finished gate.
Posts, hinge systems and latch hardware are project-dependent add-ons. Confirm the mounting condition before ordering the complete package.
Assembly guidance covers preparation, frame assembly, slats, hinges, side posts and final cleanup.
Why homeowners and contractors choose it
Factory-direct value, rust resistance, modern horizontal lines, low maintenance and universal compatibility make this system practical for users who want aluminum performance without welding, repeated repainting or the material deterioration common to many traditional gate systems.

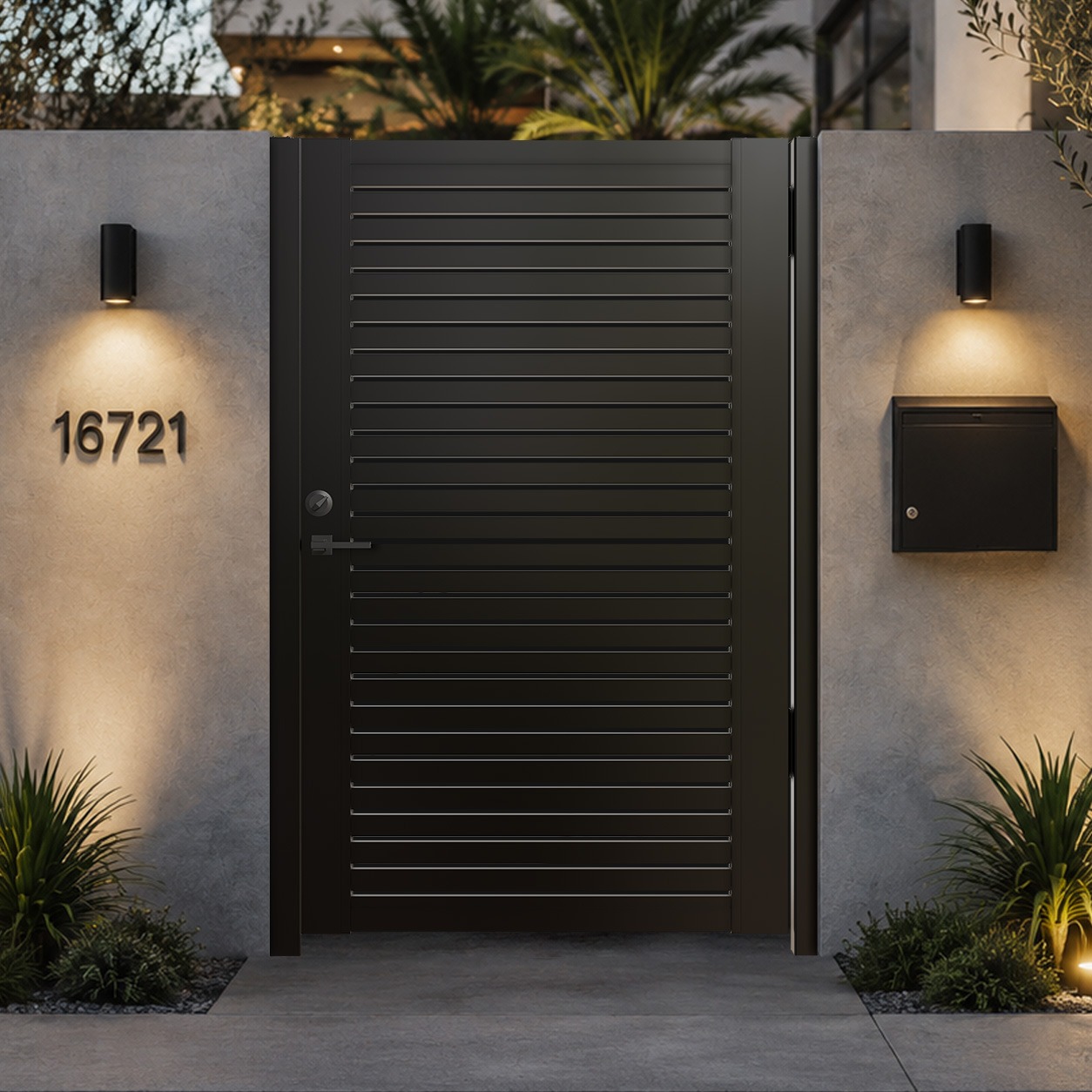

More product views

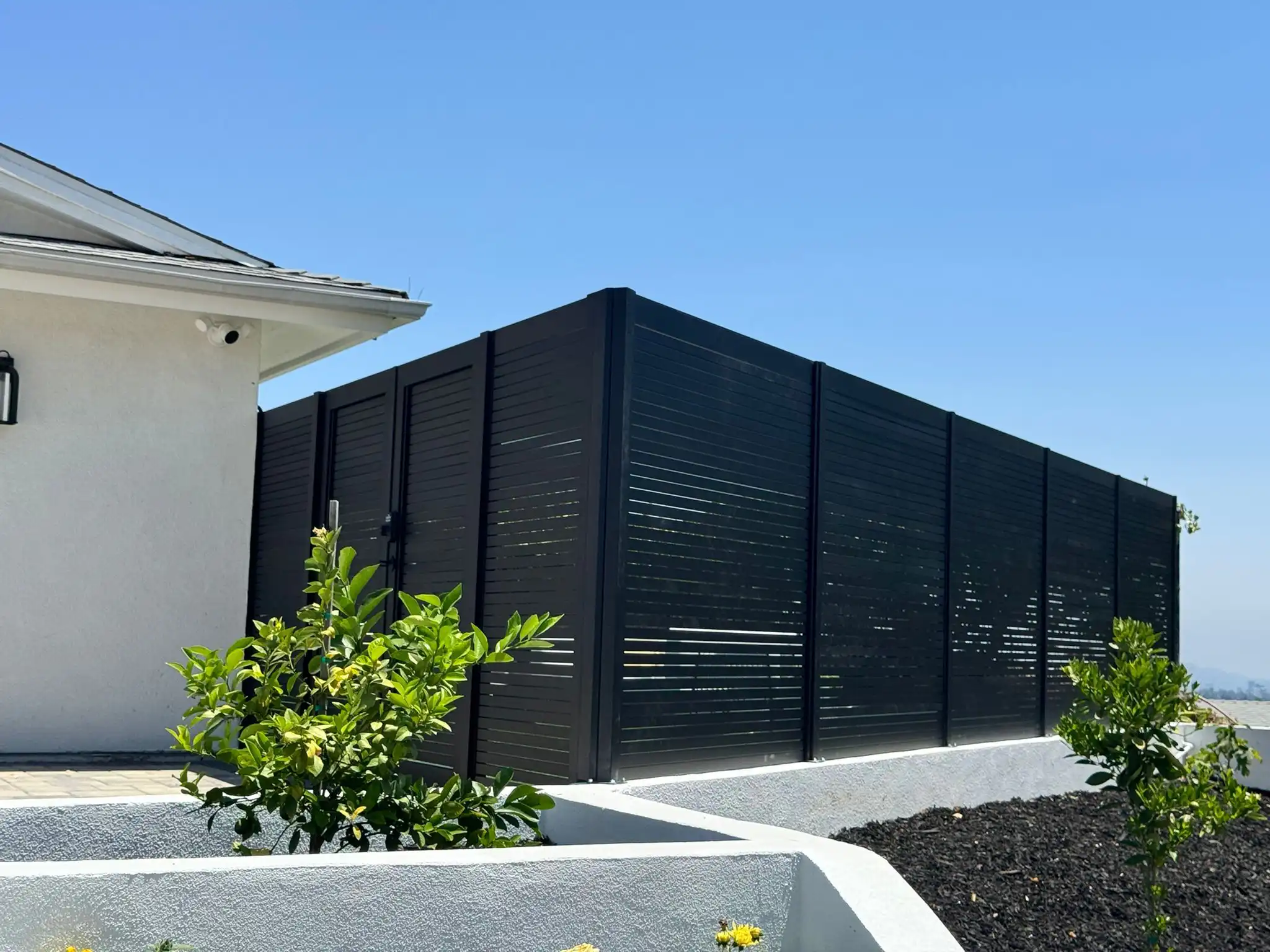

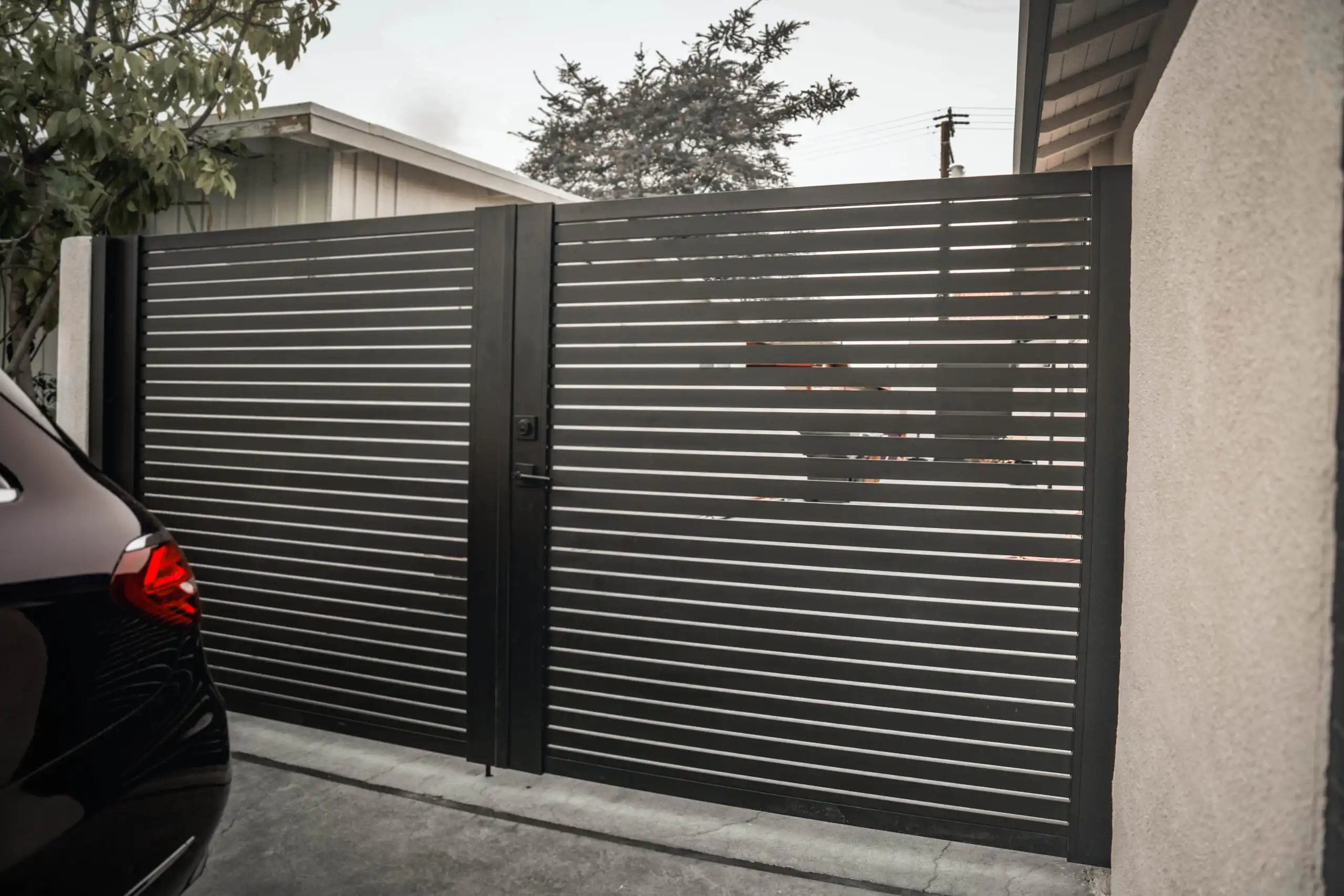

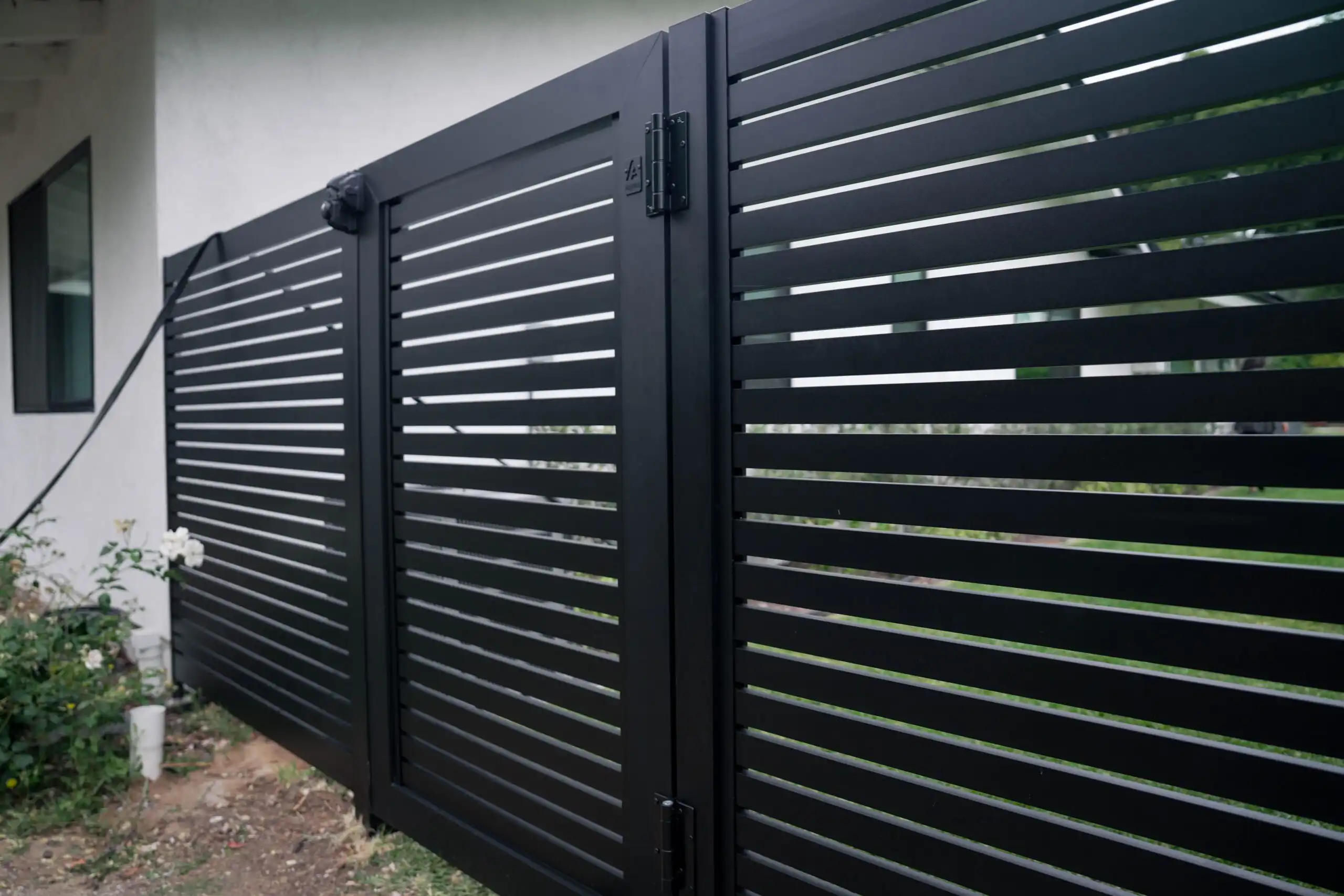

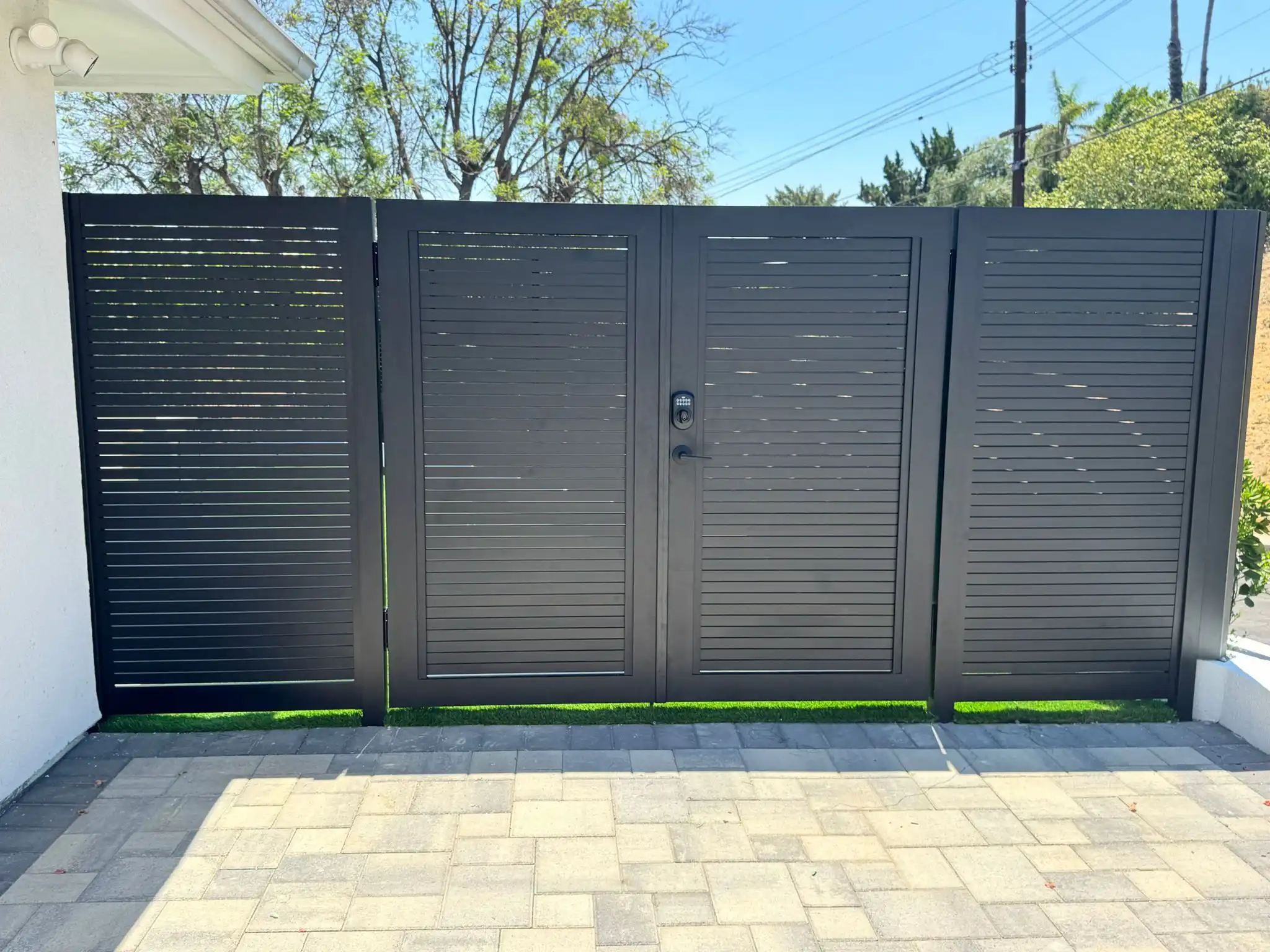

See additional installation, finish and gate-system views for the 4′ × 6′ Universal DIY configuration.
Applications
Ideal applications include residential side-yard entries, backyard access, patio and garden entries and other architectural pedestrian-gate openings.
A compact 4-foot-wide pedestrian opening for side yards and everyday property access.
Horizontal aluminum slats create a coordinated modern entry point alongside aluminum fence systems.
Low-maintenance aluminum makes the system practical for frequently used exterior pedestrian openings.
The gate may be incorporated into pool-area layouts only when the complete barrier, hinges, self-closing hardware, latch location and clearances satisfy the applicable local code.
The repeatable DIY system can support coordinated pedestrian gates across light-commercial or multi-unit projects.

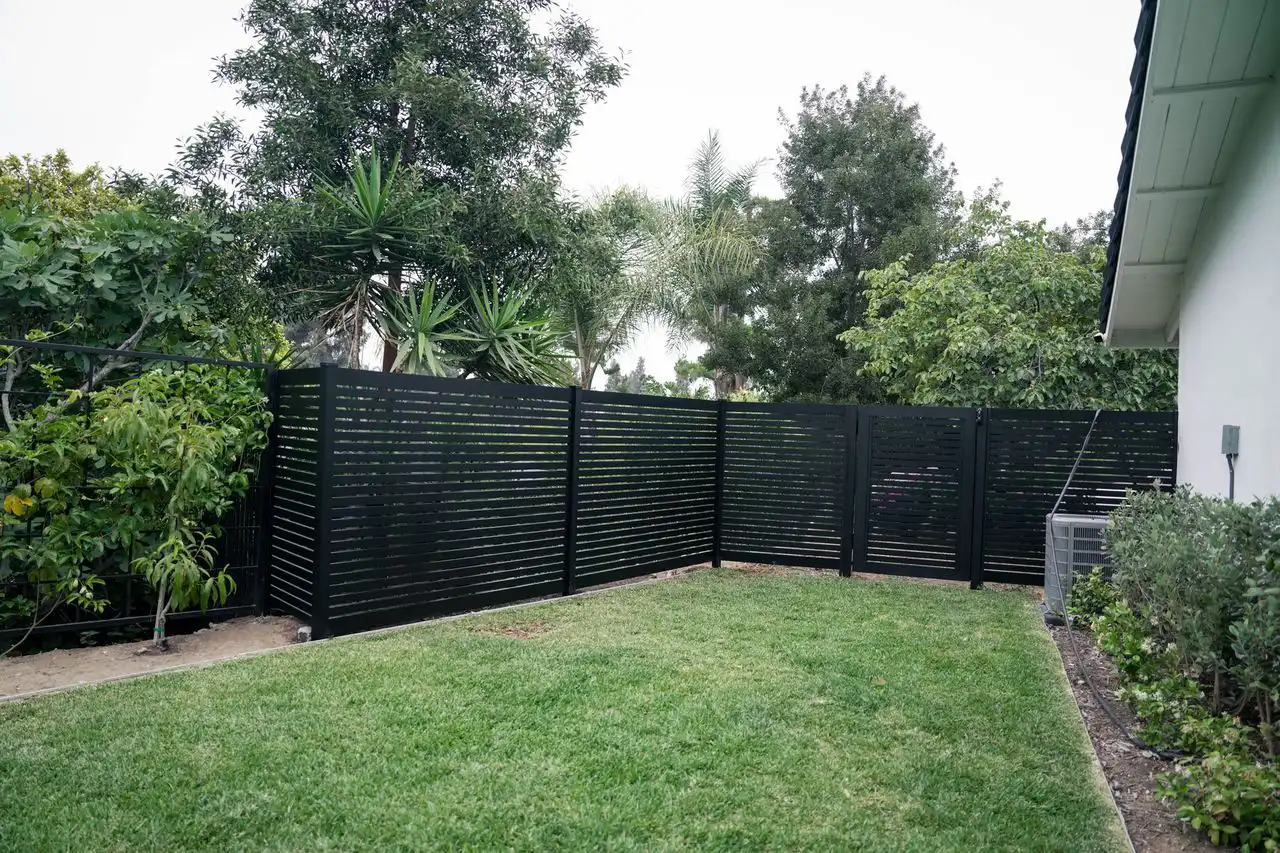

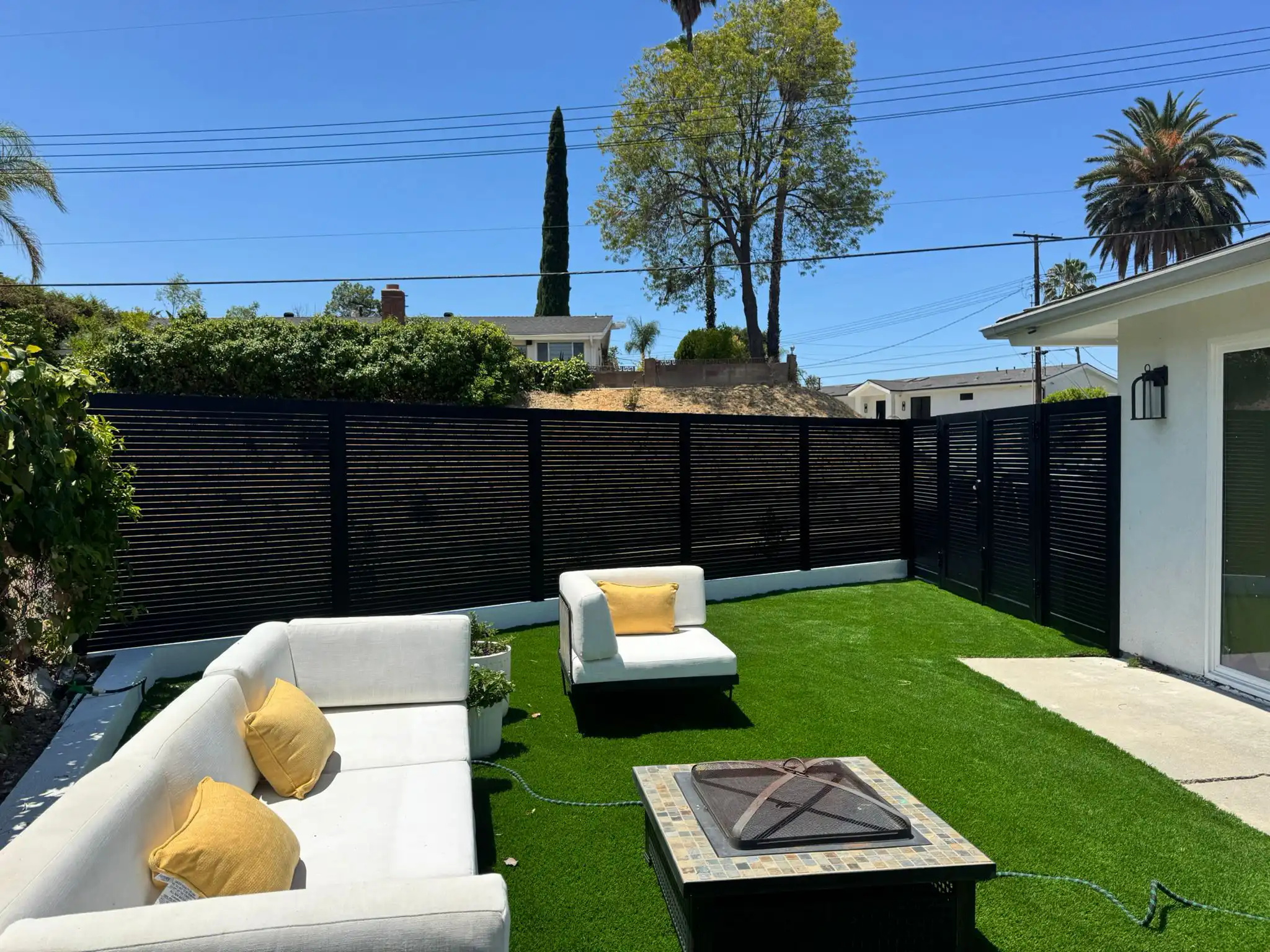

The universal design is intended to integrate with ALU20 aluminum fence layouts and compatible post/hardware conditions.
Material, finish and durability
6063-T6 architectural aluminum pairs with an AAMA 2604 powder-coated finish. Finish options include black texture, anthracite grey, white, bronze and woodgrain tones such as teak or IPE, subject to availability.
Aluminum does not develop iron-oxide rust and does not absorb moisture like wood, making it useful in humid and coastal environments when maintained appropriately.
AAMA 2604 is the specified coating standard, with Cardinal Paint / TIGER referenced for the finish system.
Aluminum is non-combustible. Any project-specific Zone Zero or code determination depends on the full assembly, adjacent materials, clearances and local requirements.
Installation instructions
Follow the sequence from workspace preparation through final alignment and cleanup. Accurate squaring, hardware placement and consistent slat spacing are the keys to a clean finished result.
Organize all materials in a clean workspace to avoid damage or misplacement before assembly begins.
Connect the universal gate frame with stainless-steel screws while keeping the corners square and secure.
Cut or insert the ALU20 slats into the frame grooves as required, establish the intended spacing and secure the slats with the specified screws.
Attach the selected hinges to the side post and gate frame, then verify alignment and smooth swing movement.
Attach the side posts and gap-cover components appropriate to the wall-to-wall installation condition.
Install flat caps, inspect all fasteners and connections, verify clearances and clean the finished aluminum surfaces.
Buying and site-planning guide
The 4′ × 6′ kit is designed for straightforward assembly, but the mounting condition still determines whether the Universal DIY system is the right choice.
Verify the finished opening at the top, middle and bottom and confirm that the gate can be mounted to the intended side conditions.
Compatible post options include 2×2, 2.75×2.75 and 3×3 configurations. A concrete-footing condition requires the HD post upgrade rather than the standard wall-to-wall setup.
Choose the correct bolt-on or weld-on hinge arrangement for the post, desired swing direction and any self-closing requirement.
Confirm the latch or lock body, backset and handle clearance before drilling or final assembly so the wide side frame can be used correctly.
Black is the standard color. Anthracite grey, white, bronze and woodgrain options may be available for qualifying custom orders.
For openings over 6 feet wide, move to an ALU40 or ALU60 gate platform when additional structural capacity is required.
Product videos
Watch assembly and gate-system videos for a closer look at the aluminum profiles, connections and finished installation approach.
Factory-direct DIY gate system
Confirm the wall-to-wall opening, post condition, swing direction, lock and hinge package before ordering. For nonstandard openings or concrete-footing installations, contact Aluglobus Aluminum Systems for the correct frame and post configuration.
Frequently asked questions
Common questions about material, DIY assembly, posts, hardware, coastal use and customization.
The gate uses 6063-T6 architectural-grade aluminum with AAMA 2604 powder coating. The material is lightweight, non-corrosive and intended for long-term exterior use.
Yes. The kit is designed to be assembled without welding or fabrication. The DIY skill level is intermediate, so accurate measurement, squaring, drilling/fastening and hardware alignment are still important.
The standard configuration includes the gate frame and slats, while posts and hardware such as hinges and latches are optional add-ons. Confirm the selected package and options before ordering.
Yes. Aluminum does not develop iron-oxide rust and is well suited to coastal and high-humidity environments. Routine rinsing and cleaning are still recommended where salt or environmental deposits accumulate.
Custom sizes and colors may be available for larger orders or special projects. Contact Aluglobus Aluminum Systems to confirm feasibility, lead time and pricing.
Not with the standard wall-to-wall configuration as listed. The specification table states that a concrete-footing option requires an HD post upgrade that must be requested.
Compatible post options include 2×2, 2.75×2.75 and 3×3. The correct post depends on the mounting condition, hinge system and site requirements.
The aluminum substrate is non-combustible. Compliance with any project-specific wildfire, Zone Zero or building requirement depends on the complete installed assembly and local rules.
Reference
Aluglobus Aluminum Systems
Factory-direct aluminum gate systems for homeowners, contractors, builders, designers and serious DIY projects. Nationwide shipping and assembly guidance are available.
Aluglobus Aluminum Systems · Aluminum gates · Fence systems · Patio covers · Wall cladding · Nationwide supply
Real projects

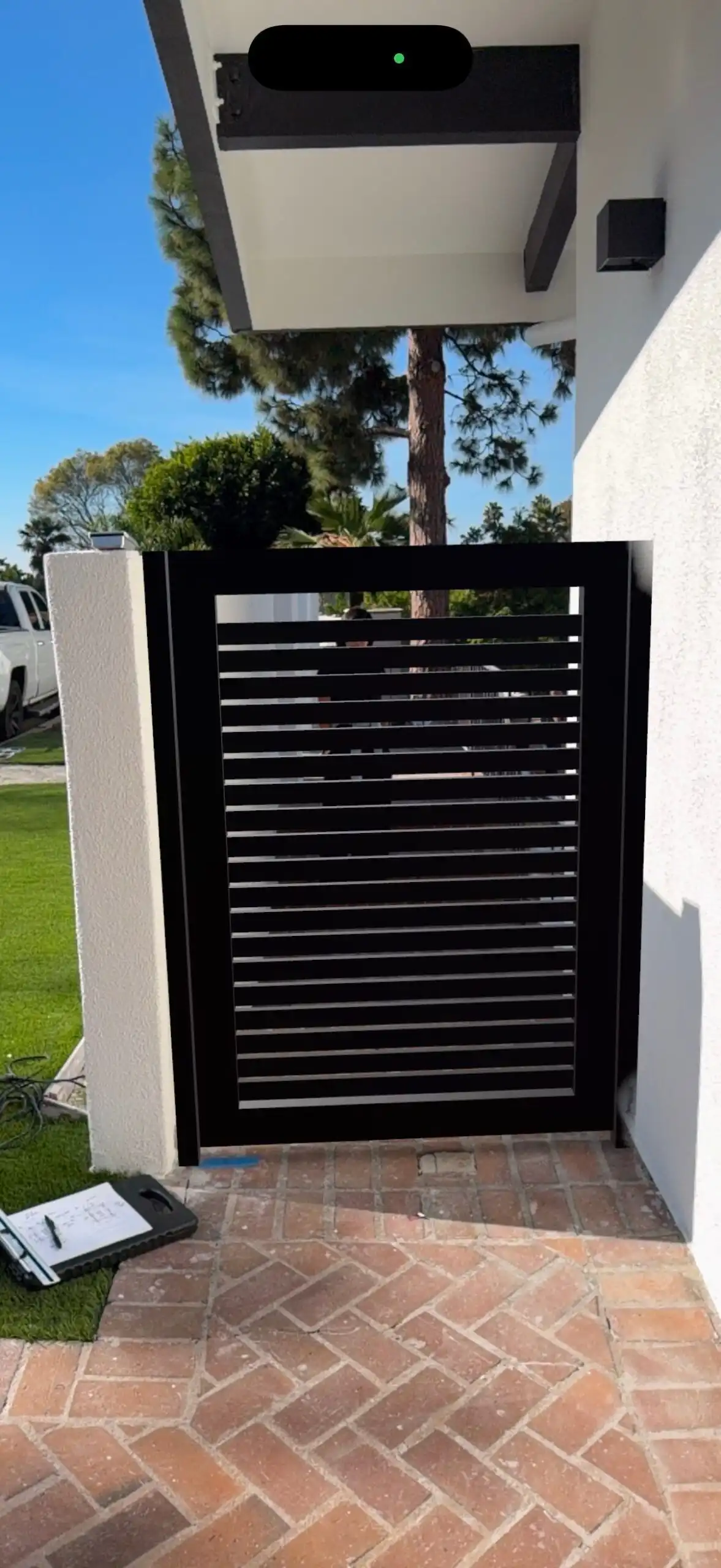

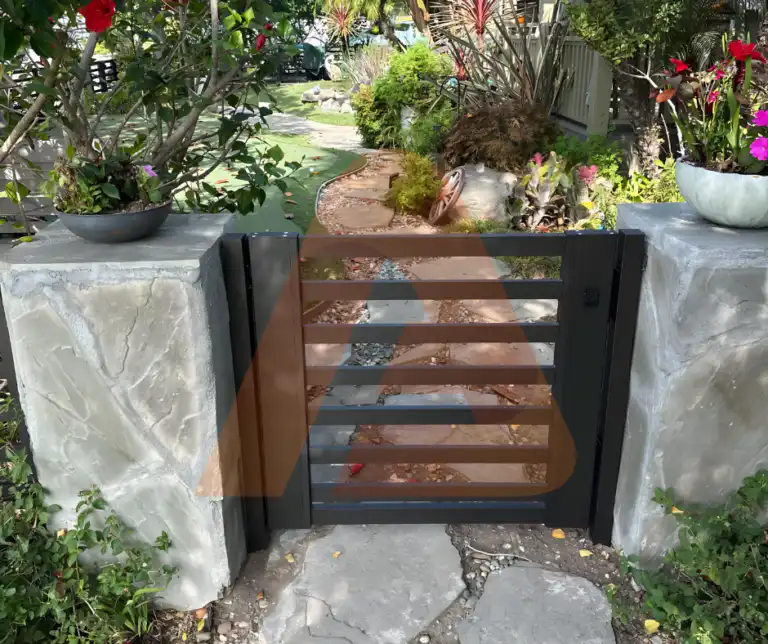

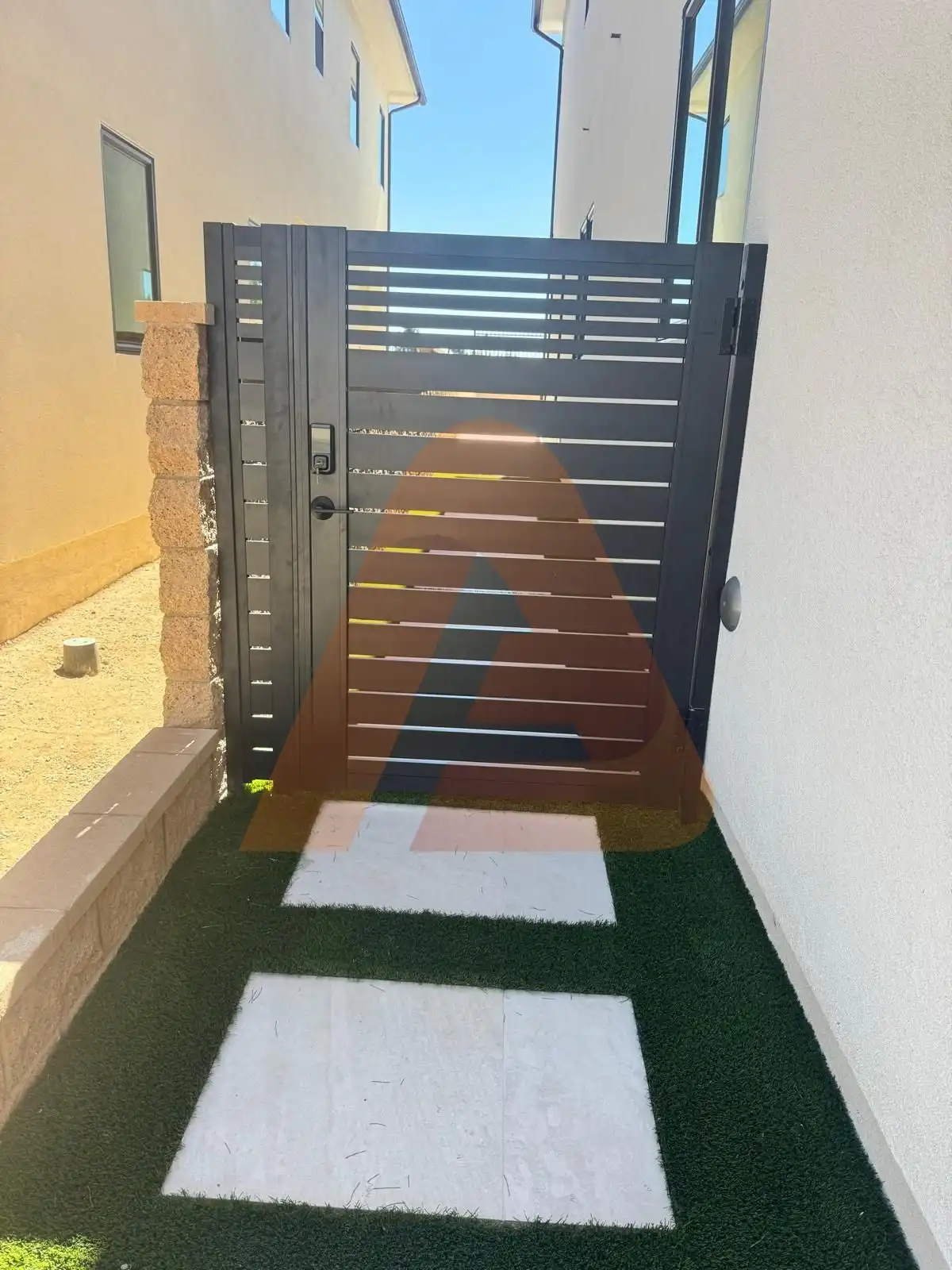

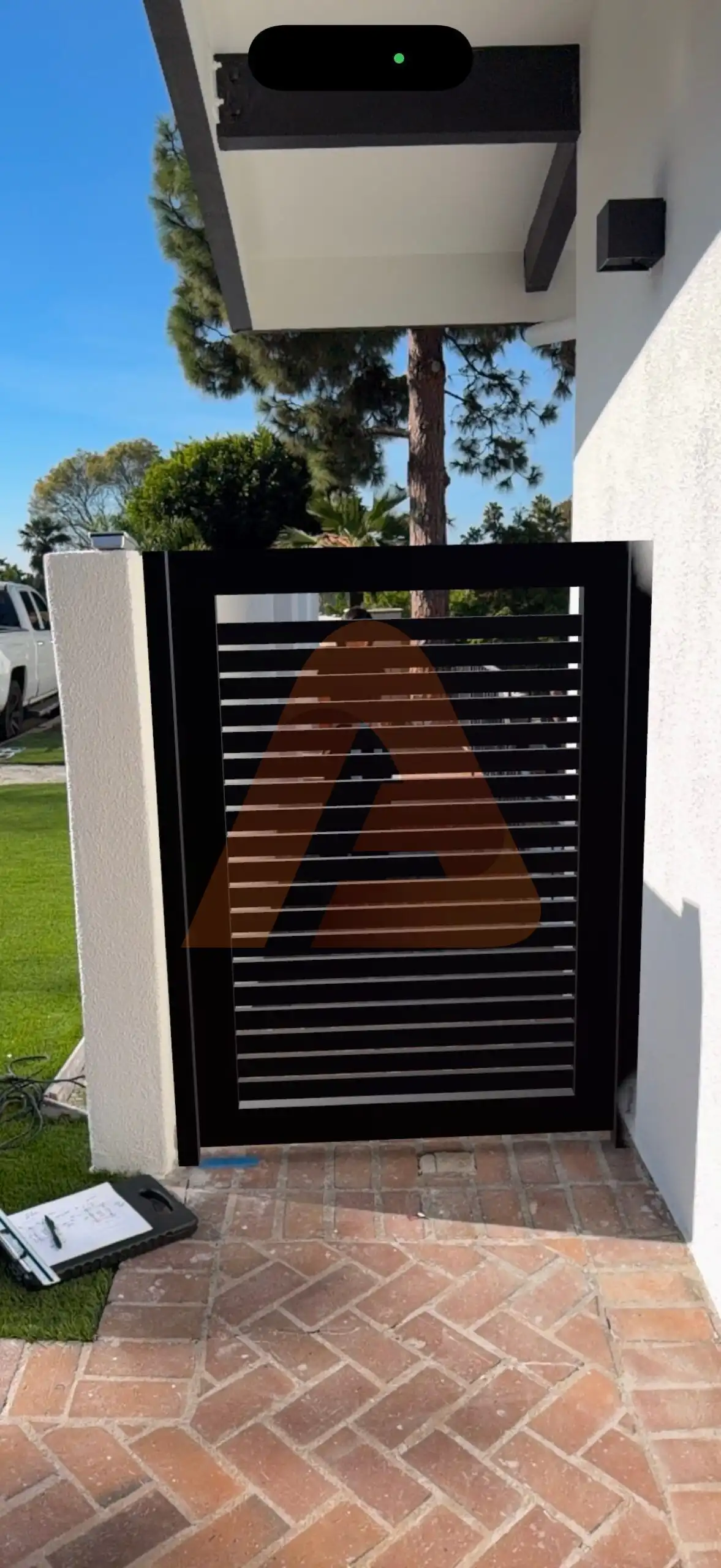

Completed installations by Aluglobus Aluminum Systems using this system. Sizes, layouts and accessories vary by project.
Watch
Installation, product and factory videos from Aluglobus Aluminum Systems.
Specifications
Check sizes, material and configuration against your project before ordering.
Complete the system
Universal DIY pedestrian gate kits and the matching DIY gate frame kits. The frames are designed to go together without welding and take ALU 20, ALU 40 or ALU 50/60 T&G infill depending on the kit.
Measure the opening and check it is a wall-to-wall installation, or ask about the HD post option.
Choose the size (4×6, 6×6 or 6×8 ft frame) and the infill: ALU 20, ALU 40 or T&G.
Choose black or wood grain where offered.
Add a latch, cane bolt or stopper if your layout needs one.
Send photos of the opening if you are unsure about hinge side or swing direction.
