Pedestrian gate kits
6' x 6' Universal DIY pedestrian gate kit with black ALU20 horizontal slats and a 3/8" or 1/2" gap. Includes the aluminum gate frame, a heavy-duty 5" HD support hinge and 29 ALU20 slats for wall-to-wall installs.
$807.54
ALU20 · Universal DIY pedestrian gate
The ALU20 Black 6′ × 6′ Universal DIY Pedestrian Gate Kit is designed for homeowners, contractors and designers who want a modern aluminum entry gate without welded field fabrication. The system combines a pre-engineered universal frame, 6063-T6 aluminum, ALU20 horizontal slats, architectural powder coating and a wall-to-wall installation format.
Gate size
6′ wide × 6′ high
Operation
Single swing
Slat gap
3/8″ or 1/2″
Standard color
Black

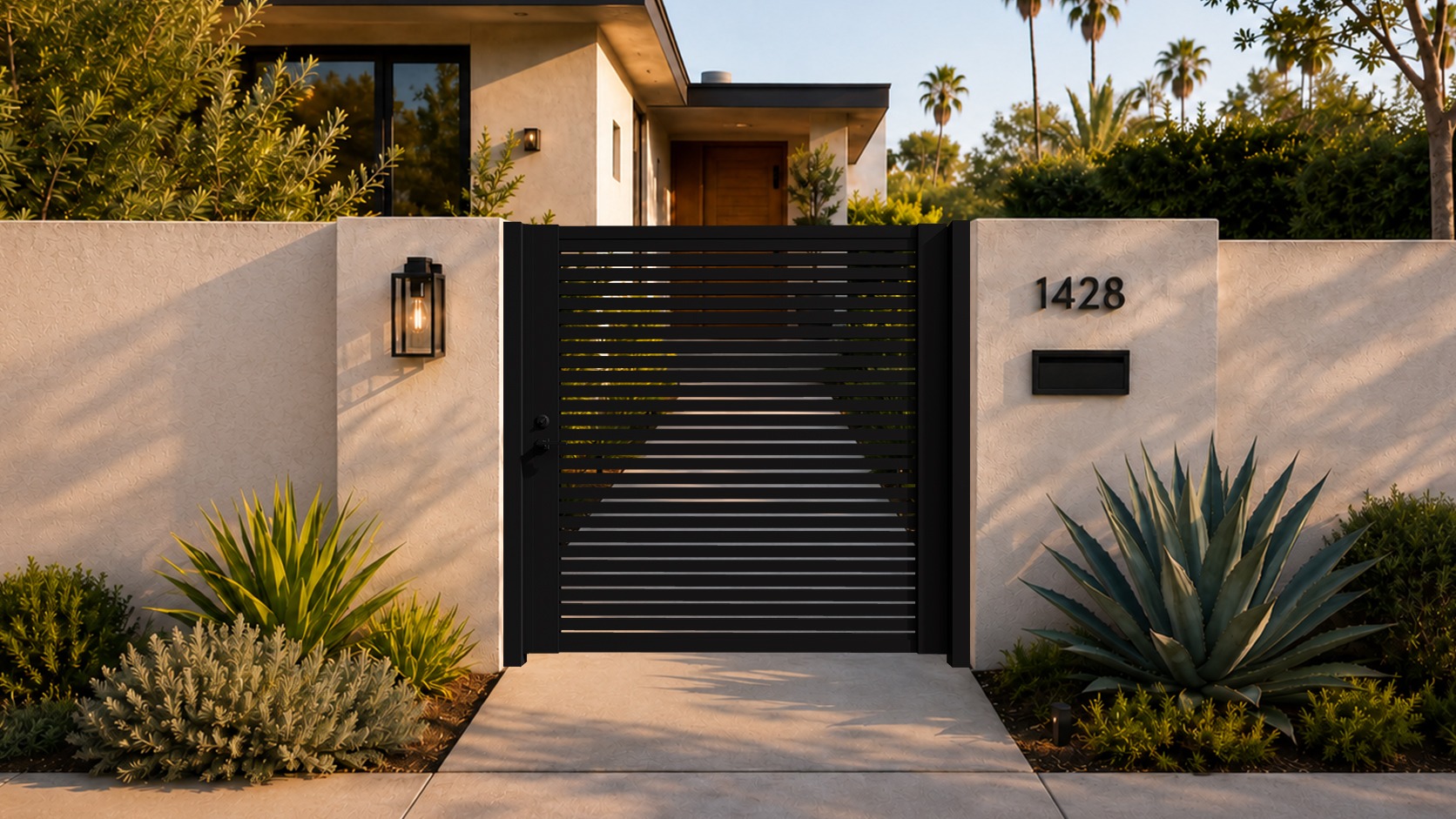

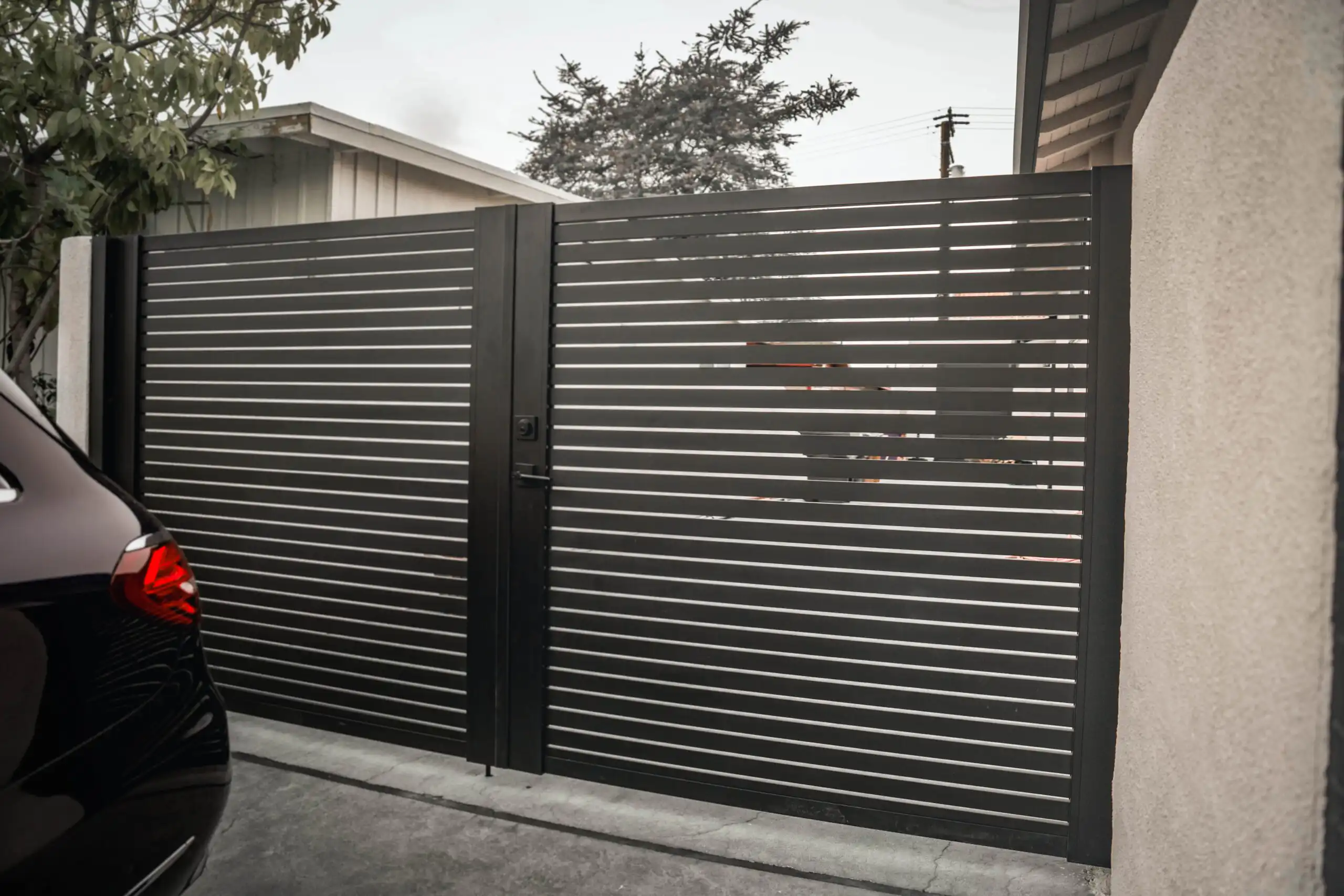

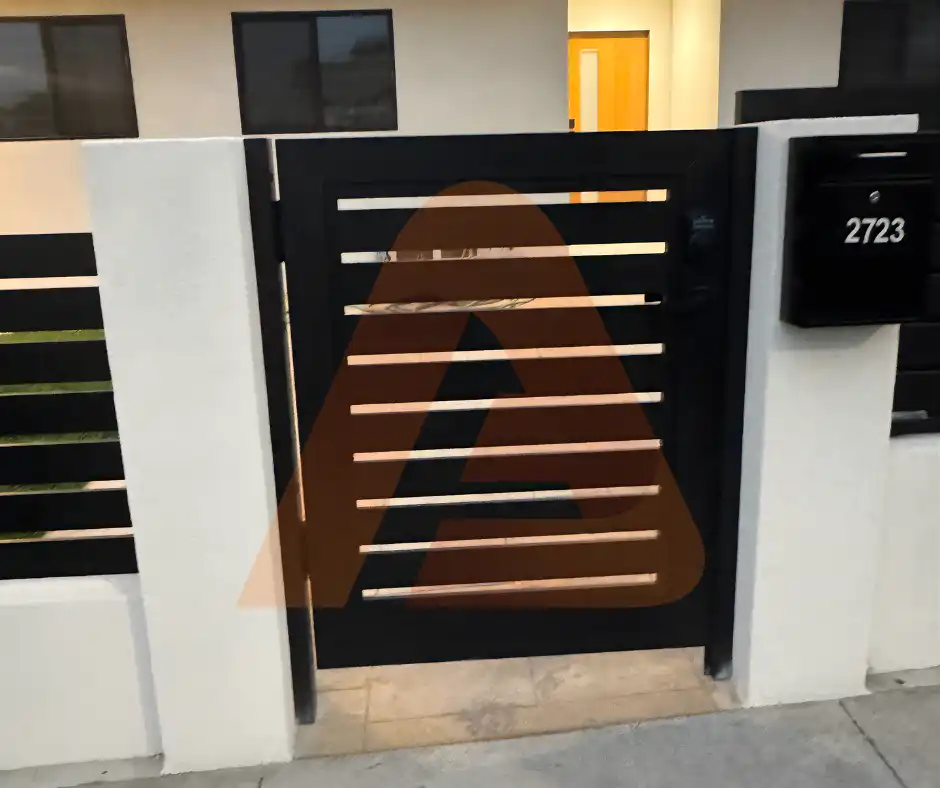

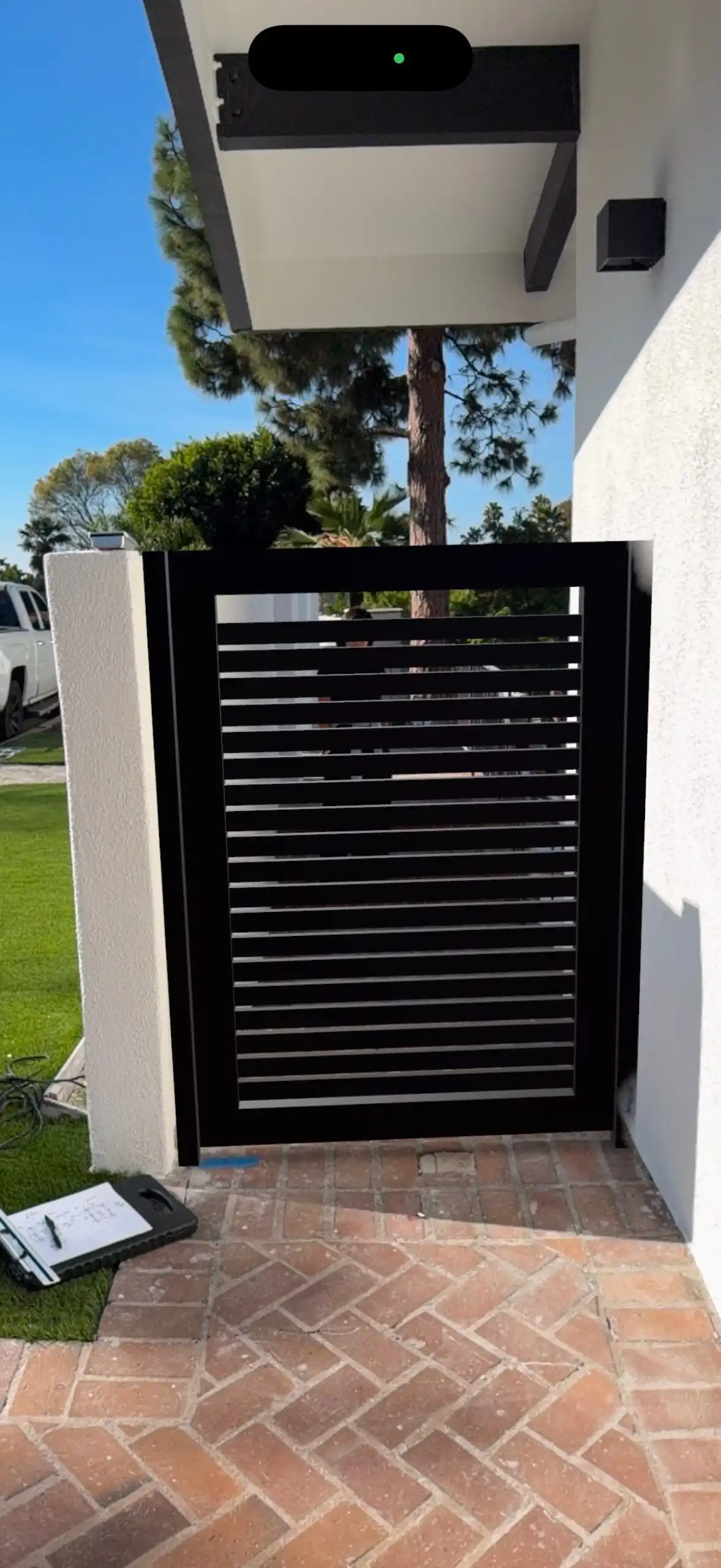

ALU 20 black slat pedestrian gate project
Aluglobus Universal DIY Gate System
The ALU20 Black 6×6 Universal DIY Pedestrian Gate Kit is designed for homeowners, contractors, and installers who want a complete aluminum gate system without sourcing the frame, slats, hinge, and supporting components separately. The modular design creates a clean single-swing pedestrian gate with modern horizontal ALU20 slats and your choice of a 3/8-inch or 1/2-inch gap.
Heavy-duty support hinge designed for the pedestrian gate system.
Self-closing capable. For true controlled self-closing operation, a compatible hydraulic spring is recommended and sold separately.
Quantity: 1
Quantity: 16

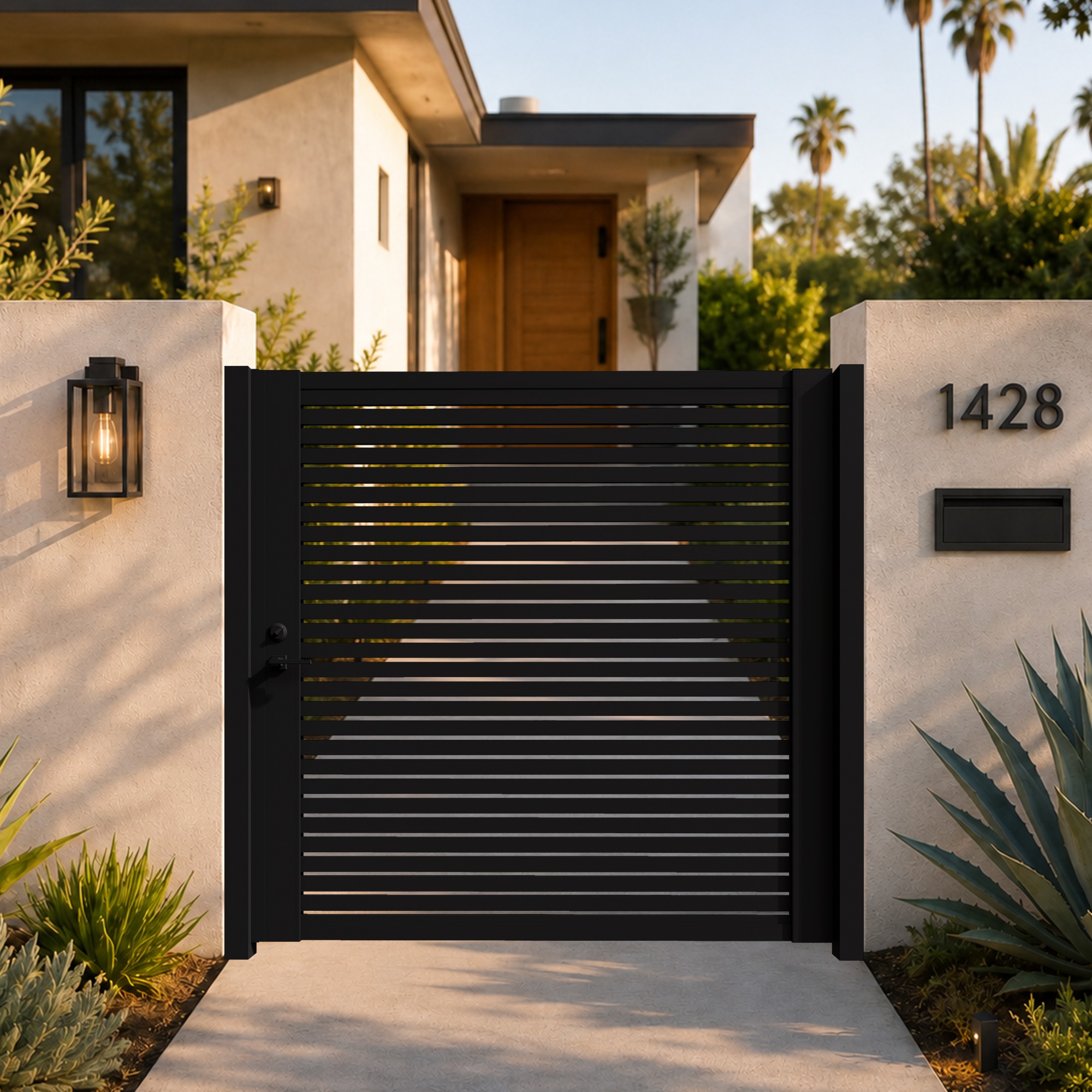

The 6′ × 6′ Universal DIY system

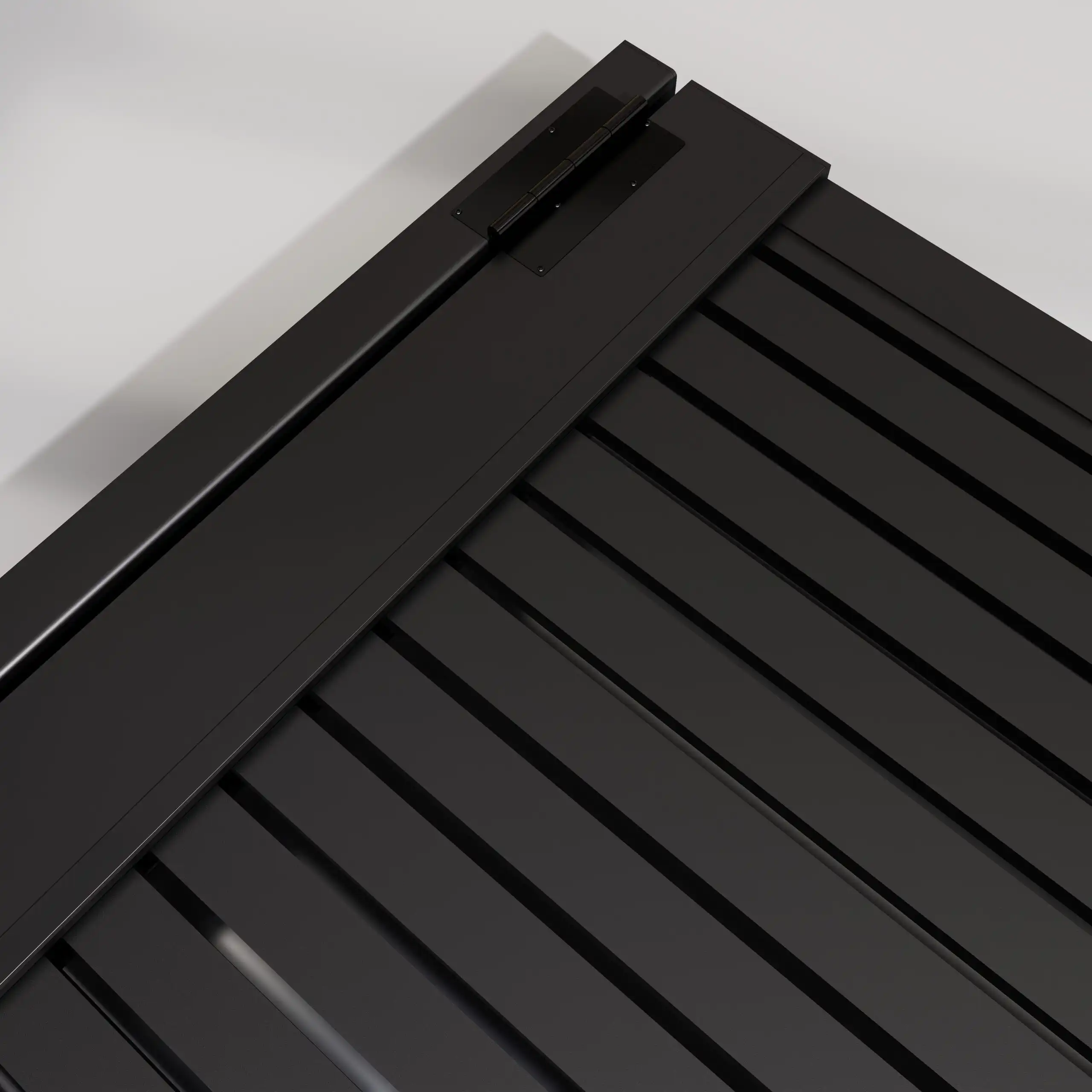

Explore the Universal DIY frame concept, ALU20 compatibility, exterior finish, hinge support and finished aluminum construction from multiple views.
Designed around assembly
The Universal DIY platform is built to simplify the path from measured opening to finished pedestrian gate while maintaining the clean horizontal appearance of the ALU20 system.
The frame is designed to assemble quickly and cleanly using factory-prepared aluminum components.
The wide side frame supports common U.S.-size lock hardware and coordinates with the ALU20 system.
6063-T6 aluminum and AAMA 2604 architectural powder coating provide a low-maintenance exterior material platform.
Product specifications
This configuration is a single-swing pedestrian gate with black ALU20 horizontal slats and a choice of 3/8-inch or 1/2-inch spacing. It is designed for wall-to-wall installation and an intermediate DIY skill level.
Installation requirement: The standard Universal DIY configuration is wall-to-wall only. Concrete-footing installations require an HD post upgrade that must be requested for the project.
Wall-to-wall application: this Universal DIY system is intended for installations where the pedestrian gate is supported between appropriate structural mounting surfaces. Verify finished opening dimensions, hinge orientation, lock hardware, clearances, and mounting conditions before assembly and installation.
What’s included
The product listing combines the aluminum frame, gate stops, heavy-duty hinge support and sixteen black ALU20 slats into a coordinated pedestrian-gate package.
The pre-engineered 6′ × 6′ frame includes the wide lock side, top and bottom frame components needed to create the single-swing gate structure.
The side frame is designed around common U.S.-size lock hardware so latch and handle planning can be integrated into the gate.
A coordinated T-stopper is included as part of the gate package for the finished closing condition.
The receiver-side L-stopper component helps complete the wall-to-wall closing side of the pedestrian gate system.
One heavy-duty 5-inch support hinge is listed with the package. Self-closing applications require the appropriate spring or hydraulic hardware selection.
Sixteen 2″ × 3/4″ × 6′ ALU20 aluminum slats create the horizontal infill with either 3/8-inch or 1/2-inch spacing.
Why this 6′ × 6′ configuration
At six feet wide and six feet high, this configuration creates a substantial pedestrian entry for front yards, side yards, courtyards and light-commercial access points. The horizontal ALU20 layout keeps the design modern while the selectable slat gap lets the project balance privacy, airflow and visual openness.
More product views
Open any image to inspect the gate system in the built-in lightbox without leaving the product page.
Use the profile drawings to understand the ALU20 geometry and component relationship. Final gate measurements, hinge placement and site conditions should be confirmed for the specific ordered configuration before assembly.
Applications
The 6′ × 6′ format works across residential and light-commercial settings where a wide single-swing entry is appropriate and the mounting condition supports the Universal DIY wall-to-wall system.
Create a substantial modern entrance with six-foot height and a horizontal aluminum rhythm.
Use the wider six-foot format where equipment, bikes, bins or larger pedestrian access needs additional clearance.
Coordinate the black gate with contemporary landscape walls, fencing and exterior architecture.
Use a low-maintenance aluminum pedestrian gate where clean appearance and regular access are priorities.
A practical option for offices, storefront side access and other pedestrian-only openings with suitable mounting conditions.
Aluminum avoids iron-oxide rust and is well suited to environments where steel maintenance can become a recurring issue.
Durability and finish
The frame and slats use 6063-T6 architectural aluminum with an AAMA 2604 powder-coated finish. The black finish is intended for exterior exposure, while the aluminum substrate does not rust like iron-based metal and will not rot, swell or splinter like wood.
A strong, workable architectural aluminum alloy used throughout the gate system.
Architectural powder-coating performance for long-term exterior color and surface protection.
The aluminum itself does not ignite or sustain flame under normal fire exposure.
Assembly sequence & buying guide
DIY does not mean guesswork. Confirm the opening and mounting condition first, then keep the frame square throughout assembly and hardware installation.
Measure the opening at the top, middle and bottom and confirm wall-to-wall mounting surfaces are plumb, solid and suitable for the selected hardware.
Lay out the universal frame components on a protected flat surface and assemble the structure while checking diagonals for square.
Place the horizontal slats consistently using the selected 3/8-inch or 1/2-inch spacing and secure them according to the gate system hardware.
Position the heavy-duty hinge system for the required swing direction and verify that the mounting side can carry the assembled gate.
Install and align the receiver-side components, latch or lock hardware, T-stopper and L-stopper for clean closure.
Check clearances, fasteners, latch engagement and smooth swing through the full arc before putting the gate into regular service.
The Universal DIY system simplifies fabrication, but a six-foot-wide pedestrian leaf still depends on good site measurements and correct hardware planning.
Confirm the finished opening at multiple heights and account for hinge, latch and receiver-side clearances.
Choose 3/8-inch for a tighter visual rhythm or 1/2-inch for slightly more openness and airflow.
Plan whether the gate swings in or out based on available clearance, traffic flow and local requirements.
Confirm the latch or lock body, handle clearance and backset before final assembly of the wide side frame.
If self-closing operation is required, select the compatible spring or hydraulic closer rather than assuming the standard hinge alone provides that function.
The standard configuration is wall-to-wall. Concrete-footing projects require the HD post upgrade and should be specified before ordering.
Product videos
Watch the Universal DIY gate system and additional Aluglobus gate footage for a closer look at the aluminum profiles, assembly approach and finished design language.
Confirm the wall-to-wall opening, 3/8-inch or 1/2-inch slat gap, swing direction, lock hardware and hinge requirements before ordering. For concrete-footing or nonstandard conditions, request the correct HD post configuration.
Frequently asked questions
Common questions about the package, aluminum construction, installation, finish, gap options and ALU20 compatibility.
The listing includes the pre-engineered aluminum gate frame, wide lock side, top and bottom frame, gate T-stopper, receiver L-stopper side component, one heavy-duty 5-inch support hinge and sixteen black ALU20 horizontal slats.
The 6063-T6 aluminum does not develop iron-oxide rust like steel. The architectural powder coating adds exterior surface protection. Routine cleaning is still recommended, especially in coastal environments.
Yes. The system is designed for DIY assembly and is listed at an intermediate DIY skill level. Accurate measurement, frame squaring, drilling, fastening and hinge alignment are still important.
The 3/8-inch option creates a tighter slat rhythm with slightly more visual coverage. The 1/2-inch option creates a little more openness and airflow. Choose based on privacy and design preference.
The gate uses an AAMA 2604 architectural powder-coated finish intended for long-term exterior exposure. Actual appearance over time depends on climate, cleaning, physical wear and site conditions.
Yes. The ALU20 horizontal slat language is designed to coordinate across compatible Aluglobus aluminum fence and gate systems for a consistent property-wide appearance.
The standard Universal DIY specification is wall-to-wall only. A concrete-footing condition requires the HD post upgrade and should be requested before ordering.
The listed heavy-duty hinge is self-closing capable when paired with the appropriate spring or hydraulic closing hardware. Confirm the required closer and site conditions before purchase.
Reference
Aluglobus Aluminum Systems
Factory-direct aluminum gate systems for homeowners, contractors, builders, designers and serious DIY projects. Nationwide shipping and assembly guidance are available.
Aluglobus Aluminum Systems · Aluminum gates · Fence systems · Patio covers · Wall cladding · Nationwide supply

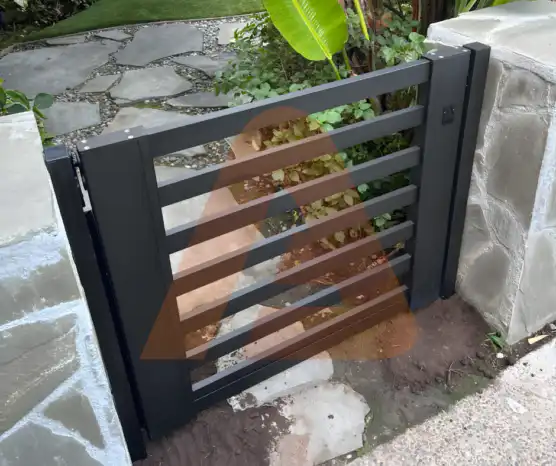

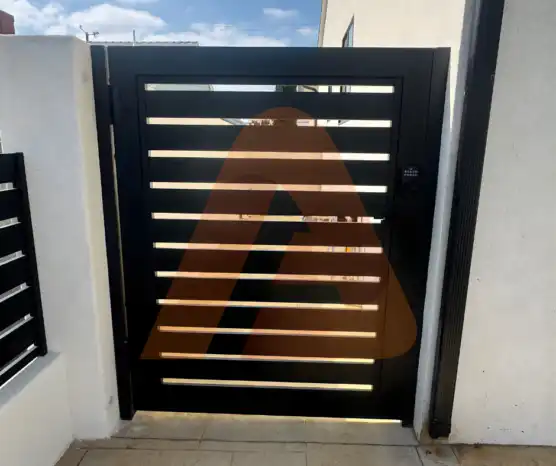

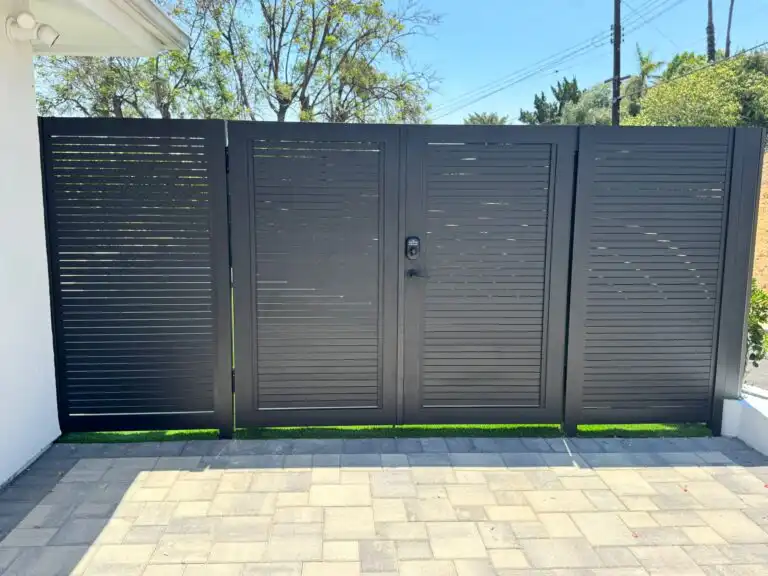

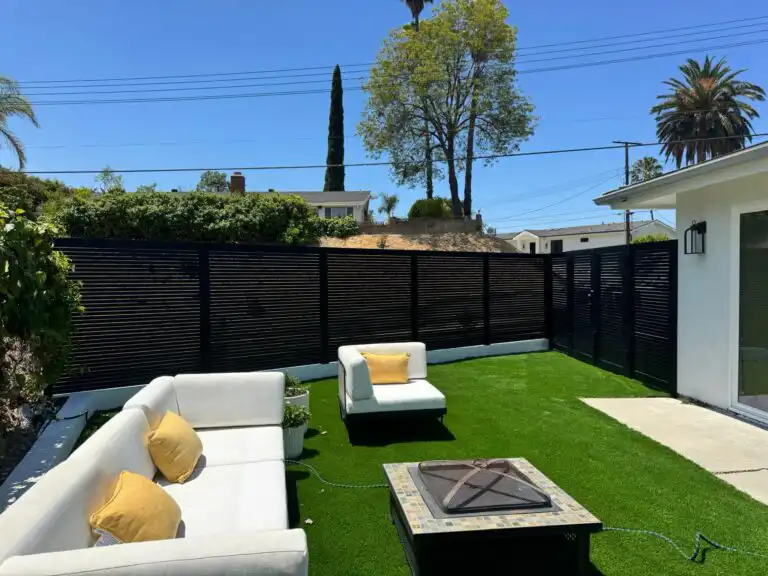

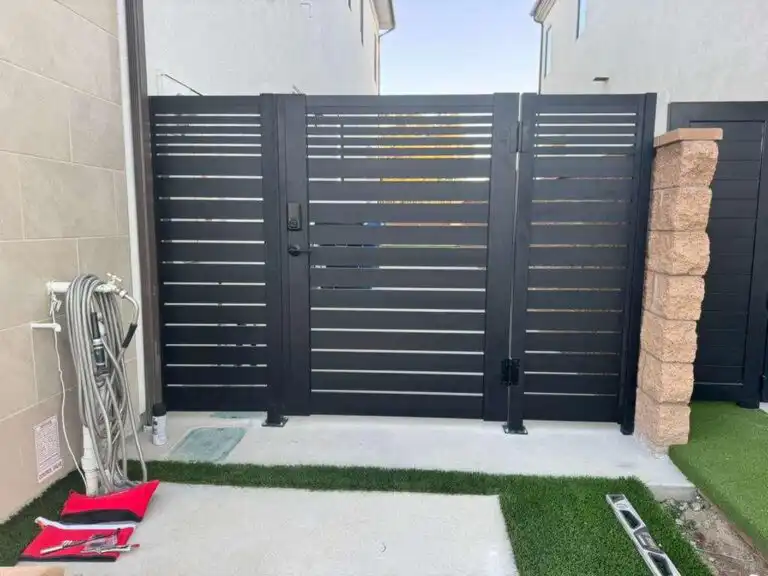

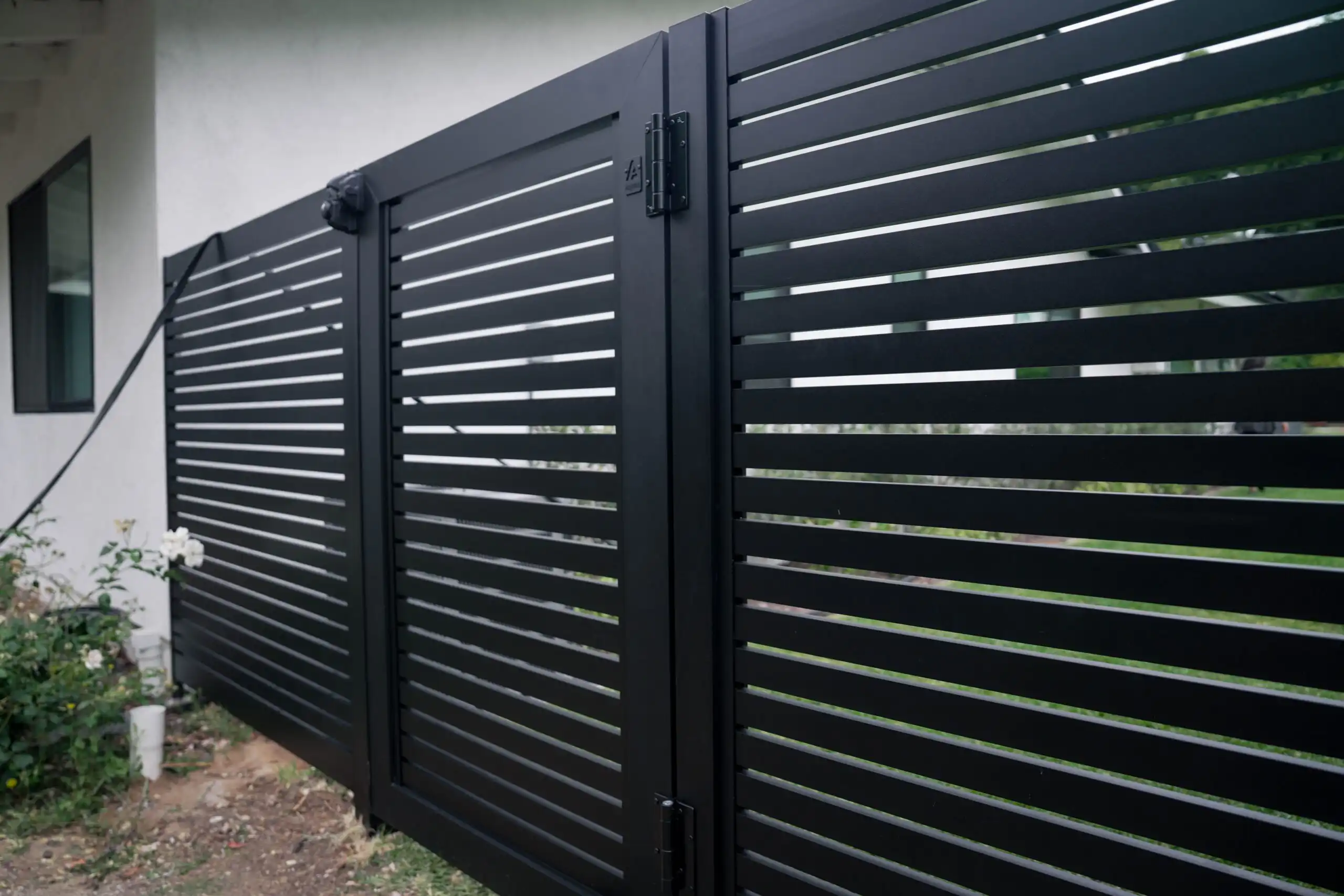

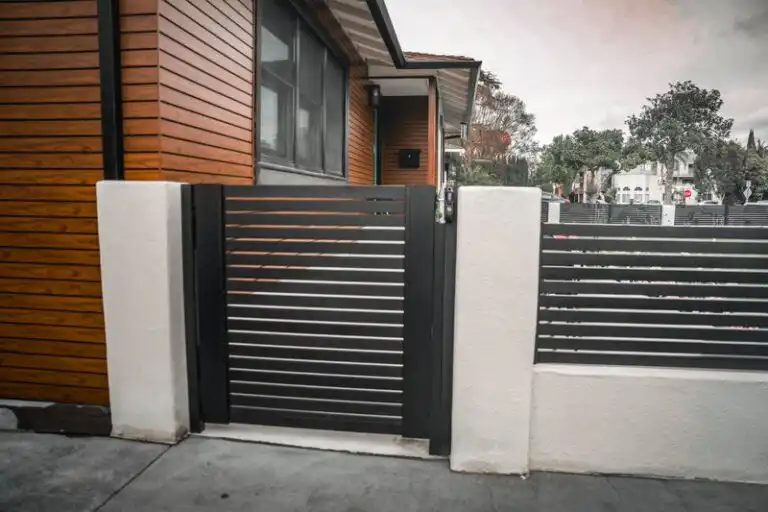

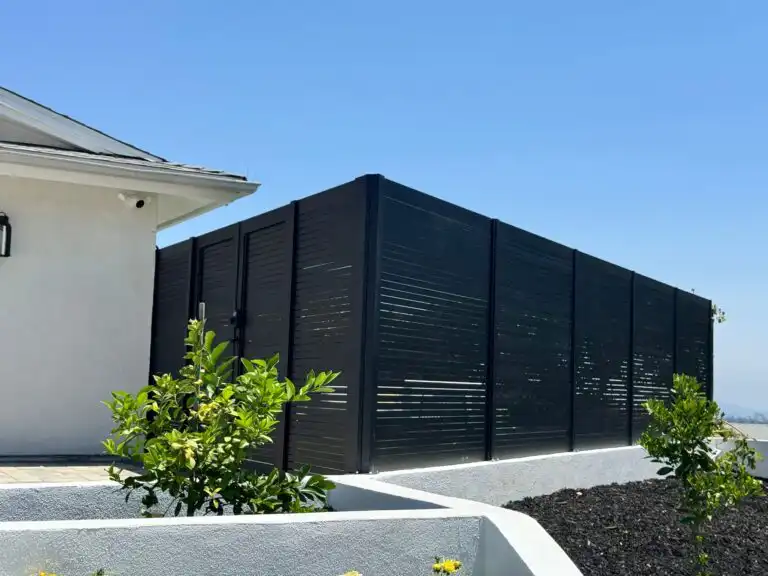

Real projects
Completed installations by Aluglobus Aluminum Systems using this system. Sizes, layouts and accessories vary by project.
Watch
Installation, product and factory videos from Aluglobus Aluminum Systems.
Specifications
Check sizes, material and configuration against your project before ordering.
Complete the system
Universal DIY pedestrian gate kits and the matching DIY gate frame kits. The frames are designed to go together without welding and take ALU 20, ALU 40 or ALU 50/60 T&G infill depending on the kit.
Measure the opening and check it is a wall-to-wall installation, or ask about the HD post option.
Choose the size (4×6, 6×6 or 6×8 ft frame) and the infill: ALU 20, ALU 40 or T&G.
Choose black or wood grain where offered.
Add a latch, cane bolt or stopper if your layout needs one.
Send photos of the opening if you are unsure about hinge side or swing direction.
