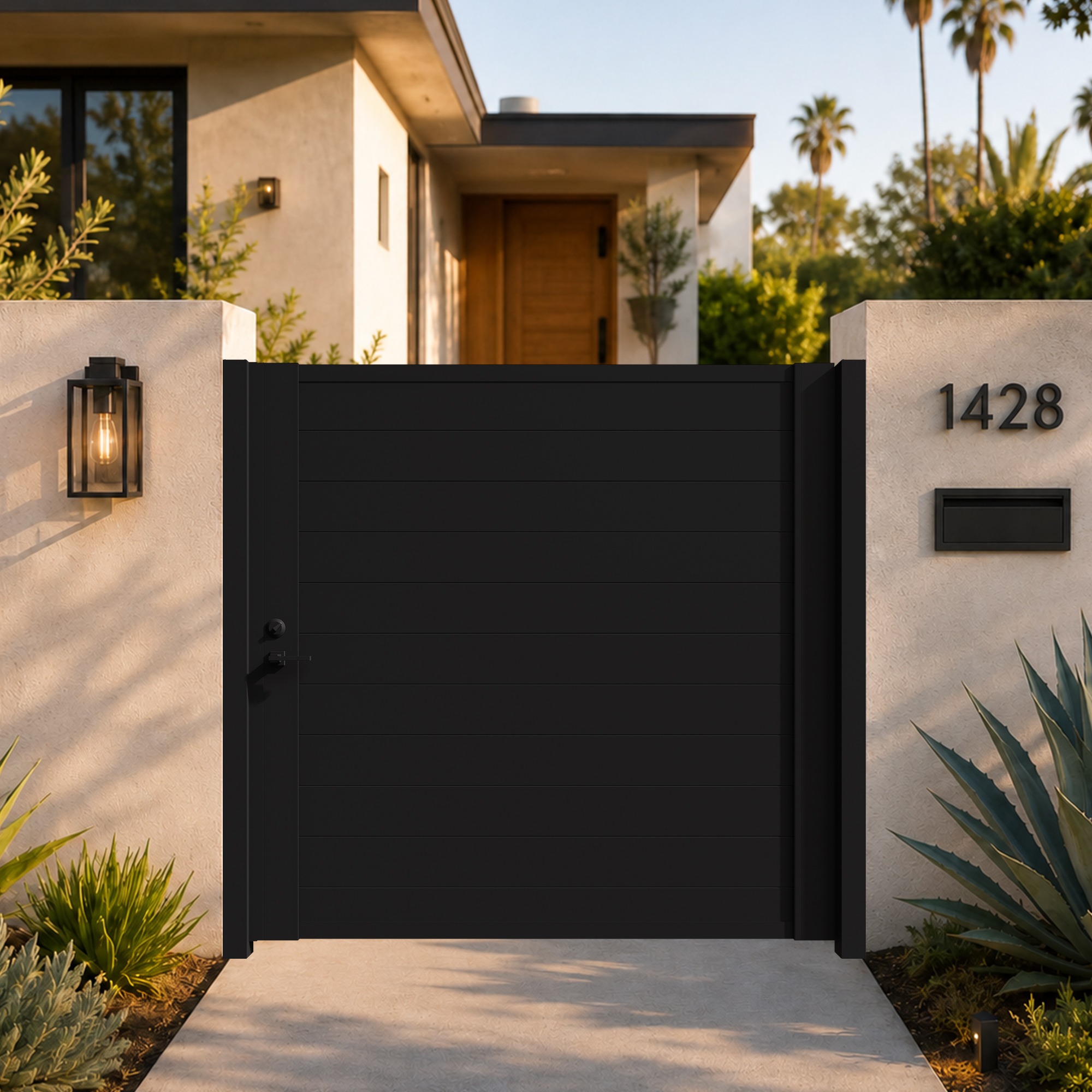

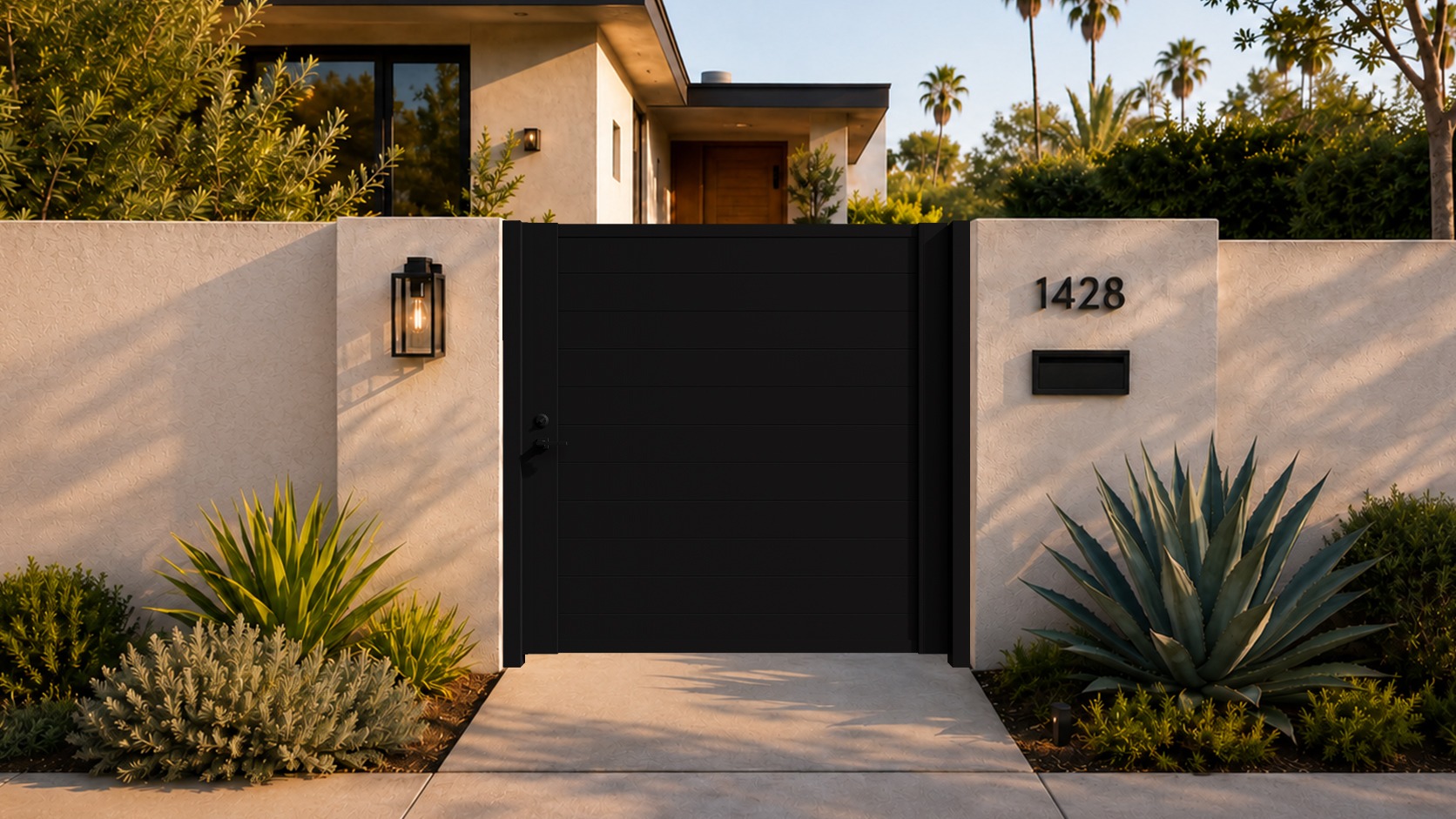

Alu 60 T&G DIY Pedestrian Gate 6x6 ft Black (Horizontal)

Alu 60 T&G DIY Pedestrian Gate 6x6 ft Black (With Background) v2

View details

ALU 60 T&G Black 6×6 ft. Universal DIY Pedestrian Gate Kit – Single Swing – NO GAP

$1,448.69

Aluglobus Universal DIY Gate System

ALU60 T&G Black 6×6 Universal DIY Gate

The ALU60 T&G Black 6×6 Universal DIY Pedestrian Gate Kit is designed
for wall-to-wall single-swing applications where full privacy, modern
architecture, and a simplified aluminum gate system are priorities.
The Universal frame works together with interlocking ALU60 tongue-and-groove
profiles to create a continuous horizontal gate surface with no intentional
gaps between the boards.

Built from 6063-T6 architectural aluminum, the system combines excellent
corrosion resistance with a strong yet relatively lightweight gate
construction. The solid black finish and no-gap T&G profile create
a clean, substantial appearance while avoiding the rust concerns of
conventional steel and the maintenance associated with natural wood.

Universal DIY system designed for simplified assembly
Wall-to-wall application only
6×6 single-swing pedestrian gate configuration
Universal frame compatible with ALU60 T&G gate systems
Fully engineered aluminum frame for strength and stability
ALU60 tongue-and-groove profiles with no intentional gap
6063-T6 architectural aluminum construction
Aluminum construction will not rust like conventional steel
Designed for coastal, humid, and demanding exterior environments
Wide lock-side frame for common US-size lock hardware
Low-maintenance black architectural finish
Non-combustible aluminum metal substrate

Complete Gate Package

What’s Included

DIY Gate Frame Kit
6′ × 6′

Complete aluminum pedestrian gate frame
Wide lock-side frame designed for common US-size locks
Top and bottom aluminum frame profiles
Fully DIY frame design exclusive to Aluglobus
Gate T-stopper
Receiver L-stopper side post

Heavy-Duty 5″ HD Support Hinge

Heavy-duty support hinge designed for the Universal DIY pedestrian
gate system.
Self-closing capable. For controlled self-closing operation,
a compatible hydraulic spring is recommended and sold separately.

Quantity: 1

ALU60 T&G Aluminum Profiles

6″ ALU60 T&G aluminum profiles
6 ft profile length
Tongue-and-groove interlocking design
No intentional visible gap between profiles
Privacy-focused continuous infill surface
Super-durable powder-coated black finish
6063-T6 extruded aluminum construction

Quantity: 6

Product Specifications

Specifications

Gate Height
6 ft

Gate Width
6 ft

Color
Black

Gate Type
Single Swing

System
Universal DIY

Infill
ALU60 T&G

Gap
No Gap

Material
6063-T6 Aluminum

Application
Wall-to-Wall

No-gap privacy:
the ALU60 tongue-and-groove profiles interlock to form a continuous
horizontal surface rather than leaving the 3/8-inch or 1/2-inch reveal
found in spaced-slat gate systems.

Complete DIY approach:
the frame, ALU60 infill, hinge, and supporting components are designed
as a coordinated gate package, reducing the need to source unrelated
parts separately.

Wall-to-wall installation:
verify the finished opening dimensions, structural mounting surfaces,
hinge orientation, swing clearance, lock hardware, stops, and site
conditions before assembly and installation.

OPTIONAL ADDITIONS

Choose Posts & Caps

Select only the additional components required for your gate installation.

OPTIONAL

3x3 in. x 8 ft. HD Square Post (.090 Thk) - Black

$135.00

3x3 in. x 8 ft. HD Square Post (.090 Thk) - Custom Color

$175.50

3x3 in. x 12 ft. HD Square Post (.090 Thk) - Black

$203.00

3x3 in. x 12 ft. HD Square Post (.090 Thk) - Custom Color

$263.90

3.15x3.15 in. x 8 ft. LD Square Post (.080 Thk) - BL

$95.74

3.15x3.15 in. x 8 ft. LD Square Post (.080 Thk) - Custom Color

$124.46

3.15x3.15 in. Light Duty Square post 11 ft. (.080 Thickness) - Black

$128.80

3.15x3.15 in. Light Duty Square post 11 ft. (.080 Thickness) - Custom Color

$167.44

Add to cart

Buy Now

SKU: 26850 Categories: Aluminum Gates, Aluminum Gates - Alu50-60 T&G, Aluminum Gates - DIY Aluminum Gate Kit, Gates, Pedestrian Single Swing Gate Tags: price2024, shop

Description

Product Description

ALU60 T&G Universal DIY

6×6 privacy gate. One clean wall-to-wall system.

The ALU 60 T&G Black 6×6 Universal DIY Pedestrian Gate Kit is a single-swing, no-gap aluminum gate designed for wall-to-wall installations. The system combines a field-assembled Universal DIY frame with interlocking ALU60 tongue-and-groove infill for a continuous privacy face without the rust and upkeep associated with steel or wood.

Buy this 6×6 kit Review my opening

Listed size6 ft × 6 ft

ConfigurationSingle swing

PrivacyALU60 T&G, no intentional gap

InstallationWall-to-wall only

Material6063-T6 architectural aluminum

Listed colorBlack

FinishAAMA 2604 architectural powder coating

Product ID26850

Built for DIY assembly

A coordinated frame system designed to be assembled in the field without custom gate fabrication.

Wall-to-wall by design

The Universal DIY configuration is intended for supported openings between existing walls or approved support conditions.

ALU60 T&G privacy

Interlocking 6-inch-class aluminum boards create a continuous architectural face with no intentional sightline gap.

Technical profile

Universal DIY does not mean generic.

This 6×6 kit is a specific single-swing Universal DIY configuration. The important distinction is the installation condition: the frame is intended for wall-to-wall use, with the hinge side and receiver side planned around the finished opening before assembly.

Gate typePedestrian single swing

Nominal size6 ft × 6 ft

InfillALU60 T&G

VisibilityNo intentional gap

Frame familyUniversal DIY

InstallationWall-to-wall only

Aluminum6063-T6

FinishAAMA 2604

Before ordering: confirm the finished opening, hinge side, swing direction, latch or lock requirement, and the structure receiving the hinge load. A nominal 6×6 kit should not be used as a substitute for field measurements.

System anatomy

A frame, lock side and privacy infill designed to work together.

The Universal DIY package uses coordinated aluminum frame members rather than treating the gate as loose fence boards with hinges. The wide lock-side frame provides room for common US-size lock hardware, while the T&G infill creates the solid visual surface.

Hinge side

Wide lock side

Universal frame

Field-assembled aluminum frame with top, bottom and side members sized for the listed 6×6 gate configuration.

5″ support hinge

One Heavy-Duty 5-inch support hinge is listed with the kit. True self-closing requires the appropriate hydraulic spring or other approved closing hardware.

Receiver and stopper

The T-stopper and receiver L-stopper help define the closed position and should be aligned after the frame is square and the leaf is hanging correctly.

What’s included

The 6×6 Universal DIY package.

The package below reflects the current listed 6×6 Universal DIY configuration. Project-specific posts, lock hardware, hydraulic self-closing hardware and installation tools should be selected separately when required.

Component	Function	Listed configuration
Universal DIY gate frame	Forms the structural perimeter of the gate leaf	Complete frame for listed 6×6 configuration
Wide side frame	Provides the lock / latch side of the leaf	Designed to accommodate common US-size lock hardware
Top + bottom frame	Closes and aligns the gate perimeter	Universal DIY frame system
Gate T-stopper	Helps establish the closed stop condition	Included
Receiver L-stopper side post	Receives the gate at the closed side	Included with listed package
5″ HD support hinge	Supports the swinging leaf	Quantity 1
ALU60 T&G aluminum slats	Creates the privacy infill	6 ft length, quantity 6

Final packaging, cut lengths, quantities, post selection and accessory requirements should be confirmed against the order and project opening before installation.

Installation condition

Wall-to-wall means the opening controls the gate.

For this Universal DIY system, measure the finished opening before assembly. The supporting surfaces must be suitable for the hinge and receiver conditions, and the installer must account for operational clearances, hardware and the finished swing path.

Measure finished width at multiple heights.
Verify finished height and bottom clearance.
Choose hinge side before drilling or assembly.
Confirm swing direction and obstruction clearance.
Confirm latch / lock dimensions and backset.
Verify the wall or support condition can receive gate loads.

When this kit is not the right starting point

If the project requires posts embedded in concrete, a freestanding opening, unusual wind exposure, powered automation, a wide unsupported condition, or a custom structural detail, confirm the correct Heavy-Duty or project-specific configuration before ordering.

Check my opening

Privacy + material

The wood-look maintenance problem disappears when the substrate is aluminum.

This listed SKU uses black ALU60 tongue-and-groove aluminum. The interlocking profile closes the sightline between boards, while the aluminum substrate avoids the swelling, rotting and ferrous rust associated with wood and steel gate infill.

6063-T6 aluminum

Architectural aluminum provides a strong, lightweight substrate that does not rust like iron-based gate materials.

AAMA 2604 finish

The product page specifies an architectural powder-coating system with Cardinal Paint / TIGER listed as paint brands.

Non-combustible substrate

The aluminum itself is non-combustible. Final code compliance still depends on the complete assembly, clearances, adjacent materials and local approval.

ALU60 system references

See the T&G system, hardware and installed aluminum surfaces.

These views show ALU60 T&G components and related installed system details. Final dimensions and hardware should be matched to the listed 6×6 Universal DIY configuration.

View project gallery

Gate system video

See how the Aluglobus gate system is engineered.

Assembly sequence

Build square first. Hang second. Adjust last.

A Universal DIY gate still depends on accurate field work. The sequence below keeps the frame, infill, hinge and closure condition aligned with the finished opening.

Verify opening

Confirm width, height, hinge side, swing direction and support surfaces.

Assemble frame

Lay out the Universal DIY frame on a flat surface and square the perimeter.

Install T&G infill

Seat the ALU60 boards consistently so the interlocking profile remains aligned.

Hang the leaf

Install the hinge at the correct support condition, then verify level and operational clearance.

Set closure

Align the receiver, stopper and lock or latch hardware only after the leaf swings correctly.

Automation note: this listed Universal DIY product should be treated as a manual pedestrian gate. Confirm a different configuration if the project requires powered automation or unusual structural loading.

Recommended applications

A privacy gate for supported residential and light-commercial openings.

Side yards

Full-height privacy where a clean architectural gate is needed between finished walls or approved supports.

Courtyards + entries

A no-gap aluminum surface for modern entry sequences that need privacy without wood maintenance.

Coastal properties

Aluminum and architectural coating provide a practical alternative to ferrous gate materials in humid and salt-exposed environments.

Frequently asked questions

Questions to answer before the gate reaches the opening.

Is this a 6×6 single-swing gate kit?

Yes. This listed SKU is a 6 ft wide by 6 ft high Universal DIY pedestrian gate kit configured as a single swing with ALU60 tongue-and-groove infill and no intentional visibility gap between the interlocking slats.

Where can the Universal DIY frame be installed?

The listed Universal DIY configuration is intended for wall-to-wall installation. If the opening requires posts set in concrete or another freestanding support condition, confirm the required post or Heavy-Duty upgrade before ordering.

What is included with the listed 6×6 kit?

The package includes the Universal DIY aluminum gate frame, wide lock-side frame, top and bottom frame members, gate T-stopper, receiver L-stopper side post, one 5-inch support hinge, and six 6-foot ALU60 T&G aluminum slats. Final supplied quantities and project-specific hardware should be confirmed before installation.

What makes ALU60 T&G a no-gap privacy infill?

The ALU60 slats use an interlocking tongue-and-groove profile. The neighboring boards engage each other to create a continuous face with no intentional sightline gap between the infill boards.

What material is the gate made from?

The system uses 6063-T6 architectural aluminum. The listed black finish uses an architectural powder-coating system specified to AAMA 2604 on the product page.

Can this Universal DIY gate be automated?

Treat this listed Universal DIY kit as a manual pedestrian gate. If the project requires a gate operator, powered automation, access control, or a non-standard hinge or support condition, confirm the correct configuration with Aluglobus before ordering.

Is the aluminum suitable for coastal or humid environments?

Aluminum does not rust like ferrous steel, and the coated system is intended for outdoor environments including coastal and humid conditions. Cleaning frequency and finish life still depend on exposure, salt load, installation quality, and maintenance.

Is the gate suitable for Zone Zero or wildfire-conscious projects?

The aluminum substrate is non-combustible. Final code compliance depends on the complete assembly, coatings, hardware, clearances, adjacent materials, site conditions, local code, and the authority having jurisdiction.

Ready to order?

Buy the listed 6×6 kit, or verify the opening first.

If your installation is a straightforward wall-to-wall opening, use the product-specific Buy Now path. If there is any uncertainty about posts, concrete footing, automation, locks or support conditions, send the project details before ordering.

Buy this 6×6 gate Contact Aluglobus

Project checkpoint

Do not guess on a 6-foot-wide single leaf.

Before assembly, make sure the opening and support conditions match the Universal DIY system.

Finished opening width + height
Wall-to-wall support condition
Hinge side + swing direction
Bottom and side clearances
Latch / lock requirement
Photos from both sides of the opening
Project city / state

Choose your next step

Confirm the fit first, or order the listed 6×6 kit.

Factory-direct product support is available when your opening needs a second look.

Review my opening Buy this 6×6 gate
