01 Modular by design Each nominal 6′ section functions as a repeatable bay, making long runs easier to estimate, align and coordinate with matching posts and gates.
02 Privacy-focused The horizontal boards close the field of the panel, creating a solid visual screen rather than an open picket or spaced-slat condition.
03 System-dependent Posts, brackets, rails, gates and mounting conditions must be selected as one coordinated assembly, not as unrelated parts purchased afterward.
Frame Aluminum structure Provides the perimeter, rails, posts and attachment surfaces that organize the modular panel.
Infill Horizontal aluminum boards Create the full-privacy field and a clean stacked-horizontal vinyl look.
Connection Brackets and hardware Transfer panel forces into the posts and hold the frame in its intended position.
Finish Caps and covers Hide exposed openings and help the completed fence read as one coordinated system.
01 Backyards and side yards Create a consistent privacy boundary around outdoor living areas while maintaining a modern horizontal rhythm.
02 Patios and pool surroundings Screen adjacent properties and service zones. Pool-barrier compliance, climbability and gate requirements must be checked locally.
03 ADUs and multi-unit properties Divide private exterior areas with repeated panels that maintain a unified appearance across multiple residences.
04 Equipment and service screening Visually screen utility zones, refuse areas and back-of-house spaces while coordinating with contemporary architecture.
05 Gate-adjacent fence bays Use matching horizontal panels beside pedestrian or driveway gates for a continuous visual language across the opening.
06 Light commercial boundaries Create a cleaner perimeter for offices, hospitality properties and mixed-use projects where appearance matters.

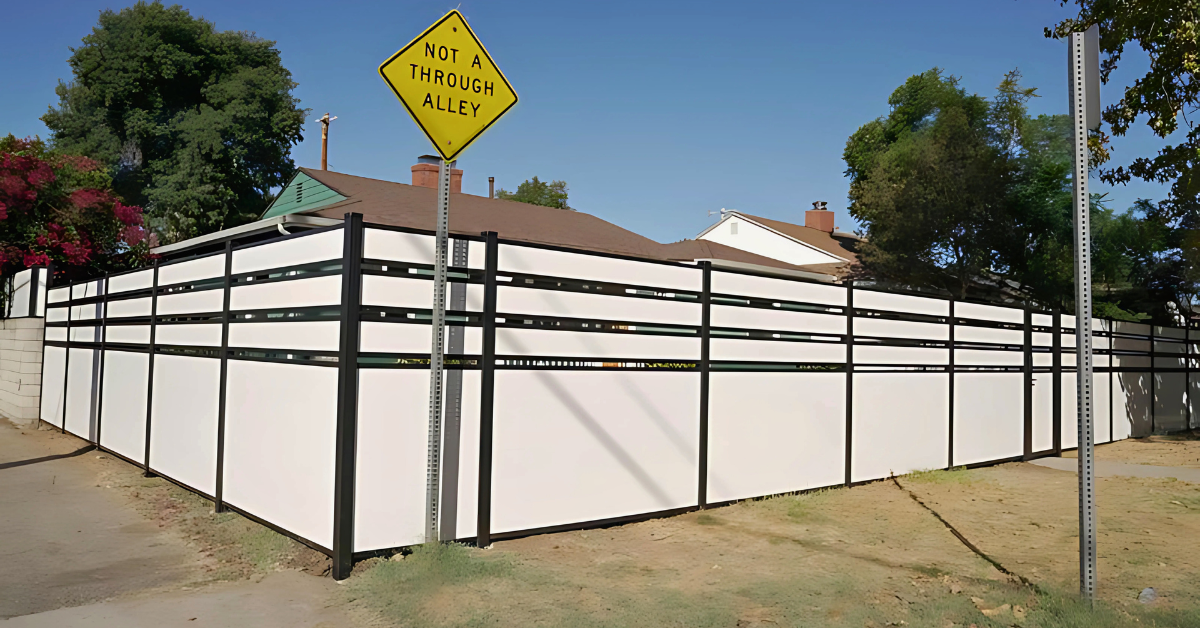

Count every direction change Each corner changes the load path and usually requires a corner-specific post and bracket arrangement.
Separate gates from fence bays A gate opening replaces fence coverage and requires dedicated hinge, latch and sometimes operator support conditions.
Identify grade changes early Stepped sections can change panel counts, post heights, bottom clearances and the appearance of the top line.
Confirm the property and permit conditions Verify the property line, easements, underground utilities, HOA restrictions, fence-height rules, pool requirements and any permit obligations before digging.
Measure the complete layout Mark starts, ends, corners, gates and grade changes. Work from actual post-center dimensions rather than assuming every opening is exactly six feet.
Prepare footings or approved bases Use footing dimensions and anchoring details appropriate for the soil, wind exposure, fence height, mounting surface and local requirements.
Set and brace the posts Align posts to the string line, verify plumb in both directions and brace them so they cannot rotate or drift while concrete cures.
Dry-check panel and bracket positions Confirm rail elevation, bottom clearance, bracket orientation and finished panel width before permanent attachment.
Assemble the frame and aluminum infill Support the components on a clean, flat surface. Insert boards in the intended order and keep the frame square during assembly.
Install, level and fasten the panel Place the assembled section between posts, verify level and equal clearances, then tighten compatible hardware without crushing profiles or stripping threads.
Finish and inspect the system Install caps and covers, clean the surfaces, confirm drainage clearance and recheck alignment at gates, corners and transitions.

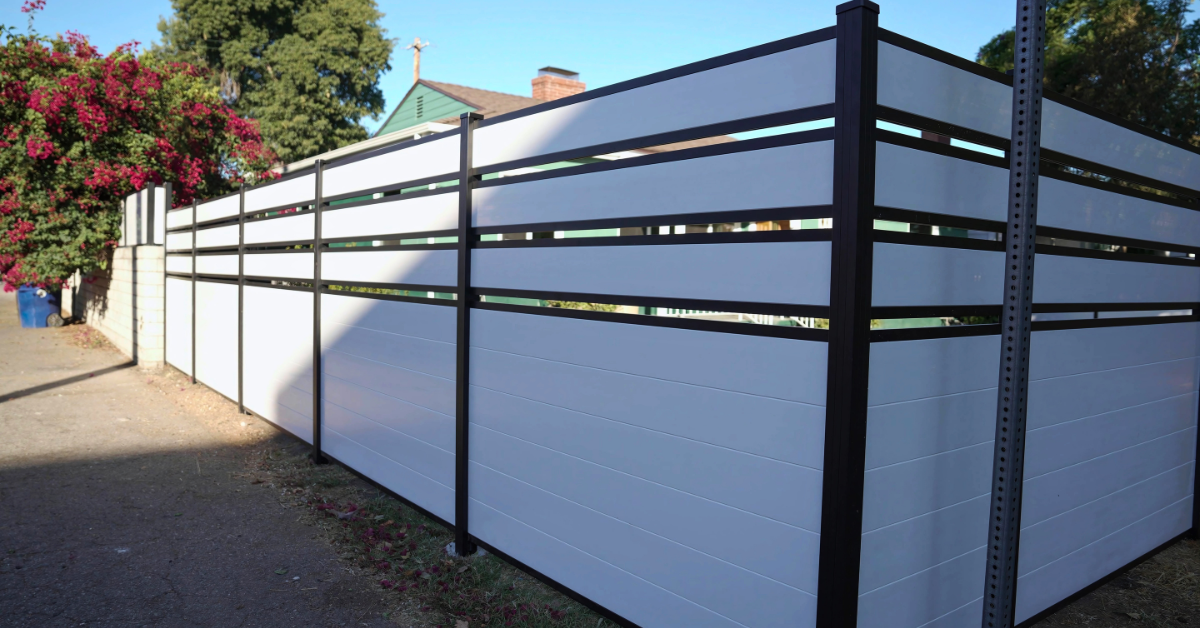

Typical tools String line, tape and marking tools Laser or long levels Auger or post-hole equipment Concrete and bracing tools Drill/driver and correct bits Cutting tools approved for the profiles
Recommended crew Two people are generally more practical than one for handling full-size panels, checking both ends simultaneously and preventing damage during placement.
Schedule around curing Do not treat concrete set time as unused time. Proper curing and stable bracing are part of the installation, not an optional delay.

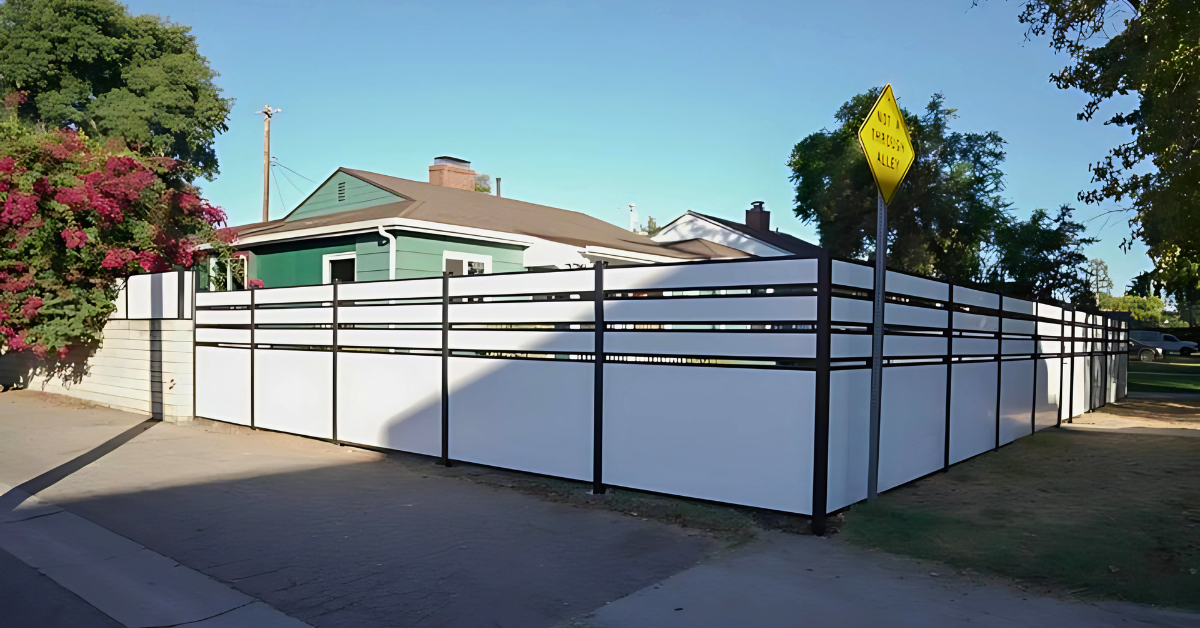

Common Yard Condition In-concrete posts In-ground posts are commonly used for soil installations because the embedment and concrete footing can resist overturning and lateral movement. Confirm underground utilities before excavation. Size holes for local soil, climate and wind conditions. Brace posts in both directions during curing. Slope the top of concrete away from the post.
Concrete or Masonry Surface-mounted posts Surface mounting can work on approved concrete or structural masonry when the substrate, base plate, anchors, edge distances and loads have been verified. Do not assume every slab is thick or reinforced enough. Keep anchors away from weak edges and cracked concrete. Use compatible corrosion-resistant anchors. Review gate posts separately from ordinary fence posts.
Drain away from the fence Avoid depressions that collect water at posts and rails. Finished grade should move water away from the system.
Keep mulch and soil below the rail Burying the bottom rail traps debris, causes staining and makes cleaning and inspection difficult.
Separate dissimilar metals Use compatible coated or stainless hardware and follow supplier guidance where aluminum connects to steel or other metals.
01 Stepped slope layout Keep each panel level and step the bays down the grade. This preserves horizontal board lines but creates changing clearances below the panels.
02 Shorter transition bays At abrupt grade changes, a reduced-width bay or additional post may create a cleaner transition than forcing a standard panel into the condition.
03 System-approved racking only Do not assume a framed aluminum-infill panel can rack diagonally. Use only an approved detail that maintains board engagement and frame integrity.
As Needed Rinse surfaces Use clean water and mild soap for ordinary dirt. Avoid aggressive abrasives or unknown solvents.
Seasonally Clear the base Remove leaves, soil and mulch that collect against bottom rails, posts and drainage paths.
Twice a Year Inspect connections Look for loose brackets, moving posts, damaged caps, gate sag and changing panel clearances.
Coastal Sites Rinse more often Salt and airborne contamination should be removed more frequently from frames, hardware and aluminum surfaces.
All-Aluminum Choice Alu Vinyl HD Best for: modern full privacy with all-aluminum construction and a smooth vinyl look. Maintenance: washing and periodic hardware/post inspection.
Traditional Wood Privacy Fence Best for: natural material appearance and field-built customization. Maintenance: typically higher due to moisture, finish and movement concerns.
Polymer All-Vinyl Fence Best for: uniform low-maintenance privacy in compatible applications. Difference: lacks the same aluminum structural outline and detailing.
Alternative Aluminum Style Open Aluminum Slat Fence Best for: projects prioritizing airflow, partial visibility and a more architectural slat expression. Difference: uses spaced aluminum profiles instead of the smooth full-privacy vinyl-look boards.
