0124′ of 4″ HD gate frame stockHeavy-duty USA aluminum frame stock for the two-leaf 12′ × 6′ Contractor Line configuration.

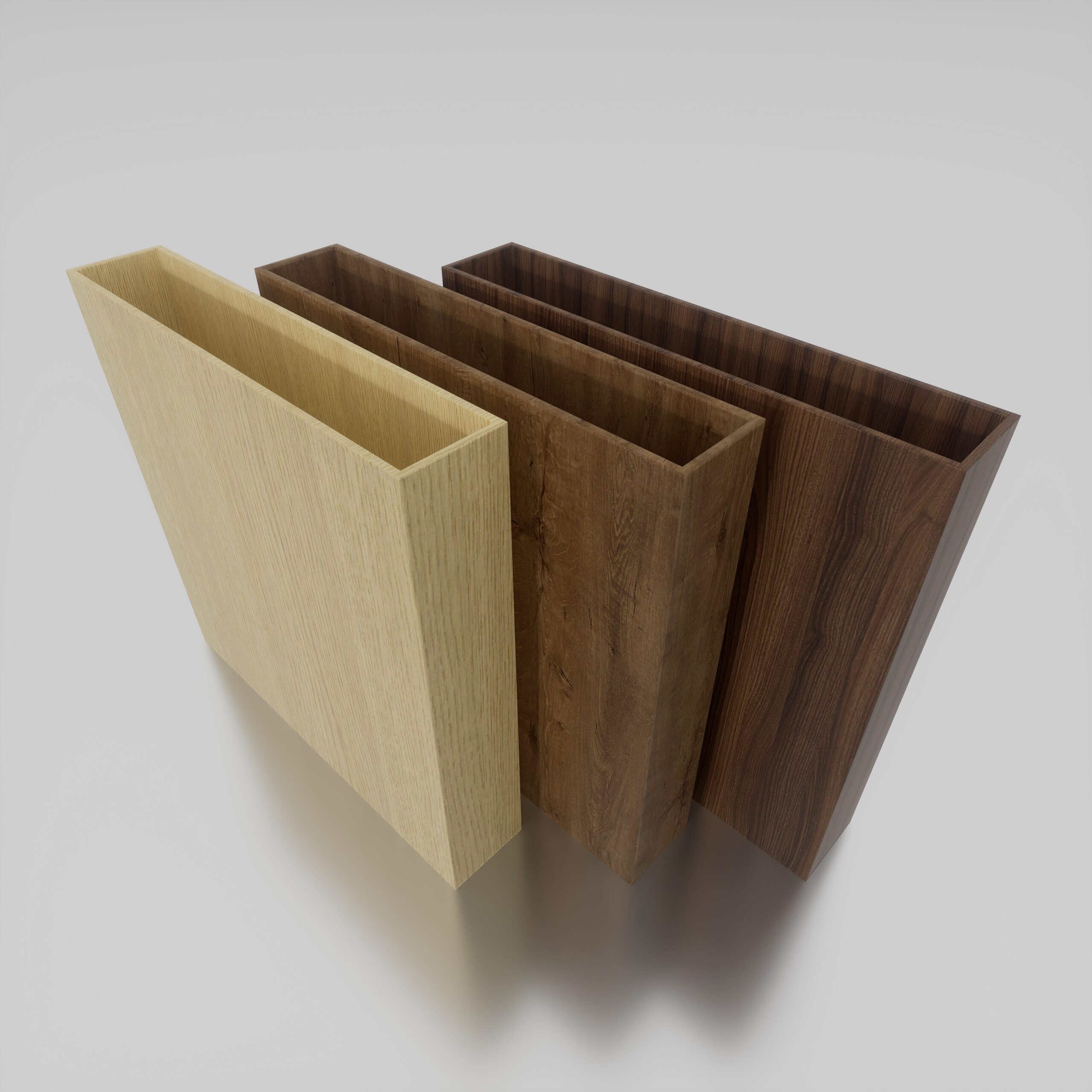

02ALU40 woodgrain infillThe current package identifies ALU40 TEAK material in 19′ stock. Final cutting and layout should follow the selected 3/8″ or 1/2″ gap.
03Inner corner bracketCorner reinforcement used to support the heavy-duty frame geometry and maintain square gate leaves during assembly.
04Channel kitMatched channel components support the ALU40 horizontal infill inside the contractor frame.
052.5″ aluminum capThe gate kit parts list includes a 2.5-inch aluminum cap. Optional 3-inch and 4-inch post caps are separate site-support additions.
066′ L-shape gate stopperThe L-shaped stopper helps establish the closed position and center condition for the double-swing leaves.
075″ two-way support hingeHeavy-duty hinge hardware is listed for the gate system. Final quantity and placement should match the project package and installation plan.
08Basic cane boltThe listed cane bolt helps secure the passive leaf when the gate is closed or when one side needs to remain stationary.
09Assembly fastenersThe current parts list specifies #10×1″ screws, #12×2″ BK screws and #10×3/4″ screws.
Two-leaf alignmentBoth gate leaves need to finish in the same plane with a controlled center reveal, consistent bottom clearance and properly aligned hinge axes.
Woodgrain course alignmentHorizontal infill is most convincing when the woodgrain slat courses line up visually from one leaf to the other across the full 12-foot opening.
HD 3″ post familyThe current listing offers 3″ × 3″ HD post options in multiple lengths and finish choices.
HD 4″ post family4″ post options are also available for projects that need a larger support section or different site engineering.
Optional post caps3″ and 4″ aluminum post caps are listed separately from the 2.5″ cap included in the gate-parts description.
Lock and latch selectionConfirm the actual latch, receiver, handle or lock body before final drilling so the center condition is planned correctly.
Footing and anchorageWide swing gates transfer significant loads into their supports. Footing size and anchorage should match the site, gate, hardware and applicable engineering requirements.
Automation coordinationWhen motorizing, coordinate the rated dual-leaf operator, attachment points, post stiffness, gate stops, power, entrapment protection and required safety devices before installation.

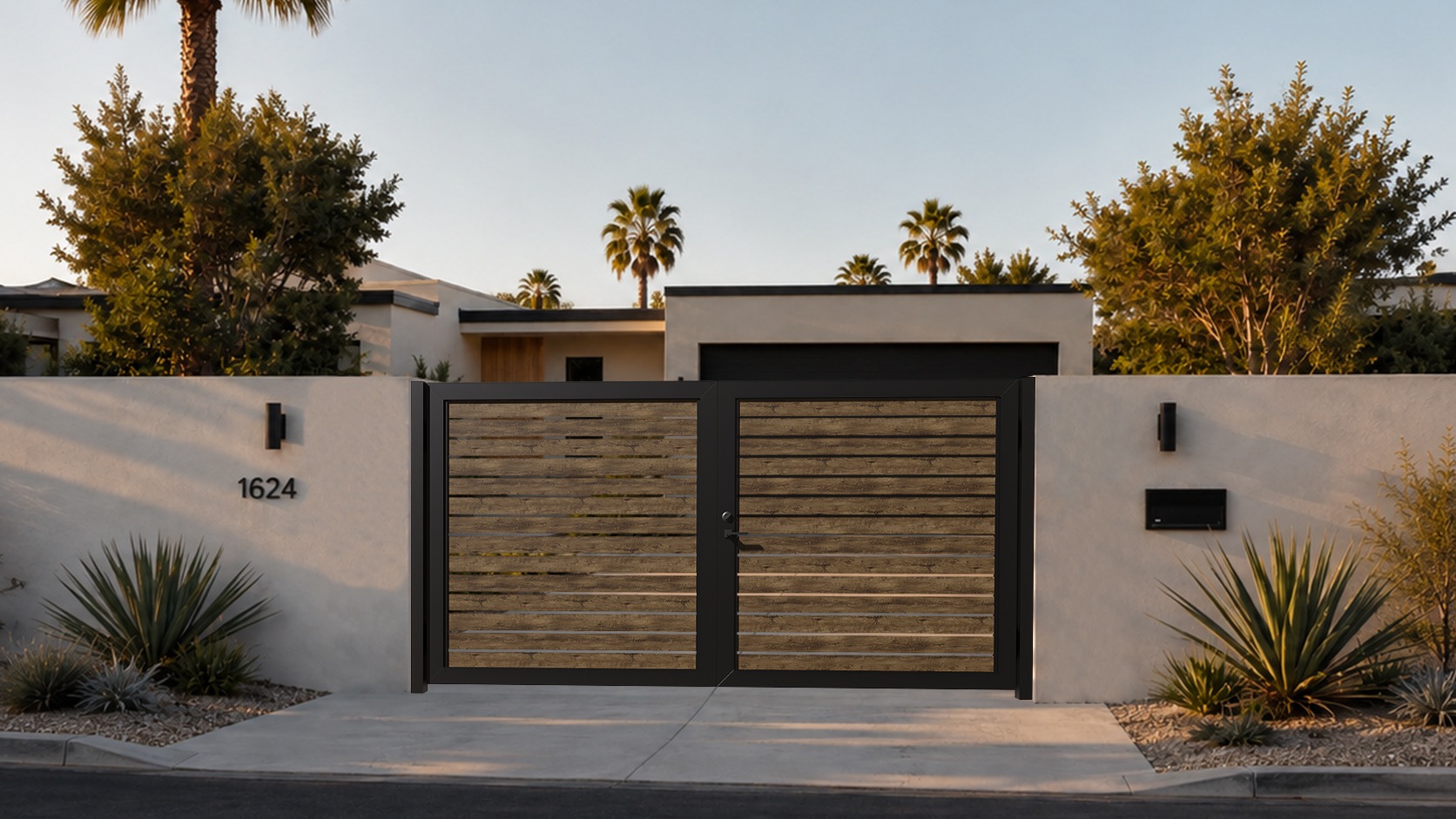

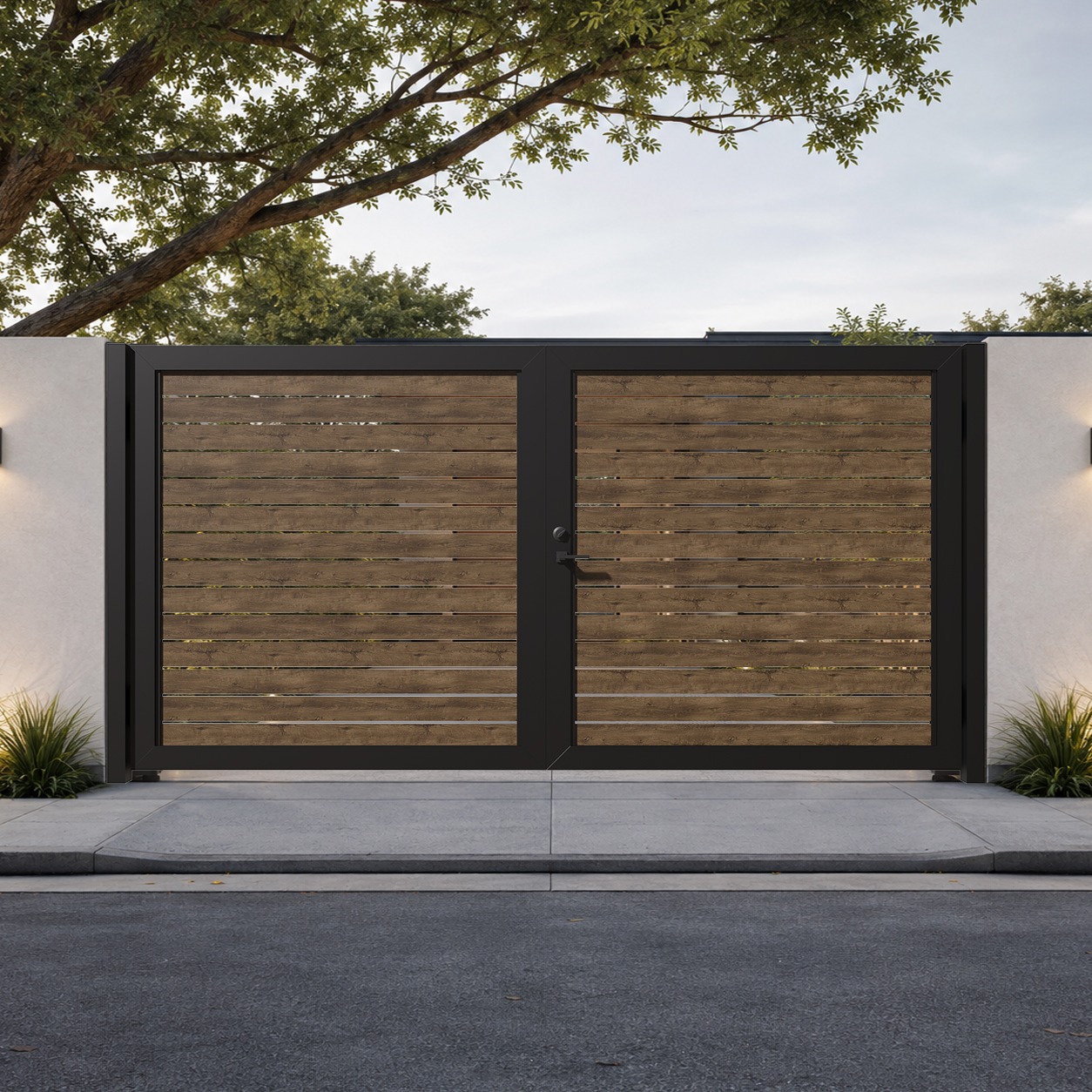

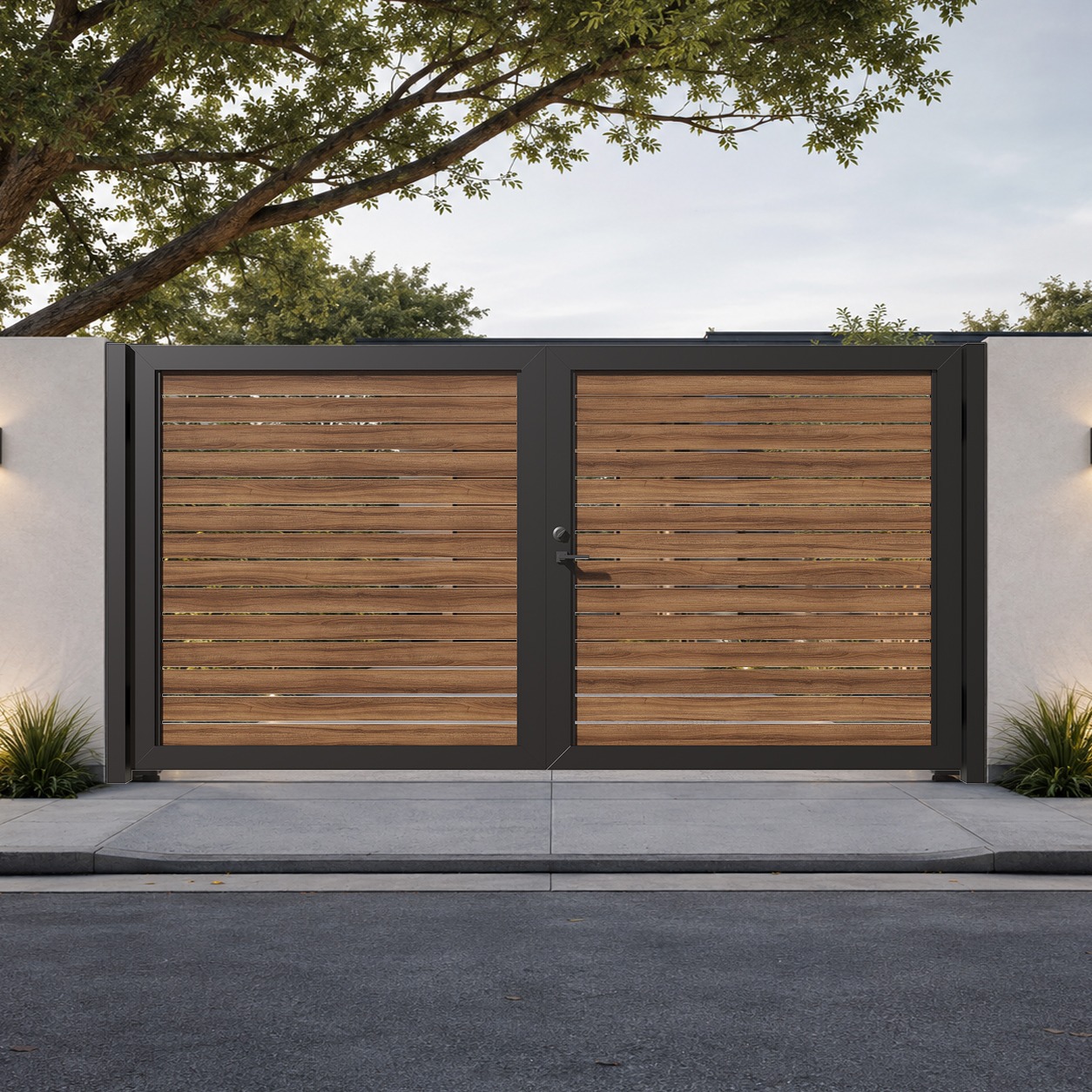

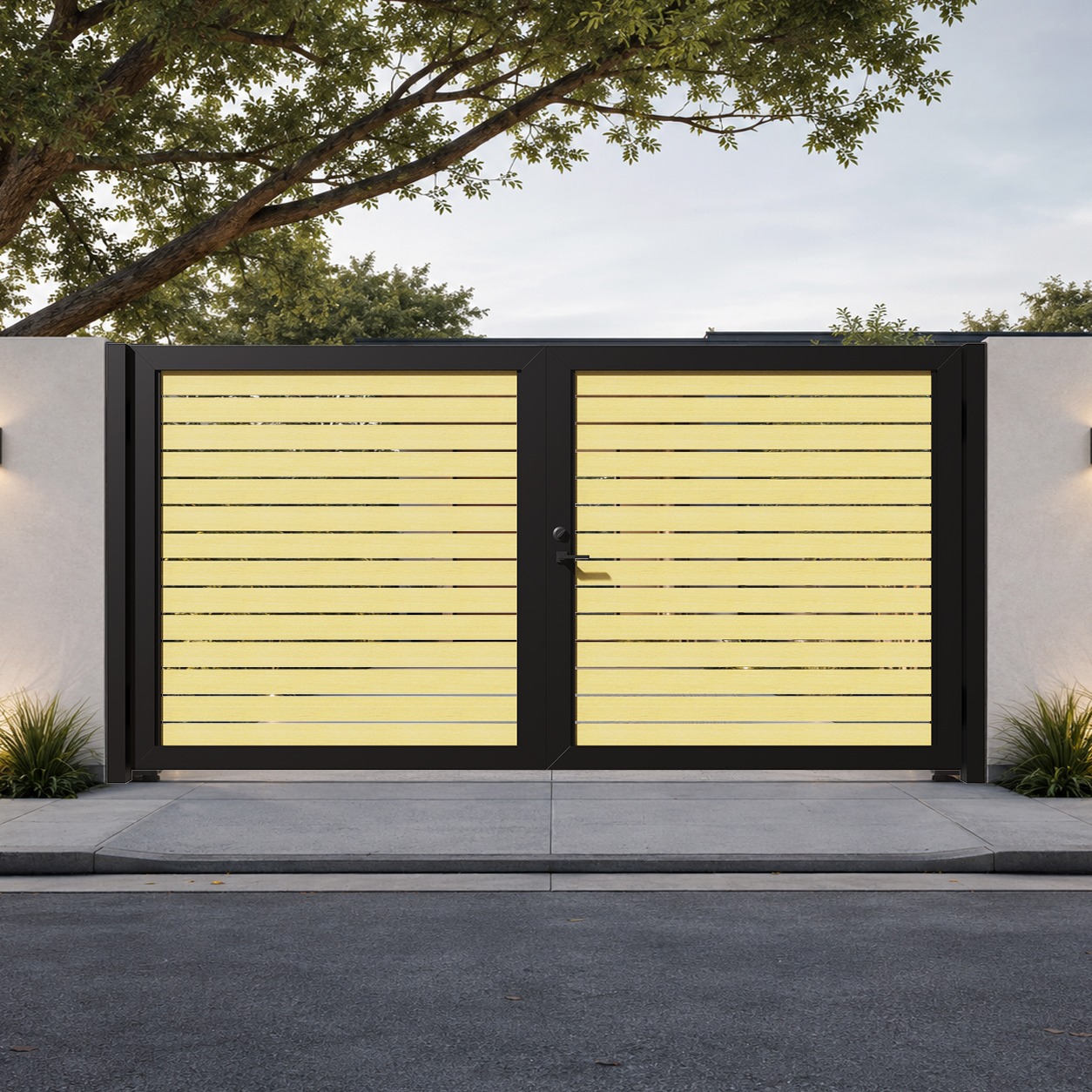

Residential drivewaysUse the two-leaf woodgrain gate to soften modern architecture while retaining a heavy-duty aluminum gate structure.
Luxury homes and villasThe warm finish creates a premium visual connection to wood doors, cladding, soffits and landscape materials.
Gated communities and HOAsWood-look aluminum provides a repeatable exterior appearance without relying on natural timber gate panels.
Courtyards and architectural entriesHorizontal ALU40 lines can coordinate with contemporary fences, wall cladding and other aluminum systems.
Light-commercial accessSuitable where the gate geometry, support and operating cycle match a two-leaf aluminum swing system.
Coastal and humid climatesThe aluminum substrate does not develop iron-oxide rust like steel, making it useful where humidity and salt exposure are ongoing design concerns.
01Verify the openingMeasure the finished width and height, check grade, confirm both swing arcs and identify the final post or wall support condition.
02Assemble the HD framesLay out both heavy-duty leaves on a protected flat surface, use the inner corner hardware and confirm diagonal measurements before tightening.
03Lay out the woodgrain infillCut and install the ALU40 woodgrain material to the selected 3/8″ or 1/2″ gap while keeping horizontal courses aligned across both leaves.
04Install hinge and support hardwareSet the two-way support hinges to the correct axes and verify the supporting posts or walls are plumb, rigid and properly anchored.
05Set the center conditionAlign both leaves, install the L-shape stopper and cane bolt, then coordinate the selected lock or latch hardware.
06Cycle and inspectOpen and close both leaves through their full swing, confirm clearances, tighten hardware and clean the woodgrain aluminum finish.
01Measure the finished openingRecord width and height at multiple points and identify any slope, taper or out-of-plumb conditions.
02Select 3/8″ or 1/2″ gapThe live SKU offers both spacing options. Confirm the desired privacy and visual rhythm before calculating infill.
03Confirm the woodgrain finishThe current package identifies teak woodgrain material. If another wood tone or custom color is desired, verify availability before production.
04Choose posts and footingsSelect the appropriate HD 3″ or 4″ support family based on site conditions, engineering and any gate-operator requirements.
05Choose center hardwareCoordinate cane bolt, stopper, latch or lock hardware so the two leaves close into a deliberate, repeatable center condition.
06Plan automation as a systemIf motorizing, review the operator, brackets, power, safety devices, stops, post stiffness and footing before installation begins.
