01Universal DIY gate framesTwo coordinated aluminum gate leaves create the 12-foot double-swing layout without requiring welded field fabrication.
02ALU20 horizontal slatsThe gate is designed around the ALU20 horizontal slat family with the ordered 3/8-inch or 1/2-inch spacing.
03Frame assembly componentsCorner and connecting components support square, repeatable assembly of both leaves.
04Assembly fastenersFasteners are used to secure the frame and ALU20 infill according to the supplied gate-system instructions.
05Double-swing center conditionThe two leaves must be aligned to meet cleanly at the center, with the selected latch or lock condition planned before final adjustment.
06Installation instructionsUse the supplied assembly guidance for frame squaring, slat placement, hinge-side alignment and final operation.
07Wall-to-wall mountingThe standard Universal DIY configuration is designed around structural mounting surfaces at both sides of the opening.
08Lock and latch planningChoose the latch or lock hardware for the actual project and verify its fit before completing the gate assembly.
09Accessory confirmationDo not assume posts, closers, automation equipment or every hardware accessory is included. Confirm the current package contents at ordering.
Wall-to-wall onlyVerify that both sides of the opening provide suitable structural mounting surfaces. The Universal DIY system is intended to avoid welded field fabrication while still requiring solid attachment.
Manual operationThe Universal DIY frame is not the motor-ready Heavy-Duty gate platform. For automation, specify the correct Contractor / HD system instead.
Two swing arcsBoth leaves need clear travel. Confirm walls, landscaping, grade changes and traffic paths will not interfere with the swing.
Center meeting conditionThe leaves should meet evenly at the center with consistent reveal and the chosen latch, stop or lock condition aligned.
3/8″ or 1/2″ slat gapSelect the gap before assembly so both leaves maintain the same horizontal rhythm and privacy level.
Lock hardware planningConfirm the selected lock or latch dimensions before final assembly rather than assuming every hardware set uses the same backset or clearance.

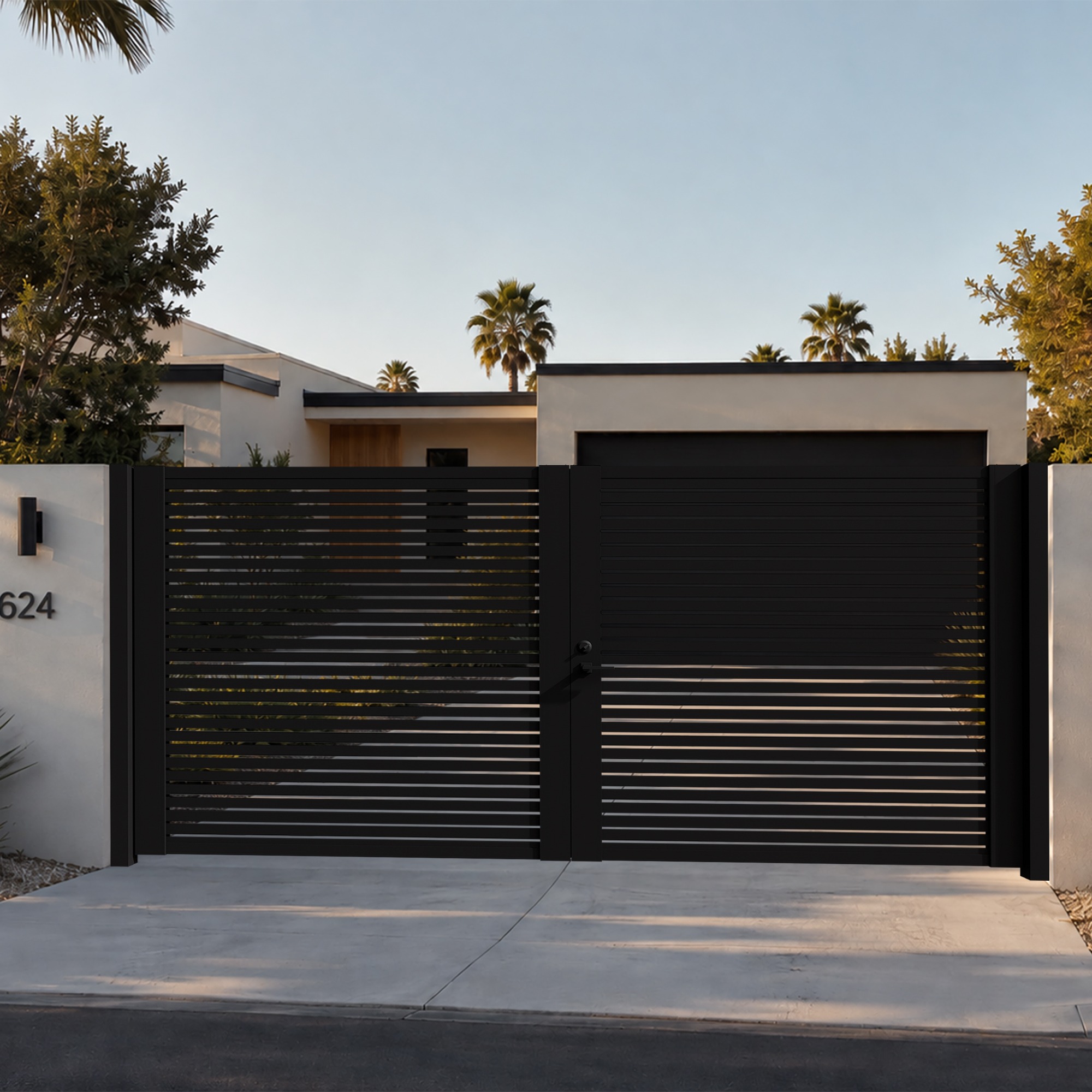

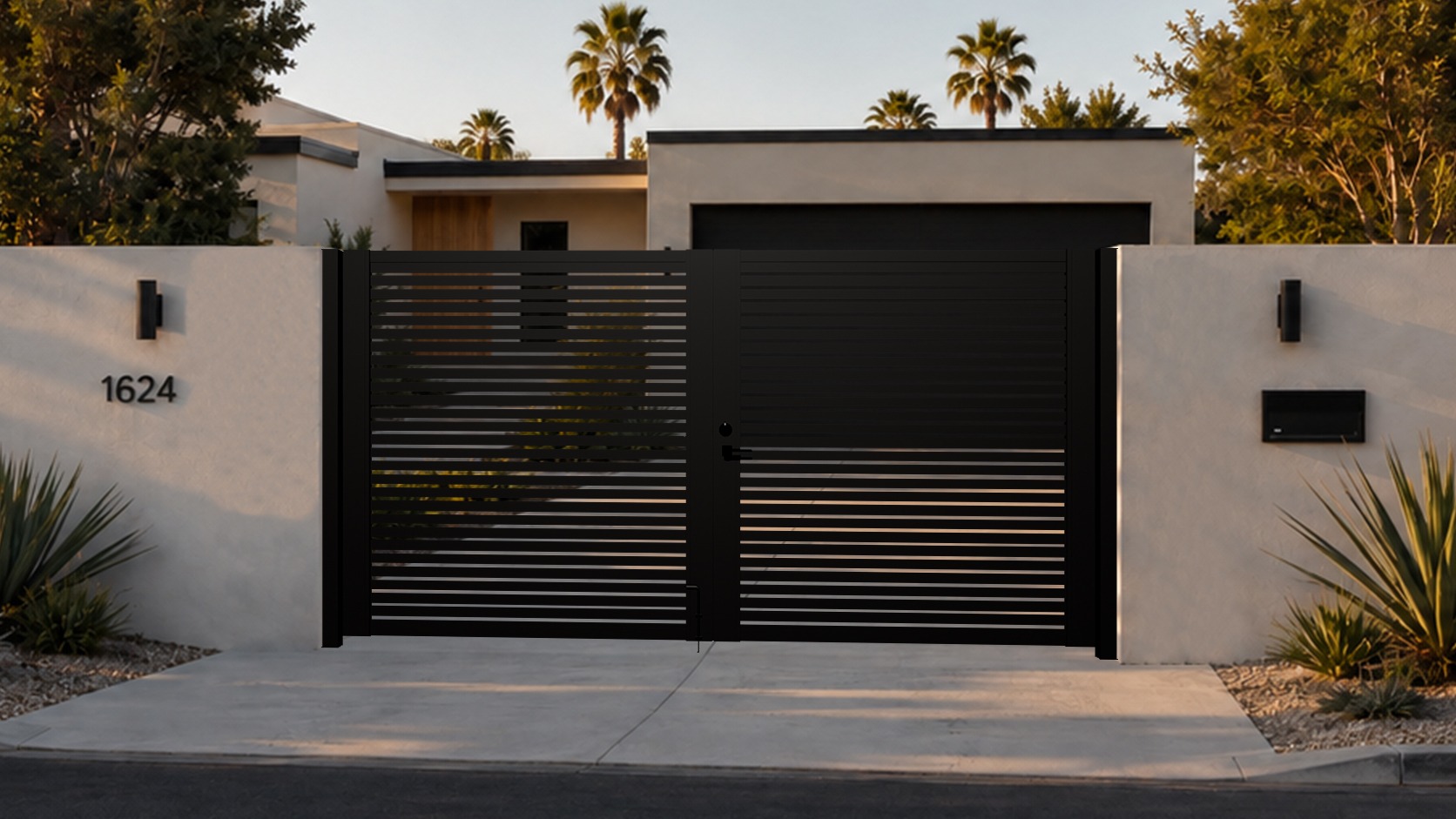

Wide residential entriesCreate a broad modern gate opening with a balanced two-leaf layout and horizontal aluminum infill.
Side-yard accessUse the wider format where equipment, bins, bikes or occasional larger access needs more clear width than a standard pedestrian gate.
Courtyard and garden accessCoordinate the black horizontal gate with modern walls, fencing and landscape areas. For pool or code-regulated enclosures, use only project-compliant latch, height and self-closing hardware.
Multi-unit propertiesA low-maintenance aluminum option for shared manual access points where a clean, repeatable appearance matters.
Light-commercial manual accessSuitable where the opening, traffic pattern and mounting surfaces support a manual double-swing gate rather than automated vehicle control.
Coastal and humid climatesAluminum avoids iron-oxide rust and is well suited to environments where steel gate maintenance can become a recurring issue.
01Verify the openingMeasure width and height at multiple points and confirm both side mounting surfaces are plumb, solid and suitable for the gate hardware.
02Lay out both framesAssemble the two Universal gate leaves on a protected flat surface and check diagonals so each frame remains square.
03Install ALU20 slatsInsert the ALU20 horizontal slats using the ordered 3/8-inch or 1/2-inch spacing. Keep the visual rhythm consistent across both leaves.
04Set hinge-side hardwarePosition the hinge hardware for the required swing direction and verify the structural wall attachment can carry the assembled leaves.
05Align the center meeting pointBring both leaves into plane, establish the center reveal and coordinate the latch, lock or stop condition.
06Test and finishCycle both leaves through the full manual swing, check clearances and fasteners, then clean the aluminum surfaces before regular use.
01Measure wall to wallMeasure the finished opening at the top, middle and bottom and identify any out-of-plumb conditions before ordering.
02Select 3/8″ or 1/2″ gapChoose the slat spacing before assembly so both leaves use the same privacy and visual rhythm.
03Confirm swing directionPlan the direction and full travel of both leaves based on available clearance, grade and traffic flow.
04Plan latch and lock hardwareConfirm the center closing condition, latch or lock body, handle clearance and hardware dimensions before final assembly.
05Confirm manual operationThis Universal DIY kit is not the motor-ready Contractor Line. If the project needs an operator, select the correct HD gate system before purchasing.
06Confirm package, finish and deliveryThis SKU is Black. Confirm the current kit contents, any separately ordered hardware, alternate ALU20 finish options and nationwide shipping details before checkout.
