01Keep the frame squareAccurate diagonal measurements and rigid corner connections matter before the infill and hardware are finalized.
02Build around the hinge sideThe wall, post or structural support receiving the hinges must be appropriate for the gate and the actual mounting condition.
03Plan operating clearanceConfirm finished ground clearance, swing path, latch-side clearance and stopper position before final tightening.
Frame4″ Heavy-Duty gate frameThe frame carries the gate as a framed assembly and provides the structure for the T&G infill, hinges and latch-side geometry.
InfillALU60 T&G black aluminumInterlocking tongue-and-groove boards form the privacy surface without the open spacing used by slat gate systems.
Hinge5″ heavy-duty 2-way support hingeHinge alignment and the support behind it are critical to smooth swing, consistent clearances and long-term adjustment.
SupportProject-specific post or wall conditionAvailable post families include 2″, 2.75″ and 2″×3″ options. The correct support depends on the actual site and mounting plan.
01Framed gate constructionThe gate is built around a dedicated frame so hinges, infill and latch-side geometry work as one assembly.
02No-gap privacyALU60 tongue-and-groove infill creates a solid visual barrier without the deliberate gaps used in slat systems.
03Low maintenanceAluminum avoids the rust behavior of ferrous steel and does not require the staining or sealing associated with real wood.
04Exterior powder coatingAAMA 2604 architectural powder coating supports long-term exterior color and finish performance when properly maintained.
05Contractor repeatabilityA defined frame, T&G infill and hardware system helps crews build around repeatable components while still adapting to the actual opening.

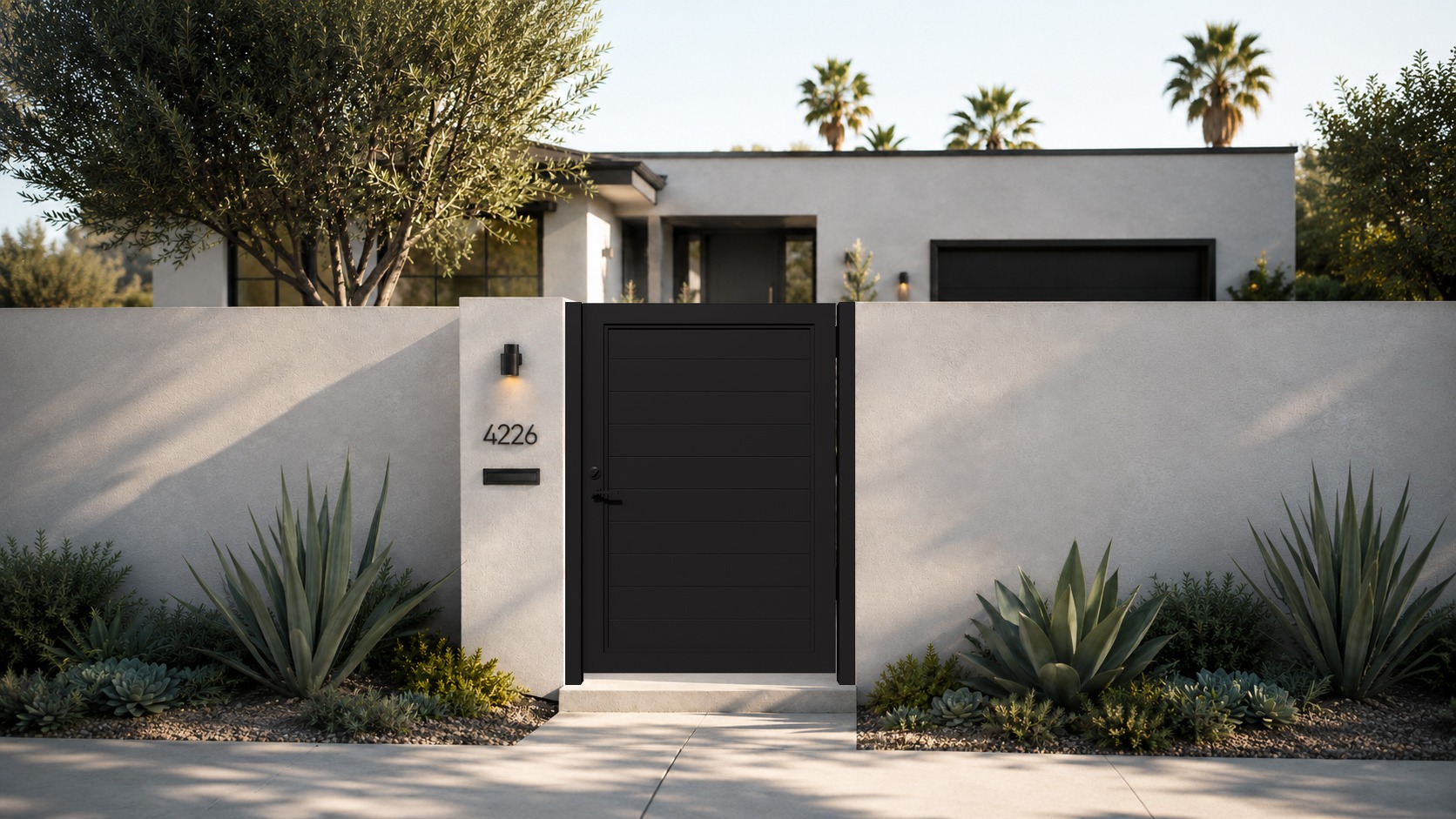

Side-yard accessUse the 4×6 single-swing format for controlled pedestrian access between the front and rear of a property.

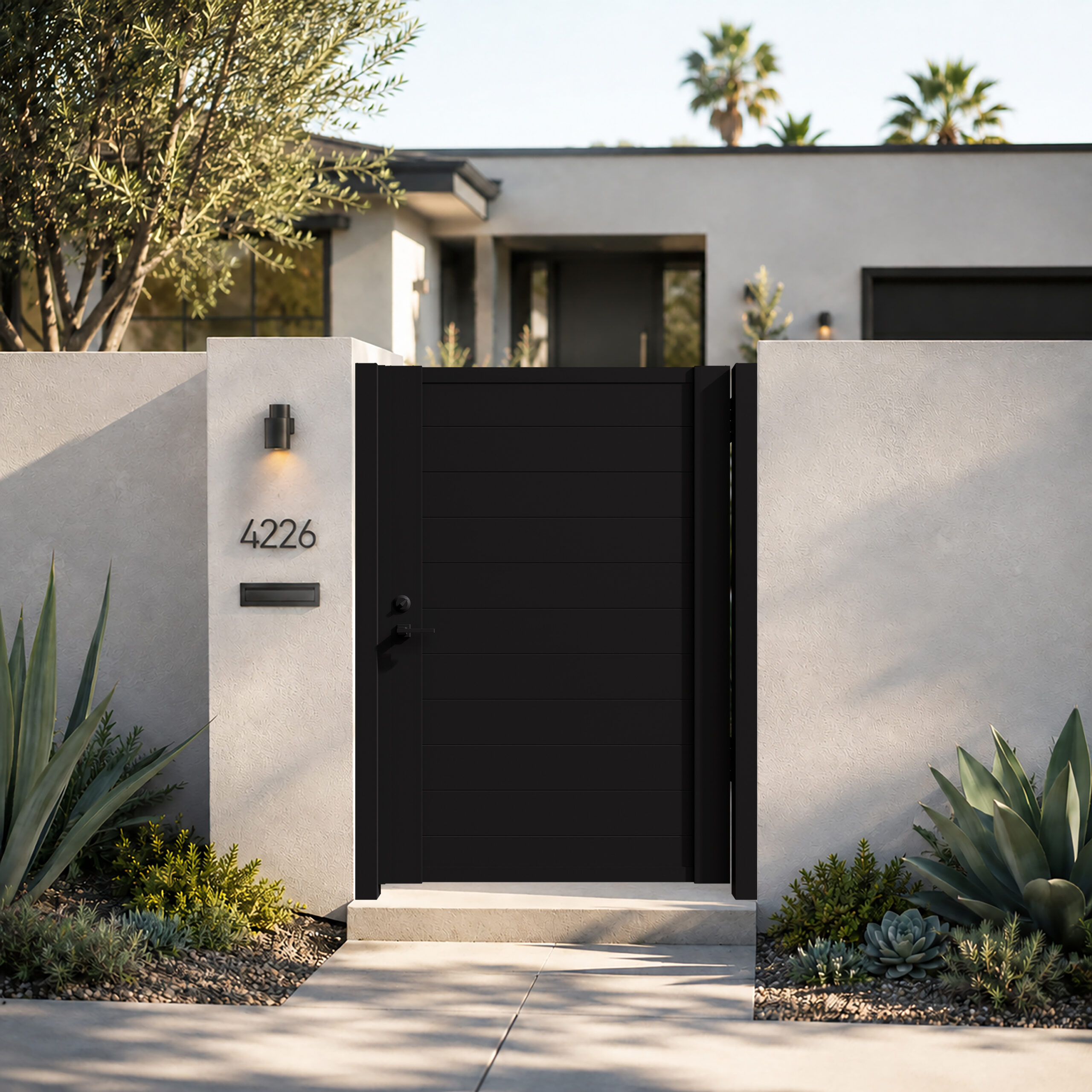

Private pedestrian entriesThe no-gap ALU60 T&G face helps create a clean, private entry rather than an open slat appearance.
Contractor fence projectsCoordinate the gate with ALU60 T&G fence or related Aluglobus aluminum systems where a consistent architectural language is required.
Residential and light commercialSuitable for projects that need durable aluminum construction, a modern black finish and daily pedestrian operation.
6063-T6 aluminum + AAMA 2604 The gate system uses 6063-T6 aluminum with an architectural powder-coated exterior finish. The black finish creates a clean contemporary appearance while aluminum provides corrosion resistance and low routine maintenance. No sanding or staining associated with real wood. Aluminum does not rust like iron-based gate materials. Architectural powder coating is intended for exterior exposure.
Non-combustible metal substrate Aluminum is a non-combustible metal substrate. For defensible-space or Zone 0 projects, compliance must be evaluated for the complete installed assembly, nearby materials, clearances and local requirements. Final acceptance belongs to the applicable authority having jurisdiction. Non-combustible aluminum should not be interpreted as a fireproof complete assembly. Combustible adjacent materials can affect a complete project condition. Confirm local code requirements before relying on a material claim for approval.
01Measure the finished openingRecord clear width, finished height and ground conditions at the actual gate location.
02Choose hinge sideConfirm which side receives the hinges and whether the support is a wall, post or other approved structure.
03Assemble squareLay out the Heavy-Duty frame, connect corners and compare diagonals before locking the assembly.
04Install T&G infillFit the black ALU60 tongue-and-groove boards and top-rail components according to the gate layout.
05Hang and alignInstall the heavy-duty hinges, set the gate plumb and confirm smooth movement through the entire swing path.
06Set closure hardwareFinalize latch, lock, stopper and clearances only after the gate hangs correctly and operates without binding.
APreparationInventory the ALU60 T&G infill, Heavy-Duty frame stock, corner hardware, hinges, stopper, top rail and fasteners before cutting.
BFrame layoutLay out the 4″ Heavy-Duty frame components on a flat surface and confirm final cut dimensions from the opening plan.
CFrame assemblyConnect the frame using the specified internal corner hardware, then verify squareness using diagonal measurements.
DT&G installationInstall the black ALU60 tongue-and-groove infill in sequence so the joints fully engage and the privacy face remains consistent.
EHinge installationMount the 5″ Heavy-Duty hinges to the gate and approved hinge-side support while maintaining the required operating clearances.
FFinal adjustmentSet the stopper, latch and lock hardware, then check plumb, level, swing, closing alignment and all fasteners.
