0120′ 4″ HD gate frameHeavy-duty USA aluminum frame stock forms the structural perimeter of the single-swing gate.
02Inner corner bracketsInternal corner hardware supports square frame assembly and clean exterior lines.
03Channel kitChannel components capture and organize the privacy infill within the framed gate system.
046.3″ ALU50 T&G profileSix-foot teak/woodgrain tongue-and-groove aluminum infill creates the no-gap privacy field.
055″ 2-way support hingeHeavy-duty hinge hardware supports the pedestrian leaf and provides the pivot point for single-swing operation.
06Stopper, cap and fastenersThe listed hardware includes a 2.5″ aluminum cap, 6′ L-shape gate stopper, #12×2″ black screws, #10×3/4″ screws and #10×1″ screws.

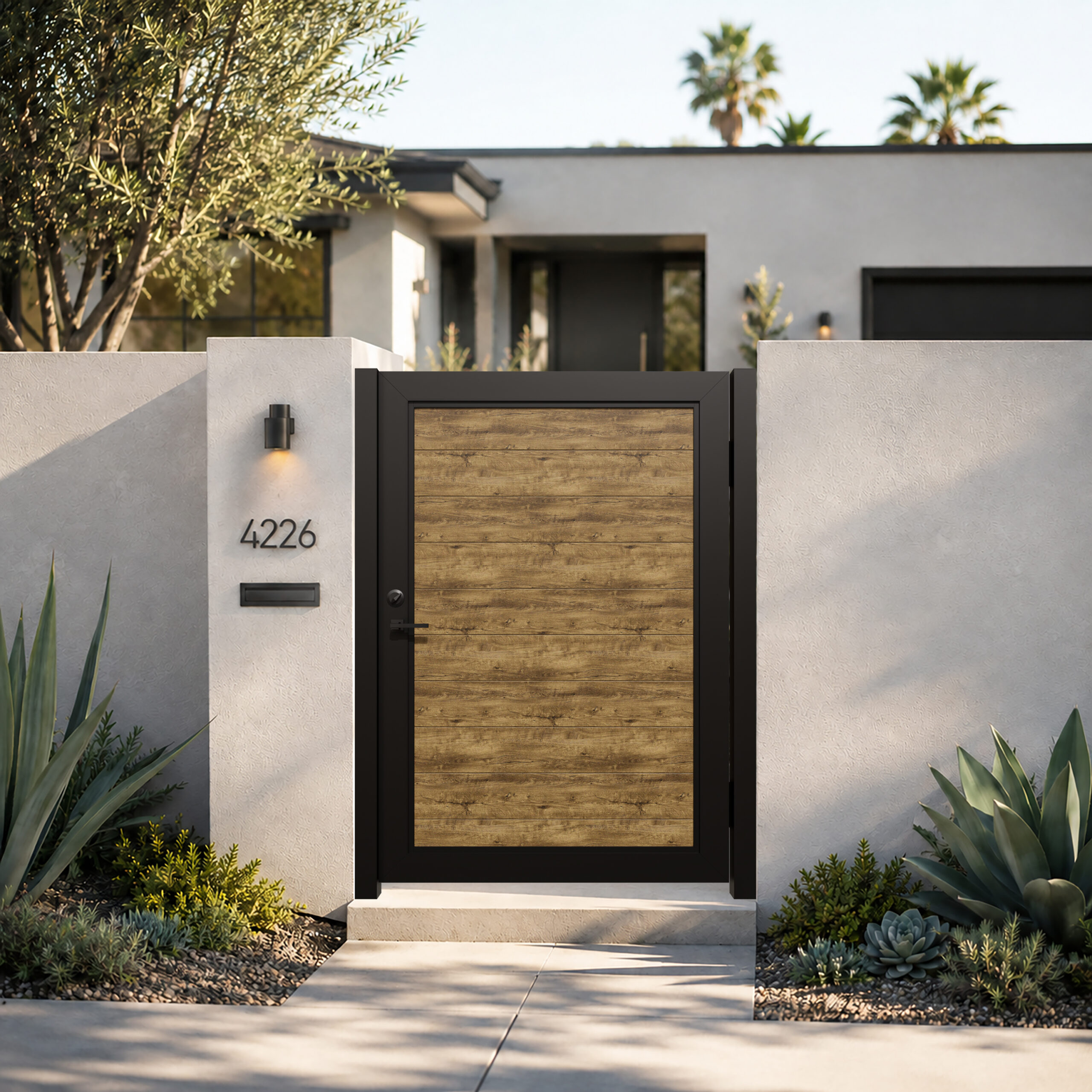

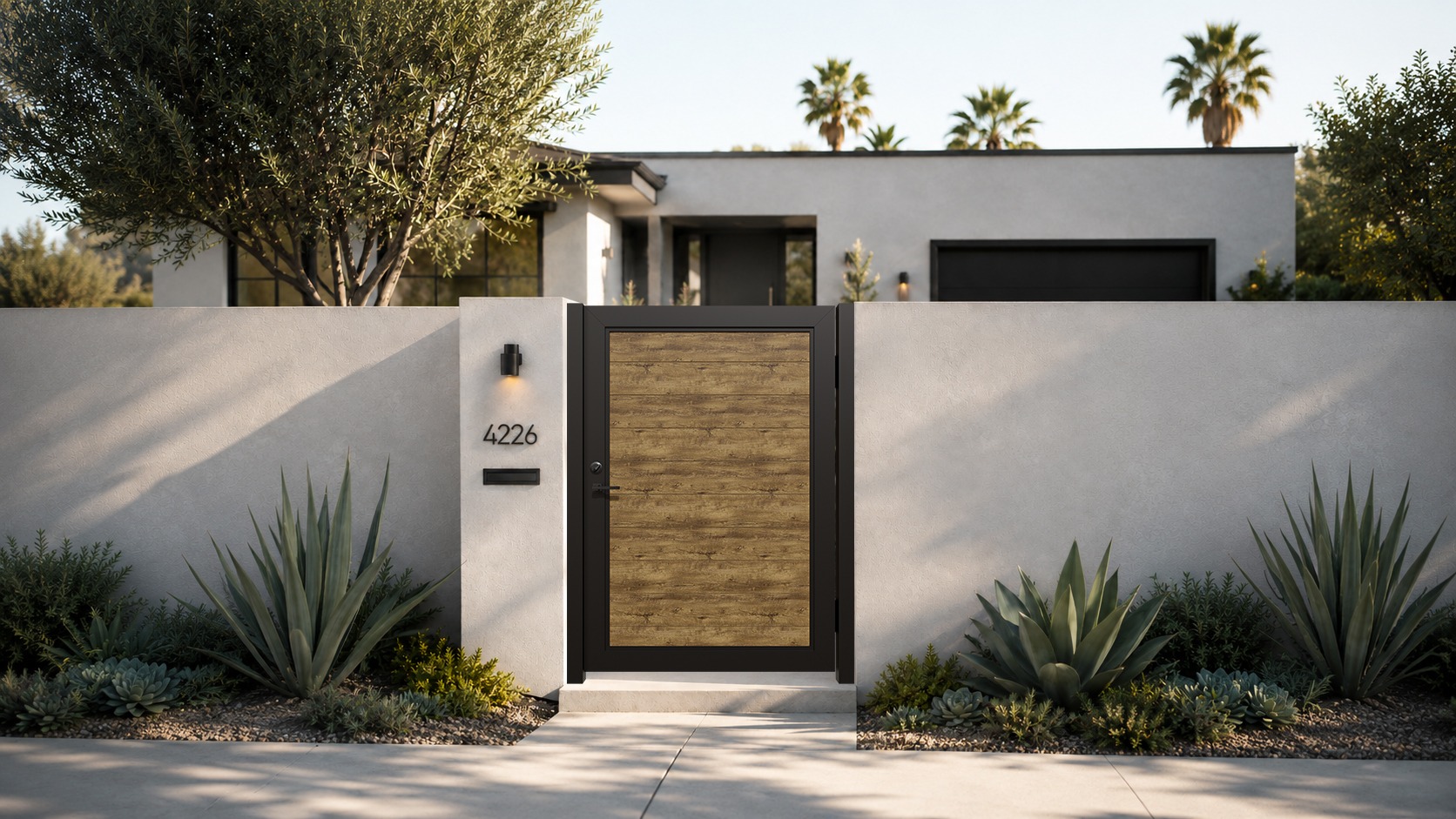

02Pedestrian walkwaysUse the 4×6 single-swing configuration where a dedicated framed walk gate is required.
03Gated communitiesRepeat the same framed T&G architecture across multiple homes or controlled-access points.
04Outdoor living areasCoordinate the woodgrain gate with fences, patios, landscape materials and contemporary exterior finishes.
05Coastal and humid regionsAluminum’s corrosion resistance makes it a practical alternative to untreated ferrous or wood gate materials.
06Light-commercial projectsUse the contractor-line system where repeatability, clean alignment and low recurring maintenance matter.
01Verify the openingConfirm the finished width and height, support surfaces, hinge side, latch side and required clearances before assembly.
02Assemble the HD frameUse the supplied frame and internal corner hardware, keeping the gate square before the infill is fully secured.
03Install T&G infillInsert the ALU50 T&G privacy profiles into the channel system so mating edges interlock with no designed open gap.
04Mount hinge hardwareInstall and align the heavy-duty 5-inch 2-way support hinge according to the selected post or structural support condition.
05Install stopper and access hardwarePosition the L-shape stopper and coordinate the latch, lock or access-control hardware with the finished swing path.
06Final alignmentCheck squareness, swing, closure, fastener tightness and finish condition before placing the gate into service.
01Confirm finished dimensionsMeasure the clear opening and determine whether the listed 4×6 configuration fits the completed site condition.
02Select the support systemChoose the appropriate 2″, 2.75″ or 2″×3″ post/support condition based on the project design and mounting substrate.
03Choose swing directionVerify hinge side and swing path so the gate clears walls, landscaping, steps and adjacent circulation.
04Coordinate latch or lockPlan the selected latch, key lock or access hardware before finalizing frame and post positions.
05Confirm privacy intentThis SKU is a no-gap T&G privacy gate. Select an open-slat model if airflow or intentional spacing is required.
06Verify local requirementsPool, egress, fire-zone and access-control projects can have additional requirements beyond the gate material itself.
