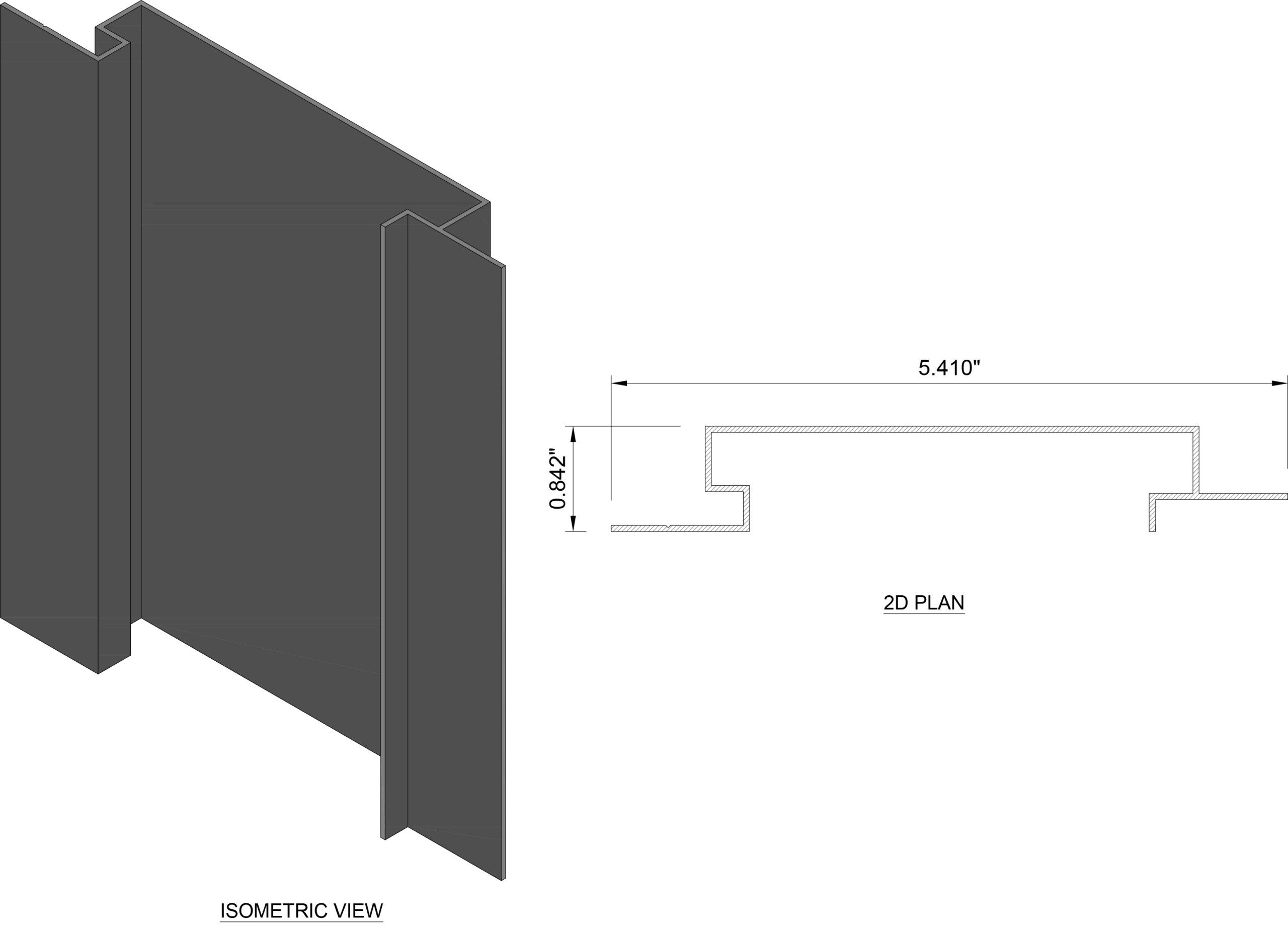

Aluglobus cladding systemsCLAD100 Woodgrain Red Oak Aluminum Cladding Guide A complete guide to the CLAD100 tongue-and-groove aluminum panel, including verified dimensions, coverage, orientation, substrate planning, water management, installation, cutting and finish care. 6063-T6 aluminum 19 ft nominal panel Tongue-and-groove No-gap appearance Vertical or horizontal View Current Product Request Project Review System Direct-fix interlocking aluminum cladding Visual character Warm Red Oak wood-look linear surface Listed coverage About 8.56 sq ft per full panel Critical rule Design the wall assembly before ordering panels Jump to: Overview Specifications Dimensions Applications Wall assembly Planning Estimator Installation Care FAQsProduct-first guidanceWood appearance without building the facade from wood CLAD100 Woodgrain Red Oak is an extruded aluminum cladding system that uses an interlocking tongue-and-groove profile to form a continuous architectural surface. The finish creates the warmth and visual variation of wood while the underlying panel remains aluminum. The system can be used vertically or horizontally on approved walls, ceilings, facades, fences and selected framed features. It is intended for projects that need a repeatable linear appearance, concealed fastening and lower finish maintenance than natural wood boards. Important distinction: CLAD100 is the visible cladding layer. It does not replace the structural wall, weather-resistive barrier, flashing, drainage plane, approved substrate or engineering required by the project. Woodgrain appearance can vary by production lot, lighting and screen display. Approve a physical sample before committing to a large elevation.Current listed identityThe specifications that should control early planning 016063-T6 aluminumThe current product information identifies an architectural-grade extruded aluminum profile. 02Tongue-and-groove profilePanels interlock to create consistent alignment and a fully enclosed, no-gap appearance. 03Trackless direct fixingThe listing states that a separate mounting track is not required. Project-specific support and fasteners are still required. 04Vertical or horizontalBoth orientations are listed, allowing the same profile to create different architectural proportions. 05Interior or exteriorApproved uses include walls, ceilings, facades, fences and selected interior applications. 06Non-combustible substrateThe panel body is aluminum. Complete assembly compliance remains project and jurisdiction specific. The current product page contains legacy copy that refers to IPE and lists dimensions that conflict with the newer structured specification table. This guide uses the current structured values for early planning, but the final order acknowledgement and issued drawing must control. Profile rendering for visual reference only. Do not scale a website image for fabrication or fastener layout.Understand the numbersVisible design width is not the same as physical coverage widthCurrent actual dimensionsApproximate thickness: 0.842″Approximate face width: 5.410″Nominal panel length: 19′Approximate full-panel coverage: 8.56 sq ftArchitectural appearanceApproximately 4″ visual design rhythmContinuous no-gap surfaceConcealed fastening through the interlockWarm Red Oak woodgrain appearance Coverage rule: calculate quantities from the current face coverage and issued drawing, not from the “4-inch look” used to describe the visible architectural rhythm.Where CLAD100 fitsApplications that benefit from a continuous wood-look aluminum surfaceExterior facadesFeature elevations, entry volumes and accent zones where a warm finish is needed without exposed natural timber.Ceilings and soffitsLinear overhead surfaces where long panels can reduce joints and create a coordinated architectural finish.Interior feature wallsCommercial, hospitality and residential interiors that need durable wood-look wall treatment.Gates and fencesSelected framed gate, fence and wall-topper applications when the frame and edge retention are designed for the profile.Outdoor living featuresBarbecue surrounds, patio accents and screened service zones, subject to heat-clearance and substrate requirements.Coordinated systemsProjects that repeat one finish across cladding, gates, fences and selected outdoor architectural elements. CLAD100 is not automatically approved for direct contact with high-heat appliances, chimneys, fireboxes or unventilated wet assemblies. Maintain all appliance clearances and use project-specific wall details.The assembly behind the finish“No track required” does not mean “attach it to anything” 01Structural backingThe substrate or framing must support the cladding and transfer project loads to the building structure. 02Water controlExterior assemblies may require a weather-resistive barrier, flashings, drainage space and ventilated cavity. 03Flat support planeFurring, hat channels or an approved substrate must create a straight plane so the finished face does not wave. 04Compatible fastenersFastener type, spacing, corrosion compatibility and edge distance depend on the substrate and design loads. 05Movement allowanceLong aluminum panels expand and contract. Joint, slot and fastening details must allow expected movement. 06Finished transitionsBase, top, outside corner, inside corner, window, door and material-transition conditions must be resolved before installation.Measure before orderingPlan the full elevation, not only the square footageDocument the wallOverall width and heightWindows, doors, vents and utilitiesInside and outside cornersTop, base and side terminationsChanges in substrate or wall planeDecide the visual layoutVertical or horizontal orientationStarting edge and final cut locationWoodgrain direction and lot consistencySymmetry around openingsWhere full-length pieces can reduce seamsResolve the wall assemblyApproved substrate or subframingWeather barrier and flashing sequenceRainscreen or ventilation requirementFastener material and spacingThermal movement detailConfirm the orderCurrent panel dimensions and finish nameProduction lot and physical sampleTrim and accessory availabilityFreight access for 19-foot materialCrate inspection and storage planEarly quantity planningCLAD100 panel estimator This calculator uses approximately 8.56 square feet of face coverage per full 19-foot panel based on the current listed 5.410-inch face width. It does not optimize cuts, grain direction, seams, corners or freight. Wall width (ft) Wall height (ft) Total openings (sq ft) Waste factor (%) Optional price per panel ($) Net wall area 180.0 sq ft Area with waste 198.0 sq ft Estimated full panels 24 Optional material subtotal Enter panel price Quantity is an early procurement estimate. Long-panel cut optimization can materially change waste. Confirm the final takeoff from elevations, shop drawings and the actual shipping length.Controlled installation sequenceA practical workflow for a straight, clean CLAD100 elevation 1Inspect and documentVerify the delivery, finish, lengths and profile condition before removing protective packaging or cutting material. 2Prepare the assemblyComplete substrate repairs, weather barrier, flashings, furring or channels and all concealed work first. 3Establish reference linesUse a laser, level and control line to establish the first edge, panel direction and termination heights. 4Dry-fit the first conditionConfirm the starter edge, trim relationship and first interlock before committing to a full elevation. 5Cut with aluminum toolingUse a suitable non-ferrous blade, support the extrusion, protect the visible face and deburr cut edges. 6Fasten without crushingUse approved fasteners and spacing. Do not overdrive screws or lock the panel against required thermal movement. 7Engage each interlockSeat the tongue-and-groove connection fully and check the face plane every few panels. 8Flash penetrations and transitionsComplete window, door, vent, corner, top and base details in the correct water-shedding sequence. 9Remove metal debrisVacuum and rinse away shavings promptly. Ferrous debris can rust and stain an otherwise corrosion-resistant surface. 10Inspect and hand offCheck alignment, trims, movement gaps, sealants and finish condition, then document cleaning and maintenance requirements. Installer rule: the first panel establishes the entire elevation. A small error at the starter edge becomes highly visible across long, repeated linear profiles.CLAD100 versus CLAD120Choose the visual rhythm before choosing the product nameDecisionCLAD100CLAD120Architectural appearanceBroader approximately 4″ linear designNarrower approximately 1.5″ linear designSurface characterFewer, stronger visual linesMore frequent, refined visual linesInterlockTongue-and-groove, no-gap appearanceTongue-and-groove, no-gap appearanceBest useBold facades, broad walls, ceilings and coordinated gate infillDetailed facades and projects seeking a finer plank rhythmFinal selectionCompare physical samples, current drawings, available finishes and actual face coverage before ordering.Protect the woodgrain finishLow maintenance still requires correct cleaning Rinse dust and loose debris with clean water, then wash using mild non-abrasive soap and a soft cloth or sponge. Rinse completely so cleaning residue does not dry on the surface. Coastal, industrial and high-dust environments usually require more frequent cleaning. Inspect sealants, flashings, trims and penetrations during routine building maintenance because water-management components can age differently from the aluminum panel.UseClean waterMild non-abrasive soapSoft cloth or spongeLow-pressure rinsingAvoidAbrasive padsStrong solventsMetal scrapersClose-range pressure washing Keep abrasive tools, metal shavings and unapproved chemicals away from the visible woodgrain surface.Common mistakesProblems that begin before the first panel is fastenedMistakeWhy it causes troubleBetter approachOrdering from square footage onlyIgnores 19-foot cut optimization, grain direction, corners and openingsComplete an elevation-based takeoff with waste by conditionUsing the 4″ visual width as actual coverageCan overstate panel quantity or distort seam planningUse the current 5.410″ face width and issued drawingMounting over an uneven wallEvery bow becomes visible in the linear faceCreate a flat approved support plane before claddingIgnoring water managementNo-gap appearance does not make the wall assembly waterproofDesign WRB, flashing, drainage and ventilation as a complete systemOver-tightening fastenersCan distort the profile and restrict thermal movementFollow the approved fastening and movement detailLeaving cutting debrisEmbedded particles can stain the finishVacuum, wipe and rinse each work area promptlyMixing production lots without reviewWoodgrain tone and pattern may varyApprove samples and stage panels for a balanced elevationFrequently asked questionsCLAD100 Red Oak planning answers What is CLAD100 Woodgrain Red Oak?CLAD100 is an interlocking aluminum cladding profile with a wood-look Red Oak finish. It is designed to create a continuous, no-gap architectural surface on approved walls, ceilings, facades, fences and selected framed applications. What are the current listed panel dimensions?The structured specification table on the current product page lists an approximate 0.842-inch thickness, 5.410-inch face width and 19-foot length. The same page also contains older conflicting dimensions lower in the description, so the order acknowledgement and current shop drawing should control. Why is it called a 4-inch architectural design if the face width is 5.410 inches?The 4-inch figure describes the visual architectural rhythm or design appearance, not necessarily the full physical face width used for coverage calculations. Use the current actual face width for quantity planning. Does CLAD100 require a mounting track?The current listing describes CLAD100 as a direct-fix tongue-and-groove system that does not require a separate mounting track. That does not eliminate the need for a flat approved substrate, project-specific fasteners, flashing, weather barriers or a rainscreen cavity where required. Can CLAD100 be installed vertically and horizontally?The current listing allows vertical or horizontal orientation. The chosen direction changes joint layout, substructure direction, drainage details, cut optimization and the visual scale of the elevation. Can it be installed directly over stucco or an uneven wall?Do not assume so. The cladding will reflect the plane behind it. Irregular walls normally require an approved, straight substructure or corrected substrate, plus a project-specific water-management detail. Is the Red Oak finish real wood?No. The visible surface is a woodgrain finish applied to an aluminum profile. It provides a wood-like appearance without the rot, termite and refinishing concerns associated with natural wood boards. Is CLAD100 non-combustible?The aluminum substrate is non-combustible. Compliance for a complete wall or Zone Zero assembly depends on all layers, finishes, membranes, subframing, penetrations and local authority requirements. How many panels cover 100 square feet?Using the current listed face width of 5.410 inches and length of 19 feet, one full panel covers about 8.56 square feet before cuts. A 100-square-foot surface therefore starts near 12 full panels, then waste and layout complexity are added. What waste factor should I use?Simple uninterrupted elevations may begin around 5 percent, while walls with corners, windows, doors, pattern matching or short reusable offcuts commonly require 10 percent or more. The estimator on this page is for early planning only. How should the woodgrain finish be cleaned?Use clean water, mild non-abrasive soap and a soft cloth or sponge. Rinse completely. Avoid abrasive pads, harsh solvents and aggressive pressure washing near joints, trims and penetrations. Can CLAD100 be used on gates and fences?The product listing includes fences and framed applications among the approved uses. Gate and fence integration still requires a compatible structural frame, secure edge retention, allowance for movement and a design appropriate for the gate size and operating method. Factory-direct project supportPlan the cladding package before the material reaches the jobsite Send Aluglobus your elevation dimensions, orientation, substrate, openings, corner conditions and finish requirement. The team can help confirm current panel specifications, quantities, freight and compatible project components. Request Cladding Support Browse Wall Cladding Educational guide only. Product dimensions, finishes, fasteners, support conditions and installation details can change. Confirm the current product page, order acknowledgement, shop drawing, applicable code and project-specific design before purchasing or installing. Aluglobus supplies materials; installation and engineering responsibilities depend on the contract and local requirements.
