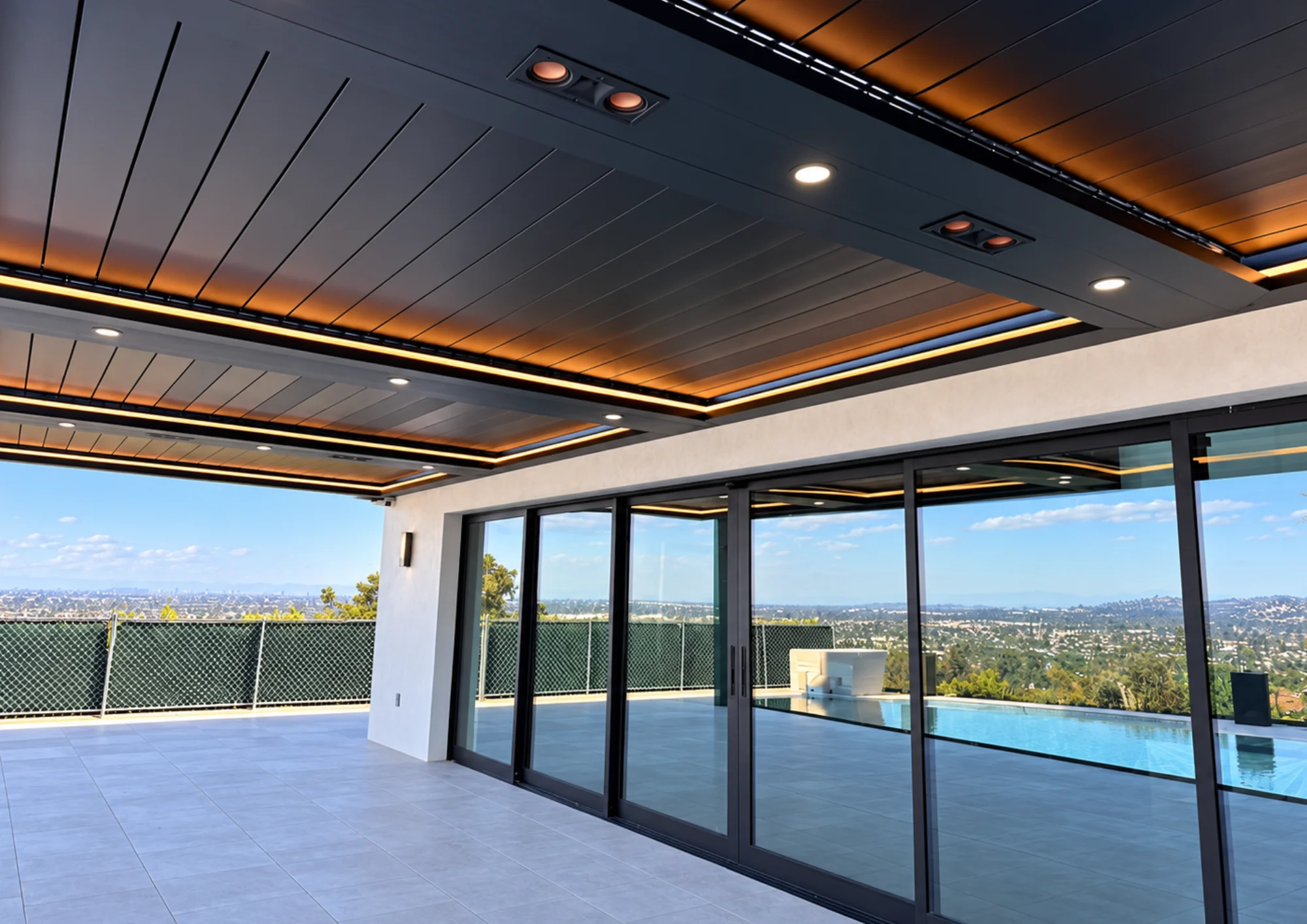

Aluglobus architectural automatic louver patio cover
Aluglobus Architectural Louver System

Automatic Louver.
Architectural by Design.

Custom extruded aluminum patio systems engineered around the project, not around a fixed kit size.

Design My Patio View System Components
  • Custom dimensions
  • Motorized louvers
  • Multiple structural configurations
  • Integrated drainage
  • Lighting + fan ready
  • Cantilever capability
  • Residential + commercial
  • Engineering packages available
  • Factory-direct
Free Project Quote

This is not a fixed pergola kit.

Every project can be configured around the architecture, dimensions, structural requirements and design intent. Send what you have and we'll configure the system around it.

  • Dimensions, photos or drawings
  • Custom layout & structure
  • Factory-direct pricing
  • Engineering available
📞 (888) 876-3006 💬 WhatsApp 1 (424) 522-2143

Get Your Free Project Quote

Upload plans or photos. No drawings required to start.

The System at a Glance

One roof. Six reasons it's different.

Motorized aluminum louver blades opening above a modern patio01

Automatic Control

Open. Close. Adjust. Motorized aluminum louvers control sunlight, airflow and shade.

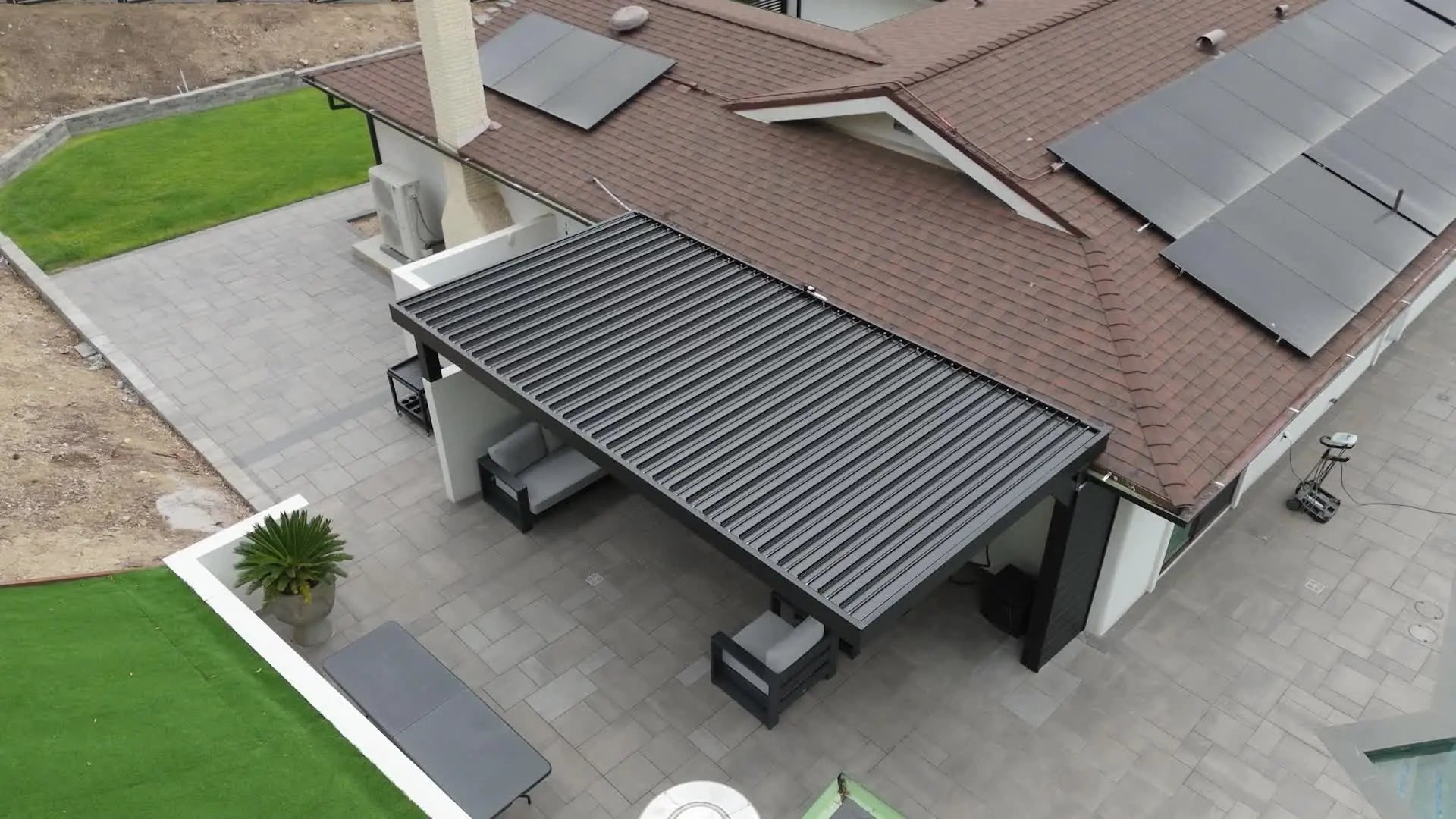

Aerial view of a large multi-bay aluminum louver patio system02

Built Around Your Project

Wall-mountedFreestandingMulti-zoneCantileverCustom layouts
All-aluminum structural component detail03

Engineered Aluminum

Structural-grade extruded aluminum throughout the system. All aluminum. No plastic.

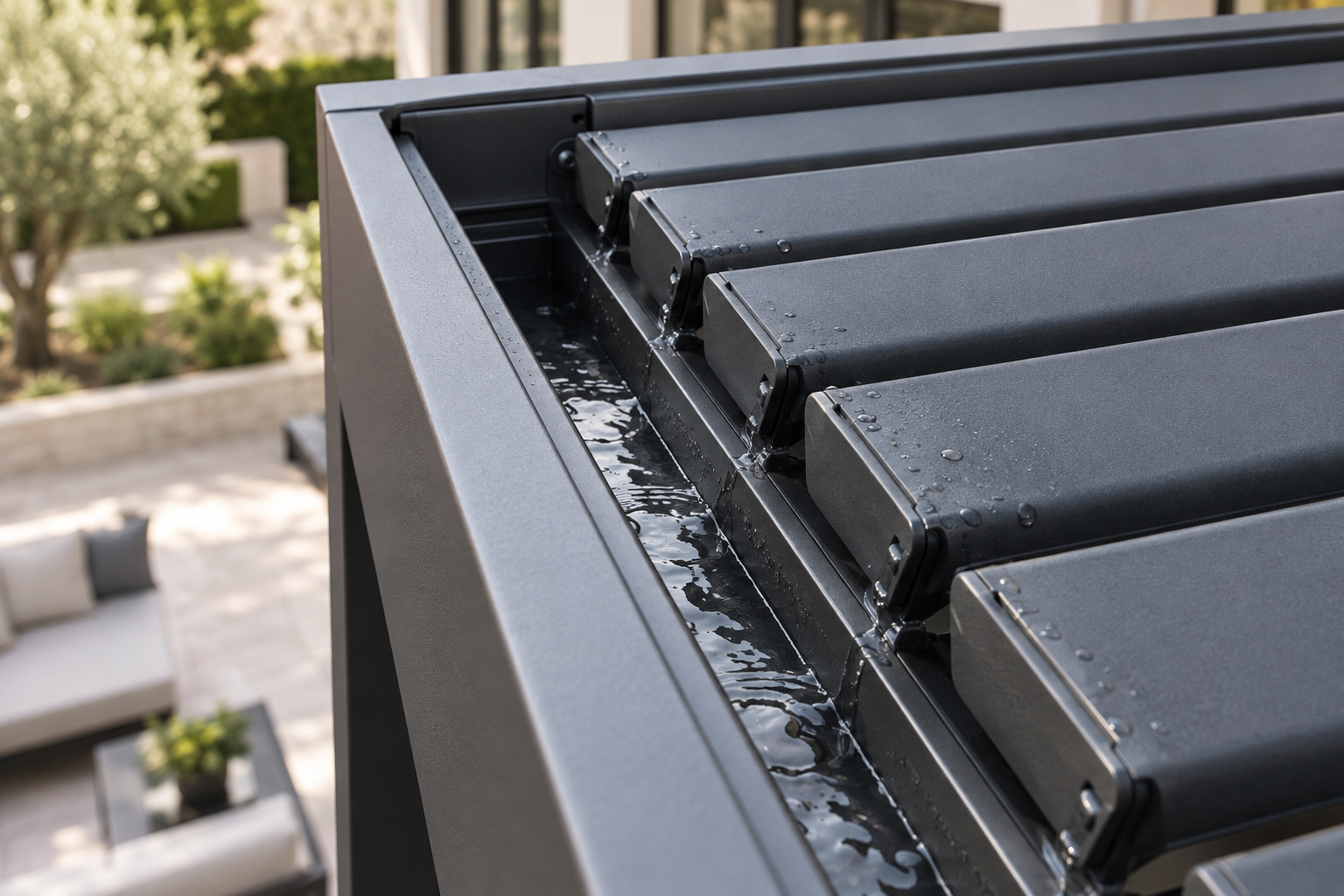

Integrated drainage planning for an aluminum louver patio roof04

Water Management Built In

Integrated gutter and drainage planning directs water through the structure.

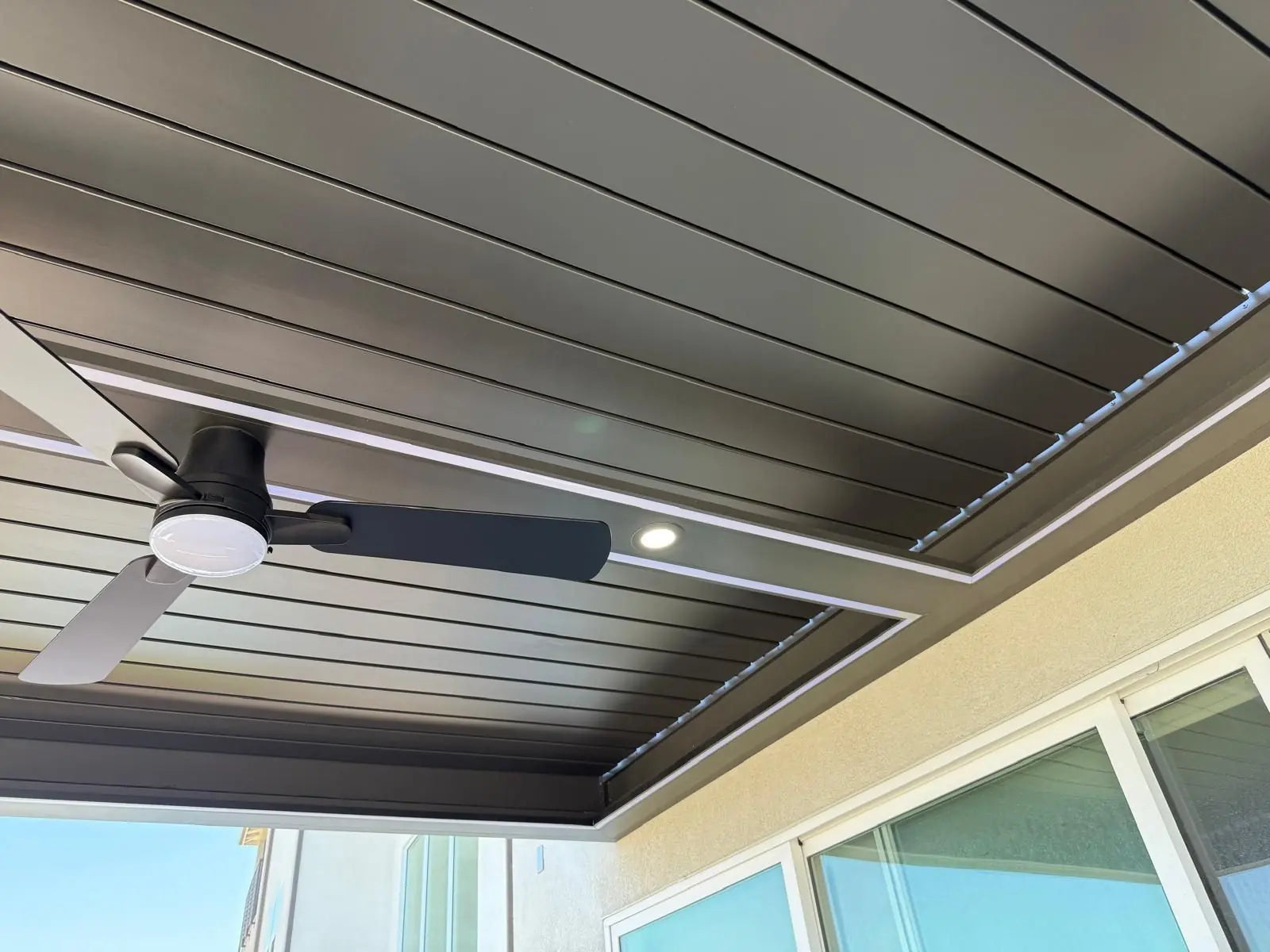

Aluminum louver patio with integrated LED lighting and ceiling fan05

Lighting Without Limitations

LED strips, recessed lights and custom lighting placement.

Finished automatic louver pergola integrated with a modern outdoor space06

Build the Entire Outdoor Space

Add fans, heaters, screens, privacy walls, TV walls and other architectural features.

See It in Every Setting.

Real Aluglobus automatic louver installations. Poolside, beside modern homes, over outdoor kitchens and under balconies.

The Tank eight-inch louver patio system video▶The Tank in Motion
Finished automatic louver pergola covering a modern outdoor patioModern Outdoor Patio

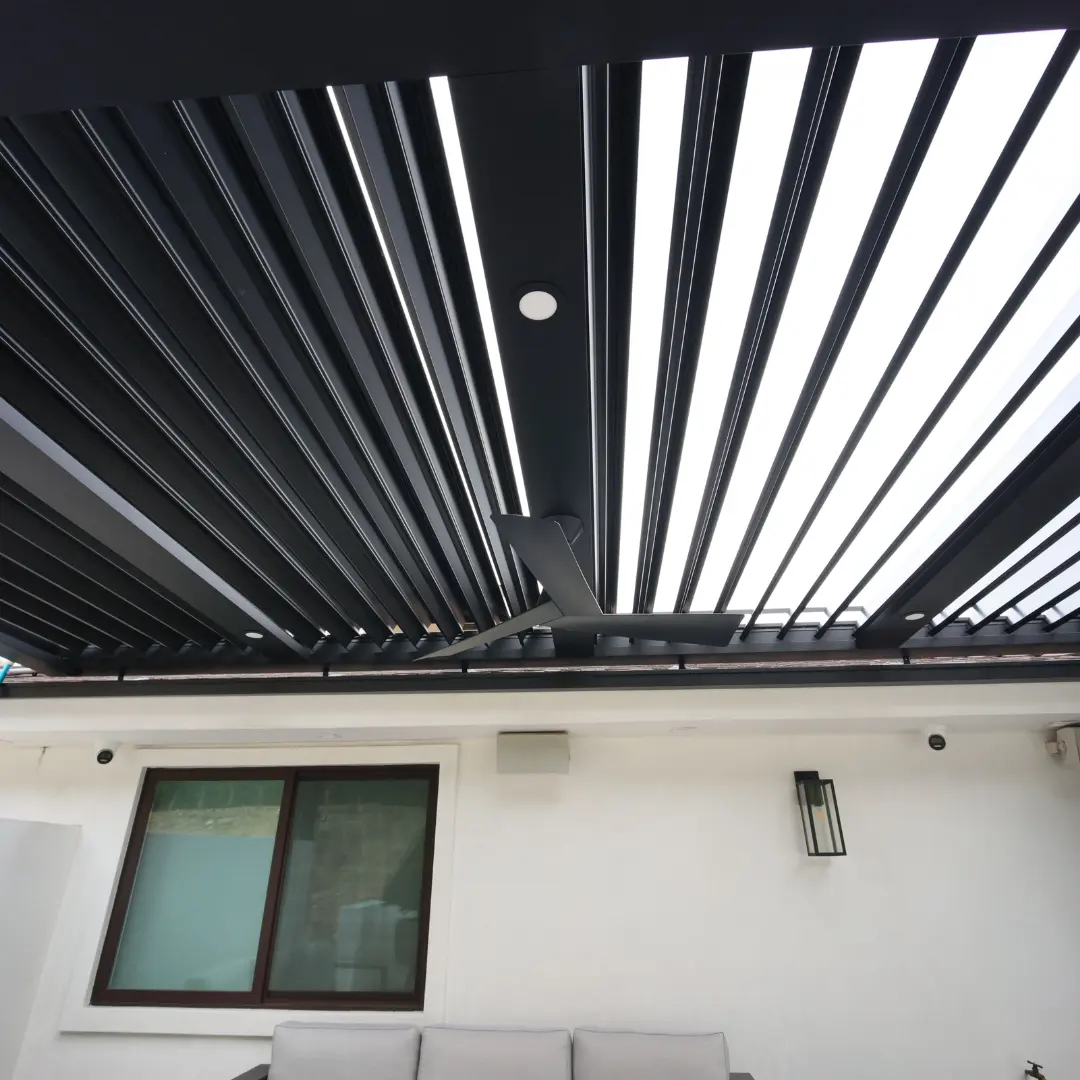

Automatic aluminum louver roof shown from the patio belowSeen From Below
Black automatic louver pergola installed beside a contemporary homeContemporary Home
Automatic louver patio cover creating shade over an outdoor living areaShaded Living Area
Project dimensions video▶Planned to the Inch
Completed aluminum louver pergola with clean structural linesClean Structural Lines
Automatic louver pergola open viewRoof Fully Open
White motorized louver patio cover open above a residential patioResidential Patio
Automatic louver patio system video▶System in Motion
White automatic louver patio roof open beneath palm treesPalm-Lined Backyard
White automatic louver patio cover closed over a modern backyard patioClosed for Full Shade
White automatic louver roof open above black sliding glass doorsIndoor-Outdoor Flow
The Difference

Not a kit.
An architectural system.

Architectural System

  • Custom dimensions
  • Custom structural layout
  • Multiple beam sizes
  • Multiple post sizes
  • Multi-zone roofs
  • Wall-mounted designs
  • Freestanding designs
  • Cantilever designs
  • Custom colors
  • Engineering available
  • Lighting placement flexibility
  • Commercial applications
  • Residential applications
  • Integrated accessories
  • Large project capability

Fixed Kit System

  • Predetermined dimensions
  • Limited configurations
  • Limited structural options
  • Designed around kit sizes
Looking for a simple fixed kit? We have a separate kit platform for standard sizes. View Patio Kits →
The System

One system. Every component engineered to work together.

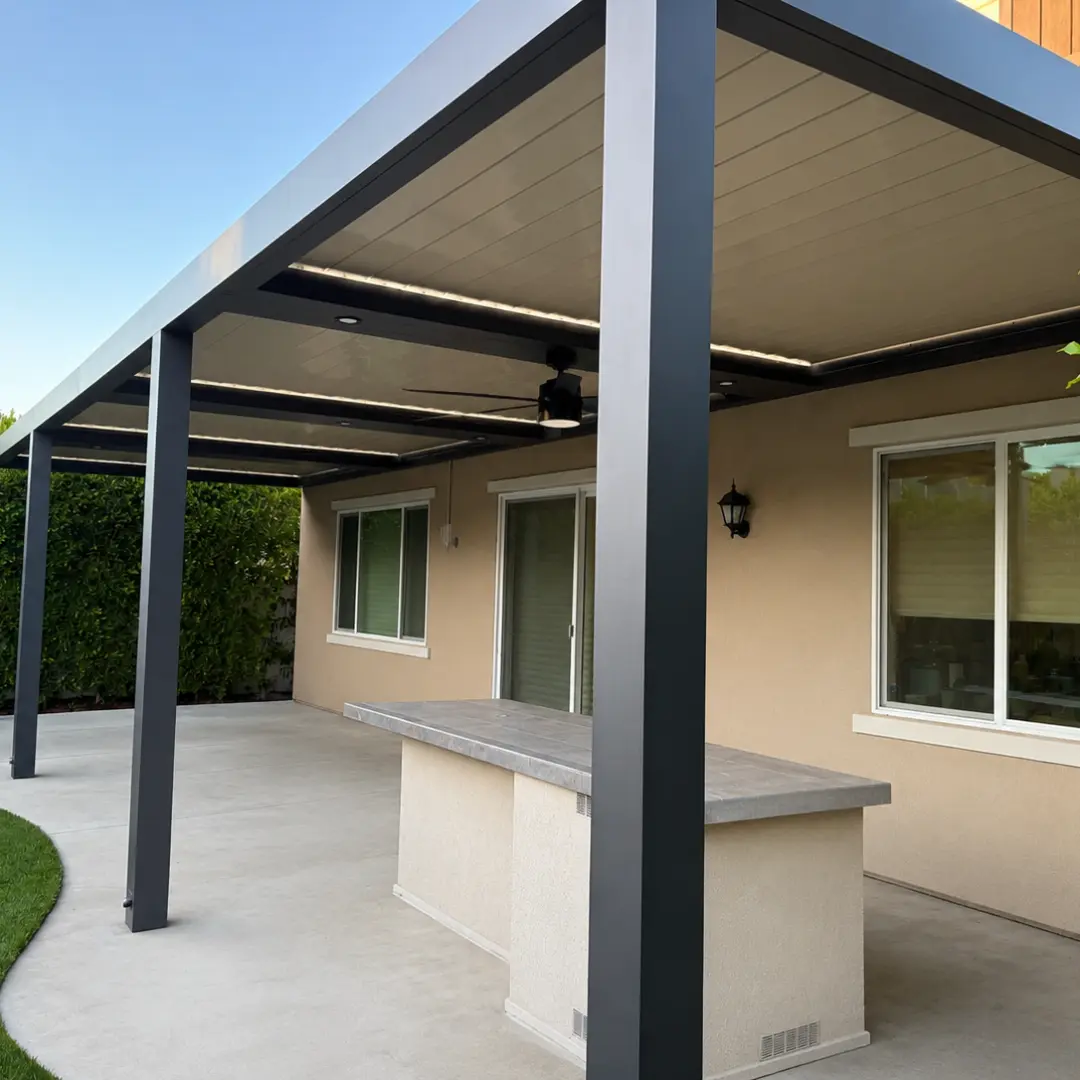

Square aluminum support posts on an installed patio cover Illustrative exploded view of an internal aluminum pergola post base assembly Aluminum perimeter beam and post connection on an automatic louver patio Illustrative detail of an integrated pergola gutter collecting water from louver blades Open aluminum louver blades viewed from beneath an installed patio roof Illustrative close-up of a linear actuator operating pergola louvers Illustrative close-up of a linkage bar connecting adjustable pergola louver blades Illustrative detail of rainwater draining through an outlet at the base of a pergola post Integrated perimeter LED strip lighting and recessed lights in an aluminum louver patio Installed ceiling fan and recessed lighting integrated into an aluminum louver patio 01Post
  1. 01

    Post

    6", 7" and 8" square extruded aluminum post options in 10', 12' and 14' heights.

  2. 02

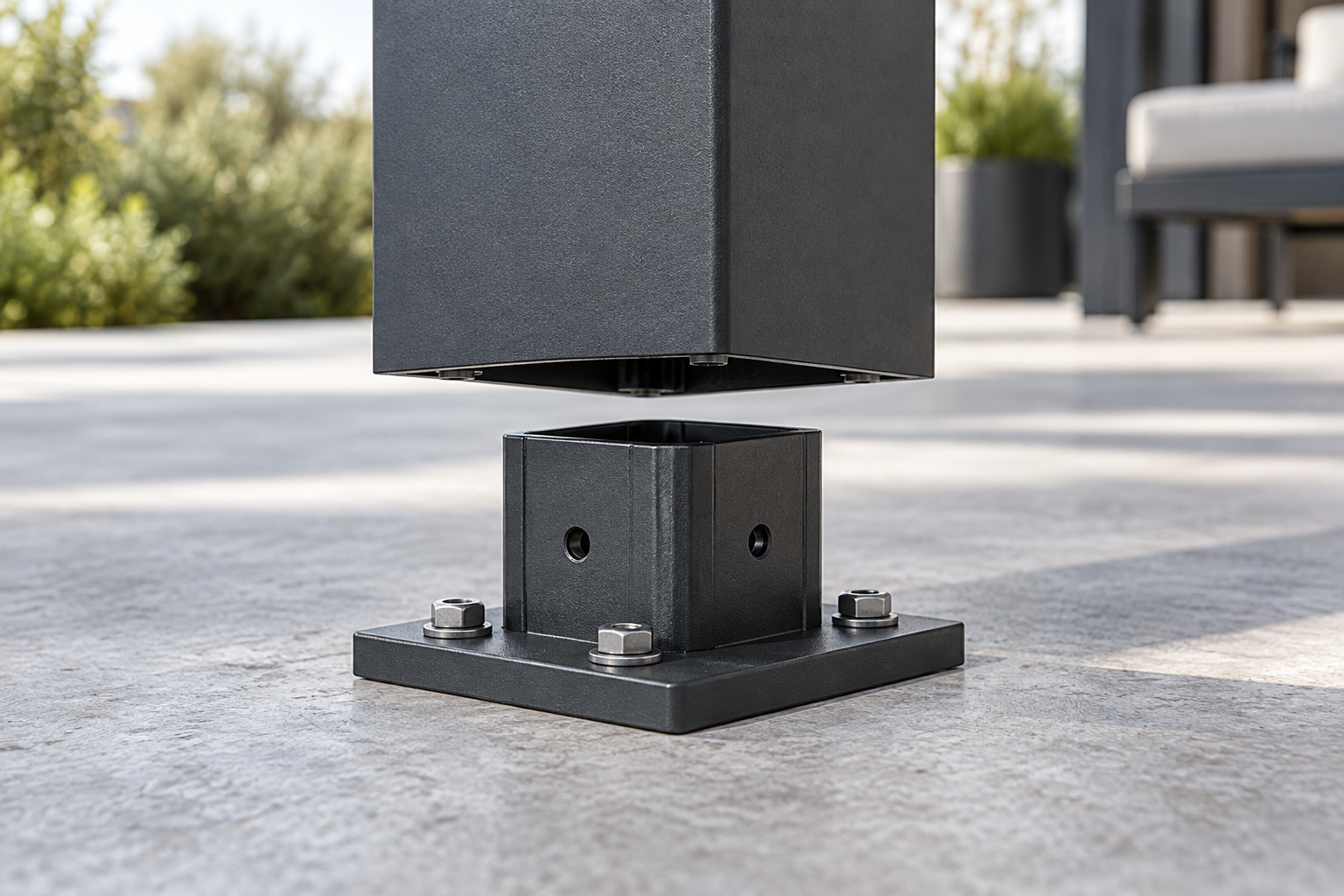

    Base Plate

    Inner base plate sized to the post: 5-3/4" for 6" posts, 6-1/2" for 7" posts.

  3. 03

    Main Beam

    2" × 8" and 2" × 10" architectural beams in 16', 20' and 24' lengths.

  4. 04

    Gutter

    3" × 5-1/2" gutter profile collects water from the closed roof.

  5. 05

    Automatic Louver

    8" extruded 6005-T6 aluminum blade. The part that makes the system different.

  6. 06

    Motor

    Motorized operation with remote control; app and rain-sensor upgrades available.

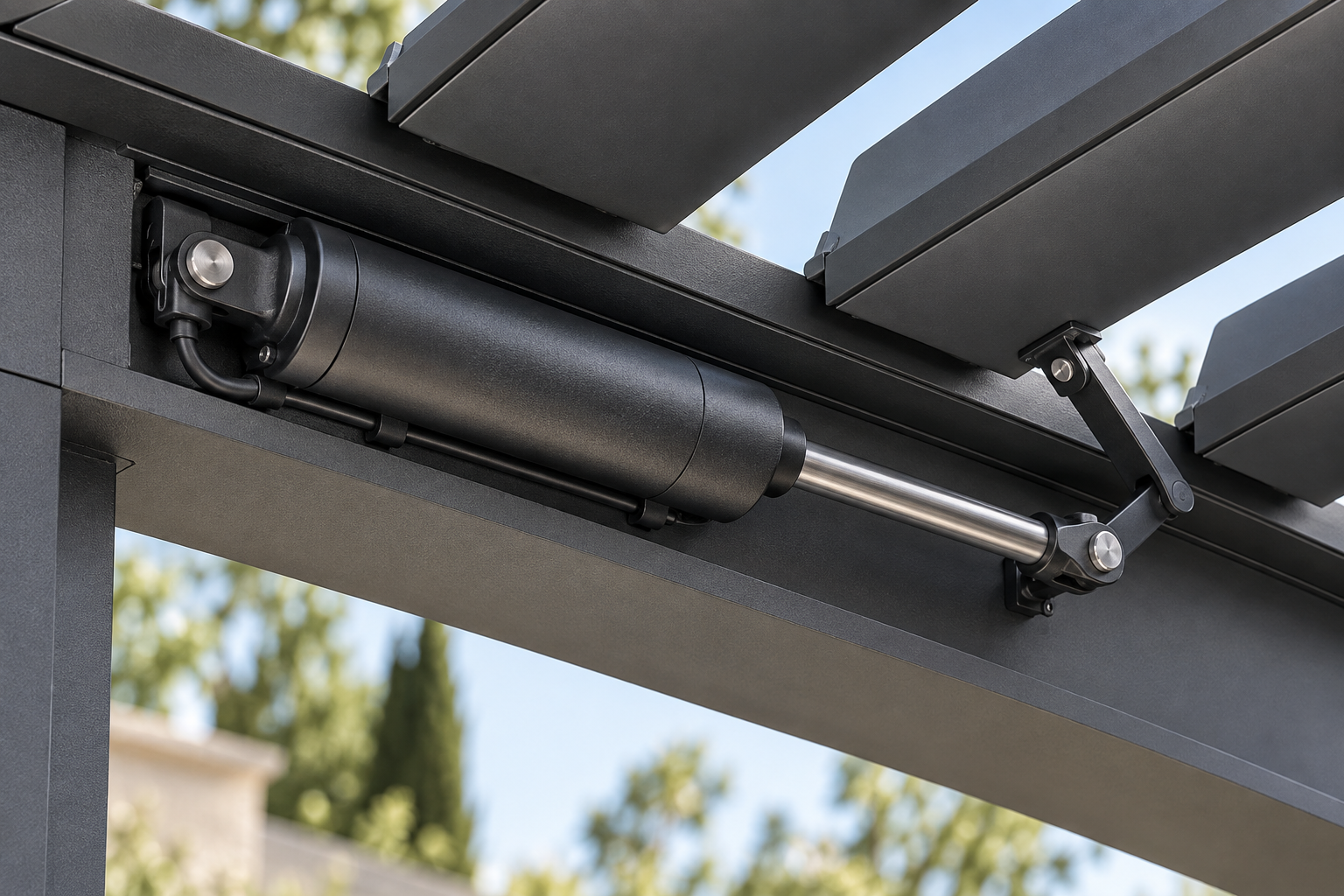

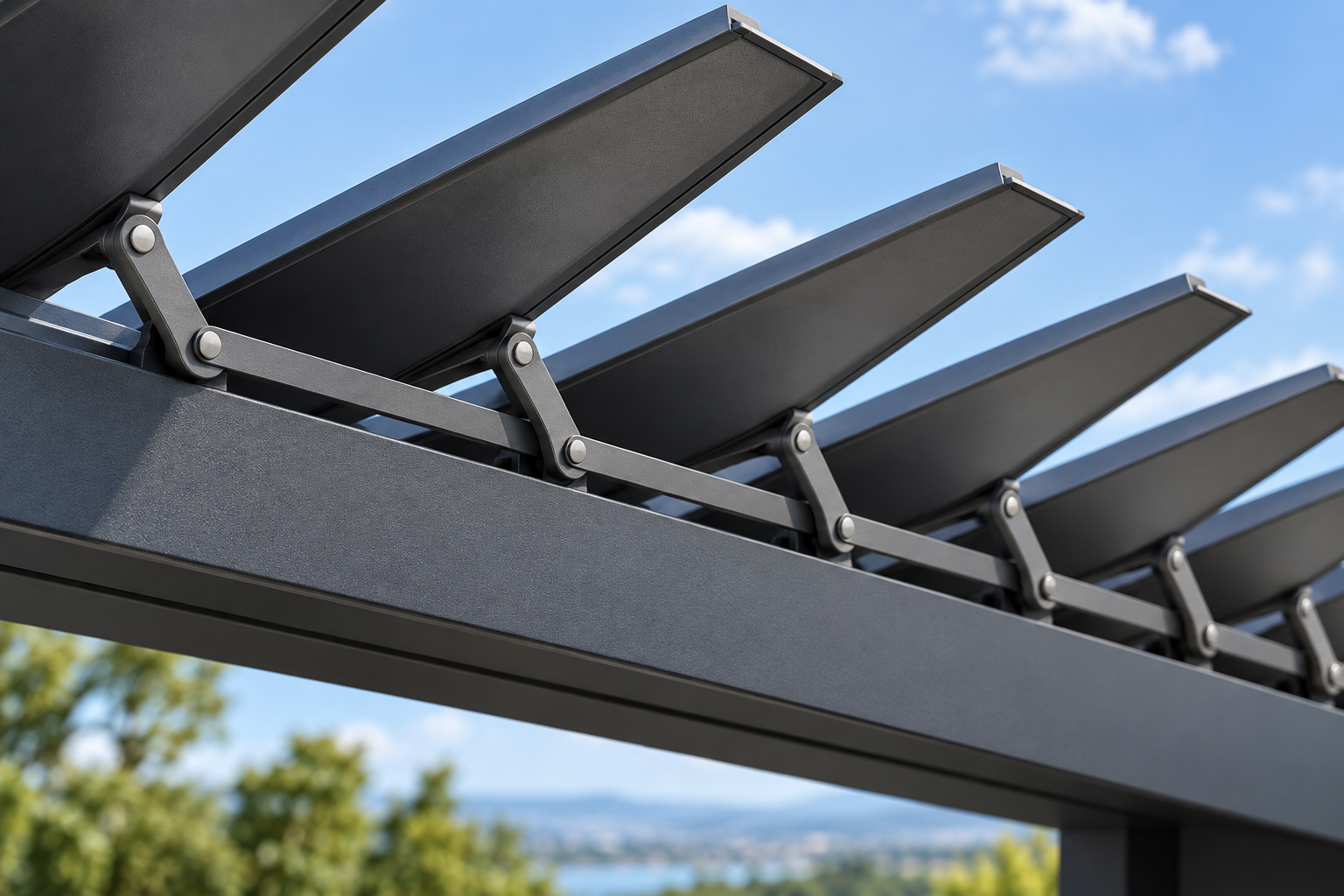

  7. 07

    Linkage

    Rotates every blade in a zone together: open, partially open or closed.

  8. 08

    Drainage

    Gutter and downspout planning routes water through the structure, with internal post drainage options.

  9. 09

    Lighting Channel

    LED channel and strip lighting, plus beams prepared for recessed lights.

  10. 10

    Electrical / Accessory Prep

    Planned for fans, heaters, screens and smart controls from the start.

Components

Heavy-duty extrusions. Sized for the project.

Request Spec Sheets →
8" BLADE · 6005-T6 EXTRUDED ALUMINUM
8" Automatic Louver Blade

The part that makes the system different.

The blade rotates on command: fully open for sun and airflow, partially open for filtered light, or fully closed for shade and rain protection. Extruded from 6005-T6 aluminum and backed by our 30-year blade warranty.

Blade8"
Alloy6005-T6
OperationMotorized
Warranty30 Years

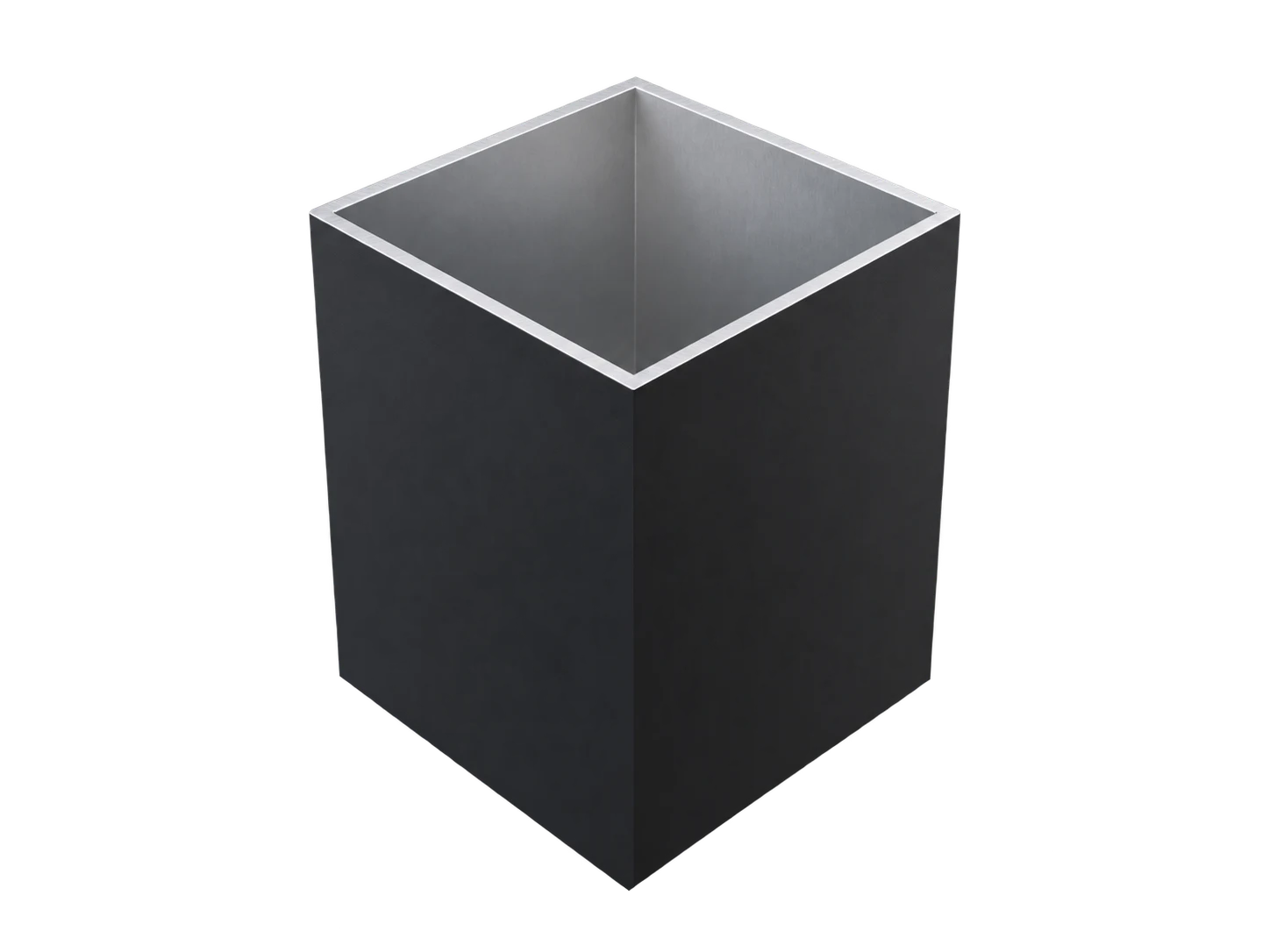

Charcoal aluminum square structural post with exposed hollow profile
Heavy-Duty Post

8" × 8" Structural Post

Heavy-duty architectural post option for larger and more demanding patio configurations.

Section8" × 8"
Heights10' / 12' / 14'

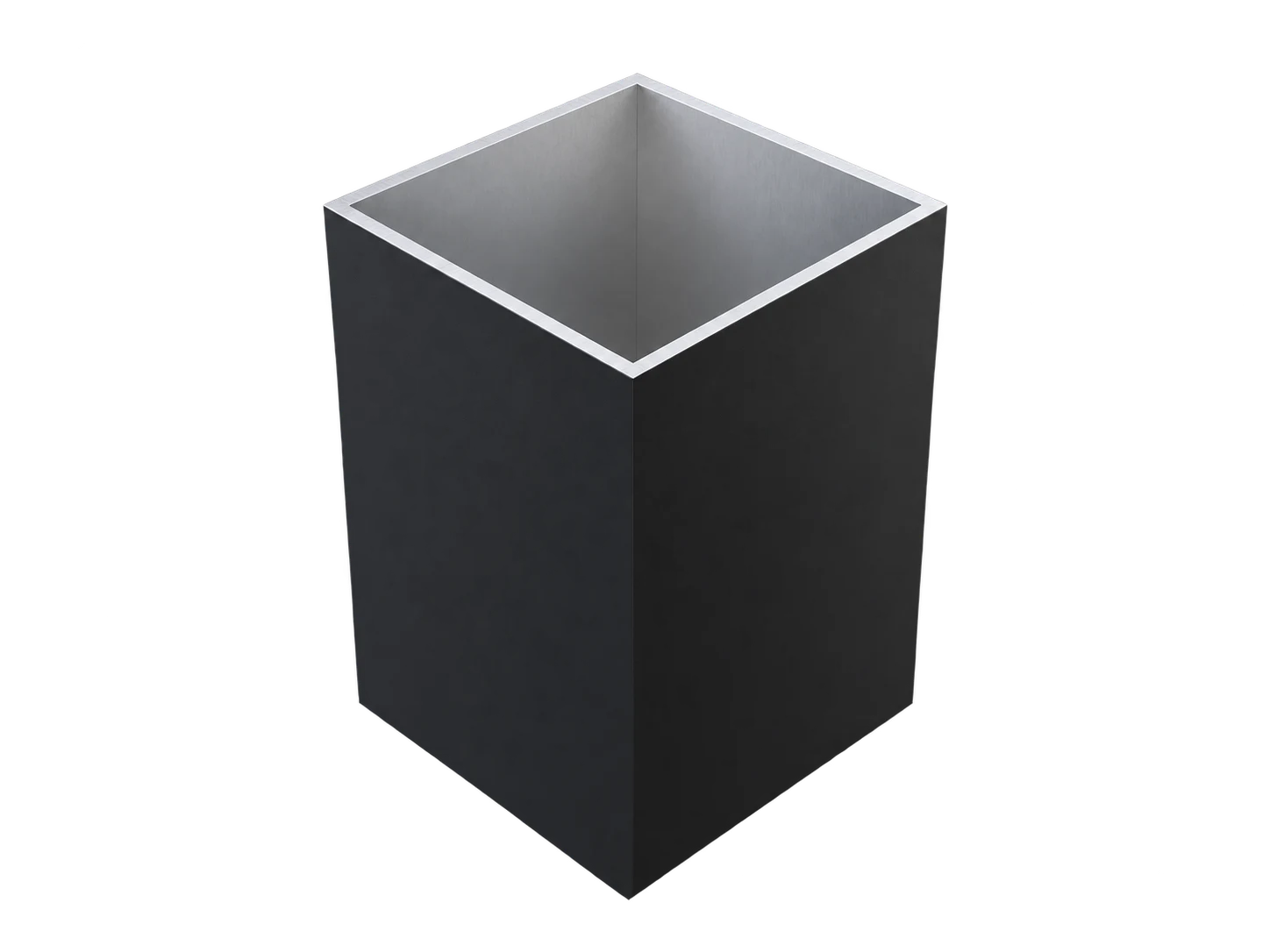

Charcoal aluminum square post profile illustration for the 7-inch post option
Post Option

7" × 7" Post

The versatile mid-size post for most residential spans and multi-zone layouts.

Section7" × 7"
Base Plate6-1/2" × 6-1/2"

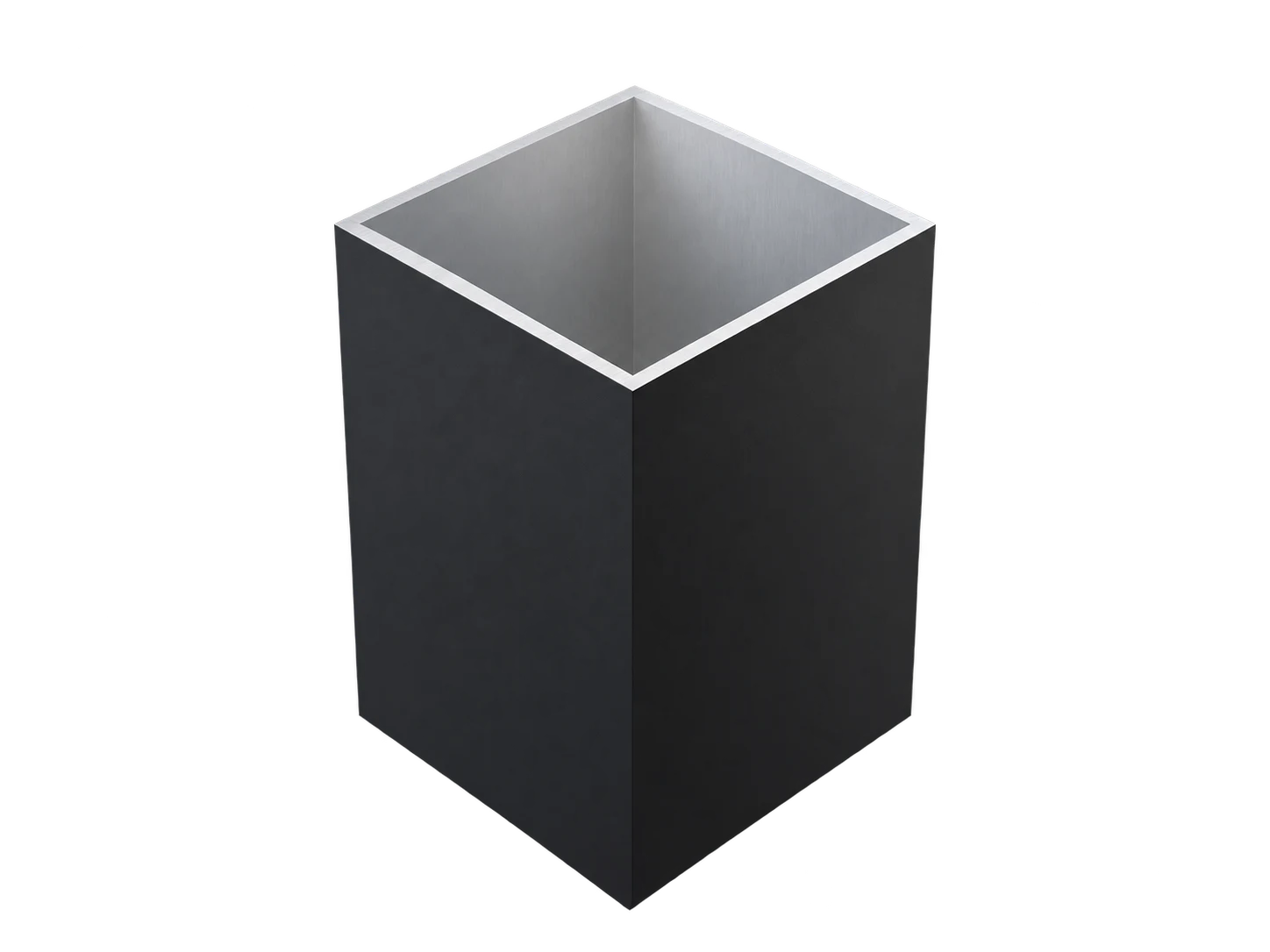

Charcoal aluminum square post profile illustration for the 6-inch post option
Post Option

6" × 6" Post

Clean, slimmer post profile for smaller footprints and wall-mounted designs.

Section6" × 6"
Base Plate5-3/4" × 5-3/4"

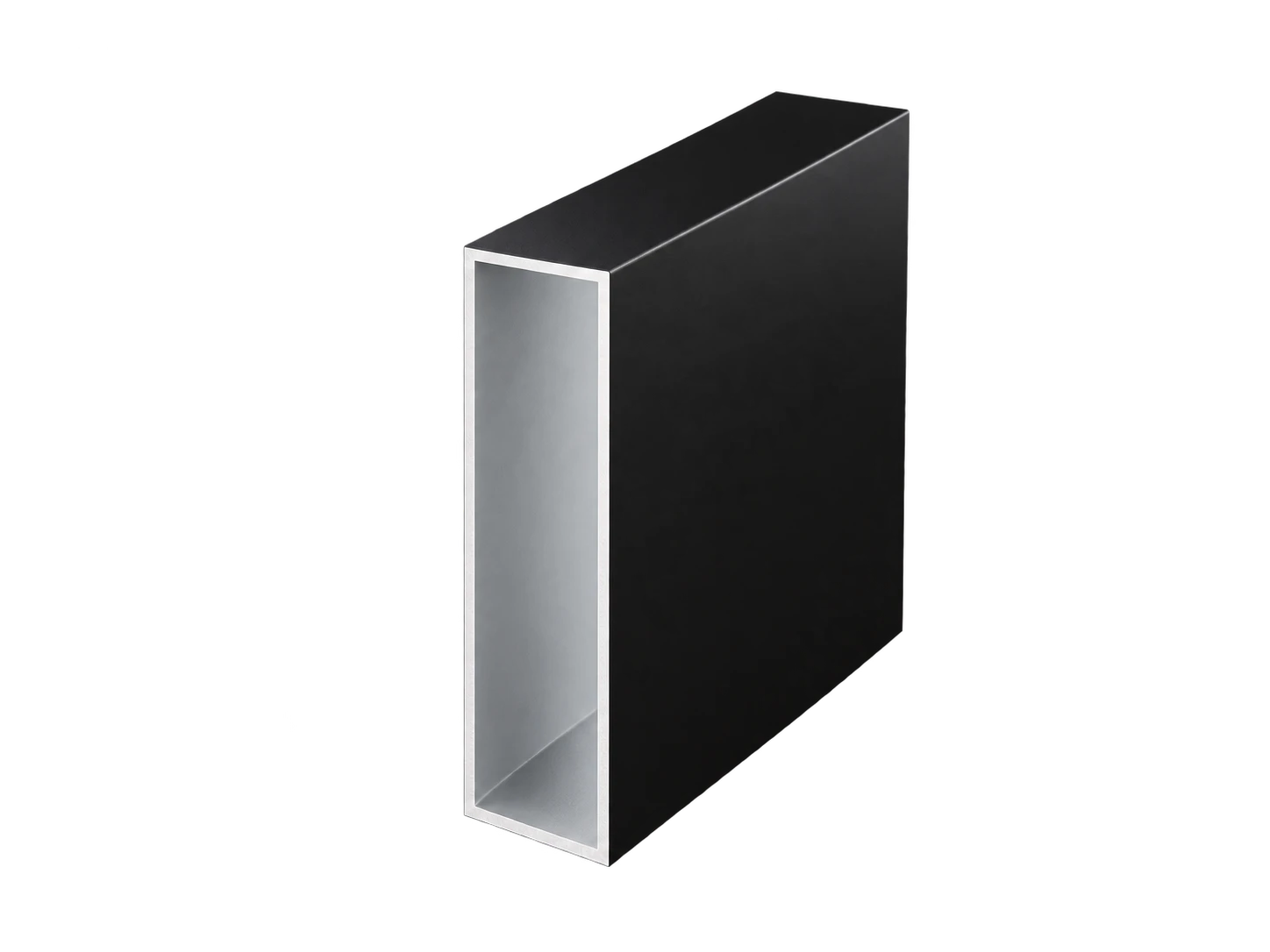

Charcoal aluminum architectural beam with a tall rectangular hollow profile
Main Beam

2" × 10" Architectural Beam

The deeper beam for longer spans, larger roof zones and cantilever conditions.

Section2" × 10"
Lengths16' / 20' / 24'

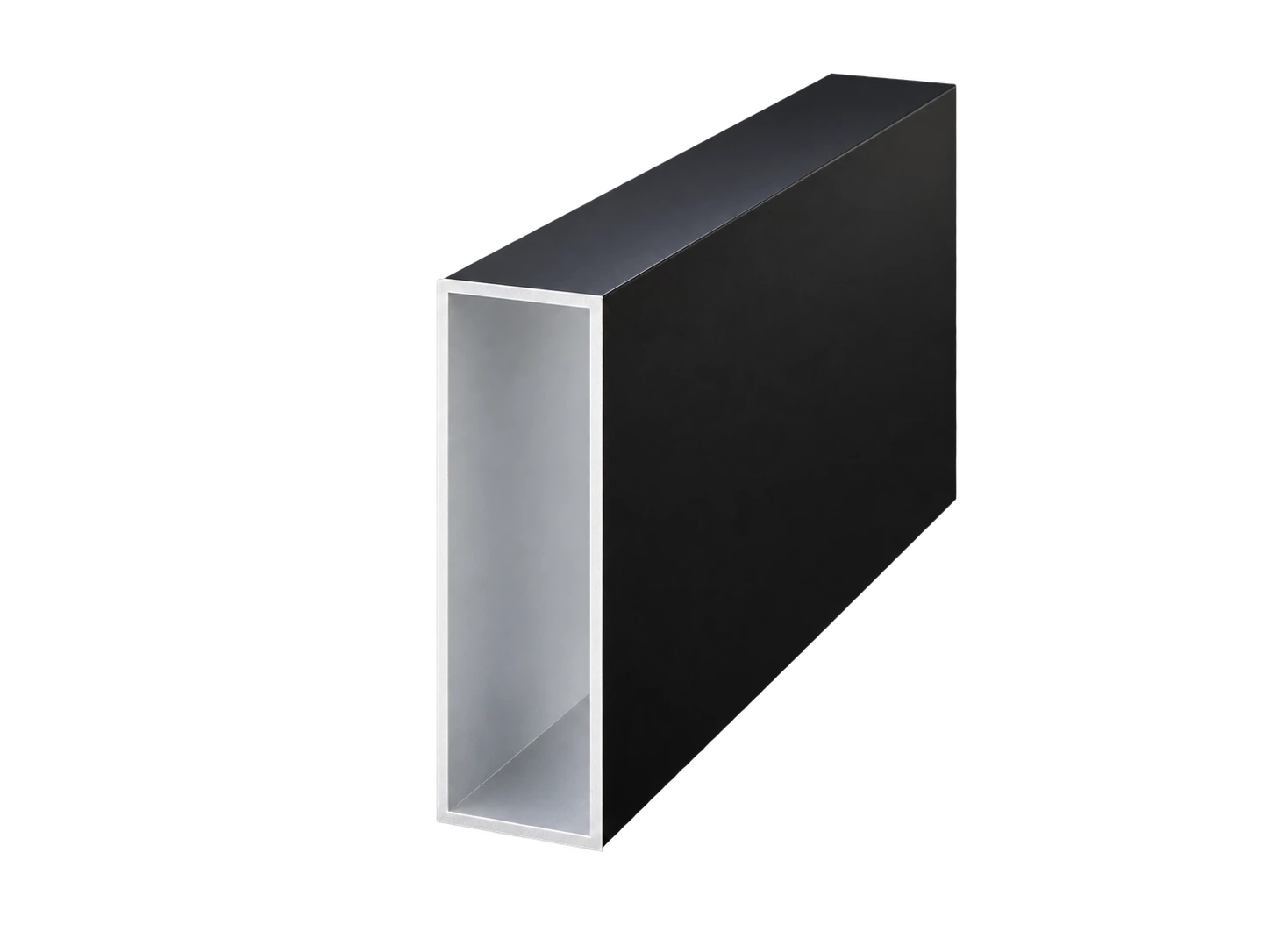

Charcoal aluminum rectangular beam profile illustration for the 2-by-8-inch option
Main Beam

2" × 8" Architectural Beam

Clean architectural beam for standard spans and lighter roof zones.

Section2" × 8"
Lengths16' / 20' / 24'

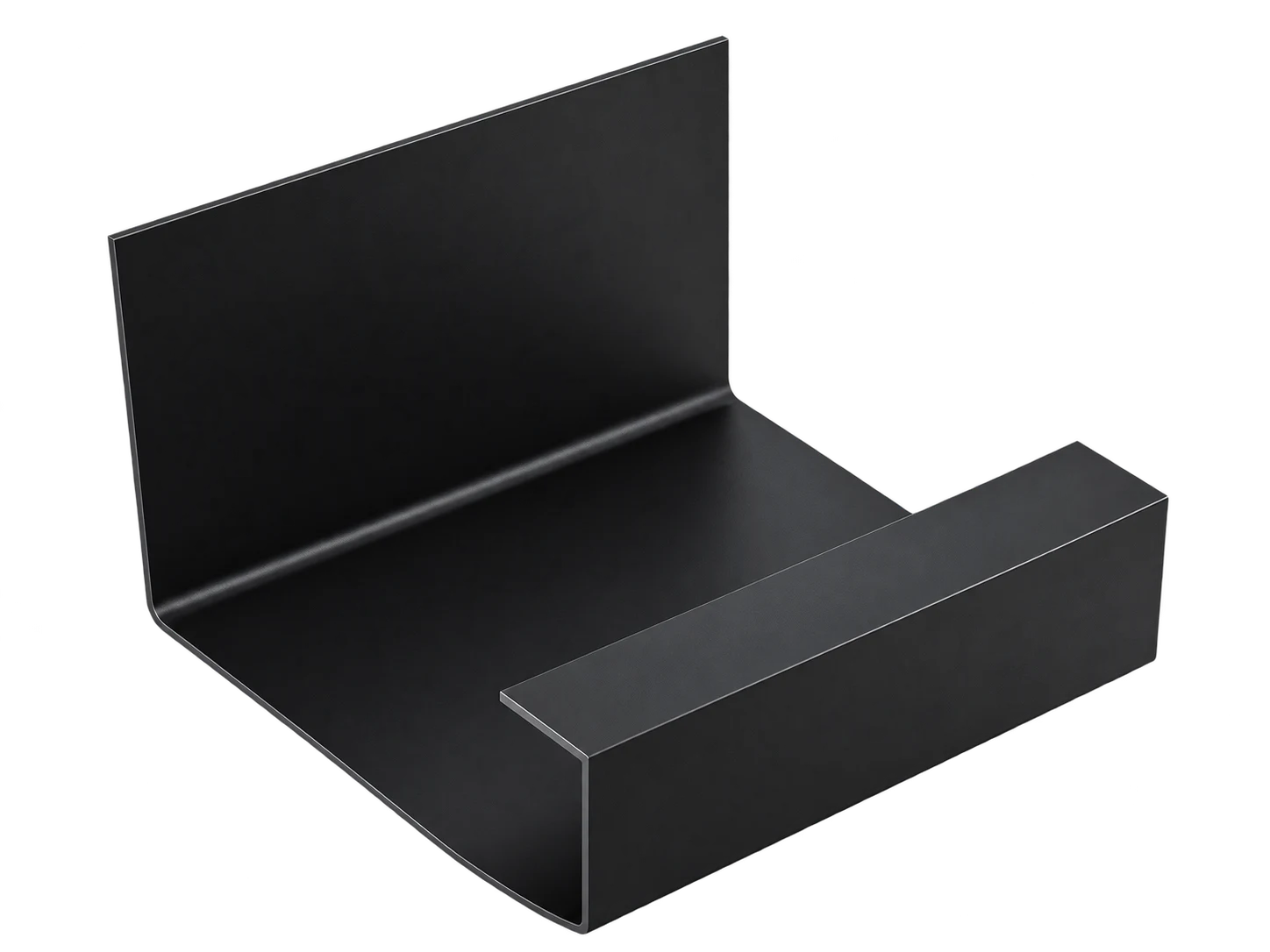

Charcoal aluminum gutter profile with a tall rear wall and inward front lip
Water Management

Integrated Gutter

Perimeter gutter that collects water from the closed louver roof and routes it to downspouts or post drainage.

Profile3" × 5-1/2"
FinishMatches system
Material

The right aluminum for the right part of the system.

6063-T6

Used throughout architectural extrusion components where finish quality, dimensional consistency and structural performance are important.

Architectural extrusions
6061-T6

Used where higher structural strength is required, depending on component and engineering requirements.

High-strength structure
6005-T6

Used for our automatic louver blade, the moving roof surface that carries sun, wind and rain every day. Backed by a 30-year blade warranty.

Automatic louver blade
Options

Where the kit stops, the system starts.

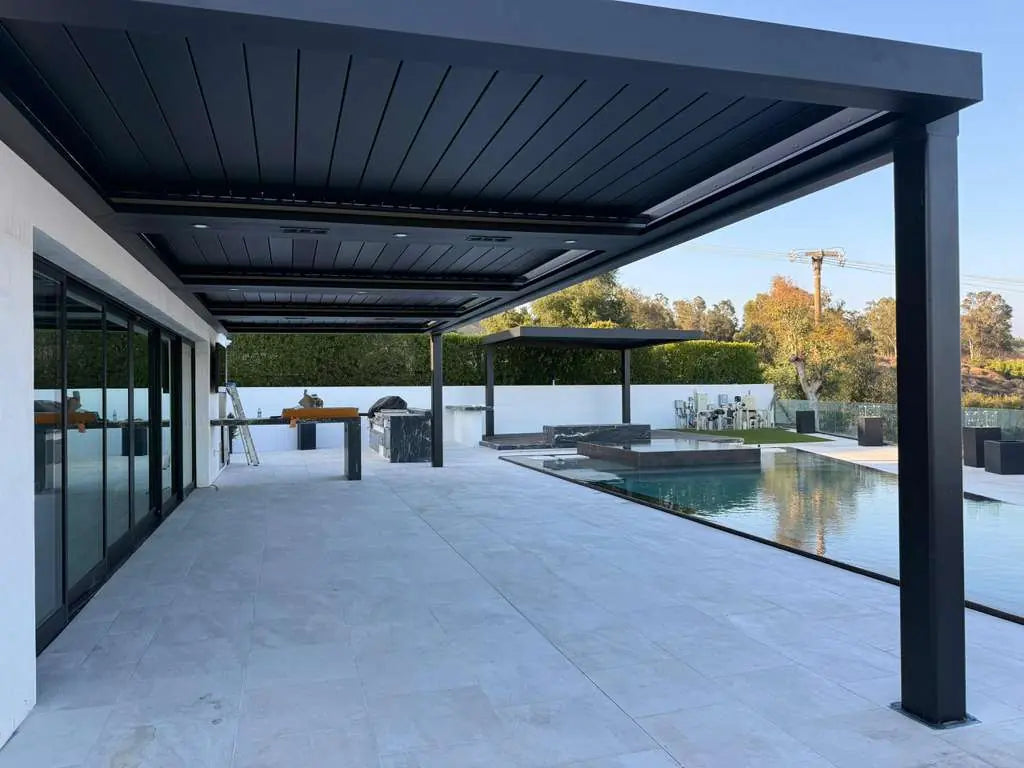

40 ft Monster Tank louver patio by the pool before the integrated lights are switched on 40 ft Monster Tank louver patio with warm perimeter and recessed lights illuminated Lights OffLights On
Lighting

Put the light where the design needs it.

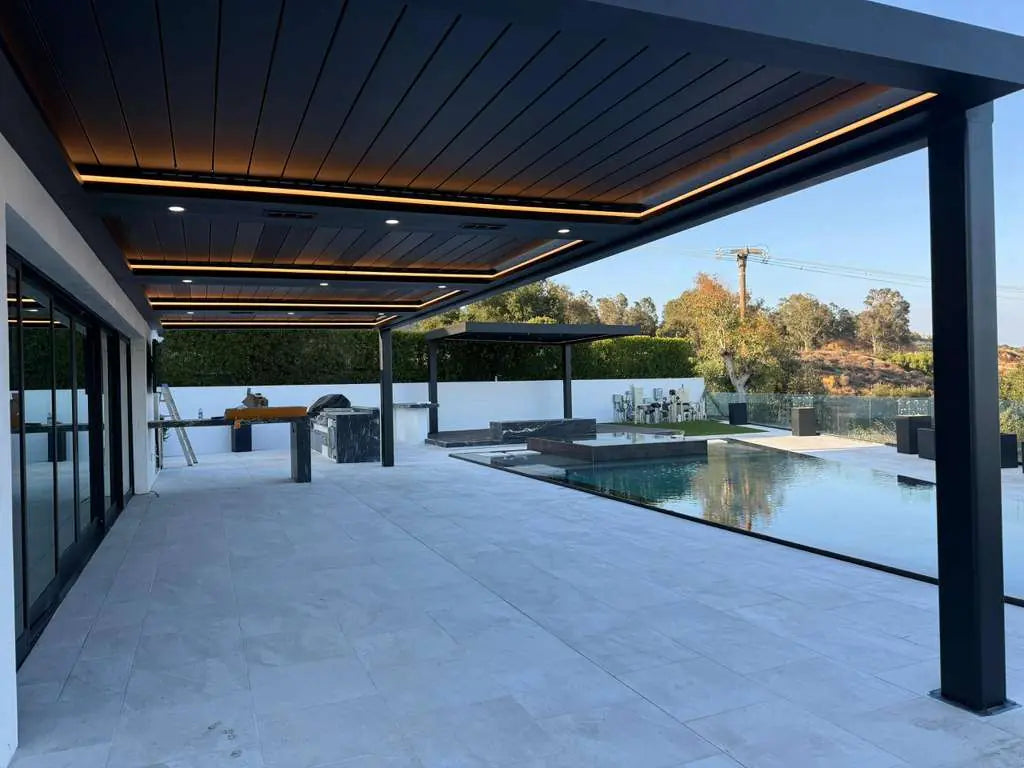

40 ft Monster Tank, poolside. LED strip, recessed and accent lighting planned around the space.

Smart Control

Open. Close. Control.

Motorized operation with multi-channel remote options. One handset can run the whole patio.
Multiple independent roof zones: open over the pool, closed over the kitchen, at the same time.
Optional rain sensor closes the louvers automatically when rain is detected.
Optional smart-control integration, depending on the motor and control package selected.
The Tank louver system moving as one architectural roof▶

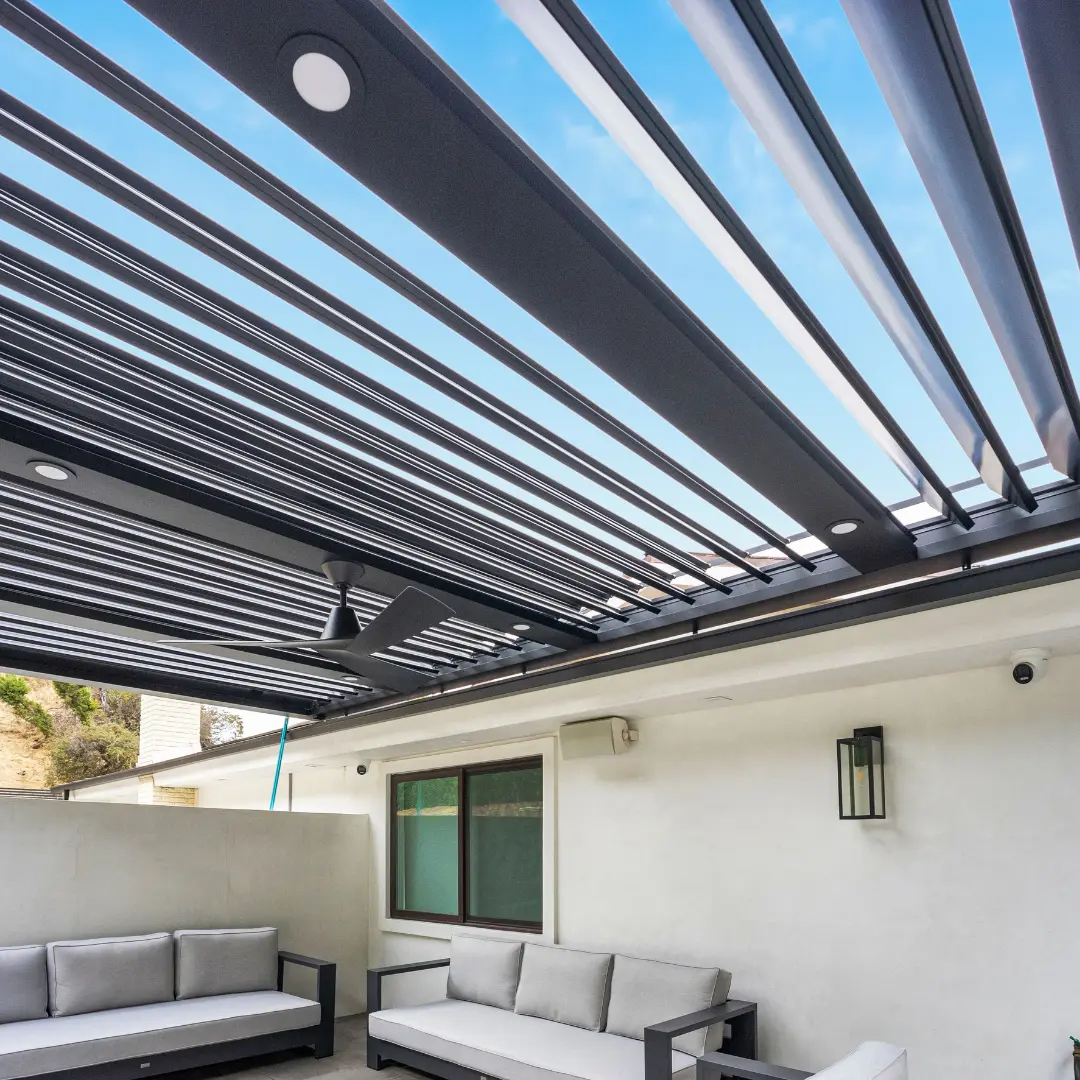

Ceiling fan mounted to a dedicated beam between aluminum louvers
Fans

Put the fan where you want it.

Dedicated beams let ceiling fans sit exactly over seating, dining or kitchen areas instead of where a kit decides.

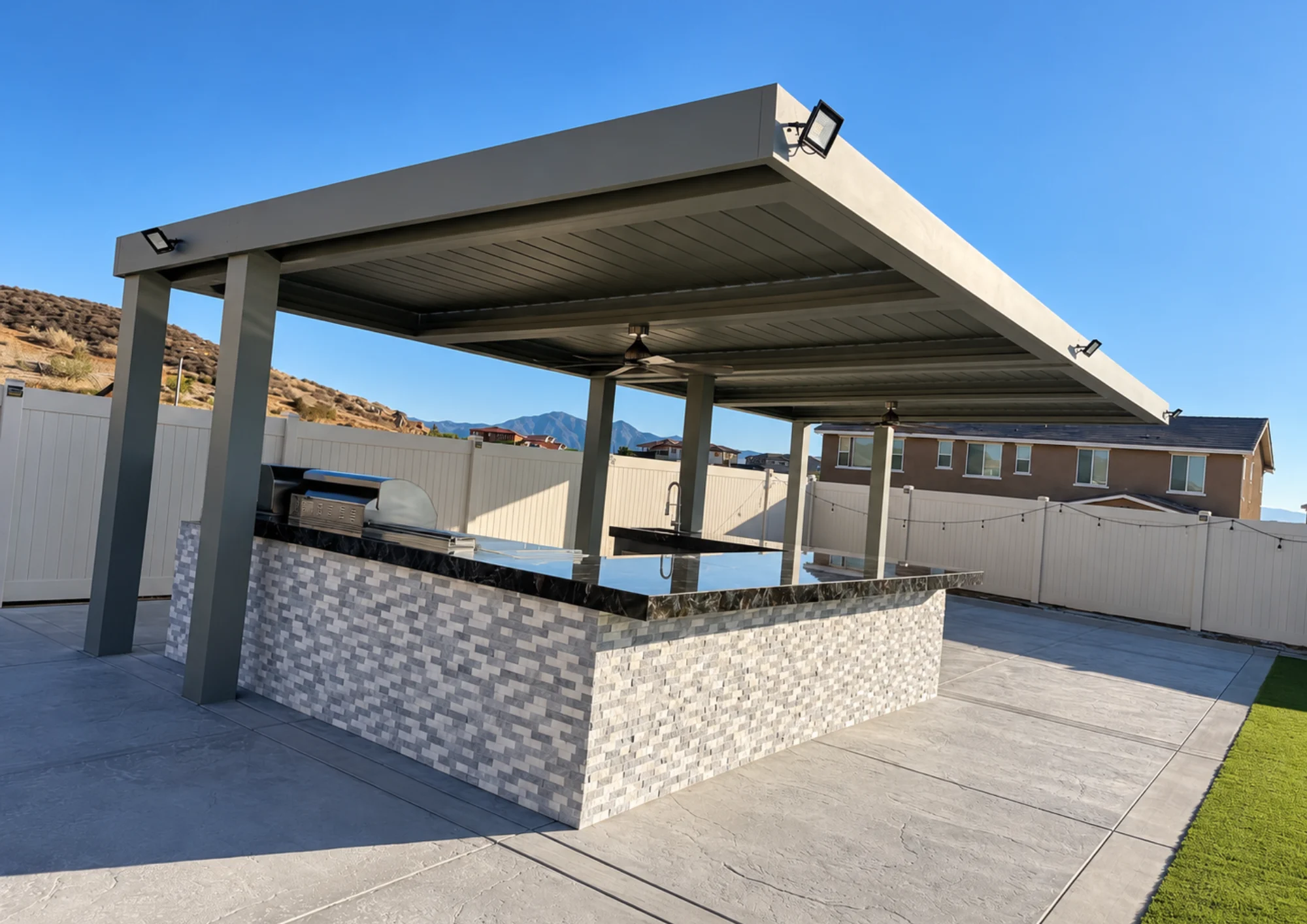

Closed louver patio cover over outdoor kitchen
Comfort

Comfort throughout the year.

Ceiling fansInfrared heatersLightingScreensSmart controls

Compatibility and installation requirements vary by application.

Louver blades angled open for ventilation
Airflow

Ventilation on demand.

Angle the blades to release trapped heat and let air move through, while still keeping direct sun off the space.

Built to last decades
30YR

Warranty on our automatic louver blade

6005-T6 Extruded Aluminum
25-YearLimited
System Warranty

Terms, limitations, environmental conditions, maintenance requirements and exclusions apply. See full warranty documentation.

View Warranty
Configurations

Your patio doesn't have to fit the system. The system can fit your patio.

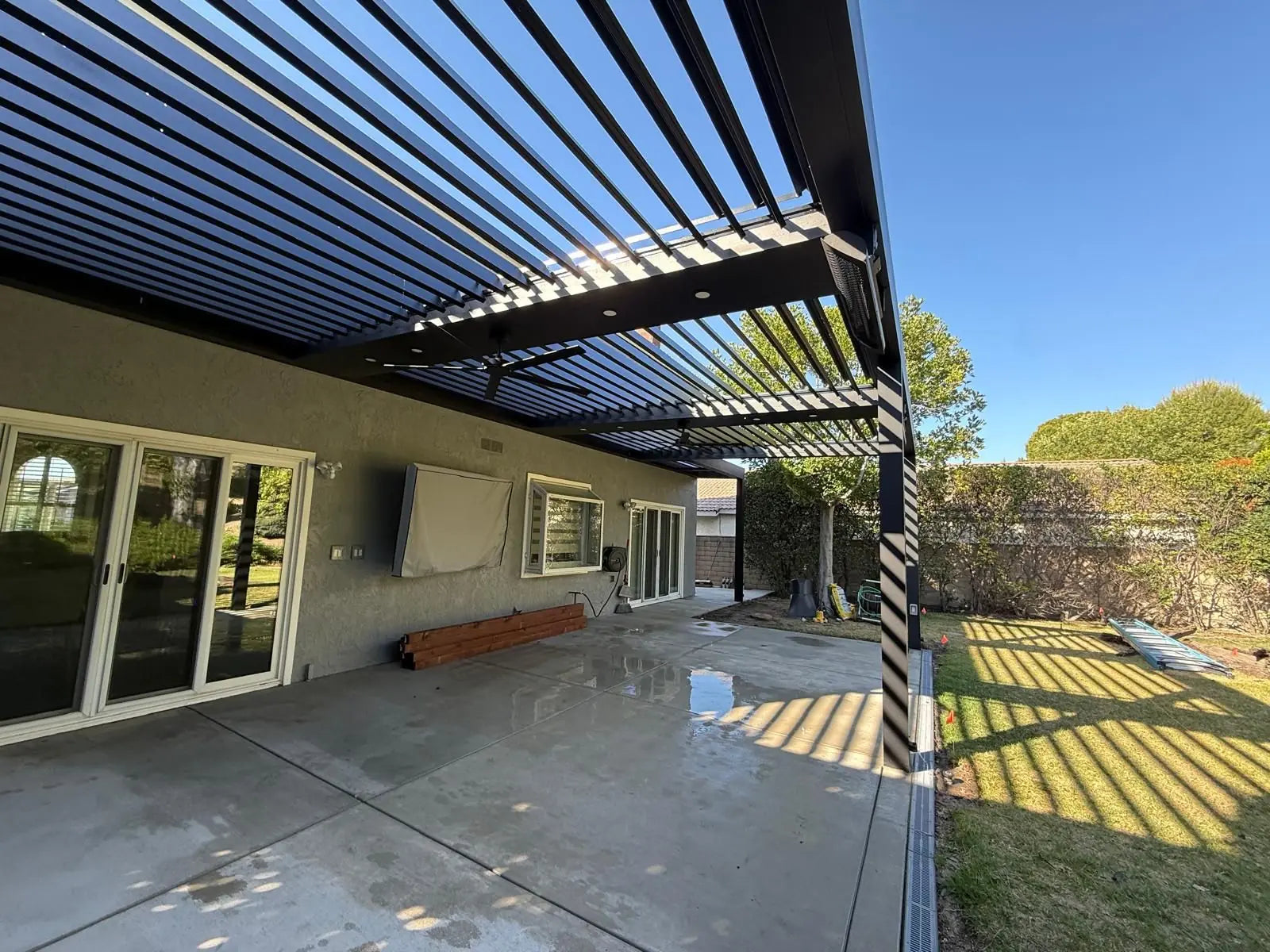

Freestanding aluminum louver patio cover with open architectural sightlines01

Freestanding

Four-post or multi-post independent structures.

Aluminum louver patio attached to a contemporary home02

Wall-Mounted

Connect the patio structurally with the building.

Side-angle view of a deep cantilevered aluminum louver patio roof03

Cantilever

Reduce posts where engineering and project conditions allow.

Multi-zone louver roof04

Multi-Zone

Different roof areas operating independently.

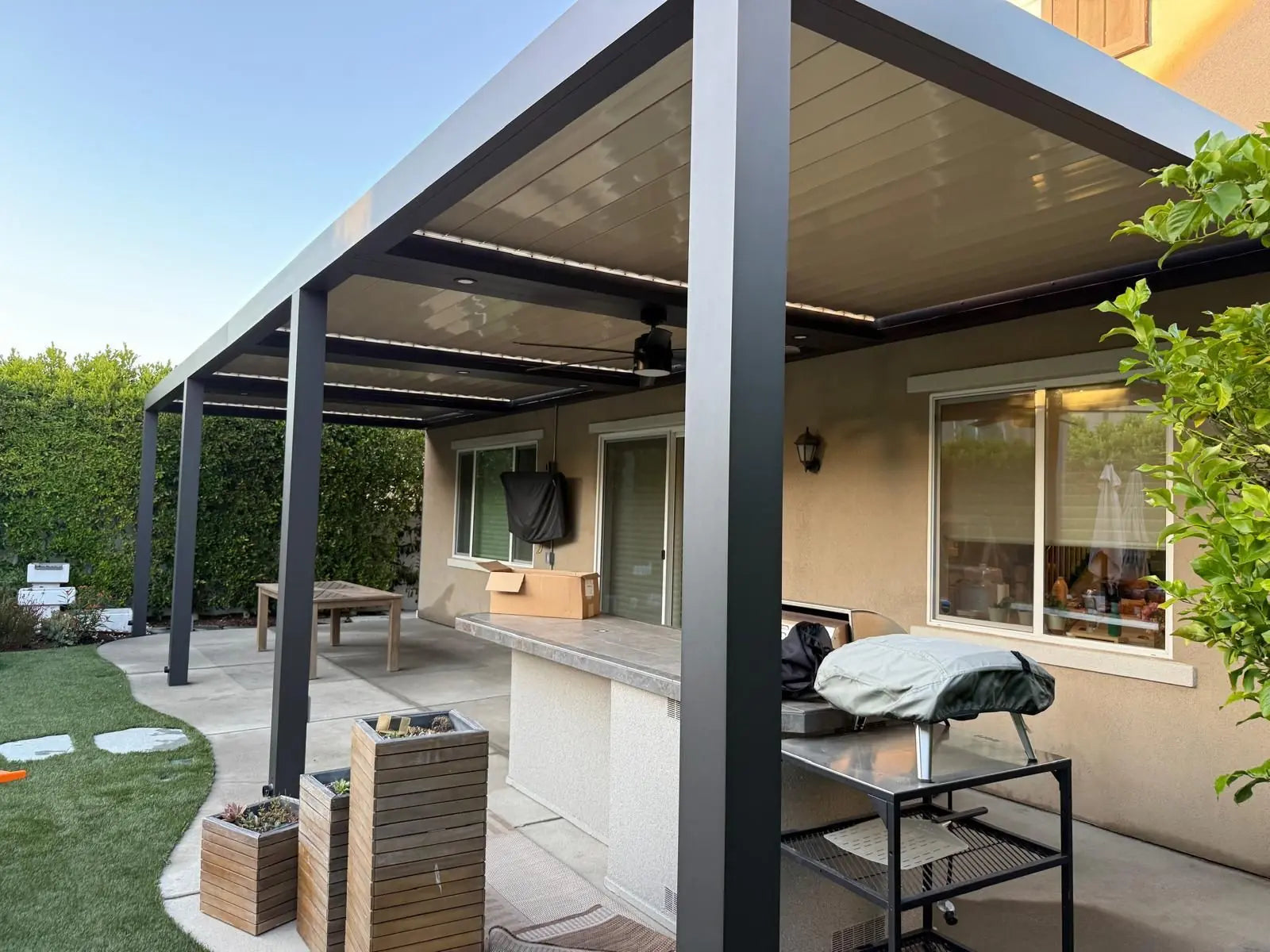

Large-format aluminum louver patio arranged around a custom project layout05

L-Shape / Custom

Custom layouts based on the architecture.

Large-scale aluminum louver patio for hospitality and commercial spaces06

Large-Scale

Residential, hospitality, multifamily and commercial applications.

Cantilever aluminum patio cover with open corner
Cantilever

Open the corner.

Cantilever configurations can create cleaner sightlines and more usable space without placing posts everywhere.

  • Structural engineering available
  • Cleaner views
  • Improved circulation
  • Architectural appearance
  • Custom span configuration

Engineering determines the final configuration for every project.

Plan a Cantilever
Engineering

Custom engineered for wind, snow & structural load requirements.

Every architectural louver project can be sized, calculated and documented around its real site conditions.

Engineering Capability

Wind Load
Project Specific
Snow Load
Project Specific
Span
Project Specific
Cantilever
Project Specific
Footing & Anchoring
Project Specific
Structural Calculations
Available
Stamped Engineering
Available by Location

No one-size-fits-all ratings. Every project is engineered around its actual loads, spans and site conditions.

Request Engineering Information
Signed and stamped louver span tables for attached and freestanding structures by wind exposure and snow load ✓ Signed engineering Aluglobus automatic louver project engineering documentation

Stamped & signed span tables. Tap to view full size.

Wind SpeedTabulated up to180 mphExposure B & C
Ground Snow LoadTabulated up to100 psfIBC · 58.8 psf roof design load (ASD)
Louver SpanAllowable up to13′-7″Varies with wind exposure and snow load
Structure TypesEngineered forAttached & FreestandingSeparate span tables for each
No size limit.

Each bay is engineered and stamped. Bays connect side by side and end to end, so your patio can be 20 ft or 200 ft. The size is set by your project, not by the system.

From a span table stamped and signed by a licensed California professional engineer (civil), January 2026. Allowable spans range from 13′-7″ at standard loads down to 7′-10″ for a freestanding structure at 180 mph (Exposure C) with 100 psf ground snow. Your project is engineered around its own loads, spans and site conditions.

Structural SectionAutomatic louver structural section viewDrawing
Layout PlanAutomatic louver top view layout planDrawing
Connection DetailStructural aluminum frame and automatic louver roof connection detailInstalled

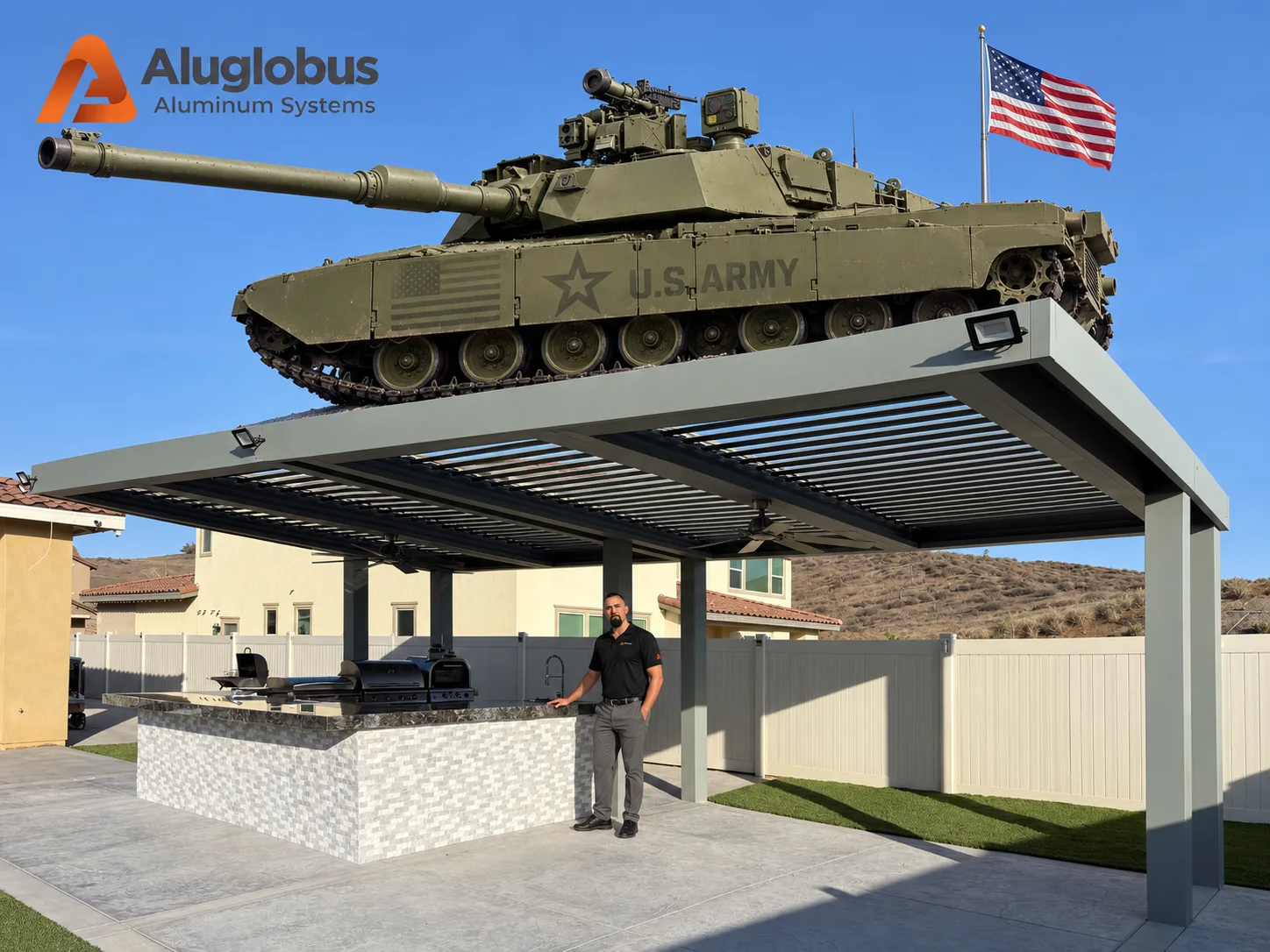

Aluglobus automatic louver patio structure supporting heavy load test
Aluglobus vs. Others

No AI. No Shortcuts. 5,000 Pounds of Proof That Your Family's Safety Is Important.

A frame engineered to be 5x stronger than the competition doesn't just hold up, it doesn't even notice. Just real engineering for your family's safety.

View Comparison vs. Others
01Architectural Automatic Louver SystemNot a pergola kit
02Up to 100 ft+ Custom Patio ConfigurationsSpans, zones and layouts
03Engineered Around the Project, Not a Preset KitSized for real site conditions
04American Made · 6061-T6 & 6005-T6Architectural extruded aluminum system, built without limits

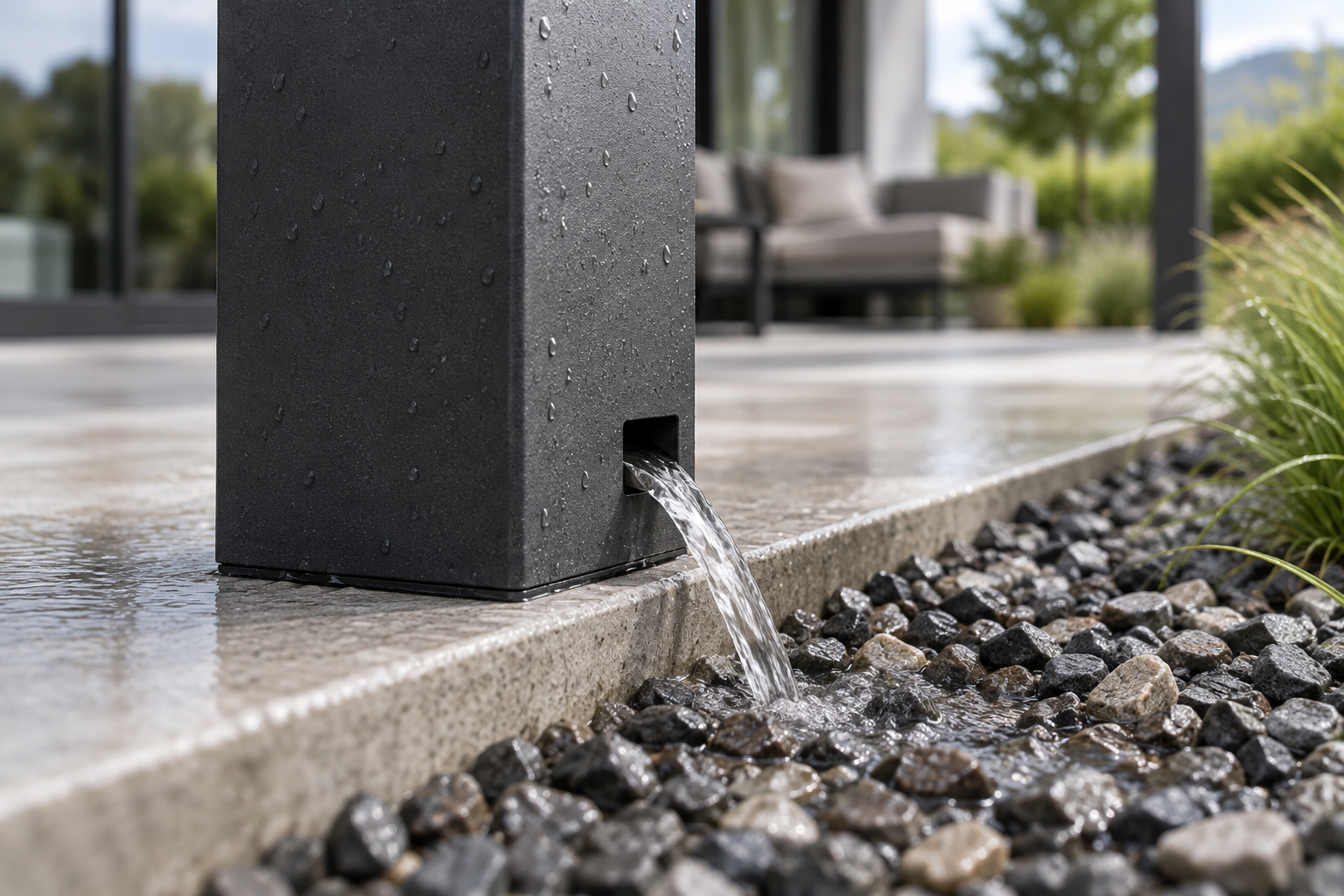

① CLOSED LOUVERS② PERIMETER GUTTER →③ INTERNAL DRAINAGE④ POST / DOWNSPOUT
Water Management

Designed for rain, not just shade.

When the roof closes, water runs off the louvers into the gutter system and is routed down through the structure, not onto your furniture.

  1. 1

    Louver

    Closed blades shed water toward the perimeter.

  2. 2

    Perimeter gutter

    Integrated 3" × 5-1/2" gutter collects runoff.

  3. 3

    Internal drainage

    Concealed water-management options keep the roof clean.

  4. 4

    Downspout / post drainage

    Controlled discharge at the base of the structure.

Fully closed louver roof

A sealed roof line, on command.

Closed blades create a clean, continuous roof surface for weather protection.

Top view of the louver roof frame and perimeter gutter

Gutters planned into the frame.

Integrated gutter planning keeps water management part of the structure.

Closed louver patio beside pool

Controlled drainage.

Water exits where you plan it, away from the space you live in.

Complete outdoor living space under an automatic louver roof
Complete Outdoor System

The roof is only the beginning.

  • 1Automatic louver roof
  • 2Recessed lights
  • 3LED strips
  • 4Ceiling fan
  • 5Heater
  • 6Motorized screen
  • 7Privacy wall
  • 8TV wall
  • 9Outdoor kitchen
  • 10Railing
  • 11Cladding
Back Walls + TV Walls

Turn the patio into an outdoor room.

Explore Cladding Systems →

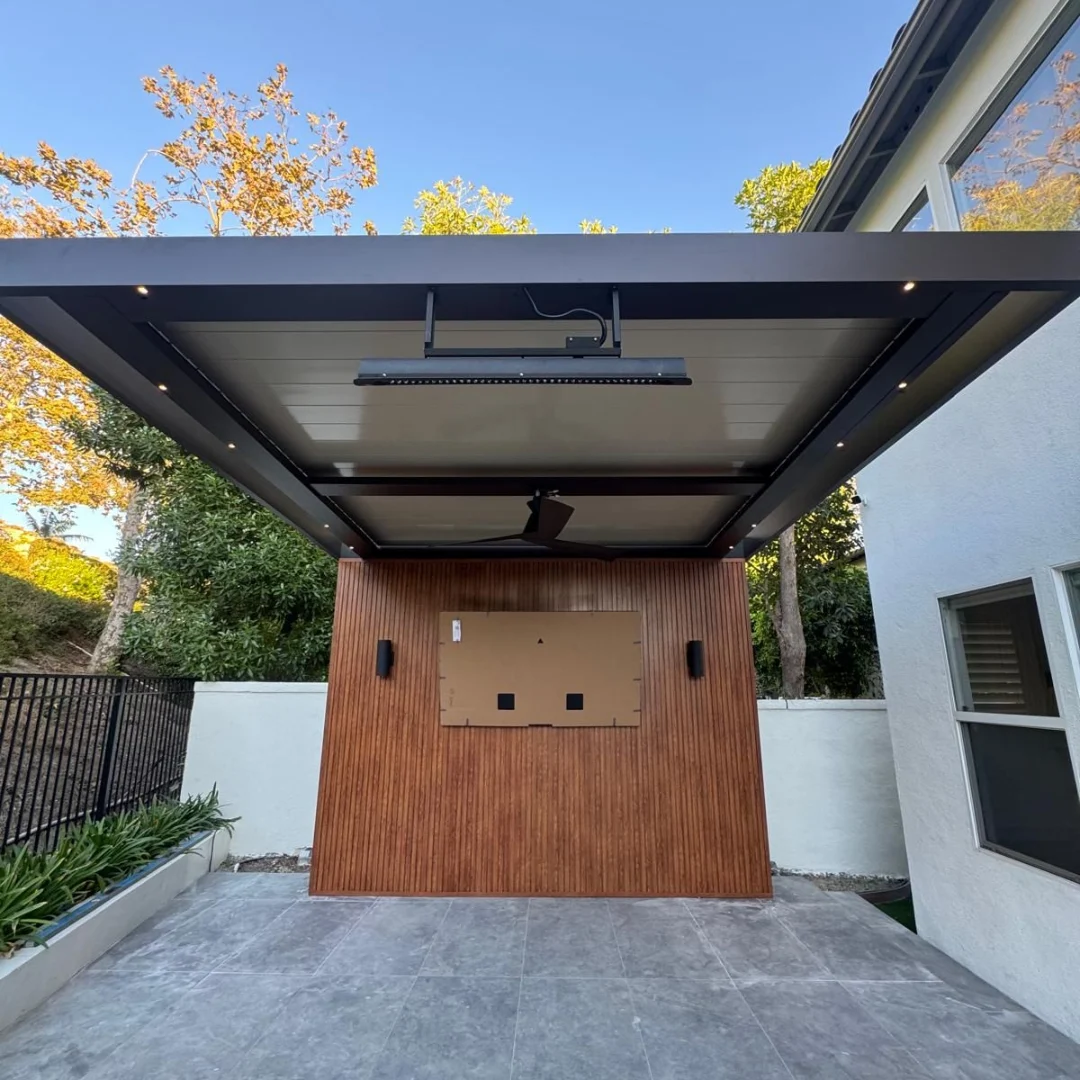

Luxury aluminum patio with glazing and an entertainment-ready media wall

TV Wall

Architectural aluminum wall designed to create a clean focal point.

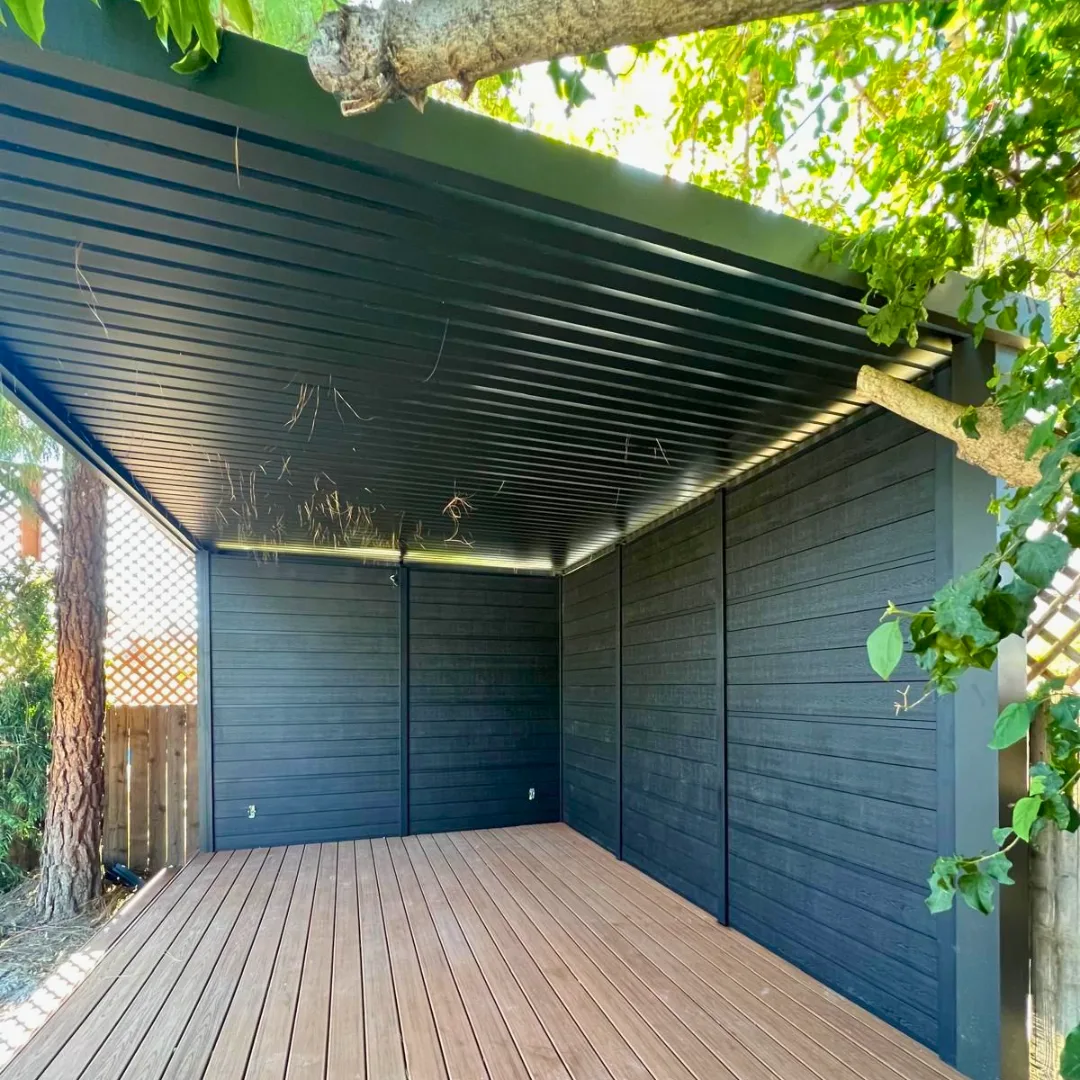

Aluminum slat cladding

Privacy Wall

Aluminum slat and cladding systems to increase privacy.

Laser-cut aluminum feature panel

Feature Wall

Wood-look aluminum or architectural finishes.

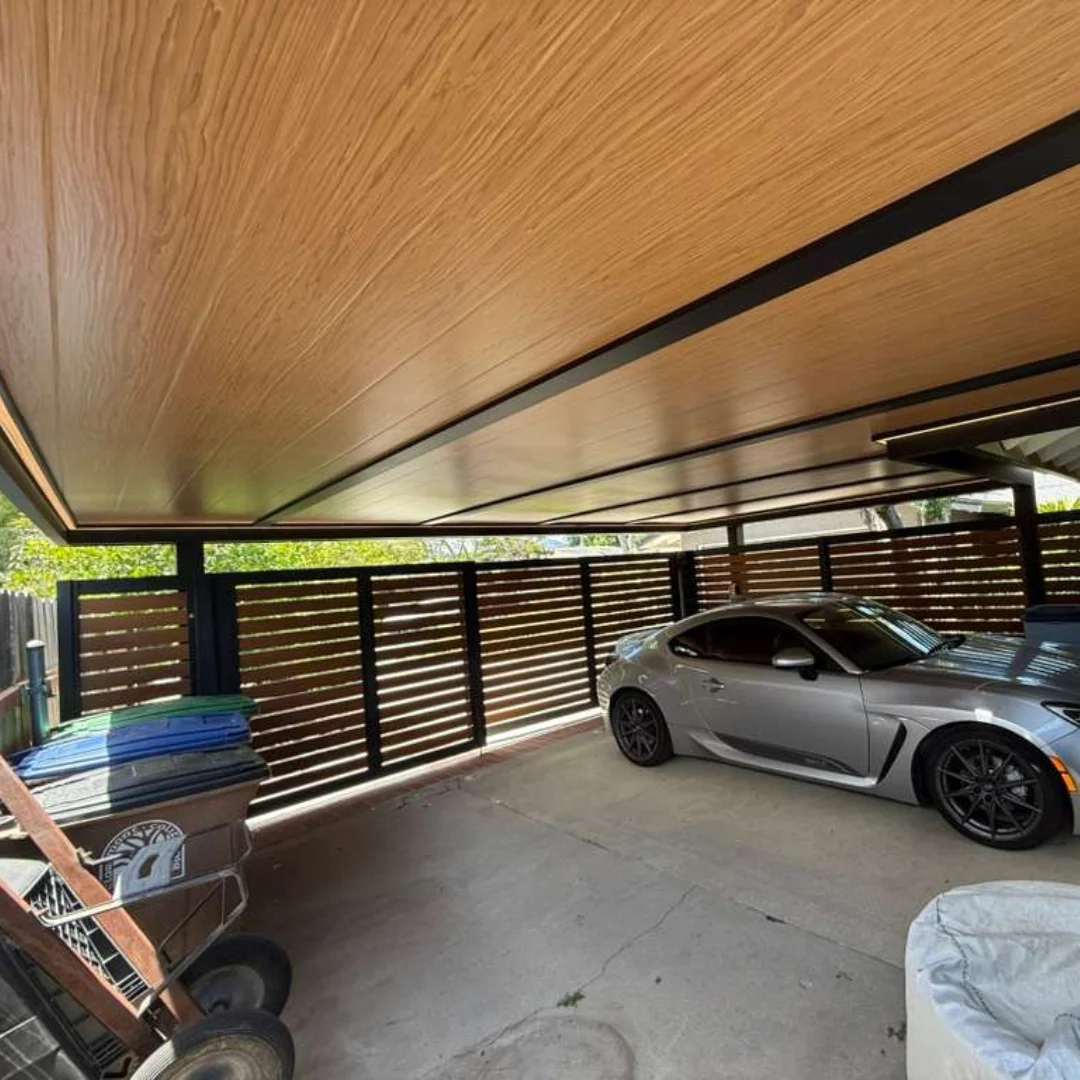

Modern home with coordinated aluminum patio and railing systems

Equipment Wall

Can help conceal utilities or equipment where appropriate.

Weather-adaptive architectural aluminum louver patio
Screens + Enclosures

Open when you want it.
Protected when you need it.

Motorized screensSun controlWind reductionInsect protectionPrivacyPartial enclosures
🌀

Ceiling Fans

Fan positions planned into the beam layout.

🔥

Infrared Heaters

Extend the season into cool evenings.

💡

Lighting

Strips, recessed and accent lighting.

▦

Screens

Motorized and other screen solutions.

📶

Smart Controls

Remote, zones and rain sensor options.

⚡

Electrical Prep

Routing planned before production.

Compatibility and installation requirements vary by application, configuration and local electrical requirements.

Factory-Direct

See where your system comes from.

We show the material, extrusions, fabrication and finishing process because customers, contractors, architects and designers should know what is behind the finished system.

Aluglobus factory and patio system video▶Extrusion · Fabrication · Finishing
Structural-grade aluminum extrusion profile in close detail▶Structural-Grade Extrusions
Finish and accessories video▶Finish & Accessories
Contractor support for an aluminum louver component▶Contractor Support
Factory-Direct
Architectural Extrusions
Custom Fabrication
Quality Control
Powder Coating + Finishes

Built for the outside. Finished like architecture.

Textured Black
White
Architectural Gray
Wood-Look
RAL / Custom
7-Stage PretreatmentPrep that makes the finish last
AAMA 2604Super-durable powder coating
Tiger / CardinalPremium powder options
Custom ColorMatched to the architecture
Dark powder-coated eight-inch louver blades beneath a modern aluminum patio roof
Tiger powder coatingsCardinal paint
Real Projects

Built around real properties.

Automatic aluminum louver patio cover over an outdoor kitchen and barbecue island in Corona, California Corona, CA

Outdoor Kitchen Louver Patio

Configuration
Cantilevered
Color
Black
System
Automatic Louver
LED lightingCeiling fanOutdoor kitchen
Black wall-mounted automatic louver patio cover with integrated LED perimeter lighting in Burbank, California Burbank, CA

Wall-Mounted Louver Patio

Configuration
Wall-Mounted
Color
Black
System
Automatic Louver
LED strip lightingRecessed downlightsConcealed drainage
View All Patio Projects

Don't just take it from us.

4.9Google rating
100+ reviews
★★★★★
"We use Aluglobus 100% with every job we have. As a contractor I can say they are working very hard and their product is the highest quality I can find at the best price."
V
Valley One Gates & AccessContractor · Google Review
Customer project video▶Project Review
For the Trade

Built for the people who specify it, order it and install it.

Join Contractor Program
🛠

Contractors

  • Factory-direct supply
  • Technical support
  • Drawings
  • Installation guidance
  • Contractor pricing
📐

Architects + Designers

  • Extrusion information
  • Finish options
  • Custom configurations
  • CAD / technical resources
  • Engineering coordination
🏢

Developers

  • Repeatable systems
  • Project coordination
  • Custom production
  • Larger-scale supply
How It Works

From drawings to delivery.

01

Send the Project

Dimensions, plans, photos or architectural drawings.

02

System Design

We determine structure, roof zones, beams, posts and accessories.

03

Engineering

Where required, project-specific structural engineering can be coordinated.

04

Production

Extrusions are cut, fabricated, finished and prepared.

05

Delivery

The system ships to the project.

06

Installation

By contractor, authorized partner or project team, depending on location.

Which system is right for you?

Architectural Automatic Louver

Choose this if you need:

  • Custom dimensions
  • Custom layout
  • Structural flexibility
  • Architectural integration
  • Cantilever options
  • Large projects
  • Engineering
  • Premium accessories
Get Architectural Quote
Fixed Kit

Choose this if:

  • Dimensions fit a standard kit
  • Simple configuration is acceptable
  • Engineering flexibility is not required
  • Budget and simplicity are the priority
View Patio Kits

Frequently Asked Questions

Is this a pergola kit?
No. This is our architectural automatic louver system. The structure is configured around the project rather than forcing the project into predetermined kit dimensions.
How does it compare to a fixed pergola kit?
Fixed KitAluglobus Architectural
DimensionsPredetermined sizesCustom, project-specific
StructureLimited options6", 7", 8" posts · 2"×8" / 2"×10" beams
LayoutsLimited configurationsFreestanding, wall-mounted, cantilever, multi-zone, custom
EngineeringDesigned around kit sizesProject-specific engineering available
Louver bladeVaries8" 6005-T6 extruded aluminum, 30-yr warranty
FinishStandard colors7-stage pretreatment, AAMA 2604, custom color
Can the patio be custom sized?
Yes. Dimensions, beam layouts, roof zones and support conditions can be configured around the project, subject to structural requirements and engineering.
Is this available nationwide?
Yes. Aluglobus can supply systems nationwide, with installation availability depending on the project location.
Can it be wall-mounted or freestanding?
Yes, both. Wall-mounted designs connect structurally with the building; freestanding designs use four or more posts.
Can the system cantilever?
Cantilever configurations are available where project conditions and engineering allow.
Can you add lighting?
Yes. LED strips, recessed lighting and custom lighting arrangements can be incorporated into the design.
Can I add fans or heaters?
Yes, depending on the configuration and electrical / structural requirements.
Can screens be added?
Motorized and other screen solutions can be incorporated into many configurations.
What aluminum is used?
The architectural system uses structural extruded aluminum, including 6063-T6, 6061-T6 and 6005-T6 depending on the component.
What material is the louver blade?
The automatic louver blade uses 6005-T6 aluminum and carries a 30-year blade warranty. The system carries a 25-year limited warranty. Terms and exclusions apply.
How does rain drainage work?
When closed, the louver roof directs water toward an integrated gutter and drainage system, then down through downspouts or post drainage.
Is engineering available?
Yes. Project-specific engineering can be provided or coordinated depending on location and project requirements.
What do you need from me to quote?
Dimensions, plans, photos or architectural drawings. Even a rough sketch with measurements is enough to start.
Who installs it?
Installation is by contractor, authorized partner or project team depending on location. Contractors receive drawings and installation guidance.

Real customers. Real projects.

★★★★★4.9 on Google · 1,000+ active contractors nationwide
★★★★★

"Extremely helpful with my order, answering all my questions and delivering everything to Texas in perfect condition. Well-packed in a solid wood crate, and excellent quality."

J
Jim MonahanGoogle Review
★★★★★

"As a contractor I can say they are working very hard and their product is the highest quality I can find at the best price. Our experience working with them is always top notch."

V
Valley One Gates & AccessContractor
★★★★★

"I have had 2 projects done. So happy with the finished work! Even my neighbors have knocked on my door to ask who did the work."

S
Suzi FisherGoogle Review
★★★★★

"High standards, clean work, and a premium finish. Exactly what you want when you're upgrading a property."

D
Daymond JohnCEO, Entrepreneur & Investor
Read All Reviews →
Start Your Project

Don't start with a kit size.
Start with your project.

Send us your dimensions, plans, photos or architectural drawings. We'll help configure the Aluglobus Automatic Louver System around the space.

📞 (888) 876-3006 ✉️ office@aluglobusfence.com 💬 WhatsApp 1 (424) 522-2143

Start My Patio Design

Tell us about the space. We will configure the system around it.

10% off Premium Aluminum Woodgrain Collection

Limited Promotional Inventory

CONTRACTORS ONLY

Claim Your 10% Off

Send us your information and our team will help you check available woodgrain colors, profiles and current promotional inventory.

Valid on qualifying projects only. Minimum project value required. Restrictions may apply.

Aluglobus Aluminum Systems (White)

Wholesale buyers get $150 OFF their order for a limited time.

Factory-direct pricing. Contractor-ready systems. Limited-time promo.

No stacking with other discounts.

Tb-icon-calling Envelope Whatsapp Instagram Facebook Youtube

Request a call

Just leave a request and we will provide you with professional advice.

Leave your request

Leave a request and we will contact you within 15 minutes.
